Сигнальные реле, до 2 А
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип крепления | Напряжение катушки | Форма контакта | Номинал контакта (ток) | Напряжение переключения | Нагрузка - макс. переключение | Ток катушки | Тип катушки | Особенности | Тип вывода | Номинал уплотнения | Изоляция катушки | Необходимое рабочее напряжение | Необходимое отпускающее напряжение | Время срабатывания | Время отпускания | Рабочая температура | Материал контакта | Сертифицирующее агентство | Тип реле | Марка | Квалификация |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2900311RELAY GEN PURPOSE SPDT 50MA 230V |
10 |
|
Технический лист |
PLC-RPT | Bulk | Active | DIN Rail | 230VAC/DC | SPDT (1 Form C) | 50 mA | 30VAC, 36VDC - Max | - | 3.2 mA | Non Latching | Lighted Indicator, Socket Included | Spring Terminal | - | - | - | - | 7 ms | 15 ms | -40°C ~ 60°C | Silver Tin Oxide (AgSnO), Gold (Au) | cULus, DNV, EAC, UL | General Purpose | - | - |
|
2980034RELAY GEN PURPOSE SPDT 50MA 125V |
8 |
|
Технический лист |
PLC-RSC | Bulk | Active | DIN Rail | 125VDC | SPDT (1 Form C) | 50 mA | 30VAC, 36VDC - Max | - | 3 mA | Non Latching | Lighted Indicator, Socket Included | Screw Terminal | - | - | - | - | - | - | -25°C ~ 60°C | Silver (Ag), Gold (Au) | cULus, DNV, EAC, UL | General Purpose | - | - |
|
|
2910507RELAY GEN PURPOSE DPDT 50MA 24V |
8 |
|
Технический лист |
PLC-RSC | Bulk | Active | DIN Rail | 24VDC | DPDT (2 Form C) | 50 mA | 30VAC, 36VDC - Max | - | 18 mA | Non Latching | Diode, Lighted Indicator, Socket Included | Screw Terminal | - | - | 20.2 VDC | - | 10 ms | 10 ms | -20°C ~ 60°C | Silver Nickel (AgNi), Gold (Au) | cULus, DNV, EAC, UL | General Purpose | - | - |
|
2900342RELAY GEN PURPOSE DPDT 50MA 120V |
26 |
|
Технический лист |
PLC-RPT | Bulk | Active | DIN Rail | 120VAC/DC | DPDT (2 Form C) | 50 mA | 30VAC, 36VDC - Max | - | 4.5 mA | Non Latching | Lighted Indicator | Screw Terminal | - | - | - | - | 7 ms | 10 ms | -40°C ~ 60°C | Silver Nickel (AgNi), Gold (Au) | cULus, DNV, EAC, UL | General Purpose | - | - |
|
|
2900321RELAY GEN PURPOSE SPDT 50MA 24V |
16 |
|
Технический лист |
PLC-RPT | Bulk | Active | DIN Rail | 24VDC | SPDT (1 Form C) | 50 mA | 30VAC, 36VDC - Max | - | 9 mA | Non Latching | Diode, Lighted Indicator, Socket Included | Spring Terminal | - | - | - | - | 4 ms | 4 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO), Gold (Au) | cULus, DNV, EAC, UL | General Purpose | - | - |
|

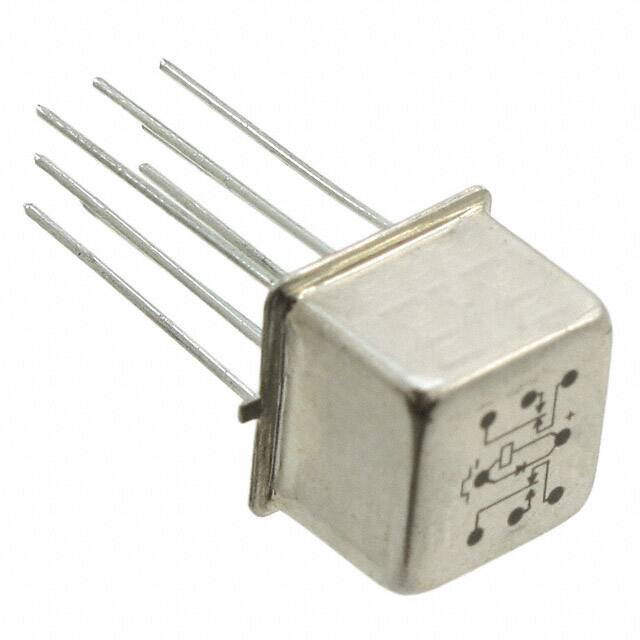

JMGACD-12MWRELAY GEN PURPOSE DPDT 1A 12V |
0 |
|
Технический лист |
MGA, CII | Bulk | Active | Through Hole | 12VDC | DPDT (2 Form C) | 1 A | 28VDC - Nom | - | 30.7 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 7 VDC | 0.63 VDC | 2 ms | 4 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | - | General Purpose | Military | MIL-R-39016/18 |
|
|
2900349RELAY GEN PURPOSE DPDT 50MA 24V |
10 |
|
Технический лист |
PLC-RPT | Bulk | Active | DIN Rail | 24VDC | DPDT (2 Form C) | 50 mA | 30VAC, 36VDC - Max | - | 20 mA | Non Latching | Diode, Lighted Indicator, Socket Included | Screw Terminal | - | - | - | - | 5 ms | 11 ms | -40°C ~ 70°C | Silver Nickel (AgNi), Gold (Au) | cULus, DNV, EAC, UL | General Purpose | - | - |
|

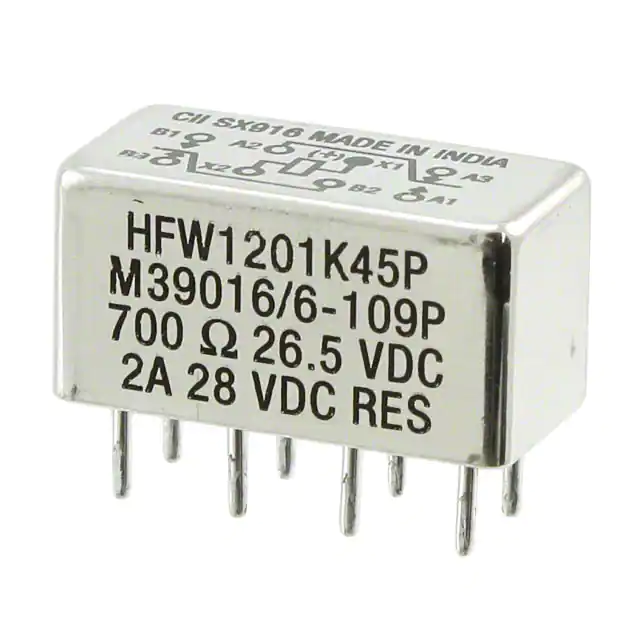

HFW1201K45PRELAY GEN PURPOSE DPDT 2A 26.5V |
0 |
|
Технический лист |
HFW, CII | Bulk | Active | Through Hole | 26.5VDC | DPDT (2 Form C) | 2 A | 28VDC - Nom | - | 37.9 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 13.5 VDC | 1.5 VDC | 4 ms | 4 ms | -65°C ~ 125°C | - | - | General Purpose | Military | MIL-R-39016/6 |
|
|
JMSWD-5XLRELAY GENERAL PURPOSE DPDT 1A 5V |
0 |
|
Технический лист |
MSD, CII | Bulk | Active | Through Hole | 5VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 50 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 2.6 VDC | 0.23 VDC | 4 ms | 7.5 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | - | General Purpose | Military | MIL-R-39016/16 |
|
|
SMGSD-12RELAY GEN PURPOSE DPDT 1A 12V |
20 |
|
Технический лист |
SMGSD, CII | Bulk | Active | Surface Mount | 12VDC | DPDT (2 Form C) | 1 A | - | - | 15 mA | Non Latching | - | Gull Wing | Sealed - Hermetically | - | 7 VDC | 0.64 VDC | 4 ms | 7.5 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | - | General Purpose | - | - |
|
|
SMGSD-18RELAY GEN PURPOSE DPDT 1A 18V |
10 |
|
- |
SMGSD, CII | Bulk | Active | Surface Mount | 18VDC | DPDT (2 Form C) | 1 A | - | - | 11.3 mA | Non Latching | - | Gull Wing | Sealed - Hermetically | - | 9.8 VDC | 0.92 VDC | 4 ms | 7.5 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | - | General Purpose | - | - |
|
|
1312010000RELAY GEN PURPOSE SPDT 100MA 24V |
3 |
|
Технический лист |
RSM | Box | Active | DIN Rail | 24VDC | SPDT (1 Form C) x 16 | 100 mA | 24VDC - Max | - | 13 mA | Non Latching | Lighted Indicator | Spring Terminal | - | - | - | - | - | - | -20°C ~ 50°C | Silver Nickel (AgNi), Gold (Au) | CE | General Purpose | - | - |
|
G5V-2-H-DC3RELAY GENERAL PURPOSE DPDT 2A 3V |
0 |
|
Технический лист |
G5V-2 | Bulk | Active | Through Hole | 3VDC | DPDT (2 Form C) | 2 A | 125VAC, 125VDC - Max | - | 120 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 2.25 VDC | 0.15 VDC | 7 ms | 3 ms | -25°C ~ 65°C | Silver (Ag), Gold (Au) | CSA, UR | General Purpose | - | - |
|
TX2-L-9VRELAY TELECOM DPDT 2A 9V |
27 |
|
Технический лист |
TX | Tube | Active | Through Hole | 9VDC | DPDT (2 Form C) | 2 A | 220VDC - Max | 440VA | 11.1 mA | Latching, Single Coil | - | PC Pin | Sealed - Fully | - | 6.75 VDC | - | 4 ms | 4 ms | -40°C ~ 85°C | Silver (Ag), Gold (Au) | BSI, cURus | Telecom | - | - |
|
C93430RELAY TELECOM DPDT 2A 48V |
0 |
|
Технический лист |
MT2, AXICOM | Tube | Obsolete | Through Hole | 48VDC | DPDT (2 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 11.5 mA | Non Latching | - | PC Pin | - | - | 31.2 VDC | 4.8 VDC | 5 ms | 3 ms | -55°C ~ 85°C | Silver Nickel (AgNi), Gold (Au) | cURus | Telecom | - | - |
|
HY1-1.5VRELAY TELECOM SPDT 1A 1.5V |
42 |
|
Технический лист |
HY | Tube | Obsolete | Through Hole | 1.5VDC | SPDT (1 Form C) | 1 A | 60VDC - Max | 60W | 100 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 1.13 VDC | 0.15 VDC | 5 ms | 4 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | CSA, UR | Telecom | - | - |
|
AGN2601HRELAY TELECOM DPDT 1A 1.5V |
27 |
|
Технический лист |
AGN | Tube | Active | Through Hole | 1.5VDC | DPDT (2 Form C) | 1 A | 125VAC, 110VDC - Max | 125VA, 110W | 66.7 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 1.2 VDC | 0.15 VDC | 4 ms | 4 ms | -40°C ~ 70°C | Silver Palladium (AgPd), Gold (Au) | BSI, cURus | Telecom | - | - |
|
|
TX2-L2-24V-THRELAY GEN PURPOSE DPDT 2A 24V |
40 |
|
Технический лист |
TX-TH | Bulk | Active | Through Hole | 24VDC | DPDT (2 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 5.8 mA | Latching, Dual Coil | - | PC Pin | Sealed - Fully | - | 18 VDC | - | 4 ms | 4 ms | -40°C ~ 85°C | Silver (Ag), Gold (Au) | BSI, cURus | General Purpose | - | - |
|
AGN260A4HRELAY TELECOM DPDT 1A 4.5V |
50 |
|
Технический лист |
AGN | Tube | Active | Surface Mount | 4.5VDC | DPDT (2 Form C) | 1 A | 125VAC, 110VDC - Max | 125VA, 110W | 22.2 mA | Non Latching | - | Gull Wing | Sealed - Fully | - | 3.6 VDC | 0.45 VDC | 4 ms | 4 ms | -40°C ~ 70°C | Silver Palladium (AgPd), Gold (Au) | BSI, cURus | Telecom | - | - |
|
G6EK-134P-ST-US DC1.5RELAY GEN PURPOSE SPDT 2A 1.5V |
44 |
|
Технический лист |
G6E | Tube | Active | Through Hole | 1.5VDC | SPDT (1 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 133 mA | Latching, Dual Coil | - | PC Pin | Sealed - Fully | - | 1.05 VDC | - | 5 ms | 5 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | CSA, UR | General Purpose | - | - |
