Сигнальные реле, до 2 А
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип крепления | Напряжение катушки | Форма контакта | Номинал контакта (ток) | Напряжение переключения | Нагрузка - макс. переключение | Ток катушки | Тип катушки | Особенности | Тип вывода | Номинал уплотнения | Изоляция катушки | Необходимое рабочее напряжение | Необходимое отпускающее напряжение | Время срабатывания | Время отпускания | Рабочая температура | Материал контакта | Сертифицирующее агентство | Тип реле | Марка | Квалификация |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
JMGACD-12PRELAY GEN PURPOSE DPDT 1A 12V |
0 |
|
Технический лист |
MGAD, CII | Bulk | Active | Through Hole | 12VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 30.8 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 7 VDC | 0.63 VDC | 2 ms | 4 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | - | General Purpose | Military | MIL-R-39016/18 |
|
1-1393806-1RELAY GEN PURPOSE DPDT 2A 24V |
30 |
|
Технический лист |
V23154, AXICOM | Tray | Obsolete | Socketable | 24VDC | DPDT (2 Form C) | 2 A | 125VAC, 150VDC - Max | 250VA, 300W | 34.3 mA | Non Latching | - | Plug In | - | - | 11.2 VDC | - | 7.5 ms | 3 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | - | General Purpose | - | - |
|
|
JMSC-26XPRELAY GEN PURPOSE DPDT 1A 26.5V |
0 |
|
Технический лист |
MS, CII | Bulk | Active | Through Hole | 26.5VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 8 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 14 VDC | 1.4 VDC | 4 ms | 2 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | - | General Purpose | Military | MIL-R-39016/11 |
|
|
J1MSCD-12XLRELAY GEN PURPOSE SPDT 1A 12V |
0 |
|
Технический лист |
1MS, CII | Bulk | Active | Through Hole | 12VDC | SPDT (1 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 11.7 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 7 VDC | 0.63 VDC | 4 ms | 7.5 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | - | General Purpose | - | - |
|
|
HS-12BRELAY GEN PURPOSE DPDT 1A 12V |
0 |
|
Технический лист |
HS, CII | Bulk | Active | Through Hole | 12VDC | DPDT (2 Form C) | 1 A | - | - | 14.1 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 9 VDC | - | 6 ms | 7.5 ms | -55°C ~ 85°C | Silver Palladium (AgPd), Gold (Au) | - | General Purpose | - | - |
|
|
JMGACDG-12LWRELAY GEN PURPOSE DPDT 1A 12V |
0 |
|
Технический лист |
MGAD, CII | Bulk | Active | Through Hole | 12VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 30.8 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 7 VDC | 0.63 VDC | 2 ms | 4 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | - | General Purpose | Military | MIL-R-39016/18 |
|
|
JMAPD-26XMRELAY GEN PURPOSE DPDT 1A 26.5V |
50 |
|
Технический лист |
MAD, CII | Bulk | Active | Through Hole | 26.5VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 17 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 14.2 VDC | 1.37 VDC | 2 ms | 4 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | - | General Purpose | Military | MIL-R-39016/15 |
|
|
2-1617351-7RELAY GENERAL PURPOSE SPDT 1A 6V |
0 |
|
Технический лист |
1MS, CII | Bulk | Active | Through Hole | 6VDC | SPDT (1 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 23.5 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 3.5 VDC | 0.28 VDC | 4 ms | 7.5 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | - | General Purpose | - | - |
|
|
1617120-2RELAY GEN PURPOSE SPDT 1A 12V |
0 |
|
Технический лист |
1MS, CII | Bulk | Active | Through Hole | 12VDC | SPDT (1 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 11.7 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 7 VDC | 0.63 VDC | 4 ms | 2.5 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | - | General Purpose | Military | MIL-R-39016/10 |
|
JMGSPD-26PRELAY GEN PURPOSE DPDT 1A 26.5V |
0 |
|
Технический лист |
MGSD, CII | Bulk | Active | Through Hole | 26.5VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 8.3 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 14 VDC | 1.4 VDC | 4 ms | 7.5 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | - | General Purpose | Military | MIL-R-39016/42 |
|
8-1617351-4RELAY GEN PURPOSE SPDT 1A 18V |
33 |
|
Технический лист |
1MSCDD | Box | Active | Through Hole | 18VDC | SPDT (1 Form C) | 1 A | 115VAC, 28VDC - Max | - | 7.8 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 8 VDC | 1.1 VDC | 2 ms | 4 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | - | General Purpose | - | - |
|
R10S-E2Z1-J16.0KRELAY GENERAL PURPOSE SPDT 2A |
0 |
|
Технический лист |
R10 | Bulk | Active | Through Hole | - | SPDT (1 Form C) | 2 A | 120VAC, 30VDC - Max | 240VA, 60W | - | Non Latching | - | PC Pin | - | - | - | - | - | - | -55°C ~ 75°C | Silver (Ag) | CSA, UR | General Purpose | - | - |
|
|
JMAWDG-18XPRELAY GEN PURPOSE DPDT 1A 18V |
0 |
|
Технический лист |
MAD, CII | Bulk | Active | Through Hole | 18VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 20.5 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 10.5 VDC | 0.91 VDC | 2 ms | 4 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | - | General Purpose | Military | MIL-R-39016/15 |
|
6-1393808-5RELAY GEN PURPOSE 4PDT 2A 20V |
50 |
|
Технический лист |
V23154, AXICOM | Bulk | Obsolete | Socketable | 20VDC | 4PDT (4 Form C) | 2 A | 125VAC, 150VDC - Max | 250VA, 300W | 36.3 mA | Non Latching | - | Plug In | - | - | 11.9 VDC | - | 7.5 ms | 3 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | - | General Purpose | - | - |
|
|
R10-E2Z2-J1.0KRELAY GEN PURPOSE DPDT 2A 12V |
0 |
|
Технический лист |
R10 | Bulk | Active | Through Hole | 12VDC | DPDT (2 Form C) | 2 A | 120VAC, 30VDC - Max | 240VA, 60W | 45 mA | Non Latching | - | PC Pin | - | - | 8.5 VDC | - | - | - | -55°C ~ 75°C | Silver (Ag) | CSA, UR | General Purpose | - | - |
|
|
JMGACDD-12PRELAY GEN PURPOSE DPDT 1A 12V |
0 |
|
Технический лист |
MGADD, CII | Bulk | Active | Through Hole | 12VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 32.8 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 8 VDC | 1.1 VDC | 2 ms | 4 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | - | General Purpose | Military | MIL-R-39016/19 |
|

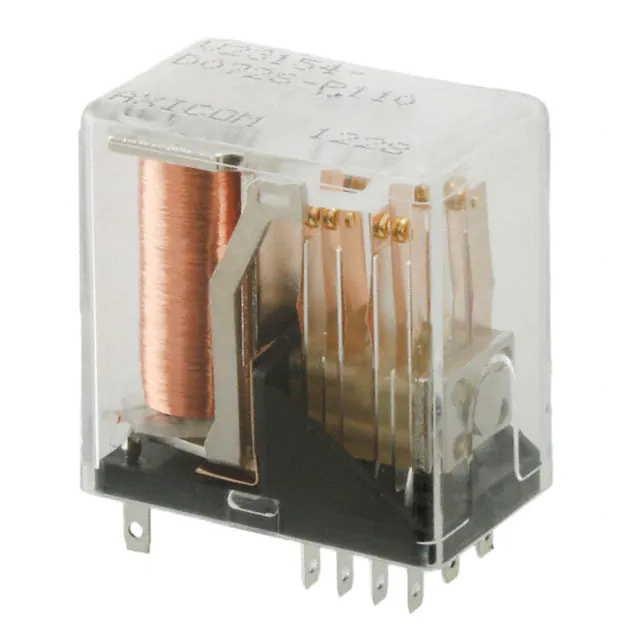

3-1393809-2RELAY GEN PURPOSE 4PDT 2A 48V |
10 |
|
Технический лист |
V23154, AXICOM | Bulk | Obsolete | Socketable | 48VDC | 4PDT (4 Form C) | 2 A | 125VAC, 150VDC - Max | 250VA, 300W | 15 mA | Non Latching | - | Plug In | - | - | 30 VDC | - | 7.5 ms | 3 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | - | General Purpose | - | - |
|
JMACDD-26XPRELAY GEN PURPOSE DPDT 1A 26.5V |
0 |
|
Технический лист |
MADD, CII | Bulk | Active | Through Hole | 26.5VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 18.5 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 15.2 VDC | 1.8 VDC | 2 ms | 4 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | - | General Purpose | Military | MIL-R-39016/20 |
|
3-1393807-7RELAY GEN PURPOSE 4PDT 2A 24V |
48 |
|
Технический лист |
V23154, AXICOM | Bulk | Obsolete | Socketable | 24VDC | 4PDT (4 Form C) | 2 A | 125VAC, 150VDC - Max | 250VA, 300W | 34.3 mA | Non Latching | - | Plug In | - | - | 15 VDC | - | 7.5 ms | 3 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | - | General Purpose | - | - |
|
|
JMSCD-18XPRELAY GEN PURPOSE DPDT 1A 18V |
0 |
|
Технический лист |
MSD, CII | Bulk | Active | Through Hole | 18VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 11.3 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 9.8 VDC | 0.92 VDC | 4 ms | 7.5 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | - | General Purpose | Military | MIL-R-39016/16 |
