Сигнальные реле, до 2 А
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип крепления | Напряжение катушки | Форма контакта | Номинал контакта (ток) | Напряжение переключения | Нагрузка - макс. переключение | Ток катушки | Тип катушки | Особенности | Тип вывода | Номинал уплотнения | Изоляция катушки | Необходимое рабочее напряжение | Необходимое отпускающее напряжение | Время срабатывания | Время отпускания | Рабочая температура | Материал контакта | Сертифицирующее агентство | Тип реле | Марка | Квалификация |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NFD20024General Purpose Relays DPST 25A |
110 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
PRMAC-26YRELAY GEN PURPOSE DPDT 1A 26.5V |
0 |
|
Технический лист |
PRMAC | Bulk | Discontinued | Through Hole | 26.5VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 17 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 14.2 VDC | 1.37 VDC | 2 ms | 1.5 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | - | General Purpose | - | - |
|
KHAU-17D16-12RELAY GEN PURPOSE 4PDT 1A 12V |
170 |
|
Технический лист |
KHA | Tray | Obsolete | Socketable | 12VDC | 4PDT (4 Form C) | 1 A | 240VAC - Max | 240VA | 75 mA | Non Latching | - | Plug In | - | Class B | 9 VDC | - | 13 ms | 6 ms | -45°C ~ 70°C | Silver (Ag), Gold (Au) | CSA, UR | General Purpose | - | - |
|
|
PRMGSC-18XWRELAY GEN PURPOSE DPDT 1A 18V |
0 |
|
Технический лист |
MGS, CII | Bulk | Active | Through Hole | 18VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 11.3 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 9.8 VDC | 0.92 VDC | 4 ms | 2 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | - | General Purpose | - | - |
|
R10-E2Z4-V15.0KRELAY GEN PURPOSE 4PDT 2A 115V |
0 |
|
Технический лист |
R10 | Bulk | Active | Through Hole | 115VDC | 4PDT (4 Form C) | 2 A | 120VAC, 30VDC - Max | 240VA, 60W | 7.8 mA | Non Latching | - | PC Pin | - | - | 86 VDC | - | - | - | -55°C ~ 75°C | Silver (Ag) | CSA, UR | General Purpose | - | - |
|
|
MGAP-26RELAY GEN PURPOSE DPDT 1A 26.5V |
0 |
|
Технический лист |
MGA, CII | Bulk | Active | Through Hole | 26.5VDC | DPDT (2 Form C) | 1 A | - | - | 17 mA | Non Latching | - | PC Pin | - | - | 14.2 VDC | 1.37 VDC | 2 ms | 1.5 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | - | General Purpose | - | - |
|
R10-E6Z2-V700RELAY GEN PURPOSE DPDT 2A 24V |
0 |
|
Технический лист |
R10 | Bulk | Active | Socketable | 24VDC | DPDT (2 Form C) | 2 A | 120VAC, 30VDC - Max | 240VA, 60W | 34.3 mA | Non Latching | - | Plug In | - | - | 18 VDC | - | - | - | -55°C ~ 75°C | Silver (Ag) | CSA, UR | General Purpose | - | - |
|

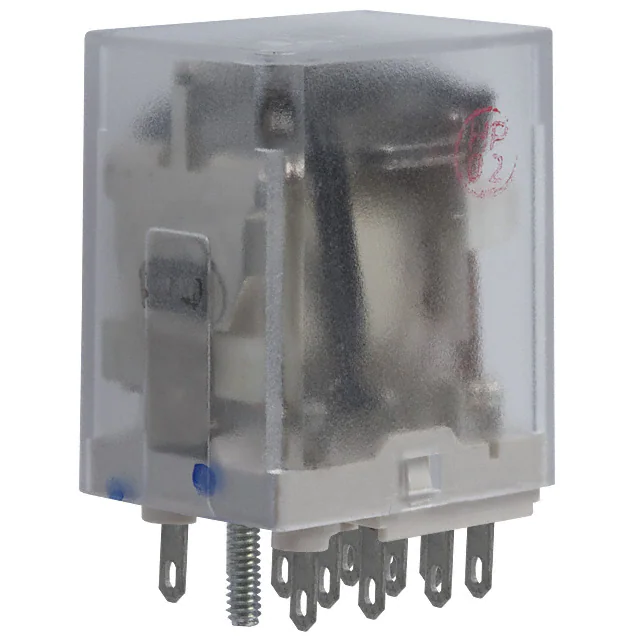

KHU-17D16-24RELAY GEN PURPOSE 4PDT 1A 24V |
186 |
|
Технический лист |
KHU | Bulk | Obsolete | Socketable | 24VDC | 4PDT (4 Form C) | 1 A | 240VAC - Max | 240VA | 35.4 mA | Non Latching | - | Plug In | - | Class B | 18 VDC | - | 13 ms | 6 ms | -45°C ~ 70°C | Silver (Ag), Gold (Au) | CSA, UR | General Purpose | - | - |
|
|
MAC-9WRELAY GENERAL PURPOSE DPDT 1A 9V |
0 |
|
Технический лист |
MAC | Bulk | Active | Through Hole | 9VDC | DPDT (2 Form C) | 1 A | 28VDC - Max | 28W | 40.9 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 5.3 VDC | 0.54 VDC | 1.5 ms | 4 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | - | General Purpose | - | - |
|
1-1393768-0RELAY GEN PURPOSE DPDT 2A 24V |
34 |
|
Технический лист |
R10 | Box | Active | Socketable | 24VDC | DPDT (2 Form C) | 2 A | 120VAC, 30VDC - Max | - | 34.3 mA | Non Latching | - | Plug In | - | - | 18 VDC | - | - | - | -55°C ~ 75°C | Silver (Ag) | - | General Purpose | - | - |
|
|
KHAE-11D16-24RELAY GEN PURPOSE DPDT 1A 24V |
0 |
|
Технический лист |
KHA | Bulk | Obsolete | Socketable | 24VDC | DPDT (2 Form C) | 1 A | 240VAC - Max | 240VA | 36.9 mA | Non Latching | - | Plug In | - | Class B | 18 VDC | - | 13 ms | 6 ms | -45°C ~ 70°C | Silver (Ag) | CSA, UR | General Purpose | - | - |
|
|
R10-E1Z2-V2.5KRELAY GEN PURPOSE DPDT 2A 48V |
0 |
|
Технический лист |
R10 | Bulk | Active | Socketable | 48VDC | DPDT (2 Form C) | 2 A | 120VAC, 30VDC - Max | 240VA, 60W | 19.2 mA | Non Latching | - | Plug In | - | - | 36 VDC | - | - | - | -55°C ~ 75°C | Silver (Ag) | CSA, UR | General Purpose | - | - |
|
|
JMGAP-26MRELAY GEN PURPOSE DPDT 1A 26.5V |
0 |
|
Технический лист |
MGA, CII | Bulk | Active | Through Hole | 26.5VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 17 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 14.2 VDC | 1.37 VDC | 2 ms | 1.5 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | - | General Purpose | Military | MIL-R-39016/17 |
|
|
R10-E1Z2-V15.0KRELAY GEN PURPOSE DPDT 2A 115V |
0 |
|
Технический лист |
R10 | Bulk | Active | Socketable | 115VDC | DPDT (2 Form C) | 2 A | 120VAC, 30VDC - Max | 240VA, 60W | - | Non Latching | - | Plug In | - | - | 86 VDC | - | - | - | -55°C ~ 75°C | Silver (Ag) | CSA, UR | General Purpose | - | - |
|
|
HM-26BRELAY GEN PURPOSE DPDT 1A 26.5V |
50 |
|
Технический лист |
HM, CII | Bulk | Active | Through Hole | 26.5VDC | DPDT (2 Form C) | 1 A | - | - | 17 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 17 VDC | - | 4 ms | 3 ms | -55°C ~ 85°C | Silver Palladium (AgPd), Gold (Au) | - | General Purpose | - | - |
|
|
JMGAP-5LRELAY GENERAL PURPOSE DPDT 1A 5V |
0 |
|
Технический лист |
MGA, CII | Bulk | Active | Through Hole | 5VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 100 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 2.7 VDC | 0.22 VDC | 2 ms | 1.5 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | - | General Purpose | Military | MIL-R-39016/17 |
|
4-1617352-4RELAY GENERAL PURPOSE DPDT 1A 5V |
119 |
|
Технический лист |
MGAP | Box | Active | Through Hole | 5VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | - | 100 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 2.6 VDC | 0.22 VDC | 3.5 ms | 7.5 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | - | General Purpose | - | - |
|
|
JMGAPD-12MRELAY GEN PURPOSE DPDT 1A 12V |
0 |
|
Технический лист |
MGAD, CII | Bulk | Active | Through Hole | 12VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 30.8 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 7 VDC | 0.63 VDC | 2 ms | 4 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | - | General Purpose | Military | MIL-R-39016/18 |
|
|
8-1617542-7RELAY GENERAL PURPOSE DPDT 1A 6V |
0 |
|
Технический лист |
MGA, CII | Bulk | Active | Through Hole | 6VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 30 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 3.4 VDC | 0.28 VDC | 4 ms | 7.5 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | - | General Purpose | - | - |
|
|
JMAPD-26XLRELAY GEN PURPOSE DPDT 1A 26.5V |
0 |
|
Технический лист |
MAD, CII | Bulk | Active | Through Hole | 26.5VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 17 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 14.2 VDC | 1.37 VDC | 2 ms | 4 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | - | General Purpose | - | - |
