Сигнальные реле, до 2 А
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип крепления | Напряжение катушки | Форма контакта | Номинал контакта (ток) | Напряжение переключения | Нагрузка - макс. переключение | Ток катушки | Тип катушки | Особенности | Тип вывода | Номинал уплотнения | Изоляция катушки | Необходимое рабочее напряжение | Необходимое отпускающее напряжение | Время срабатывания | Время отпускания | Рабочая температура | Материал контакта | Сертифицирующее агентство | Тип реле | Марка | Квалификация |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

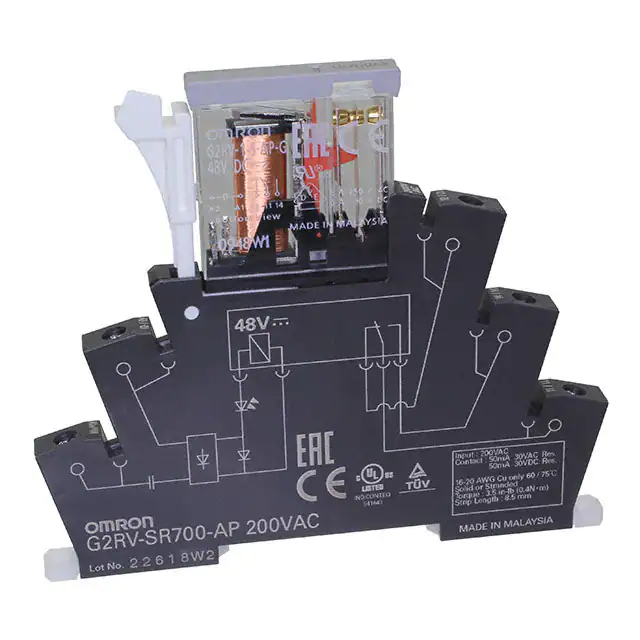

G2RV-SR700-AP AC200RELAY GEN PURP SPDT 50MA 200V |
4 |
|
Технический лист |
G2RV-SR | Bulk | Obsolete | DIN Rail | 200VAC | SPDT (1 Form C) | 50 mA | 30VAC, 36VDC - Max | - | 4.3 mA | Non Latching | Socket Included | Screw Terminal | - | - | 160 VAC | 20 VAC | 20 ms | 40 ms | -40°C ~ 55°C | Silver (Ag), Gold (Au) | CE, cULus, TUV | General Purpose | - | - |
|
1393830-2RELAY |
0 |
|
- |
- | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
RJ22S-CD-D12RELAY GEN PURPOSE DPDT 1A 12V |
0 |
|
- |
RJ | Bulk | Active | Socketable | 12VDC | DPDT (2 Form C) | 1 A | 250VAC, 125VDC - Max | 250VA, 125W | 44.2 mA | Non Latching | Diode | Plug In | - | - | 8.4 VDC | 1.2 VDC | 15 ms | 10 ms | -40°C ~ 70°C | Silver Nickel (AgNi), Gold (Au) | CE, CSA, cURus, VDE | General Purpose | - | - |
|
|
RJ22S-CD-D24RELAY GEN PURPOSE DPDT 1A 24V |
0 |
|
- |
RJ | Bulk | Active | Socketable | 24VDC | DPDT (2 Form C) | 1 A | 250VAC, 125VDC - Max | 250VA, 125W | 22.1 mA | Non Latching | Diode | Plug In | - | - | 16.8 VDC | 2.4 VDC | 15 ms | 10 ms | -40°C ~ 70°C | Silver Nickel (AgNi), Gold (Au) | CE, CSA, cURus, VDE | General Purpose | - | - |
|
|
RJ22S-CD-D5RELAY GEN PURPOSE DPDT 1A 5V |
0 |
|
- |
RJ | Bulk | Active | Socketable | 5VDC | DPDT (2 Form C) | 1 A | 250VAC, 125VDC - Max | 250VA, 125W | 106 mA | Non Latching | Diode | Plug In | - | - | 3.5 VDC | 0.5 VDC | 15 ms | 10 ms | -40°C ~ 70°C | Silver Nickel (AgNi), Gold (Au) | CE, CSA, cURus, VDE | General Purpose | - | - |
|
|
RJ22V-A-A120RELAY GEN PURPOSE DPDT 1A 120V |
0 |
|
- |
RJ | Bulk | Active | Through Hole | 120VAC | DPDT (2 Form C) | 1 A | 250VAC, 125VDC - Max | 250VA, 125W | 7.5 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 96 VAC | 36 VAC | 15 ms | 10 ms | -40°C ~ 70°C | Silver Nickel (AgNi), Gold (Au) | CE, CSA, cURus, VDE | General Purpose | - | - |
|

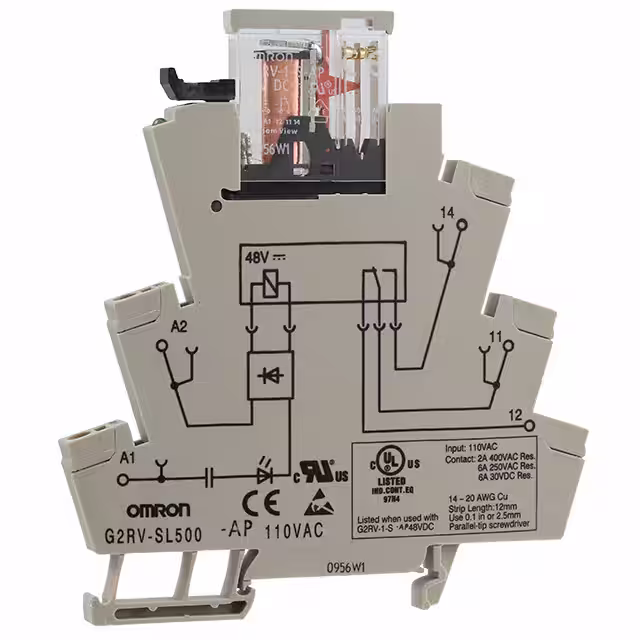

G2RV-SL500-AP AC110RELAY GEN PURP SPDT 50MA 110V |
1 |
|
Технический лист |
G2RV | Bulk | Obsolete | DIN Rail | 110VAC | SPDT (1 Form C) | 50 mA | 30VAC, 36VDC - Max | - | 7.1 mA | Non Latching | Socket Included | Spring Terminal | - | - | 88 VAC | 11 VAC | 20 ms | 40 ms | -40°C ~ 55°C | Silver Tin Indium (AgSnIn), Gold (Au) | CE, cULus, TUV | General Purpose | - | - |
|
|
RJ22S-CD-D48RELAY GEN PURPOSE DPDT 1A 48V |
0 |
|
- |
RJ | Bulk | Active | Socketable | 48VDC | DPDT (2 Form C) | 1 A | 250VAC, 125VDC - Max | 250VA, 125W | 11 mA | Non Latching | Diode | Plug In | - | - | 33.6 VDC | 4.8 VDC | 15 ms | 10 ms | -40°C ~ 70°C | Silver Nickel (AgNi), Gold (Au) | CE, CSA, cURus, VDE | General Purpose | - | - |
|
|
RJ22V-C-A24RELAY GEN PURPOSE DPDT 1A 24V |
0 |
|
- |
RJ | Bulk | Active | Through Hole | 24VAC | DPDT (2 Form C) | 1 A | 250VAC, 30VDC - Max | 250VA, 30W | 37.5 mA | Non Latching | - | PC Pin | - | - | 19.2 VAC | 7.2 VAC | 15 ms | 10 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | CE, CSA, cURus, VDE | General Purpose | - | - |
|
V23026B1101B201RELAY GENERAL PURPOSE SPDT 1A 5V |
0 |
|
Технический лист |
V23026, AXICOM | Tube | Obsolete | Through Hole | 5VDC | SPDT (1 Form C) | 1 A | 150VAC, 125VDC - Max | 150VA, 125W | 12.8 mA | Latching, Dual Coil | - | PC Pin | - | - | 3.75 VDC | - | 2 ms | 2 ms | -40°C ~ 85°C | Palladium Nickel (PdNi), Rhodium (Rh), Gold (Au) | cURus | General Purpose | - | - |
|
|
RJ22V-C-A12RELAY GEN PURPOSE DPDT 1A 12V |
0 |
|
- |
RJ | Bulk | Active | Through Hole | 12VAC | DPDT (2 Form C) | 1 A | 250VAC, 125VDC - Max | 250VA, 125W | 75 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 9.6 VAC | 3.6 VAC | 15 ms | 10 ms | -40°C ~ 70°C | Silver Nickel (AgNi), Gold (Au) | CE, CSA, cURus, VDE | General Purpose | - | - |
|
|
RJ22S-C-A24RELAY GEN PURPOSE DPDT 1A 24V |
0 |
|
- |
RJ | Bulk | Active | Socketable | 24VAC | DPDT (2 Form C) | 1 A | 250VAC, 125VDC - Max | 250VA, 125W | 37.5 mA | Non Latching | - | Plug In | - | - | 19.2 VAC | 7.2 VAC | 15 ms | 10 ms | -40°C ~ 70°C | Silver Nickel (AgNi), Gold (Au) | CE, CSA, cURus, VDE | General Purpose | - | - |
|
|
RJ22S-C-A12RELAY GEN PURPOSE DPDT 1A 12V |
0 |
|
- |
RJ | Bulk | Active | Socketable | 12VAC | DPDT (2 Form C) | 1 A | 250VAC, 125VDC - Max | 250VA, 125W | 75 mA | Non Latching | - | Plug In | - | - | 9.6 VAC | 3.6 VAC | 15 ms | 10 ms | -40°C ~ 70°C | Silver Nickel (AgNi), Gold (Au) | CE, CSA, cURus, VDE | General Purpose | - | - |
|
|
1393830-6RELAY |
0 |
|
- |
- | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
RJ22V-C-A120RELAY GEN PURPOSE DPDT 1A 120V |
0 |
|
- |
RJ | Bulk | Active | Through Hole | 120VAC | DPDT (2 Form C) | 1 A | 250VAC, 125VDC - Max | 250VA, 125W | 7.5 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 96 VAC | 36 VAC | 15 ms | 10 ms | -40°C ~ 70°C | Silver Nickel (AgNi), Gold (Au) | CE, CSA, cURus, VDE | General Purpose | - | - |
|
|
RJ22S-C-D100RELAY GEN PURP DPDT 1A 100-110V |
0 |
|
- |
RJ | Bulk | Active | Socketable | 100 ~ 110VDC | DPDT (2 Form C) | 1 A | 250VAC, 125VDC - Max | 250VA, 125W | 5.3 mA | Non Latching | - | Plug In | - | - | - | - | 15 ms | 10 ms | -40°C ~ 70°C | Silver Nickel (AgNi), Gold (Au) | CE, CSA, cURus, VDE | General Purpose | - | - |
|
|
G2RV-SL500-AP AC230RELAY GEN PURP SPDT 50MA 230V |
0 |
|
Технический лист |
G2RV | Bulk | Obsolete | DIN Rail | 230VAC | SPDT (1 Form C) | 50 mA | 30VAC, 36VDC - Max | - | 7.3 mA | Non Latching | Socket Included | Spring Terminal | - | - | 184 VAC | 23 VAC | 20 ms | 40 ms | -40°C ~ 55°C | Silver Tin Indium (AgSnIn), Gold (Au) | CE, cULus, TUV | General Purpose | - | - |
|
|
RJ22S-CLD-D12RELAY GEN PURPOSE DPDT 1A 12V |
0 |
|
- |
RJ | Bulk | Active | Socketable | 12VDC | DPDT (2 Form C) | 1 A | 250VAC, 30VDC - Max | 250VA, 30W | 48 mA | Non Latching | Diode, Lighted Indicator | Plug In | - | - | 8.4 VDC | 1.2 VDC | 15 ms | 10 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | CE, CSA, cURus, VDE | General Purpose | - | - |
|
|
V23026B1102B201RELAY GEN PURPOSE SPDT 1A 12V |
0 |
|
Технический лист |
V23026, AXICOM | Tube | Obsolete | Through Hole | 12VDC | SPDT (1 Form C) | 1 A | 150VAC, 125VDC - Max | 150VA, 125W | 8 mA | Latching, Dual Coil | - | PC Pin | - | - | 9 VDC | - | 2 ms | 2 ms | -40°C ~ 85°C | Palladium Nickel (PdNi), Rhodium (Rh), Gold (Au) | cURus | General Purpose | - | - |
|
|
RJ22S-CLD-D48RELAY GEN PURPOSE DPDT 1A 48V |
0 |
|
- |
RJ | Bulk | Active | Socketable | 48VDC | DPDT (2 Form C) | 1 A | 250VAC, 125VDC - Max | 250VA, 125W | 10.7 mA | Non Latching | Diode, Lighted Indicator | Plug In | - | - | 33.6 VDC | 4.8 VDC | 15 ms | 10 ms | -40°C ~ 70°C | Silver Nickel (AgNi), Gold (Au) | CE, CSA, cURus, VDE | General Purpose | - | - |
