Сигнальные реле, до 2 А
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип крепления | Напряжение катушки | Форма контакта | Номинал контакта (ток) | Напряжение переключения | Нагрузка - макс. переключение | Ток катушки | Тип катушки | Особенности | Тип вывода | Номинал уплотнения | Изоляция катушки | Необходимое рабочее напряжение | Необходимое отпускающее напряжение | Время срабатывания | Время отпускания | Рабочая температура | Материал контакта | Сертифицирующее агентство | Тип реле | Марка | Квалификация |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RJ22V-C-D12RELAY GEN PURPOSE DPDT 1A 12V |
0 |
|
- |
RJ | Bulk | Obsolete | Through Hole | 12VDC | DPDT (2 Form C) | 1 A | 250VAC, 125VDC - Max | 250VA, 125W | 44.2 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 8.4 VDC | 1.2 VDC | 15 ms | 10 ms | -40°C ~ 70°C | Silver Nickel (AgNi), Gold (Au) | CE, CSA, cURus, VDE | General Purpose | - | - |
|
|
RJ22V-C-D48RELAY GEN PURPOSE DPDT 1A 48V |
0 |
|
- |
RJ | Bulk | Obsolete | Through Hole | 48VDC | DPDT (2 Form C) | 1 A | 250VAC, 125VDC - Max | 250VA, 125W | 11 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 33.6 VDC | 4.8 VDC | 15 ms | 10 ms | -40°C ~ 70°C | Silver Nickel (AgNi), Gold (Au) | CE, CSA, cURus, VDE | General Purpose | - | - |
|
G6AK-474P-ST20-US DC5RELAY GENERAL PURPOSE 4PDT 2A 5V |
0 |
|
Технический лист |
G6A | Tube | Obsolete | Through Hole | 5VDC | 4PDT (4 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | - | Latching, Dual Coil | - | PC Pin | - | - | 3.5 VDC | - | 7 ms | 7 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | - | General Purpose | - | - |
|
|
G6AU-434P-ST-US DC5RELAY GENERAL PURPOSE 4PDT 1A 5V |
0 |
|
Технический лист |
G6A | Tube | Obsolete | Through Hole | 5VDC | 4PDT (4 Form C) | 1 A | 250VAC, 220VDC - Max | 250VA, 220W | 64 mA | Latching, Single Coil | - | PC Pin | - | - | 3.5 VDC | - | 7 ms | 7 ms | -40°C ~ 70°C | Silver Palladium (AgPd), Gold (Au) | - | General Purpose | - | - |
|
|
G6AU-474P-ST-US DC12RELAY GEN PURPOSE 4PDT 2A 12V |
0 |
|
Технический лист |
G6A | Tube | Obsolete | Through Hole | 12VDC | 4PDT (4 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 26.7 mA | Latching, Single Coil | - | PC Pin | - | - | 8.4 VDC | - | 7 ms | 7 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | - | General Purpose | - | - |
|
|
G6AU-474P-ST-US DC24RELAY GEN PURPOSE 4PDT 2A 24V |
0 |
|
Технический лист |
G6A | Tube | Obsolete | Through Hole | 24VDC | 4PDT (4 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 13.3 mA | Latching, Single Coil | - | PC Pin | - | - | 16.8 VDC | - | 7 ms | 7 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | - | General Purpose | - | - |
|
|
G6AU-474P-ST-US DC5RELAY GENERAL PURPOSE 4PDT 2A 5V |
0 |
|
Технический лист |
G6A | Tube | Obsolete | Through Hole | 5VDC | 4PDT (4 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 64 mA | Latching, Single Coil | - | PC Pin | - | - | 3.5 VDC | - | 7 ms | 7 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | - | General Purpose | - | - |
|
G2RV-1-S-AP DC11RELAY GEN PURPOSE SPDT 50MA 12V |
0 |
|
Технический лист |
G2RV | Bulk | Obsolete | Socketable | 12VDC | SPDT (1 Form C) | 50 mA | 30VAC, 36VDC - Max | - | 27.2 mA | Non Latching | - | Plug In | - | - | 9.6 VDC | 1.2 VDC | 20 ms | 40 ms | -40°C ~ 55°C | Silver Tin Indium (AgSnIn), Gold (Au) | CE, cULus, TUV | General Purpose | - | - |
|
G2RV-1-S-AP DC21RELAY GEN PURPOSE SPDT 50MA 24V |
0 |
|
Технический лист |
G2RV | Bulk | Obsolete | Socketable | 24VDC | SPDT (1 Form C) | 50 mA | 30VAC, 36VDC - Max | - | 13.3 mA | Non Latching | - | Plug In | - | - | 19.2 VDC | 2.4 VDC | 20 ms | 40 ms | -40°C ~ 55°C | Silver Tin Indium (AgSnIn), Gold (Au) | CE, cULus, TUV | General Purpose | - | - |
|
|
G2RV-1-S-AP DC48RELAY GEN PURPOSE SPDT 50MA 48V |
0 |
|
Технический лист |
G2RV | Bulk | Obsolete | Socketable | 48VDC | SPDT (1 Form C) | 50 mA | 30VAC, 36VDC - Max | - | 5.2 mA | Non Latching | - | Plug In | - | - | 38.4 VDC | 4.8 VDC | 20 ms | 40 ms | -40°C ~ 55°C | Silver Tin Indium (AgSnIn), Gold (Au) | CE, cULus, TUV | General Purpose | - | - |
|
|
G6A-474P-ST20-US DC6RELAY GENERAL PURPOSE 4PDT 2A 6V |
0 |
|
Технический лист |
G6A | Tube | Obsolete | Through Hole | 6VDC | 4PDT (4 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 33.3 mA | Non Latching | - | PC Pin | - | - | 4.2 VDC | 0.6 VDC | 7 ms | 5 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | - | General Purpose | - | - |
|
|
RJ22V-A-D100RELAY GEN PURP DPDT 1A 100-110V |
0 |
|
- |
RJ | Bulk | Obsolete | Through Hole | 100 ~ 110VDC | DPDT (2 Form C) | 1 A | 250VAC, 125VDC - Max | 250VA, 125W | 5.3 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | - | - | 15 ms | 10 ms | -40°C ~ 70°C | Silver Nickel (AgNi), Gold (Au) | CE, CSA, cURus, VDE | General Purpose | - | - |
|
|
RJ22V-C-D100RELAY GEN PURP DPDT 1A 100-110V |
0 |
|
- |
RJ | Bulk | Obsolete | Through Hole | 100 ~ 110VDC | DPDT (2 Form C) | 1 A | 250VAC, 125VDC - Max | 250VA, 125W | 5.3 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | - | - | 15 ms | 10 ms | -40°C ~ 70°C | Silver Nickel (AgNi), Gold (Au) | CE, CSA, cURus, VDE | General Purpose | - | - |
|

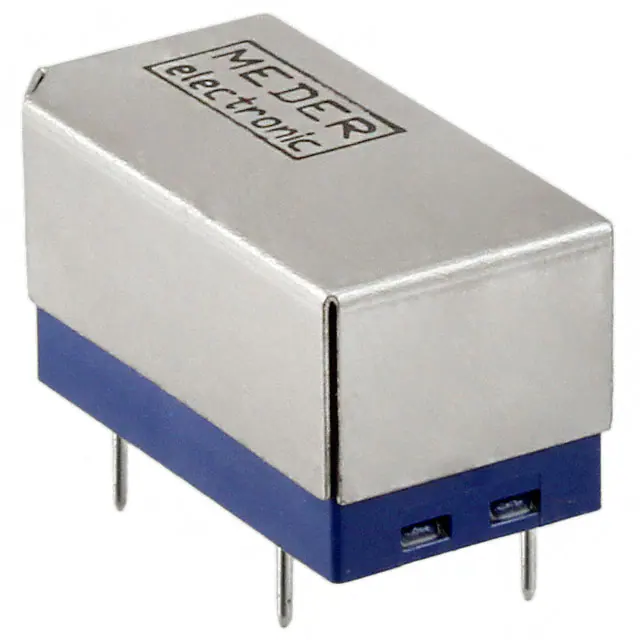

DIL-CL-1A81-9-13MRELAY TELECOM SPST 250MA |
0 |
|
Технический лист |
DIL-CL | Tube | Active | Through Hole | - | SPST-NO (1 Form A) | 250 mA | 110VAC, 110VDC - Max | - | 357 mA | Non Latching | - | PC Pin | - | - | - | - | 0.5 ms | 0.1 ms | -20°C ~ 70°C | - | - | Telecom | - | - |
|
|
RJ22S-C-D5RELAY GEN PURPOSE DPDT 1A 5V |
0 |
|
- |
RJ | Bulk | Active | Socketable | 5VDC | DPDT (2 Form C) | 1 A | 250VAC, 125VDC - Max | 250VA, 125W | 106 mA | Non Latching | - | Plug In | - | - | 3.5 VDC | 0.5 VDC | 15 ms | 10 ms | -40°C ~ 70°C | Silver Nickel (AgNi), Gold (Au) | CE, CSA, cURus, VDE | General Purpose | - | - |
|
|
RJ22S-C-D24RELAY GEN PURPOSE DPDT 1A 24V |
0 |
|
- |
RJ | Bulk | Active | Socketable | 24VDC | DPDT (2 Form C) | 1 A | 250VAC, 30VDC - Max | 250VA, 30W | 22.1 mA | Non Latching | - | Plug In | - | - | 16.8 VDC | 2.4 VDC | 15 ms | 10 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | CE, CSA, cURus, VDE | General Purpose | - | - |
|
|
RJ22S-C-D12RELAY GEN PURPOSE DPDT 1A 12V |
0 |
|
- |
RJ | Bulk | Active | Socketable | 12VDC | DPDT (2 Form C) | 1 A | 250VAC, 125VDC - Max | 250VA, 125W | 44.2 mA | Non Latching | - | Plug In | - | - | 8.4 VDC | 1.2 VDC | 15 ms | 10 ms | -40°C ~ 70°C | Silver Nickel (AgNi), Gold (Au) | CE, CSA, cURus, VDE | General Purpose | - | - |
|
|
RJ22S-C-D48RELAY GEN PURPOSE DPDT 1A 48V |
0 |
|
- |
RJ | Bulk | Active | Socketable | 48VDC | DPDT (2 Form C) | 1 A | 250VAC, 125VDC - Max | 250VA, 125W | 11 mA | Non Latching | - | Plug In | - | - | 33.6 VDC | 4.8 VDC | 15 ms | 10 ms | -40°C ~ 70°C | Silver Nickel (AgNi), Gold (Au) | CE, CSA, cURus, VDE | General Purpose | - | - |
|
|
RJ22V-A-A12RELAY GEN PURPOSE DPDT 1A 12V |
0 |
|
- |
RJ | Bulk | Active | Through Hole | 12VAC | DPDT (2 Form C) | 1 A | 250VAC, 125VDC - Max | 250VA, 125W | 75 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 9.6 VAC | 3.6 VAC | 15 ms | 10 ms | -40°C ~ 70°C | Silver Nickel (AgNi), Gold (Au) | CE, CSA, cURus, VDE | General Purpose | - | - |
|
|
RJ22V-A-A24RELAY GEN PURPOSE DPDT 1A 24V |
0 |
|
- |
RJ | Bulk | Active | Through Hole | 24VAC | DPDT (2 Form C) | 1 A | 250VAC, 125VDC - Max | 250VA, 125W | 37.5 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 19.2 VAC | 7.2 VAC | 15 ms | 10 ms | -40°C ~ 70°C | Silver Nickel (AgNi), Gold (Au) | CE, CSA, cURus, VDE | General Purpose | - | - |
