Поворотные потенциометры, реостаты
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Сопротивление (Ом) | Допуск | Мощность (Вт) | Встроенный переключатель | Количество оборотов | Особенности | Конусность | Количество групп | Тип регулировки | Температурный коэффициент | Вращение | Резистивный материал | Тип вывода | Тип привода | Длина привода | Диаметр привода | Резьба втулки | Тип крепления |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

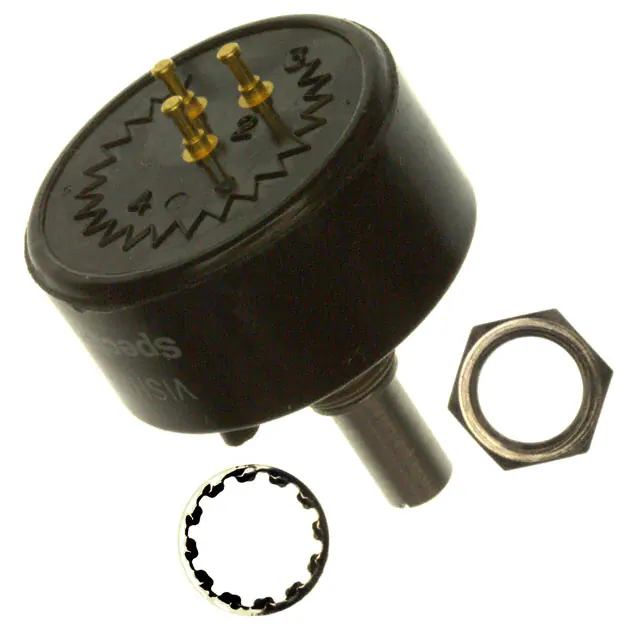

132B20102POT 1K OHM 2.75W WIREWOUND LIN |
15 |
|
Технический лист |
132 | Bulk | Active | 1k | ±3% | 2.75W | None | 1.0 | - | Linear | 1 | User Defined | ±20ppm/°C | 340° | Wirewound | Solder Turret | Slotted | 0.875" (22.23mm) | 0.2497" (6.34mm) | 3/8-32 | Panel Mount |
|
3549S-2AC-103/103BPOT 10K OHM 2W WIREWOUND LINEAR |
19 |
|
Технический лист |
3549 | Tray | Active | 10k | ±3% | 2W | None | 10.0 | - | Linear | 2 | User Defined | ±50ppm/°C | 3600° | Wirewound | Solder Lug | Slotted | 0.813" (20.64mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
P11S2V0FLSY00502KAPOT 5K OHM 1W CERMET LINEAR |
15 |
|
Технический лист |
P11S | Box | Active | 5k | ±10% | 1W | None | 1.0 | Sealed | Linear | 2 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Slotted | 0.984" (25.00mm) | 0.236" (6.00mm) | M6 x 0.75 | Panel Mount |
|
157S103MXPOT 10K OHM 1W PLASTIC LINEAR |
17 |
|
Технический лист |
157 | Bulk | Active | 10k | ±20% | 1W | None | 1.0 | - | Linear | 1 | User Defined | ±600ppm/°C | Continuous | Conductive Plastic | Solder Turret | Round | 0.500" (12.70mm) | 0.1248" (3.17mm) | - | Servo Mount |
|
3500S-2-201LPOT 200 OHM 2W WIREWOUND LINEAR |
3 |
|
Технический лист |
3500 | Bulk | Active | 200 | ±3% | 2W | None | 10.0 | - | Linear | 1 | User Defined | ±50ppm/°C | 3600° | Wirewound | Solder Lug | Slotted | 0.813" (20.64mm) | 0.249" (6.32mm) | 3/8-32 | Panel Mount |
|
|
3500S-2-501LPOT 500 OHM 2W WIREWOUND LINEAR |
17 |
|
Технический лист |
3500 | Bulk | Active | 500 | ±3% | 2W | None | 10.0 | - | Linear | 1 | User Defined | ±50ppm/°C | 3600° | Wirewound | Solder Lug | Slotted | 0.813" (20.64mm) | 0.249" (6.32mm) | 3/8-32 | Panel Mount |
|
157S202MB9002POT 2K OHM 1W PLASTIC LINEAR |
25 |
|
Технический лист |
157 | Box | Active | 2k | ±20% | 1W | None | 1.0 | - | Linear | 1 | User Defined | ±600ppm/°C | 360° | Conductive Plastic | Solder Turret | Round | 0.500" (12.70mm) | 0.125" (3.18mm) | 3/8-32 | Servo Mount |
|
P13SMNFGS102MAPOT 1K OHM 1.5W CERMET LINEAR |
20 |
|
Технический лист |
P13SM | Bulk | Active | 1k | ±20% | 1.5W | None | 1.0 | Sealed | Linear | 1 | User Defined | ±150ppm/°C | 310° | Cermet | Solder Lug | Slotted | 0.630" (16.00mm) | 0.236" (6.00mm) | M10 x 0.75 | Panel Mount |
|
|
157S102MB9002POT 1K OHM 1W PLASTIC LINEAR |
5 |
|
Технический лист |
157 | Box | Active | 1k | ±20% | 1W | None | 1.0 | - | Linear | 1 | User Defined | ±600ppm/°C | 360° | Conductive Plastic | Solder Turret | Round | 0.500" (12.70mm) | 0.125" (3.18mm) | 3/8-32 | Servo Mount |
|
PE60L0FLW4R7MAPOT 4.7 OHM 6W CERMET LINEAR |
9 |
|
Технический лист |
PE60 | Box | Active | 4.7 | ±20% | 6W | None | 1.0 | Sealed | Linear | 1 | Side Adjustment | - | 300° | Cermet | Wire Leads | Slotted | 0.984" (25.00mm) | 0.236" (6.00mm) | M10 x 0.75 | Panel Mount |
|
|
3500S-2-503LPOT 50K OHM 2W WIREWOUND LINEAR |
20 |
|
Технический лист |
3500 | Bulk | Active | 50k | ±3% | 2W | None | 10.0 | - | Linear | 1 | User Defined | ±50ppm/°C | 3600° | Wirewound | Solder Lug | Slotted | 0.813" (20.64mm) | 0.249" (6.32mm) | 3/8-32 | Panel Mount |
|
140B00102POT 1K OHM 2W WIREWOUND LINEAR |
19 |
|
Технический лист |
140 | Bulk | Active | 1k | ±5% | 2W | None | 1.0 | - | Linear | 1 | User Defined | ±20ppm/°C | 330° | Wirewound | Solder Turret | Slotted | 0.700" (17.78mm) | 0.1248" (3.17mm) | 1/4-32 | Panel Mount |
|
P30LL0FLS103KAPOT 10K OHM 3W CERMET LINEAR |
18 |
|
Технический лист |
P30L | Box | Active | 10k | ±10% | 3W | None | 1.0 | Long Life | Linear | 1 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Slotted | 0.984" (25.00mm) | 0.236" (6.00mm) | M10 x 0.75 | Panel Mount |
|
RES350EPOT 350 OHM 12.5W WIREWOUND LIN |
9 |
|
Технический лист |
E | Bulk | Active | 350 | ±10% | 12.5W | None | 1.0 | - | Linear | 1 | User Defined | - | 300° | Wirewound | Solder Lug | Slotted | 0.625" (15.88mm) | 0.125" (3.18mm) | 1/4-32 | Panel Mount |
|

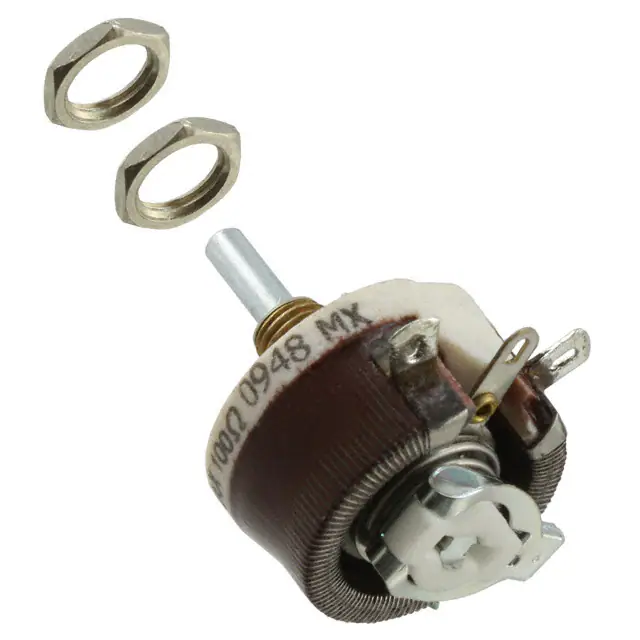

RES100EPOT 100 OHM 12.5W WIREWOUND LIN |
6 |
|
Технический лист |
E | Bulk | Active | 100 | ±10% | 12.5W | None | 1.0 | - | Linear | 1 | User Defined | - | 300° | Wirewound | Solder Lug | Slotted | 0.625" (15.88mm) | 0.125" (3.18mm) | 1/4-32 | Panel Mount |
|
|
RES250EPOT 250 OHM 12.5W WIREWOUND LIN |
5 |
|
Технический лист |
E | Bulk | Active | 250 | ±10% | 12.5W | None | 1.0 | - | Linear | 1 | User Defined | - | 300° | Wirewound | Solder Lug | Slotted | 0.625" (15.88mm) | 0.125" (3.18mm) | 1/4-32 | Panel Mount |
|
|
RES10REPOT 10 OHM 12.5W WIREWOUND LIN |
3 |
|
Технический лист |
E | Bulk | Active | 10 | ±10% | 12.5W | None | 1.0 | - | Linear | 1 | User Defined | - | 300° | Wirewound | Solder Lug | Slotted | 0.625" (15.88mm) | 0.125" (3.18mm) | 1/4-32 | Panel Mount |
|
|
RES1K0EPOT 1K OHM 12.5W WIREWOUND LIN |
5 |
|
Технический лист |
E | Bulk | Active | 1k | ±10% | 12.5W | None | 1.0 | - | Linear | 1 | User Defined | - | 300° | Wirewound | Solder Lug | Slotted | 0.625" (15.88mm) | 0.125" (3.18mm) | 1/4-32 | Panel Mount |
|
|
RES500EPOT 500 OHM 12.5W WIREWOUND LIN |
5 |
|
Технический лист |
E | Bulk | Active | 500 | ±10% | 12.5W | None | 1.0 | - | Linear | 1 | User Defined | - | 300° | Wirewound | Solder Lug | Slotted | 0.625" (15.88mm) | 0.125" (3.18mm) | 1/4-32 | Panel Mount |
|
|
RES2K5EPOT 2.5K OHM 12.5W WIREWOUND LIN |
5 |
|
Технический лист |
E | Bulk | Active | 2.5k | ±10% | 12.5W | None | 1.0 | - | Linear | 1 | User Defined | - | 300° | Wirewound | Solder Lug | Slotted | 0.625" (15.88mm) | 0.125" (3.18mm) | 1/4-32 | Panel Mount |
