Поворотные потенциометры, реостаты
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Сопротивление (Ом) | Допуск | Мощность (Вт) | Встроенный переключатель | Количество оборотов | Особенности | Конусность | Количество групп | Тип регулировки | Температурный коэффициент | Вращение | Резистивный материал | Тип вывода | Тип привода | Длина привода | Диаметр привода | Резьба втулки | Тип крепления |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
3549S-1AA-104APOT 100K OHM 2W WIREWOUND LINEAR |
65 |
|
Технический лист |
3549 | Tray | Active | 100k | ±3% | 2W | None | 10.0 | - | Linear | 1 | User Defined | ±50ppm/°C | 3600° | Wirewound | Solder Lug | Slotted | 0.813" (20.64mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
|
3549S-1AB-501BPOT 500 OHM 2W WIREWOUND LINEAR |
44 |
|
Технический лист |
3549 | Tray | Active | 500 | ±3% | 2W | None | 10.0 | - | Linear | 1 | User Defined | ±50ppm/°C | 3600° | Wirewound | Solder Lug | Slotted | 0.811" (20.60mm) | 0.236" (6.00mm) | M9 x 0.75 | Panel Mount |
|
|
3549S-1AB-103BPOT 10K OHM 2W WIREWOUND LINEAR |
20 |
|
Технический лист |
3549 | Bulk | Active | 10k | ±3% | 2W | None | 10.0 | - | Linear | 1 | User Defined | ±50ppm/°C | 3600° | Wirewound | Solder Lug | Slotted | 0.811" (20.60mm) | 0.236" (6.00mm) | M9 x 0.75 | Panel Mount |
|
SPRU2531S28POT 25K OHM 1/2W CARBON LINEAR |
76 |
|
Технический лист |
SPR | Bulk | Active | 25k | ±10% | 0.5W, 1/2W | None | 1.0 | - | Linear | 1 | Top Adjustment | - | 295° | Carbon | PC Pins | Slotted | 0.875" (22.23mm) | 0.125" (3.18mm) | 1/4-32 | Panel Mount |
|
P11H1F0GHFW10103KAPOT 10K OHM 1W CERMET LINEAR |
24 |
|
Технический лист |
P11H | Box | Active | 10k | ±10% | 1W | None | 1.0 | High Torque | Linear | 1 | Top Adjustment | ±150ppm/°C | 300° | Cermet | PC Pins | Slotted | 0.750" (19.05mm) | 0.250" (6.35mm) | 3/8-32 | Through Hole |
|
|
P11H1F0GHFW10102KAPOT 1K OHM 1W CERMET LINEAR |
16 |
|
Технический лист |
P11H | Box | Active | 1k | ±10% | 1W | None | 1.0 | High Torque | Linear | 1 | Top Adjustment | ±150ppm/°C | 300° | Cermet | PC Pins | Slotted | 0.750" (19.05mm) | 0.250" (6.35mm) | 3/8-32 | Through Hole |
|
3549S-1AA-501BPOT 500 OHM 2W WIREWOUND LINEAR |
26 |
|
Технический лист |
3549 | Tray | Active | 500 | ±3% | 2W | None | 10.0 | - | Linear | 1 | User Defined | ±50ppm/°C | 3600° | Wirewound | Solder Lug | Slotted | 0.812" (20.63mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
81A2A-B28-D15/D15LPOT 10K OHM 1/4W PLASTIC LOG |
15 |
|
Технический лист |
81 | Bulk | Active | 10k | ±20% | 0.25W, 1/4W | None | 1.0 | - | Logarithmic | 2 | Side Adjustment | ±1000ppm/°C | 300° | Conductive Plastic | PC Pins | Slotted | 0.875" (22.23mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
534B1104JLPOT 100K OHM 2W WIREWOUND LINEAR |
18 |
|
Технический лист |
534 | Box | Active | 100k | ±5% | 2W | None | 10.0 | - | Linear | 1 | User Defined | 20ppm/°C | 3600° | Wirewound | Solder Lug | Slotted | 0.812" (20.63mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
3590S-4-104LPOT 100K OHM 2W WIREWOUND LINEAR |
37 |
|
Технический лист |
3590 | Bulk | Active | 100k | ±5% | 2W | None | 10.0 | Sealed | Linear | 1 | User Defined | ±50ppm/°C | 3600° | Wirewound | Solder Lug | Slotted | 0.812" (20.63mm) | 0.2497" (6.34mm) | 3/8-32 | Panel Mount |
|

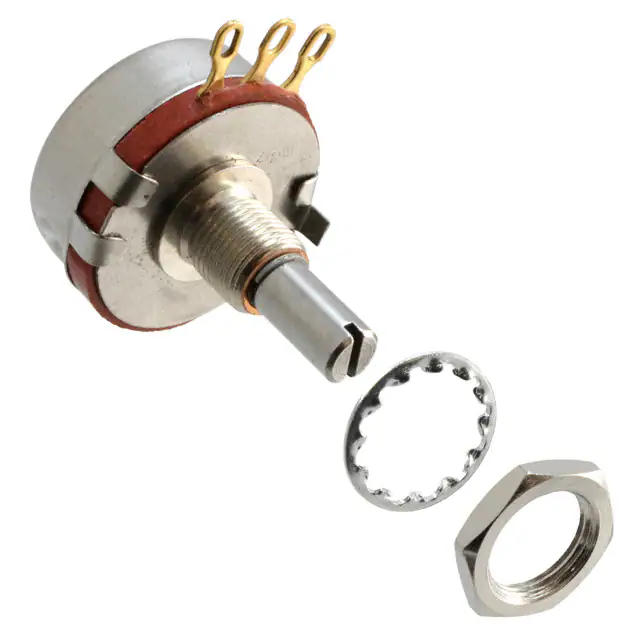

KA2531S28POT 25K OHM 2W CARBON LOG |
87 |
|
Технический лист |
K | Bulk | Active | 25k | ±10% | 2W | None | 1.0 | - | Logarithmic | 1 | User Defined | - | 314° | Carbon | Solder Lug | Slotted | 0.875" (22.23mm) | 0.249" (6.32mm) | 3/8-32 | Panel Mount |
|
KA5021S28POT 5K OHM 2W CARBON LOGARITHMIC |
82 |
|
Технический лист |
K | Bulk | Active | 5k | ±10% | 2W | None | 1.0 | - | Logarithmic | 1 | User Defined | - | 314° | Carbon | Solder Lug | Slotted | 0.875" (22.23mm) | 0.249" (6.32mm) | 3/8-32 | Panel Mount |
|
14910A0BHSX10103KAPOT 10K OHM 1W CERMET LINEAR |
6 |
|
Технический лист |
149 | Box | Active | 10k | ±10% | 1W | None | 1.0 | Sealed | Linear | 1 | User Defined | ±150ppm/°C | 300° | Cermet | PC Pins | Slotted | 0.750" (19.05mm) | 0.125" (3.18mm) | 1/4-32 | Through Hole |
|
249FGJSPXB25503KAPOT 50K OHM 1W CERMET LINEAR |
69 |
|
Технический лист |
249 | Box | Active | 50k | ±10% | 1W | None | 1.0 | Sealed | Linear | 1 | Side Adjustment | ±150ppm/°C | 295° | Cermet | PC Pins | Slotted | 0.874" (22.20mm) | 0.250" (6.35mm) | 3/8 | Through Hole |
|
|
3549S-1AA-104BPOT 100K OHM 2W WIREWOUND LINEAR |
60 |
|
Технический лист |
3549 | Tray | Active | 100k | ±3% | 2W | None | 10.0 | - | Linear | 1 | User Defined | ±50ppm/°C | 3600° | Wirewound | Solder Lug | Slotted | 0.813" (20.64mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
|
KA5031S28POT 50K OHM 2W CARBON LOG |
95 |
|
Технический лист |
K | Bulk | Active | 50k | ±10% | 2W | None | 1.0 | - | Logarithmic | 1 | User Defined | - | 314° | Carbon | Solder Lug | Slotted | 0.875" (22.23mm) | 0.249" (6.32mm) | 3/8-32 | Panel Mount |
|

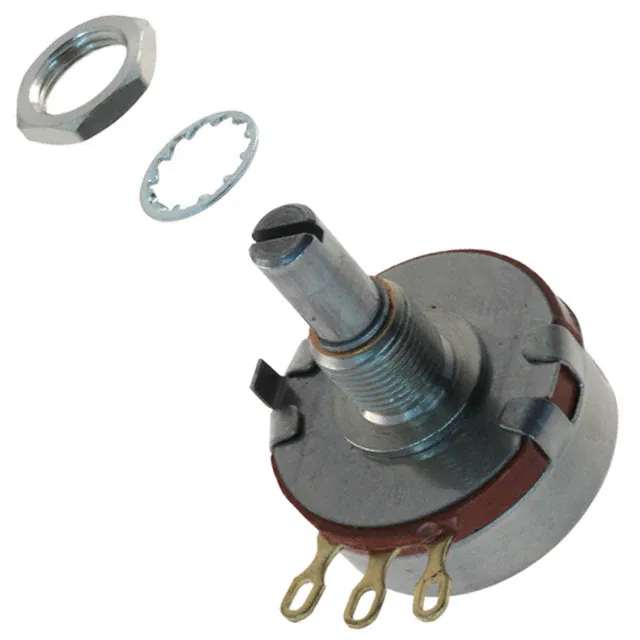

KB5031S28POT 50K OHM 2W CARBON R-LOG |
92 |
|
Технический лист |
K | Bulk | Active | 50k | ±10% | 2W | None | 1.0 | - | Reverse Logarithmic | 1 | User Defined | - | 314° | Carbon | Solder Lug | Slotted | 0.875" (22.23mm) | 0.249" (6.32mm) | 3/8-32 | Panel Mount |
|
3548S-1AA-502APOT 5K OHM 1.5W WIREWOUND LINEAR |
43 |
|
Технический лист |
3548 | Tray | Active | 5k | ±3% | 1.5W | None | 5.0 | - | Linear | 1 | User Defined | ±50ppm/°C | 1800° | Wirewound | Solder Lug | Slotted | 0.813" (20.64mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
|
3548S-1AA-102APOT 1K OHM 1.5W WIREWOUND LINEAR |
42 |
|
Технический лист |
3548 | Tray | Active | 1k | ±3% | 1.5W | None | 5.0 | - | Linear | 1 | User Defined | ±50ppm/°C | 1800° | Wirewound | Solder Lug | Slotted | 0.813" (20.64mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
P16NM472MAB15POT 4.7K OHM 1W CERMET LINEAR |
55 |
|
Технический лист |
P16 | Bulk | Active | 4.7k | ±20% | 1W | None | 1.0 | Sealed | Linear | 1 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Knob | 0.370" (9.40mm) | 0.630" (16.00mm) | M10 x 0.75 | Panel Mount |
