Клавишные переключатели
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип крепления | Схема | Функция переключения | Номинальный ток (Ампер) | Номинальное напряжение - переменный ток | Номинальное напряжение - постоянный ток | Тип привода | Цвет - привод/колпачок | Маркировка привода | Тип освещения, цвет | Напряжение освещения (номинальное) | Тип вывода | Защита от проникновения | Особенности | Размеры выреза панели | Рабочая температура | Сертифицирующее агентство |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SW-R1-4E-E-LR63-0SWITCH ROCKER DPDT 20A 125V |
81 |
|
Технический лист |
SW | Bag | Active | Panel Mount, Snap-In | DPDT | On-Off-On | 20A (AC) | 125 V | - | Concave (Curved) - Illuminated | Red | O - | LED, Red | 12 VDC | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 28.50mm x 21.50mm | -25°C ~ 85°C | - |
|
|
RR211225TCGSWITCH ROCKER SPST 15A 125V |
66 |
|
Технический лист |
RR2 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 15A (AC) | 125 V | - | Round | Black | No Marking | LED, Green | 2 VDC | Solder, Quick Connect - 0.187" (4.7mm) | - | - | Circular - 20.20mm Dia | -20°C ~ 70°C | - |
|
C1553PBNAWSWITCH ROCKER DPST 20A 250V |
51 |
|
Технический лист |
1553 | - | Active | Panel Mount, Snap-In | DPST | On-Off | 16A (AC) | 250 V | 24 V | Concave (Curved) | - | - | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 30.00mm x 22.20mm | - | CSA, UL |
|

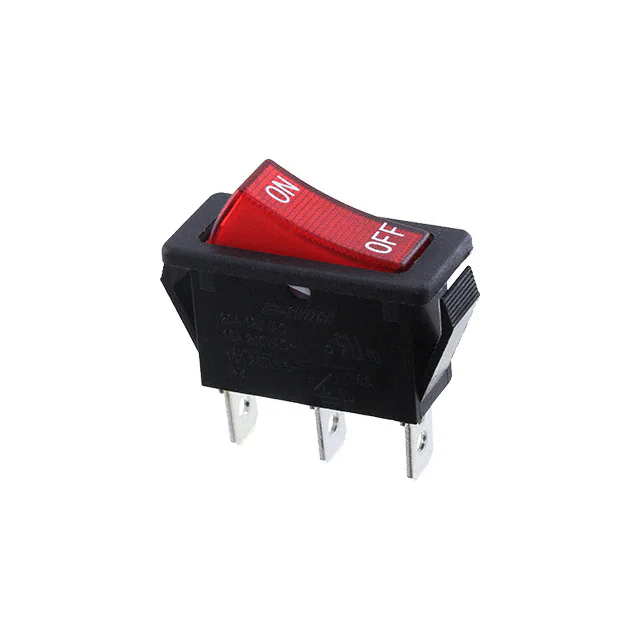

R4JBLKRILIF1SWITCH ROCKER SPST 20A 125V |
52 |
|
Технический лист |
R4 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 20A (AC) | 125 V | - | Concave (Curved) - Illuminated | Red | ON OFF, Vertical | Neon, Red | 125 VAC | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 30.10mm x 11.10mm | -20°C ~ 55°C | UL |
|
A8L-11-12N1SWITCH ROCKER SPST 10A 125V |
97 |
|
Технический лист |
A8L | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 10A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | PC Pin | - | - | Rectangular - 19.20mm x 12.90mm | -20°C ~ 55°C | cULus, EN, UL |
|

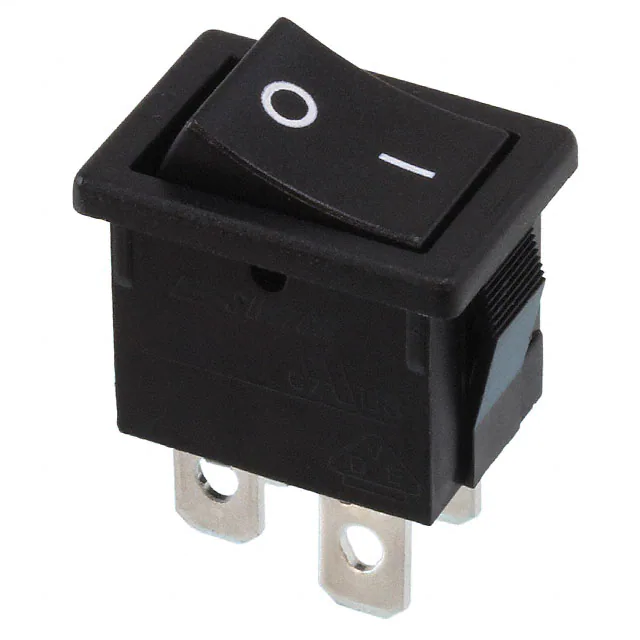

R1973BBLKBLKFF0SWITCH ROCKER DPST 9A 125V |
43 |
|
Технический лист |
R1973 | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 9A (AC) | 125 V | - | Concave (Curved) | Black | O - | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.20mm x 12.80mm | -30°C ~ 65°C | - |
|

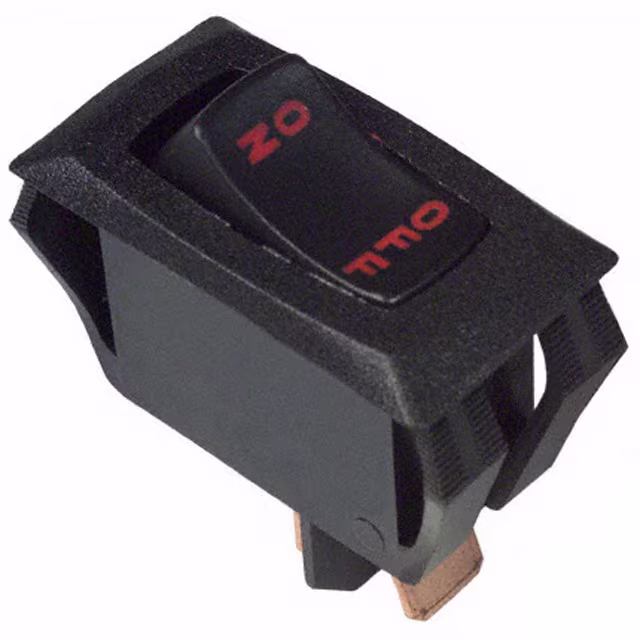

RA901-VB-B-2-VSWITCH ROCKER SPST 16A 125V |
51 |
|
Технический лист |
R | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 16A (AC) | 125 V | - | Concave (Curved) | Black, Red | ON OFF, Horizontal | - | - | Quick Connect - 0.250" (6.3mm) | - | Two-Tone Rocker | Rectangular - 28.58mm x 13.97mm | 0°C ~ 85°C | BEAB, CSA, DEMKO, FIMKO, NEMKO, SEMKO, SEV, TUV, UL, VDE |
|
PRASD3-16F-BB000SWITCH ROCKER SPDT 16A 125V |
86 |
|
Технический лист |
PRA | Bulk | Active | Panel Mount, Snap-In | SPDT | On-Off-On | 16A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.187" (4.7mm) | Dust Proof | - | Rectangular - 19.20mm x 13.00mm | -20°C ~ 85°C | ENEC, UL, VDE |
|
471002268143SWITCH ROCKER SPST 10A 250V |
83 |
|
Технический лист |
WS-RSTV | Tray | Active | Panel Mount, Snap-In | SPST | On-Off | 10A (AC/DC) | 250 V | 28 V | Round | Black | O I | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Circular - 20.20mm Dia | 0°C ~ 85°C | CQC, ENEC, UL |
|

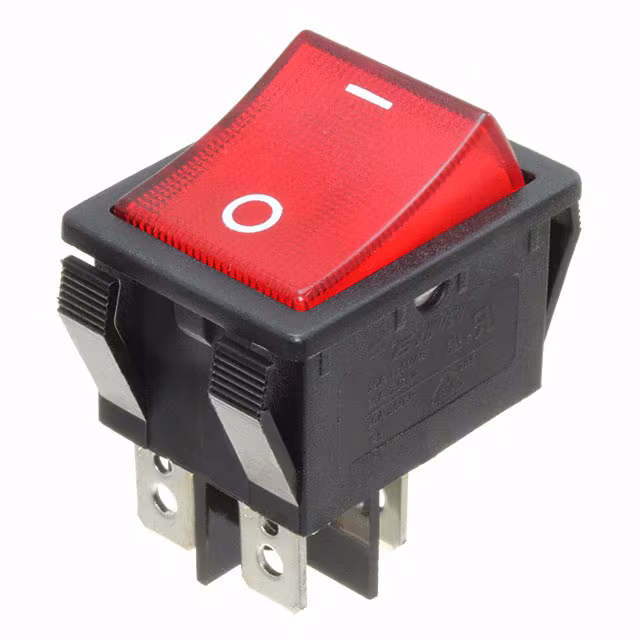

R5BBLKREDGF2SWITCH ROCKER DPST 20A 125V |
35 |
|
Технический лист |
R5 | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 20A (AC) | 125 V | - | Concave (Curved) - Illuminated | Red | O I | Neon, Red | 250 VAC | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 30.00mm x 22.20mm | -20°C ~ 55°C | CSA, UL |
|
R1973BBLKRILEF4SWITCH ROCKER DPST 9A 125V |
85 |
|
Технический лист |
R1973 | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 9A (AC) | 125 V | - | Concave (Curved) - Illuminated | Red | No Marking | Incandescent, Red | 24 VDC | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.20mm x 12.80mm | -30°C ~ 65°C | - |
|
CF-LD-1DC4-AR2WSWITCH ROCKER SPDT 0.4VA 28V |
85 |
|
Технический лист |
CF-LD | Tray | Active | Through Hole, Right Angle | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Paddle | Red | No Marking | - | - | PC Pin | - | - | - | -40°C ~ 85°C | - |
|
RA901-VB-B-9-VSWITCH ROCKER SPST 16A 125V |
56 |
|
Технический лист |
R | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 16A (AC) | 125 V | - | Concave (Curved) | Black, Red | O - | - | - | Quick Connect - 0.250" (6.3mm) | - | Two-Tone Rocker | Rectangular - 28.58mm x 13.97mm | 0°C ~ 85°C | BEAB, CSA, DEMKO, FIMKO, NEMKO, SEMKO, SEV, TUV, UL, VDE |
|

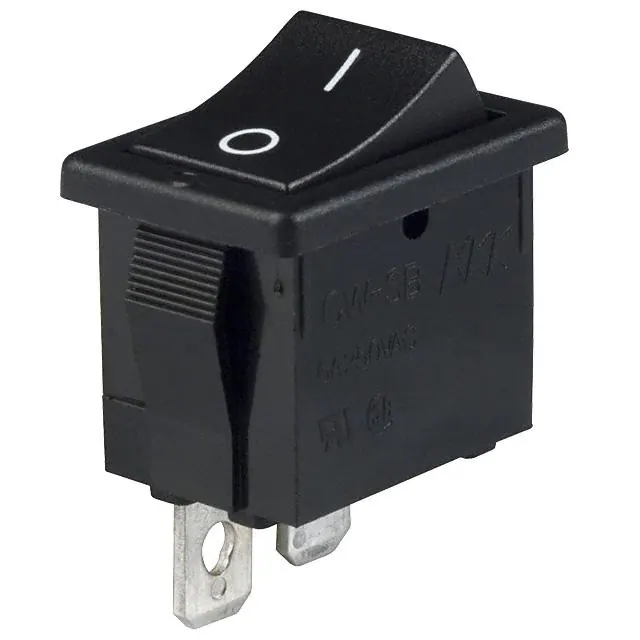

CWSB11AA2FSWITCH ROCKER SPST 6A 250V |
43 |
|
Технический лист |
CWSB | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 6A (AC) | 250 V | - | Concave (Curved) | Black | O - | - | - | Quick Connect - 0.187" (4.7mm) | - | Audible Click | Rectangular - 19.20mm x 12.90mm | -10°C ~ 70°C | cULus |
|

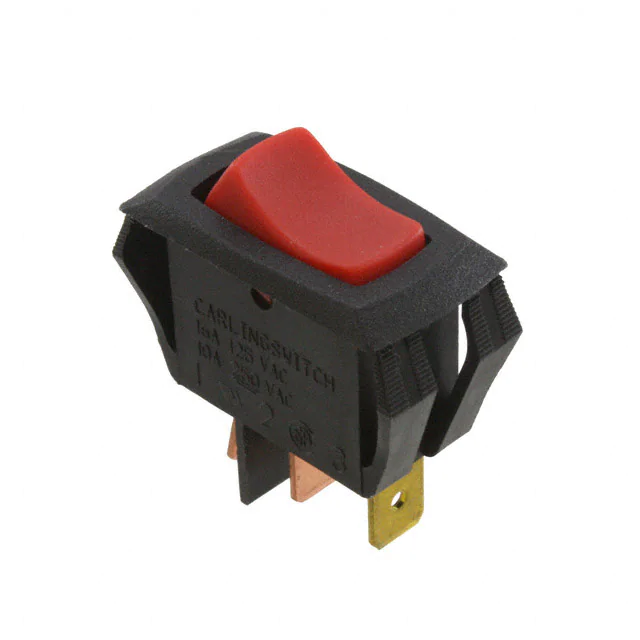

LRA211-RS-B/125NSWITCH ROCKER SPST 16A 125V |
92 |
|
Технический лист |
LRA | Box | Active | Panel Mount, Snap-In | SPST | On-Off | 16A (AC) | 125 V | - | Concave (Curved) - Illuminated | Red | No Marking | Neon, Red | 125 VAC | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 28.58mm x 13.97mm | 0°C ~ 85°C | CSA, UL, VDE |
|
471NS04268540SWITCH ROCKER SPST 10A 250V |
88 |
|
Технический лист |
WS-RSTV | Tray | Active | Panel Mount, Snap-In | SPST | On-Off | 10A (AC/DC) | 250 V | 28 V | Round - Illuminated | Red | No Marking | Neon, Red | 220 VAC | Quick Connect - 0.187" (4.7mm) | - | - | Circular - 20.20mm Dia | 0°C ~ 85°C | CQC, ENEC, UL |
|

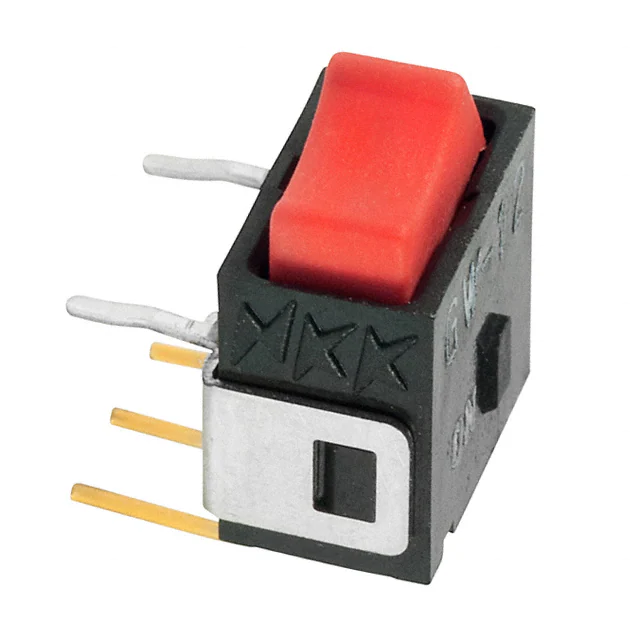

GW12RCHSWITCH ROCKER SPDT 0.4VA 28V |
35 |
|
Технический лист |
GW | Tray | Active | Through Hole, Right Angle | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Concave (Curved) | Red | No Marking | - | - | PC Pin | - | Sealed - Flux Protection | - | -30°C ~ 85°C | CSA, UL |
|
471NS03268840SWITCH ROCKER SPST 10A 250V |
68 |
|
Технический лист |
WS-RSTV | Tray | Active | Panel Mount, Snap-In | SPST | On-Off | 10A (AC/DC) | 250 V | 28 V | Round - Illuminated | Green | No Marking | Neon, Green | 110 VAC | Quick Connect - 0.187" (4.7mm) | - | - | Circular - 20.20mm Dia | 0°C ~ 85°C | CQC, ENEC, UL |
|

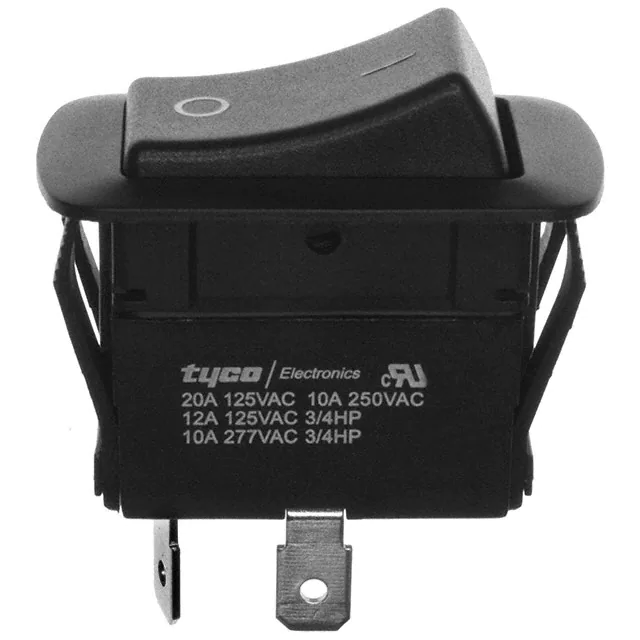

1571095-2SWITCH ROCKER SPST 20A 125V |
0 |
|
Технический лист |
PRC | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 20A (AC) | 125 V | - | Concave (Curved) | Black | O - | - | - | Quick Connect - 0.250" (6.3mm) | IP66 - Dust Tight, Water Resistant | - | Rectangular - 36.60mm x 21.20mm | -20°C ~ 85°C | - |
|
|
471016264142SWITCH ROCKER DPST 16A 250V |
28 |
|
Технический лист |
WS-RSTV | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 16A (AC) | 250 V | - | Concave (Curved) | Black | O - | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.20mm x 12.90mm | 0°C ~ 85°C | CQC, ENEC, UL |
