Клавишные переключатели
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип крепления | Схема | Функция переключения | Номинальный ток (Ампер) | Номинальное напряжение - переменный ток | Номинальное напряжение - постоянный ток | Тип привода | Цвет - привод/колпачок | Маркировка привода | Тип освещения, цвет | Напряжение освещения (номинальное) | Тип вывода | Защита от проникновения | Особенности | Размеры выреза панели | Рабочая температура | Сертифицирующее агентство |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
JWL22RAA/USWITCH ROCKER DPDT 16A 125V |
0 |
|
Технический лист |
JW | Bulk | Active | Panel Mount, Snap-In | DPDT | On-On | 16A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Solder, Quick Connect - 0.187" (4.7mm) | Dust Proof | Epoxy Sealed Terminals | Rectangular - 29.50mm x 20.50mm | -25°C ~ 70°C | CSA, UL, VDE |
|
|
M2022TXG30-FASWITCH ROCKER DPDT 0.4VA 28V |
252 |
|
Технический лист |
M | Tray | Obsolete | Through Hole, Right Angle | DPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C | CSA, UL |
|
|
M2022TXG30-DBSWITCH ROCKER DPDT 0.4VA 28V |
252 |
|
Технический лист |
M | Bulk | Obsolete | Through Hole, Right Angle | DPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Concave (Standard V) | White | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C | CSA, UL |
|
|
L16B3HNN13AAXX1XXXSAT2SWITCH ROCKER SPDT 15A 24V |
238 |
|
- |
L | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
JWL22BAA-ASWITCH ROCKER DPDT 16A 125V |
0 |
|
Технический лист |
JW | Bulk | Active | Panel Mount, Snap-In | DPDT | On-On | 16A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Solder, Quick Connect - 0.187" (4.7mm) | Dust Proof | Epoxy Sealed Terminals | Rectangular - 29.50mm x 20.50mm | -25°C ~ 70°C | CSA, UL, VDE |
|
|
M2024TXG45-DHSWITCH ROCKER SP3T 0.4VA 28V |
333 |
|
Технический лист |
M | Tray | Obsolete | Through Hole, Right Angle, Vertical | SP3T | On-On-On | 0.4VA (AC/DC) | 28 V | 28 V | Concave (Standard V) | Gray | No Marking | - | - | PC Pin | - | Jumper needed to achieve triple throw | - | -30°C ~ 85°C | CSA, UL |
|
|
M2033TNW01SWITCH ROCKER 3PDT 6A 125V |
294 |
|
Технический лист |
M | Bulk | Obsolete | Panel Mount, Flange | 3PDT | On-Off-On | 6A (AC), 3A (DC) | 125 V | 30 V | Actuator Arm, Cap Required | - | Varies by Cap | - | - | Solder Lug | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C | CSA, UL |
|
|
M2033TNW01-DCSWITCH ROCKER 3PDT 6A 125V |
294 |
|
Технический лист |
M | Box | Obsolete | Panel Mount, Flange | 3PDT | On-Off-On | 6A (AC), 3A (DC) | 125 V | 30 V | Concave (Standard V) | Red | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 17.80mm x 10.10mm | -30°C ~ 85°C | CSA, UL |
|
|
M2033TNW01-EAMINIATURE ROCKER/MULTI-FUNCTION |
294 |
|
Технический лист |
M | Bulk | Obsolete | Panel Mount, Flange | 3PDT | On-Off-On | 6A (AC), 3A (DC) | 125 V | 30 V | Actuator Arm, Cap Required | Black | Varies by Cap | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 17.80mm x 10.10mm | -30°C ~ 85°C | CSA, UL |
|
|
M2112JFW01SWITCH ROCKER SPDT 6A 125V |
1,353 |
|
Технический лист |
M2100 | Bulk | Obsolete | Panel Mount, Snap-In | SPDT | On-On | 6A (AC), 3A (DC) | 125 V | 30 V | Paddle - Illuminated | Black | No Marking | LED, Green | 2.1 VDC | Solder Lug | - | - | Rectangular - 15.90mm x 13.10mm | -25°C ~ 70°C | CSA, UL |
|
|
M2042TNW01SWITCH ROCKER 4PDT 6A 125V |
142 |
|
Технический лист |
M | Bulk | Obsolete | Panel Mount, Flange | 4PDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Actuator Arm, Cap Required | - | Varies by Cap | - | - | Solder Lug | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C | CSA, UL |
|
|
M2112JFW01-ASWITCH ROCKER SPDT 6A 125V |
1,353 |
|
Технический лист |
M2100 | Bulk | Obsolete | Panel Mount, Snap-In | SPDT | On-On | 6A (AC), 3A (DC) | 125 V | 30 V | Paddle - Illuminated | Black | No Marking | LED, Green | 2.1 VDC | Solder Lug | - | - | Rectangular - 15.90mm x 13.10mm | -25°C ~ 70°C | CSA, UL |
|
|
M2042TNW01-EASWITCH ROCKER 4PDT 6A 125V |
142 |
|
Технический лист |
M | Tray | Obsolete | Panel Mount, Flange | 4PDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Paddle | Black | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 17.80mm x 10.10mm | -30°C ~ 85°C | CSA, UL |
|
|
M2042TNW01-DCSWITCH ROCKER 4PDT 6A 125V |
142 |
|
Технический лист |
M | Box | Obsolete | Panel Mount, Flange | 4PDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Concave (Standard V) | Red | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 17.80mm x 10.10mm | -30°C ~ 85°C | CSA, UL |
|
|
M2042TNW01-FASWITCH ROCKER 4PDT 6A 125V |
0 |
|
Технический лист |
M | Bulk | Obsolete | Panel Mount, Flange | 4PDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Concave (Standard V) | Black | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 12.70mm x 12.40mm | -30°C ~ 85°C | CSA, UL |
|
|
M2042TNW01-GASWITCH ROCKER 4PDT 6A 125V |
0 |
|
Технический лист |
M | Bulk | Obsolete | Panel Mount, Flange | 4PDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Paddle | Black | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 12.70mm x 12.40mm | -30°C ~ 85°C | CSA, UL |
|
|
MLW3020SWITCH ROCKER SP3T 5A 125V |
0 |
|
Технический лист |
MLW | Bulk | Obsolete | Panel Mount, Snap-In | SP3T | On-On-On | 5A (AC), 3A (DC) | 125 V | 30 V | Actuator Arm, Cap Required | - | Varies by Cap | - | - | Solder Lug | - | Jumper needed to achieve triple throw | Rectangular - 18.70mm x 16.70mm | -10°C ~ 50°C | UL |
|
|
MLW3022-00-RBSWITCH ROCKER DPDT 5A 125V |
226 |
|
Технический лист |
MLW | Bulk | Obsolete | Panel Mount, Snap-In | DPDT | On-On | 5A (AC), 3A (DC) | 125 V | 30 V | Concave (Curved) | White | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 18.70mm x 16.70mm | -10°C ~ 50°C | UL |
|

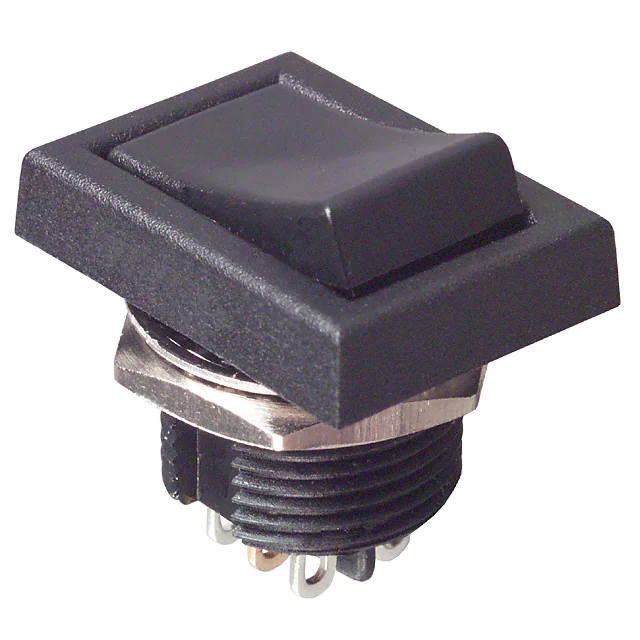

TRD23N10WLSWITCH ROCKER DPDT 3A 125V |
0 |
|
Технический лист |
TRD | Bulk | Active | Panel Mount, Threaded Body with Nut | DPDT | On-On | 3A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Solder Lug | - | - | Circular - 11.90mm Dia | -20°C ~ 80°C | - |
|

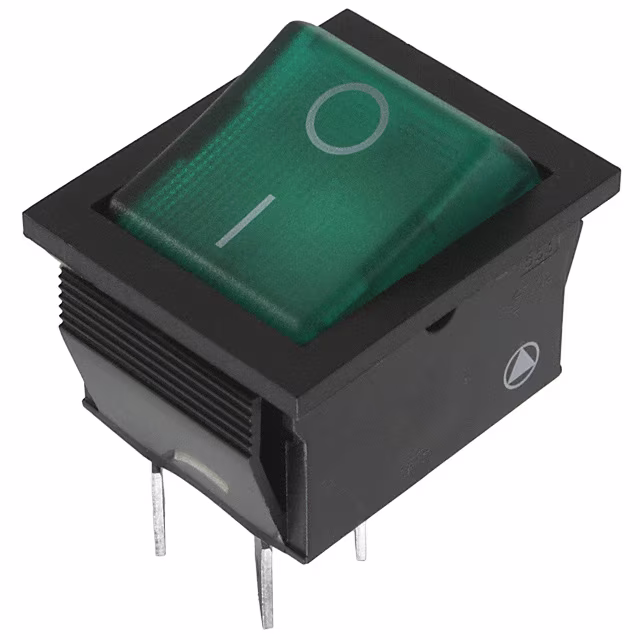

C1353AABG2-602AW-BSWITCH ROCKER DPST-NO 20A 250V |
0 |
|
Технический лист |
1350 | Bulk | Active | Panel Mount, Snap-In | DPST-NO | On-Off | 20A (AC/DC) | 250 V | 24 V | Concave (Curved) - Illuminated | Green | O - | Neon, Green | 125 VAC | Quick Connect - 0.250" (6.3mm) | - | Antimicrobial | Rectangular - 27.30mm x 22.40mm | - | CSA, UL |
