Клавишные переключатели
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип крепления | Схема | Функция переключения | Номинальный ток (Ампер) | Номинальное напряжение - переменный ток | Номинальное напряжение - постоянный ток | Тип привода | Цвет - привод/колпачок | Маркировка привода | Тип освещения, цвет | Напряжение освещения (номинальное) | Тип вывода | Защита от проникновения | Особенности | Размеры выреза панели | Рабочая температура | Сертифицирующее агентство |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
471NS04268840SWITCH ROCKER SPST 10A 250V |
101 |
|
Технический лист |
WS-RSTV | Tray | Active | Panel Mount, Snap-In | SPST | On-Off | 10A (AC/DC) | 250 V | 28 V | Round - Illuminated | Green | No Marking | Neon, Green | 220 VAC | Quick Connect - 0.187" (4.7mm) | - | - | Circular - 20.20mm Dia | 0°C ~ 85°C | CQC, ENEC, UL |
|
RB541A1100SWITCH ROCKER DPST 16A 125V |
110 |
|
Технический лист |
RB5 | Box | Active | Panel Mount, Snap-In | DPST | On-Off | 16A (AC) | - | 125 V | Flat | White | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | IP67 - Dust Tight, Waterproof | - | Rectangular - 30.23mm x 22.10mm | 0°C ~ 55°C | cULus, ENEC15 |
|
KDH3CNA1BBBSWITCH ROCKER DPDT 16A 125V |
565 |
|
- |
KD | Box | Active | Panel Mount, Snap-In | DPDT | On-Off-On | 16A (AC), 10A (DC) | 125 V | 28 V | Round | Black | No Marking | - | - | Quick Connect - 0.187" (4.7mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 20.00mm Dia | -25°C ~ 85°C | - |
|
RMS1R102VS2QESSWITCH ROCKER SPDT 3A 120V |
850 |
|
Технический лист |
- | Bulk | Active | Through Hole | SPDT | On-On | 3A (AC/DC) | 120 V | 28 V | Concave (Curved) | Black | No Marking | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 85°C | - |
|

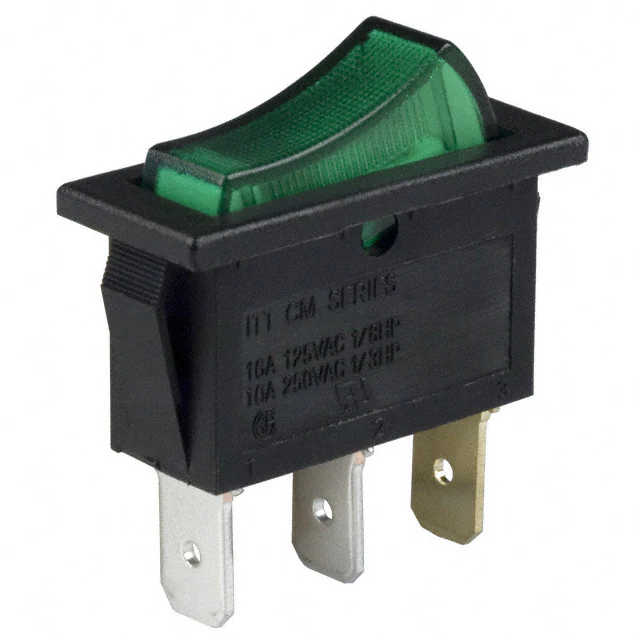

CM102J3GS205QA7SWITCH ROCKER SPST 16A 125V |
1,160 |
|
Технический лист |
CM | Tray | Active | Panel Mount, Snap-In | SPST | On-Off | 16A (AC) | 125 V | - | Concave (Curved) - Illuminated | Green | No Marking | Neon, Green | 125 VAC | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 30.40mm x 11.20mm | -20°C ~ 80°C | cULus |
|

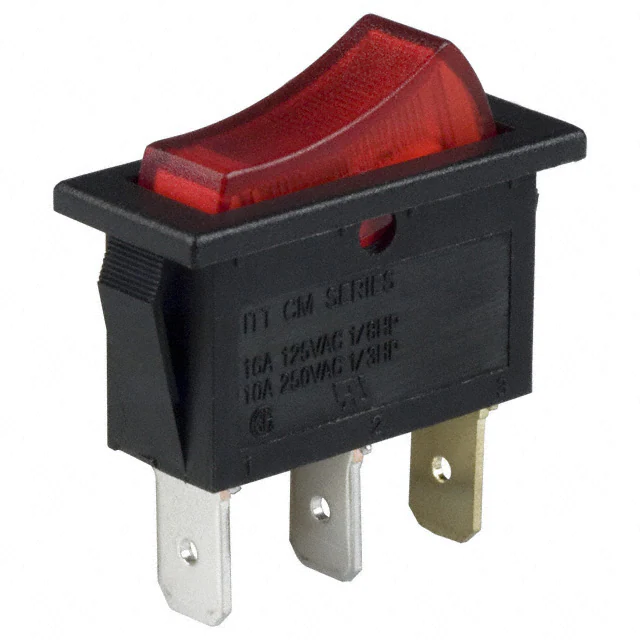

CM102J3RS205QA8SWITCH ROCKER SPST 16A 125V |
329 |
|
Технический лист |
CM | Tray | Active | Panel Mount, Snap-In | SPST | On-Off | 16A (AC) | 125 V | - | Concave (Curved) - Illuminated | Red | No Marking | Neon, Red | 250 VAC | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 30.40mm x 11.20mm | -20°C ~ 80°C | cULus |
|
GRB258I01BBSWITCH ROCKER SPDT 20A 125V |
3,179 |
|
Технический лист |
GRB | Bulk | Active | Panel Mount, Snap-In | SPDT | Mom-Off-Mom | 20A (AC) | 125 V | - | Convex (Reverse V) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | IP56 - Dust Protected, Water Resistant | - | Rectangular - 36.80mm x 15.30mm | -20°C ~ 85°C | cULus, ENEC, VDE |
|
|
DSR2215GD612SWITCH ROCKER SPDT 16A 12V |
531 |
|
Технический лист |
DSR | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 16A (DC) | - | 12 V | Convex (Reverse V) - Illuminated | Green | ON OFF, Vertical | LED, Green | 12 VDC | Solder, Quick Connect - 0.187" (4.7mm) | IP65 - Dust Tight, Water Resistant | - | Rectangular - 19.40mm x 13.00mm | -25°C ~ 85°C | cULus |
|
|
H8800VABB-133WSWITCH ROCKER SPST 15A 250V |
1,220 |
|
Технический лист |
8800 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 15A (AC) | 250 V | - | Concave (Curved) | Black | O - | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.30mm x 6.80mm | - | CSA, UL |
|
|
H8800VABBSWITCH ROCKER SPST 15A 250V |
558 |
|
Технический лист |
8800 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 15A (AC) | 250 V | - | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.30mm x 6.80mm | - | CSA, UL |
|

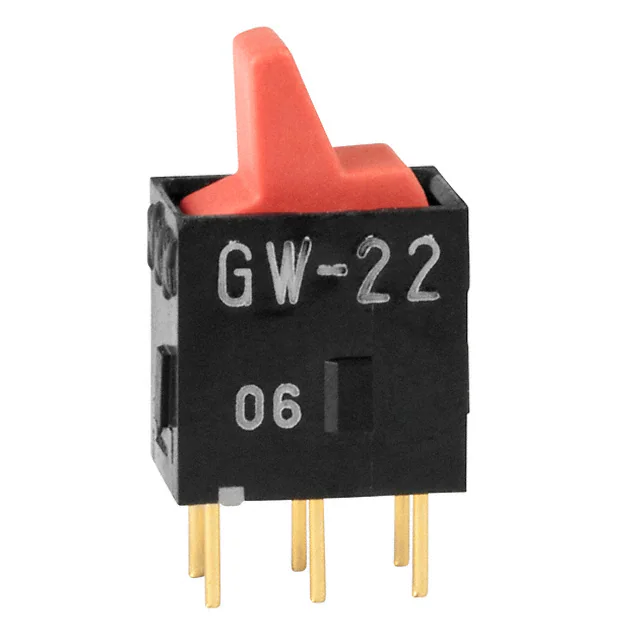

GW22LCPSWITCH ROCKER DPDT 0.4VA 28V |
895 |
|
Технический лист |
GW | Tray | Active | Through Hole | DPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Paddle | Red | No Marking | - | - | PC Pin | - | Sealed - Flux Protection | - | -30°C ~ 85°C | CSA, UL |
|
|
HY7-42D-196SWITCH ROCKER DPDT 20A 125V |
1,827 |
|
Технический лист |
HY | Bulk | Active | Panel Mount, Snap-In | DPDT | On-Off | 20A (AC) | 125 V | - | Concave (Curved) | Red | ON OFF, Horizontal | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 37.00mm x 21.10mm | -20°C ~ 65°C | cULus |
|
AJ7241BFSWITCH ROCKER DPST 10A 250V |
660 |
|
Технический лист |
AJ7 | Bulk | Not For New Designs | Panel Mount, Snap-In, Right Angle | DPST | On-Off | 10A (AC) | 250 V | - | Concave (Curved) | Black | O I | - | - | PC Pin | - | - | Rectangular - 19.20mm x 12.90mm | -25°C ~ 85°C | cULus, ENEC, VDE |
|
1-1571986-1SWITCH ROCKER SPDT 5A 120V |
439 |
|
Технический лист |
A | Bulk | Active | Through Hole, Right Angle, Vertical | SPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C | - |
|
C1500WABBSWITCH ROCKER SPST 16A 250V |
2,617 |
|
Технический лист |
1500 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 16A (AC) | 250 V | 24 V | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | Splash Proof | - | Rectangular - 27.30mm x 12.30mm | - | CSA, UL |
|

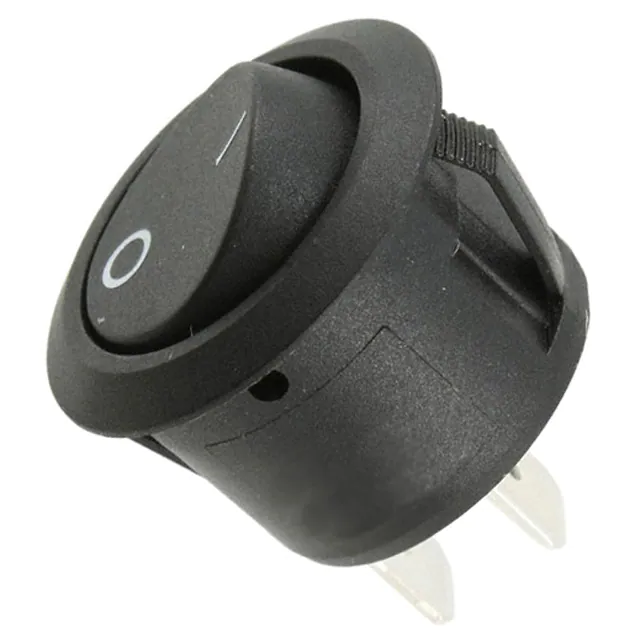

GRB293A01BBSWITCH ROCKER SPST 20A 125V |
727 |
|
Технический лист |
GRB | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 20A (AC) | 125 V | - | Round | Black | O - | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Circular - 22.00mm Dia | -25°C ~ 85°C | - |
|

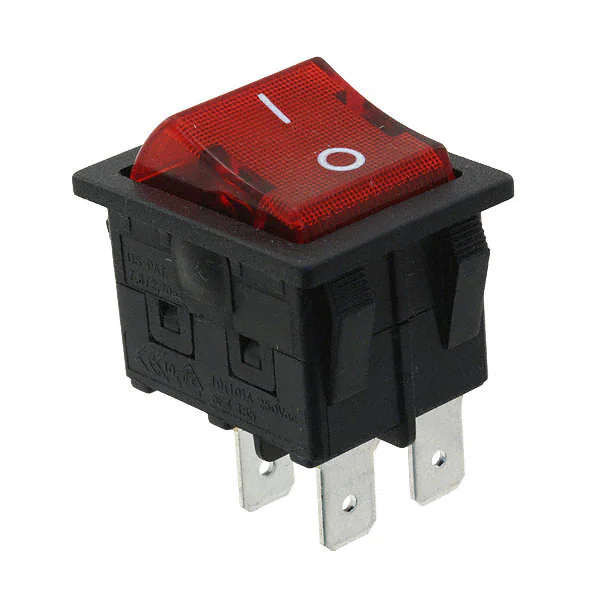

RBW2ABLKRILFF3SWITCH ROCKER DPST 16A 12 VDC |
1,067 |
|
Технический лист |
RBW2 | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 16A (AC) | 125 V | 12 V | Concave (Curved) - Illuminated | Red | O - | Incandescent, Red | 12 VDC | Quick Connect - 0.250" (6.3mm) | IP66 - Dust Tight, Water Resistant | - | Rectangular - 30.00mm x 22.30mm | -20°C ~ 85°C | - |
|

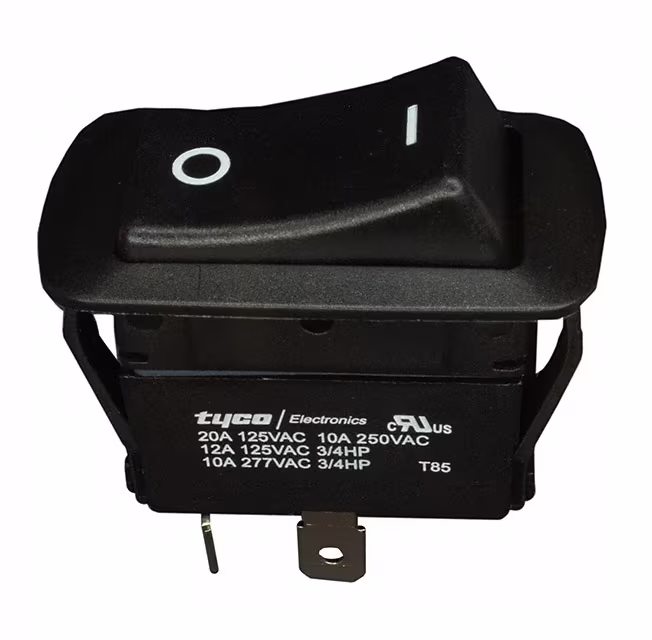

1571095-3SWITCH ROCKER SPST 20A 125V |
1,650 |
|
Технический лист |
PRC | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 20A (AC) | 125 V | - | Concave (Curved) | Black | O I | - | - | Quick Connect - 0.250" (6.3mm) | IP66 - Dust Tight, Water Resistant | - | Rectangular - 36.60mm x 21.20mm | -20°C ~ 85°C | - |
|
471006268142SWITCH ROCKER SPST 10A 250V |
486 |
|
Технический лист |
WS-RSTV | Tray | Active | Panel Mount, Snap-In | SPST | On-Off | 10A (AC/DC) | 250 V | 28 V | Round | Black | O - | - | - | Quick Connect - 0.187" (4.7mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 20.20mm Dia | 0°C ~ 85°C | CQC, ENEC, UL |
|
471006268143SWITCH ROCKER SPST 10A 250V |
103 |
|
Технический лист |
WS-RSTV | Tray | Active | Panel Mount, Snap-In | SPST | On-Off | 10A (AC/DC) | 250 V | 28 V | Round | Black | O I | - | - | Quick Connect - 0.187" (4.7mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 20.20mm Dia | 0°C ~ 85°C | CQC, ENEC, UL |
