Клавишные переключатели
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип крепления | Схема | Функция переключения | Номинальный ток (Ампер) | Номинальное напряжение - переменный ток | Номинальное напряжение - постоянный ток | Тип привода | Цвет - привод/колпачок | Маркировка привода | Тип освещения, цвет | Напряжение освещения (номинальное) | Тип вывода | Защита от проникновения | Особенности | Размеры выреза панели | Рабочая температура | Сертифицирующее агентство |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
GRB136A05BB2SWITCH ROCKER SPST 10A 125V |
711 |
|
Технический лист |
GRB | Bulk | Active | Panel Mount, Threaded Body with Nut | SPST | On-Off | 10A (AC) | 125 V | - | Concave (Curved) | Black | O - | - | - | Solder Lug | - | - | Circular - 18.20mm Dia | - | CSA, cULus |
|

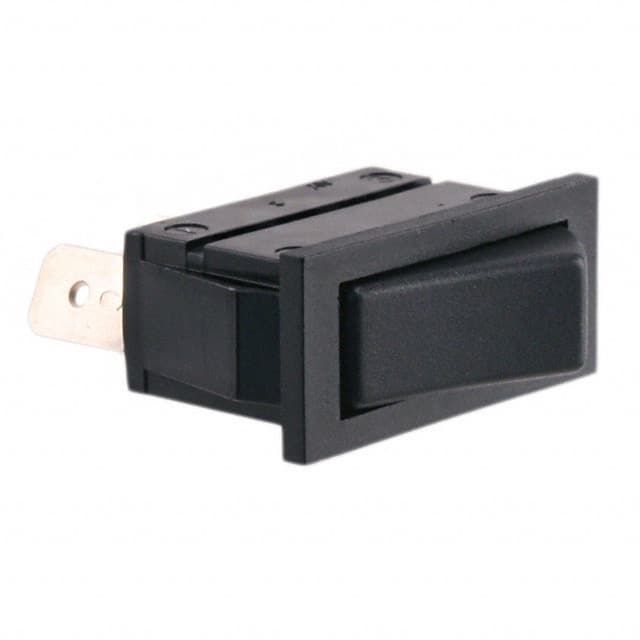

C1300AABBSWITCH ROCKER SPST 20A 250V |
1,463 |
|
Технический лист |
1300 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 20A (AC/DC) | 250 V | 24 V | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 27.30mm x 12.30mm | - | CSA, UL |
|

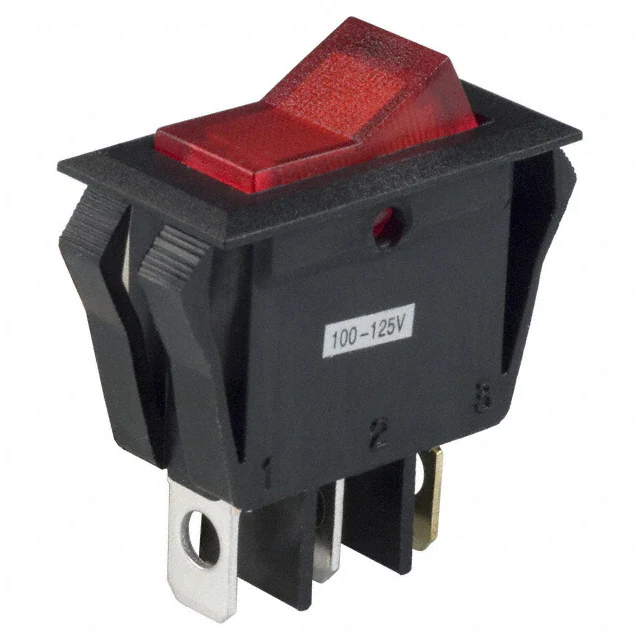

CL102J9RS205QA7SWITCH ROCKER SPST 16A 125V |
1,361 |
|
Технический лист |
CL | Tray | Active | Panel Mount, Snap-In | SPST | On-Off | 16A (AC) | 125 V | - | Concave (Standard V) - Illuminated | Red | No Marking | Neon, Red | 125 VAC | Quick Connect - 0.250" (6.3mm) | - | Positive Detent | Rectangular - 28.80mm x 14.00mm | -20°C ~ 80°C | cULus |
|

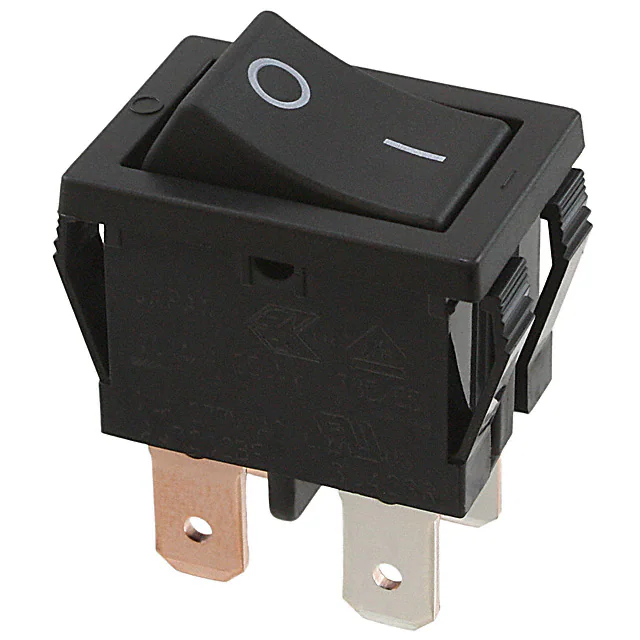

AJ7202BFSWITCH ROCKER DPST 10A 250V |
515 |
|
Технический лист |
AJ7 | Bulk | Not For New Designs | Panel Mount, Snap-In | DPST | On-Off | 10A (AC) | 250 V | - | Concave (Curved) | Black | O - | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.20mm x 12.90mm | -25°C ~ 85°C | cULus, ENEC, VDE |
|
471005264153SWITCH ROCKER SPST 16A 250V |
196 |
|
Технический лист |
WS-RSTV | Tray | Active | Panel Mount, Snap-In | SPST | On-Off | 16A (AC), 10A (DC) | 250 V | 28 V | Concave (Curved) | Black | O I | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 27.60mm x 13.80mm | 0°C ~ 85°C | CQC, ENEC, UL |
|
C1550ABAADSWITCH ROCKER DPST 20A 250V |
961 |
|
Технический лист |
1500 | - | Active | Panel Mount, Snap-In | DPST | On-Off | 16A (AC) | 250 V | 24 V | Concave (Curved) | - | - | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 30.10mm x 11.10mm | - | CSA, UL |
|
400UDP1L1BLKM6RESWITCH ROCKER DPDT 0.4VA 20V |
388 |
|
Технический лист |
400U | Tray | Active | Through Hole, Right Angle | DPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Paddle | Black | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C | - |
|
D501J12S215PQASWITCH ROCKER SPDT 10A 125V |
1,487 |
|
Технический лист |
D | Bulk | Active | Panel Mount, Snap-In | SPDT | On-On | 10A (AC) | 125 V | - | Concave (Curved) | Black | O - | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.20mm x 12.90mm | -30°C ~ 65°C | cULus |
|
C1353AANACSWITCH ROCKER DPST 16A 250V |
942 |
|
Технический лист |
1350 | - | Active | - | DPST | On-Off | 16A (AC) | 250 V | - | Concave (Curved) - Illuminated | Green | O I | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 22.00mm x 30.00mm | - | CSA, UL |
|
400UDP1R1BLKM7RESWITCH ROCKER DPDT 0.4VA 20V |
498 |
|
Технический лист |
400U | Tray | Active | Through Hole, Right Angle, Vertical | DPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Concave (Curved) | Black | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C | - |
|

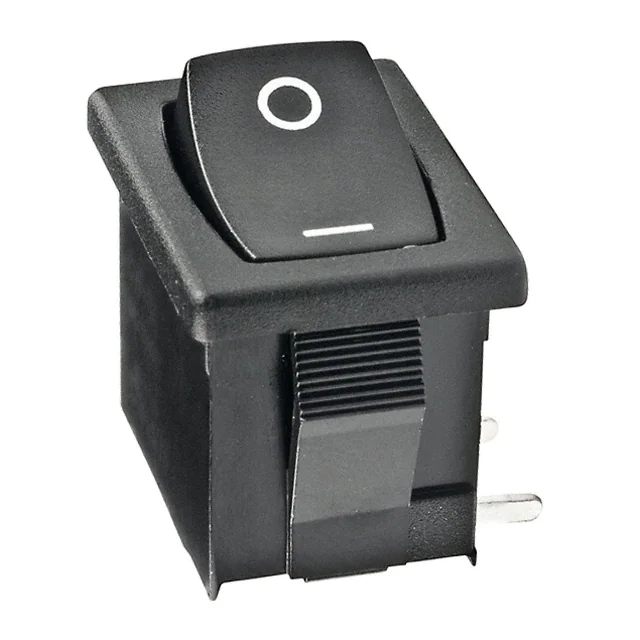

CWSA11AAN1HSWITCH ROCKER SPST 6A 250V |
1,599 |
|
Технический лист |
CWSA | Tray | Active | Panel Mount, Snap-In, Right Angle | SPST | On-Off | 6A (AC) | 250 V | - | Concave (Curved) | Black | O I | - | - | PC Pin | - | - | Rectangular - 19.20mm x 12.90mm | -10°C ~ 70°C | cULus |
|
300SP3R1BLKM1QESWITCH ROCKER SPDT 5A 120V |
198 |
|
Технический лист |
300 | Bulk | Active | Panel Mount, Flange | SPDT | On-Off-On | 5A (AC/DC) | 120 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 17.96mm x 10.62mm | -30°C ~ 85°C | - |
|
GRB244B802BR1SWITCH ROCKER DPST 16A 125V |
7,450 |
|
Технический лист |
GRB | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 16A (AC), 20A (DC) | 125 V | 12 V | Round - Illuminated | Red | No Marking | LED, Red | 12 VDC | Quick Connect - 0.187" (4.7mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 20.20mm Dia | -25°C ~ 85°C | cULus |
|

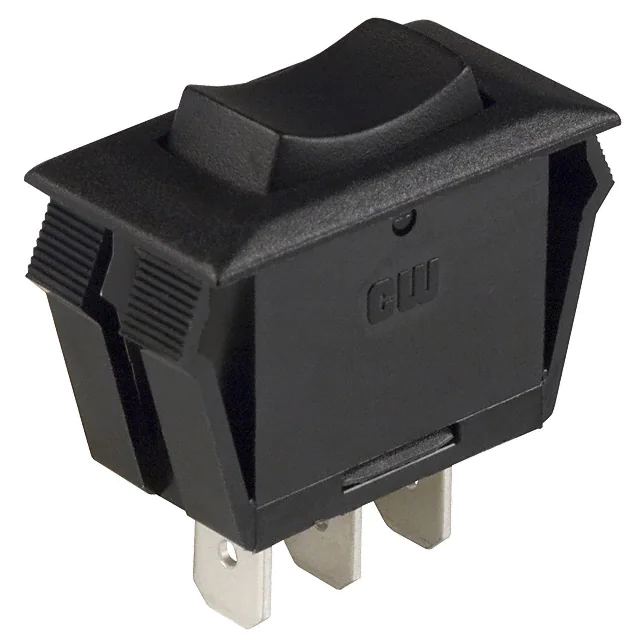

GRS-2013C-1300SWITCH ROCKER SPDT 13A 125V |
352 |
|
Технический лист |
2000 | Bulk | Active | Panel Mount, Snap-In | SPDT | Mom-Off-Mom | 13A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 28.58mm x 13.97mm | -20°C ~ 105°C | - |
|

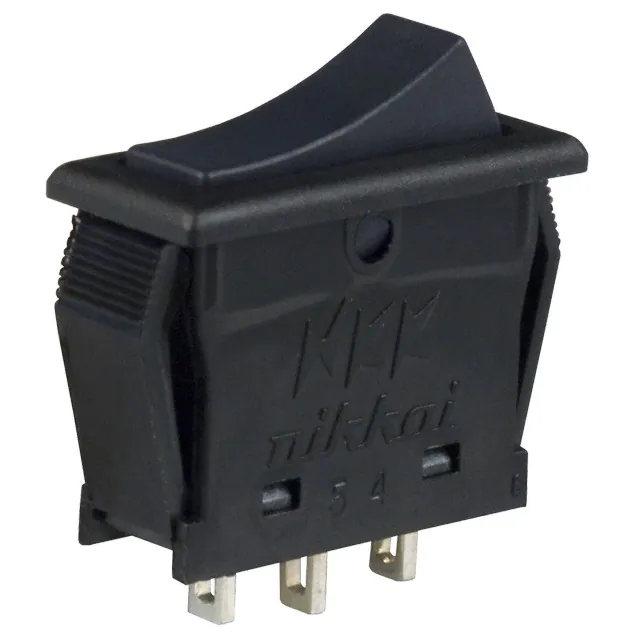

CWT12AAS1SWITCH ROCKER SPDT 6A 125V |
494 |
|
Технический лист |
CWT | Bulk | Active | Panel Mount, Snap-In | SPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Concave (Curved) | Black | No Marking | - | - | Solder Lug | Dust Proof | Epoxy Sealed Terminals | Rectangular - 19.20mm x 6.80mm | -25°C ~ 70°C | cULus |
|

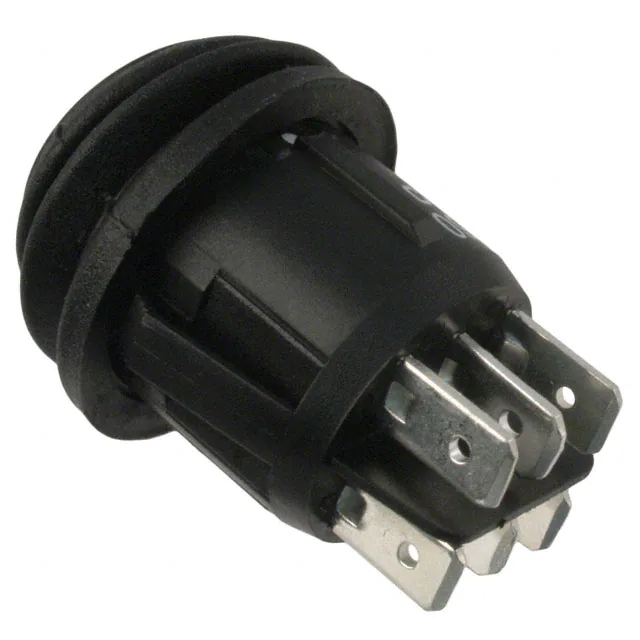

GRB244C802BBSWITCH ROCKER DPDT 16A 125V |
10,911 |
|
Технический лист |
GRB | Bulk | Active | Panel Mount, Snap-In | DPDT | On-On | 16A (AC) | 125 V | - | Round | Black | No Marking | - | - | Quick Connect - 0.187" (4.7mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 20.20mm Dia | -25°C ~ 85°C | cULus |
|

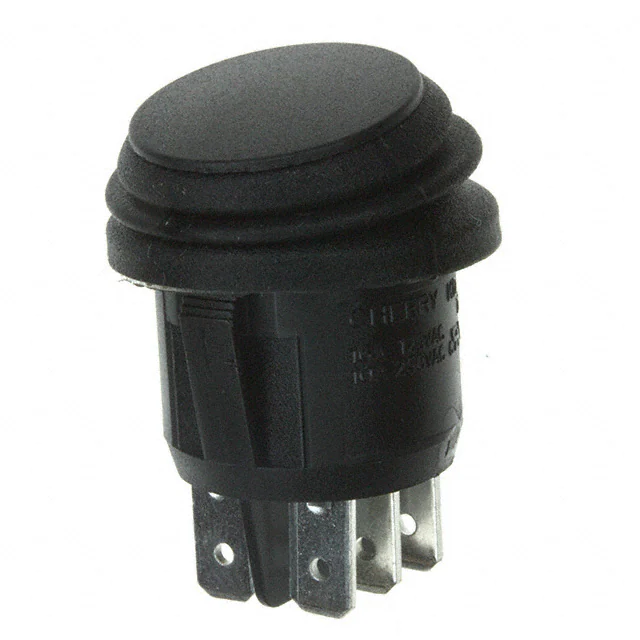

KDH3BNA1BBBSWITCH ROCKER DPDT 16A 125V |
1,143 |
|
- |
KD | Box | Active | Panel Mount, Snap-In | DPDT | On-On | 16A (AC), 10A (DC) | 125 V | 28 V | Round | Black | No Marking | - | - | Quick Connect - 0.187" (4.7mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 20.00mm Dia | -25°C ~ 85°C | - |
|

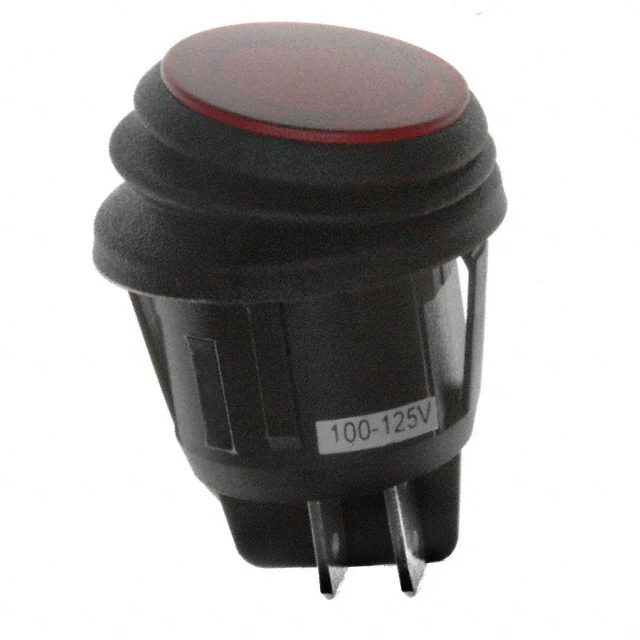

KDH3ALA2RBBSWITCH ROCKER DPST 16A 125V |
4,407 |
|
- |
KD | Box | Active | Panel Mount, Snap-In | DPST | On-Off | 16A (AC), 10A (DC) | 125 V | 28 V | Round - Illuminated | Red | No Marking | Neon, Red | 110 VAC | Quick Connect - 0.187" (4.7mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 20.00mm Dia | -25°C ~ 85°C | - |
|
471NS03268540SWITCH ROCKER SPST 10A 250V |
110 |
|
Технический лист |
WS-RSTV | Tray | Active | Panel Mount, Snap-In | SPST | On-Off | 10A (AC/DC) | 250 V | 28 V | Round - Illuminated | Red | No Marking | Neon, Red | 110 VAC | Quick Connect - 0.187" (4.7mm) | - | - | Circular - 20.20mm Dia | 0°C ~ 85°C | CQC, ENEC, UL |
|
DF52J12P215HQASWITCH ROCKER SPST 16A 125V |
1,584 |
|
Технический лист |
DF | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 16A (AC), 6A (DC) | 125 V | 48 V | Concave (Curved) | Black | O I | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 27.31mm x 12.50mm | -20°C ~ 85°C | cULus |
