Герконовые реле
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип крепления | Напряжение катушки | Форма контакта | Номинал контакта (ток) | Напряжение переключения | Ток катушки | Тип катушки | Особенности | Тип вывода | Номинал уплотнения | Необходимое рабочее напряжение | Необходимое отпускающее напряжение | Время срабатывания | Время отпускания | Рабочая температура | Материал контакта |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
7202-24-1101RELAY REED DPST 1A 24V |
0 |
|
Технический лист |
7000 | Bulk | Obsolete | Through Hole | 24VDC | DPST-NO (2 Form A) | 1 A | 500VAC, 500VDC - Max | 18 mA | Non Latching | Diode | PC Pin | - | 18 VDC | 2 VDC | 2 ms | 1 ms | -20°C ~ 85°C | - |
|
|
7203-05-1000RELAY REED 3PST 1A 5V |
0 |
|
Технический лист |
7000 | Bulk | Obsolete | Through Hole | 5VDC | 3PST-NO (3 Form A) | 1 A | 500VAC, 500VDC - Max | 100 mA | Non Latching | - | PC Pin | - | 3.75 VDC | 0.4 VDC | 2 ms | 1 ms | -20°C ~ 85°C | - |
|
|
7203-05-1010RELAY REED 3PST 1A 5V |
0 |
|
Технический лист |
7000 | Bulk | Obsolete | Through Hole | 5VDC | 3PST-NO (3 Form A) | 1 A | 500VAC, 500VDC - Max | 100 mA | Non Latching | Electrostatic Shield | PC Pin | - | 3.75 VDC | 0.4 VDC | 2 ms | 1 ms | -20°C ~ 85°C | - |
|
|
7203-24-1000RELAY REED 3PST 1A 24V |
0 |
|
Технический лист |
7000 | Bulk | Obsolete | Through Hole | 24VDC | 3PST-NO (3 Form A) | 1 A | 500VAC, 500VDC - Max | 20 mA | Non Latching | - | PC Pin | - | 18 VDC | 2 VDC | 2 ms | 1 ms | -20°C ~ 85°C | - |
|
|
7241-05-1001RELAY REED SPDT 1A 5V |
0 |
|
Технический лист |
7000 | Bulk | Obsolete | Through Hole | 5VDC | SPDT (1 Form C) | 1 A | 500VAC, 500VDC - Max | 100 mA | Non Latching | Diode | PC Pin | - | 3.75 VDC | 0.4 VDC | 2 ms | 1.5 ms | -20°C ~ 85°C | - |
|
|
7241-05-1011RELAY REED SPDT 1A 5V |
0 |
|
Технический лист |
7000 | Bulk | Obsolete | Through Hole | 5VDC | SPDT (1 Form C) | 1 A | 500VAC, 500VDC - Max | 100 mA | Non Latching | Diode, Electrostatic Shield | PC Pin | - | 3.75 VDC | 0.4 VDC | 2 ms | 1.5 ms | -20°C ~ 85°C | - |
|
|
7241-12-1000RELAY REED SPDT 1A 12V |
0 |
|
Технический лист |
7000 | Bulk | Obsolete | Through Hole | 12VDC | SPDT (1 Form C) | 1 A | 500VAC, 500VDC - Max | 40 mA | Non Latching | - | PC Pin | - | 9 VDC | 1 VDC | 2 ms | 1.5 ms | -20°C ~ 85°C | - |
|
|
7301-05-1001RELAY REED SPST 500MA 5V |
0 |
|
Технический лист |
7000 | Bulk | Obsolete | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 500VAC, 500VDC - Max | 28.6 mA | Non Latching | Diode | PC Pin | - | 3.75 VDC | 0.4 VDC | 1 ms | 0.1 ms | -20°C ~ 85°C | - |
|
|
7301-05-1010RELAY REED SPST 500MA 5V |
0 |
|
Технический лист |
7000 | Bulk | Obsolete | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 500VAC, 500VDC - Max | 28.6 mA | Non Latching | Electrostatic Shield | PC Pin | - | 3.75 VDC | 0.4 VDC | 1 ms | 0.1 ms | -20°C ~ 85°C | - |
|
|
7301-05-1100RELAY REED SPST 500MA 5V |
0 |
|
Технический лист |
7000 | Bulk | Obsolete | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 500VAC, 500VDC - Max | 28.6 mA | Non Latching | - | PC Pin | - | 3.75 VDC | 0.4 VDC | 1 ms | 0.1 ms | -20°C ~ 85°C | - |
|
|
7301-12-1100RELAY REED SPST 500MA 12V |
0 |
|
Технический лист |
7000 | Bulk | Obsolete | Through Hole | 12VDC | SPST-NO (1 Form A) | 500 mA | 500VAC, 500VDC - Max | 10.9 mA | Non Latching | - | PC Pin | - | 9 VDC | 1 VDC | 1 ms | 0.1 ms | -20°C ~ 85°C | - |
|
|
7302-12-1110RELAY REED DPST 500MA 12V |
0 |
|
Технический лист |
7000 | Bulk | Obsolete | Through Hole | 12VDC | DPST-NO (2 Form A) | 500 mA | 500VAC, 500VDC - Max | 18.8 mA | Non Latching | Electrostatic Shield | PC Pin | - | 9 VDC | 1 VDC | 1 ms | 0.1 ms | -20°C ~ 85°C | - |
|
|
7302-24-1001RELAY REED DPST 500MA 24V |
0 |
|
Технический лист |
7000 | Bulk | Obsolete | Through Hole | 24VDC | DPST-NO (2 Form A) | 500 mA | 500VAC, 500VDC - Max | 9.8 mA | Non Latching | Diode | PC Pin | - | 18 VDC | 2 VDC | 1 ms | 0.1 ms | -20°C ~ 85°C | - |
|
|
7304-12-1000RELAY REED 4PST 500MA 12V |
0 |
|
Технический лист |
7000 | Bulk | Obsolete | Through Hole | 12VDC | 4PST-NO (4 Form A) | 500 mA | 500VAC, 500VDC - Max | 40 mA | Non Latching | - | PC Pin | - | 9 VDC | 1 VDC | 1 ms | 0.1 ms | -20°C ~ 85°C | - |
|
8001-05-011RELAY REED SPST 500MA 5V |
0 |
|
Технический лист |
8000 | Tube | Obsolete | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 10 mA | Non Latching | Diode | PC Pin | - | 3.8 VDC | 0.5 VDC | 0.5 ms | 1 ms | -20°C ~ 85°C | - |
|
|
8001-05-101RELAY REED SPST 500MA 5V |
0 |
|
Технический лист |
8000 | Tube | Obsolete | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 10 mA | Non Latching | Electrostatic Shield | PC Pin | - | 3.8 VDC | 0.5 VDC | 0.5 ms | 0.5 ms | -20°C ~ 85°C | - |
|
|
8001-12-001RELAY REED SPST 500MA 12V |
0 |
|
Технический лист |
8000 | Tube | Obsolete | Through Hole | 12VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 24 mA | Non Latching | - | PC Pin | - | 9.6 VDC | 1 VDC | 0.5 ms | 0.5 ms | -20°C ~ 85°C | - |
|
|
8002-05-00RELAY REED DPST 500MA 5V |
0 |
|
Технический лист |
8000 | Tube | Obsolete | Through Hole | 5VDC | DPST-NO (2 Form A) | 500 mA | 200VAC, 200VDC - Max | 25 mA | Non Latching | - | PC Pin | - | 3.8 VDC | 0.5 VDC | 0.5 ms | 0.5 ms | -20°C ~ 85°C | - |
|

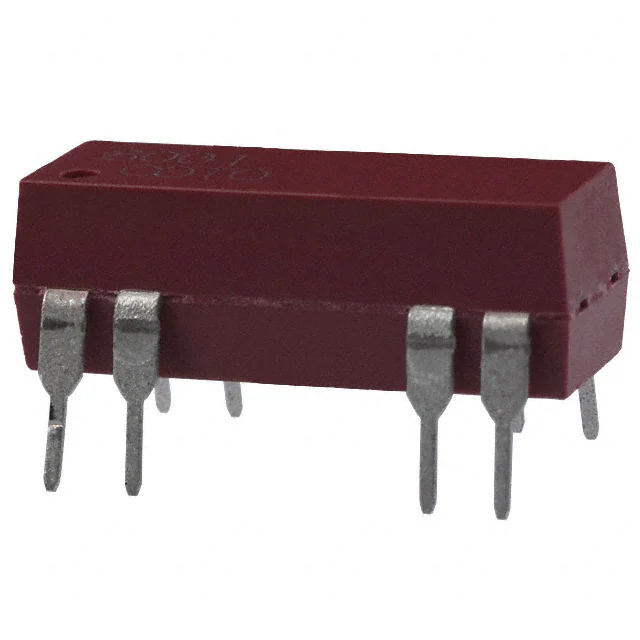

8002-12-00RELAY REED DPST 500MA 12V |
0 |
|
Технический лист |
8000 | Tube | Obsolete | Through Hole | 12VDC | DPST-NO (2 Form A) | 500 mA | 200VAC, 200VDC - Max | 24 mA | Non Latching | - | PC Pin | - | 9.6 VDC | 1 VDC | 0.5 ms | 0.5 ms | -20°C ~ 85°C | - |
|
|
8041-05-101RELAY REED SPDT 250MA 5V |
0 |
|
Технический лист |
8000 | Tube | Obsolete | Through Hole | 5VDC | SPDT (1 Form C) | 250 mA | 100VAC, 100VDC - Max | 25 mA | Non Latching | Electrostatic Shield | PC Pin | - | 3.8 VDC | 0.5 VDC | 1 ms | 1 ms | -20°C ~ 85°C | - |
