Герконовые реле
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип крепления | Напряжение катушки | Форма контакта | Номинал контакта (ток) | Напряжение переключения | Ток катушки | Тип катушки | Особенности | Тип вывода | Номинал уплотнения | Необходимое рабочее напряжение | Необходимое отпускающее напряжение | Время срабатывания | Время отпускания | Рабочая температура | Материал контакта |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
7102-12-1001RELAY REED DPST 500MA 12V |
0 |
|
Технический лист |
7000 | Bulk | Obsolete | Through Hole | 12VDC | DPST-NO (2 Form A) | 500 mA | 200VAC, 200VDC - Max | 12 mA | Non Latching | Diode | PC Pin | - | 9 VDC | 1 VDC | 1 ms | 0.1 ms | -20°C ~ 85°C | - |
|
|
7102-24-1100RELAY REED DPST 500MA 24V |
0 |
|
Технический лист |
7000 | Bulk | Obsolete | Through Hole | 24VDC | DPST-NO (2 Form A) | 500 mA | 200VAC, 200VDC - Max | 6.9 mA | Non Latching | - | PC Pin | - | 18 VDC | 2 VDC | 1 ms | 0.1 ms | -20°C ~ 85°C | - |
|
|
7103-05-1000RELAY REED 3PST 500MA 5V |
0 |
|
Технический лист |
7000 | Bulk | Obsolete | Through Hole | 5VDC | 3PST-NO (3 Form A) | 500 mA | 200VAC, 200VDC - Max | 50 mA | Non Latching | - | PC Pin | - | 3.75 VDC | 0.4 VDC | 1 ms | 0.1 ms | -20°C ~ 85°C | - |
|
|
7103-12-1000RELAY REED 3PST 500MA 12V |
0 |
|
Технический лист |
7000 | Bulk | Obsolete | Through Hole | 12VDC | 3PST-NO (3 Form A) | 500 mA | 200VAC, 200VDC - Max | 15 mA | Non Latching | - | PC Pin | - | 9 VDC | 1 VDC | 1 ms | 0.1 ms | -20°C ~ 85°C | - |
|
|
7103-24-1010RELAY REED 3PST 500MA 24V |
0 |
|
Технический лист |
7000 | Bulk | Obsolete | Through Hole | 24VDC | 3PST-NO (3 Form A) | 500 mA | 200VAC, 200VDC - Max | 10 mA | Non Latching | Electrostatic Shield | PC Pin | - | 18 VDC | 2 VDC | 1 ms | 0.1 ms | -20°C ~ 85°C | - |
|
|
7104-05-1001RELAY REED 4PST 500MA 5V |
0 |
|
Технический лист |
7000 | Bulk | Obsolete | Through Hole | 5VDC | 4PST-NO (4 Form A) | 500 mA | 200VAC, 200VDC - Max | 62.5 mA | Non Latching | Diode | PC Pin | - | 3.75 VDC | 0.4 VDC | 1 ms | 0.1 ms | -20°C ~ 85°C | - |
|
|
7104-05-1100RELAY REED 4PST 500MA 5V |
0 |
|
Технический лист |
7000 | Bulk | Obsolete | Through Hole | 5VDC | 4PST-NO (4 Form A) | 500 mA | 200VAC, 200VDC - Max | 62.5 mA | Non Latching | - | PC Pin | - | 3.75 VDC | 0.4 VDC | 1 ms | 0.1 ms | -20°C ~ 85°C | - |
|
|
7104-12-1001RELAY REED 4PST 500MA 12V |
0 |
|
Технический лист |
7000 | Bulk | Obsolete | Through Hole | 12VDC | 4PST-NO (4 Form A) | 500 mA | 200VAC, 200VDC - Max | 21.8 mA | Non Latching | Diode | PC Pin | - | 9 VDC | 1 VDC | 1 ms | 0.1 ms | -20°C ~ 85°C | - |
|

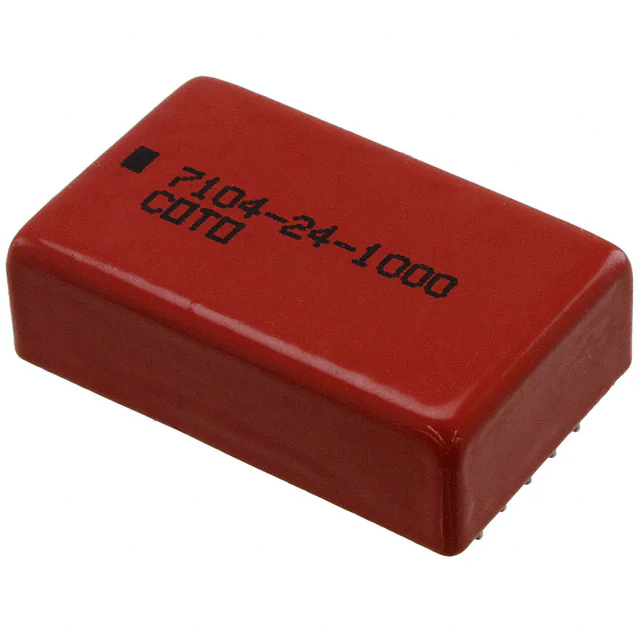

7104-24-1000RELAY REED 4PST 500MA 24V |
0 |
|
Технический лист |
7000 | Bulk | Obsolete | Through Hole | 24VDC | 4PST-NO (4 Form A) | 500 mA | 200VAC, 200VDC - Max | 12 mA | Non Latching | - | PC Pin | - | 18 VDC | 2 VDC | 1 ms | 0.1 ms | -20°C ~ 85°C | - |
|
|
7121-05-1000RELAY REED SPST 500MA 5V |
0 |
|
Технический лист |
7000 | Bulk | Obsolete | Through Hole | 5VDC | SPST-NC (1 Form B) | 500 mA | 200VAC, 200VDC - Max | 33.3 mA | Non Latching | - | PC Pin | - | 3.75 VDC | 0.4 VDC | 1 ms | 0.1 ms | -20°C ~ 85°C | - |
|
|
7121-12-1000RELAY REED SPST 500MA 12V |
0 |
|
Технический лист |
7000 | Bulk | Obsolete | Through Hole | 12VDC | SPST-NC (1 Form B) | 500 mA | 200VAC, 200VDC - Max | 12 mA | Non Latching | - | PC Pin | - | 9 VDC | 1 VDC | 1 ms | 0.1 ms | -20°C ~ 85°C | - |
|
|
7121-12-1010RELAY REED SPST 500MA 12V |
0 |
|
Технический лист |
7000 | Bulk | Obsolete | Through Hole | 12VDC | SPST-NC (1 Form B) | 500 mA | 200VAC, 200VDC - Max | 12 mA | Non Latching | Electrostatic Shield | PC Pin | - | 9 VDC | 1 VDC | 1 ms | 0.1 ms | -20°C ~ 85°C | - |
|
|
7122-05-1011RELAY REED DPST 500MA 5V |
0 |
|
Технический лист |
7000 | Tube | Obsolete | Through Hole | 5VDC | DPST-NC (2 Form B) | 500 mA | 200VAC, 200VDC - Max | 50 mA | Non Latching | Diode, Electrostatic Shield | PC Pin | - | 3.75 VDC | 0.4 VDC | 1 ms | 0.1 ms | -20°C ~ 85°C | - |
|
|
7141-05-1001RELAY REED SPDT 250MA 5V |
0 |
|
Технический лист |
7000 | Bulk | Obsolete | Through Hole | 5VDC | SPDT (1 Form C) | 250 mA | 150VAC, 150VDC - Max | 28.6 mA | Non Latching | Diode | PC Pin | - | 3.75 VDC | 0.4 VDC | 2 ms | 2.5 ms | -20°C ~ 85°C | - |
|
|
7141-05-1010RELAY REED SPDT 250MA 5V |
0 |
|
Технический лист |
7000 | Bulk | Obsolete | Through Hole | 5VDC | SPDT (1 Form C) | 250 mA | 150VAC, 150VDC - Max | 28.6 mA | Non Latching | Electrostatic Shield | PC Pin | - | 3.75 VDC | 0.4 VDC | 2 ms | 2.5 ms | -20°C ~ 85°C | - |
|
|
7141-05-1100RELAY REED SPDT 250MA 5V |
0 |
|
Технический лист |
7000 | Bulk | Obsolete | Through Hole | 5VDC | SPDT (1 Form C) | 250 mA | 150VAC, 150VDC - Max | 28.6 mA | Non Latching | - | PC Pin | - | 3.75 VDC | 0.4 VDC | 2 ms | 2.5 ms | -20°C ~ 85°C | - |
|
|
7141-12-1100RELAY REED SPDT 250MA 12V |
0 |
|
Технический лист |
7000 | Bulk | Obsolete | Through Hole | 12VDC | SPDT (1 Form C) | 250 mA | 150VAC, 150VDC - Max | 10.9 mA | Non Latching | - | PC Pin | - | 9 VDC | 1 VDC | 2 ms | 2.5 ms | -20°C ~ 85°C | - |
|
|
7141-24-1001RELAY REED SPDT 250MA 24V |
0 |
|
Технический лист |
7000 | Bulk | Obsolete | Through Hole | 24VDC | SPDT (1 Form C) | 250 mA | 150VAC, 150VDC - Max | 5.7 mA | Non Latching | Diode | PC Pin | - | 18 VDC | 2 VDC | 2 ms | 2.5 ms | -20°C ~ 85°C | - |
|
|
7142-05-1000RELAY REED DPDT 250MA 5V |
0 |
|
Технический лист |
7000 | Bulk | Obsolete | Through Hole | 5VDC | DPDT (2 Form C) | 250 mA | 150VAC, 150VDC - Max | 77 mA | Non Latching | - | PC Pin | - | 3.75 VDC | 0.4 VDC | 2 ms | 2.5 ms | -20°C ~ 85°C | - |
|
|
7142-05-1001RELAY REED DPDT 250MA 5V |
0 |
|
Технический лист |
7000 | Bulk | Obsolete | Through Hole | 5VDC | DPDT (2 Form C) | 250 mA | 150VAC, 150VDC - Max | 77 mA | Non Latching | Diode | PC Pin | - | 3.75 VDC | 0.4 VDC | 2 ms | 2.5 ms | -20°C ~ 85°C | - |
