Герконовые реле
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип крепления | Напряжение катушки | Форма контакта | Номинал контакта (ток) | Напряжение переключения | Ток катушки | Тип катушки | Особенности | Тип вывода | Номинал уплотнения | Необходимое рабочее напряжение | Необходимое отпускающее напряжение | Время срабатывания | Время отпускания | Рабочая температура | Материал контакта |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
7141-12-1001RELAY REED SPDT 250MA 12V |
69 |
|
Технический лист |
7000 | Bulk | Active | Through Hole | 12VDC | SPDT (1 Form C) | 250 mA | 150VAC, 150VDC - Max | 10.9 mA | Non Latching | Diode | PC Pin | - | 9 VDC | 1 VDC | 2 ms | 2.5 ms | -20°C ~ 85°C | - |
|
7102-05-1011RELAY REED DPST 500MA 5V |
81 |
|
Технический лист |
7000 | Bulk | Active | Through Hole | 5VDC | DPST-NO (2 Form A) | 500 mA | 200VAC, 200VDC - Max | 33.3 mA | Non Latching | Diode, Electrostatic Shield | PC Pin | - | 3.75 VDC | 0.4 VDC | 1 ms | 0.1 ms | -20°C ~ 85°C | - |
|
S1-0504RELAY REED 4KV SPST 5V SIP |
31 |
|
Технический лист |
S1 | Bulk | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 1 A | 300VAC, 350VDC - Max | 27.8 mA | Non Latching | - | PC Pin | - | 4 VDC | 1.25 VDC | 1 ms | 0.5 ms | -40°C ~ 85°C | Rhodium (Rh) |
|
S1-12-2ARELAY REED TWIN N/O 1.5KV 12V |
15 |
|
Технический лист |
S1 | Bulk | Active | Through Hole | 12VDC | SPST-NO (1 Form A) x 2 | 500 mA | 1000VDC - Max | 15.4 mA | Non Latching | - | PC Pin | - | 9 VDC | 1.2 VDC | 0.75 ms | 0.3 ms | -40°C ~ 85°C | Rhodium (Rh) |
|
S1-0504MRELAY REED 4KV SPST 5V SIP SCREE |
50 |
|
Технический лист |
S1 | Bulk | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 1 A | 300VAC, 350VDC - Max | 27.8 mA | Non Latching | EMI Shielded | PC Pin | - | 4 VDC | 1.25 VDC | 1 ms | 0.5 ms | -40°C ~ 85°C | Rhodium (Rh) |
|
|
S1-0504DRELAY REED 4KV SPST 5V SIP W/DIO |
24 |
|
Технический лист |
S1 | Bulk | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 1 A | 300VAC, 350VDC - Max | 27.8 mA | Non Latching | Diode | PC Pin | - | 4 VDC | 1.25 VDC | 1 ms | 0.5 ms | -40°C ~ 85°C | Rhodium (Rh) |
|
|
S1-1204DRELAY REED 4KV SPST 12V SIP W/DI |
24 |
|
Технический лист |
S1 | Bulk | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 1 A | 300VAC, 350VDC - Max | 24 mA | Non Latching | Diode | PC Pin | - | 10.8 VDC | 1.25 VDC | 1 ms | 0.5 ms | -40°C ~ 85°C | Rhodium (Rh) |
|
|
S1-0504DMRELAY REED 4KV SPST 5V SIP W/DIO |
38 |
|
Технический лист |
S1 | Bulk | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 1 A | 300VAC, 350VDC - Max | 27.8 mA | Non Latching | Diode, EMI Shielded | PC Pin | - | 4 VDC | 1.25 VDC | 1 ms | 0.5 ms | -40°C ~ 85°C | Rhodium (Rh) |
|
|
S1-1204DMRELAY REED 4KV SPST 12V SIP W/DI |
35 |
|
Технический лист |
S1 | Bulk | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 1 A | 300VAC, 350VDC - Max | 24 mA | Non Latching | Diode, EMI Shielded | PC Pin | - | 10.8 VDC | 1.25 VDC | 1 ms | 0.5 ms | -40°C ~ 85°C | Rhodium (Rh) |
|

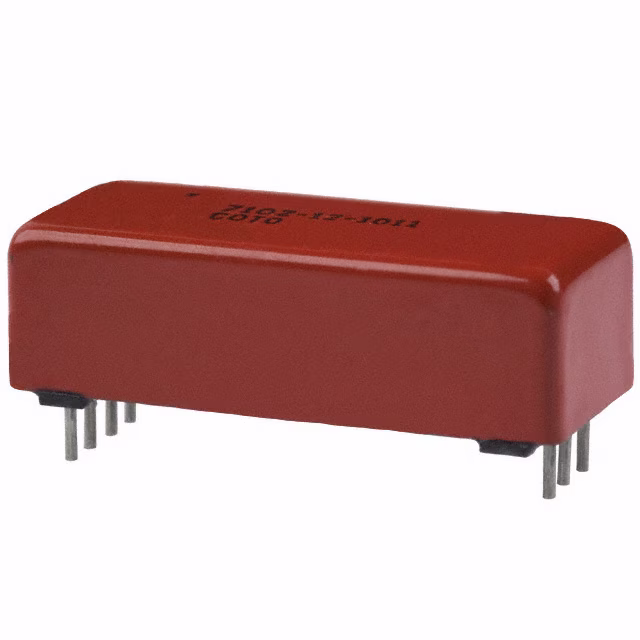

7102-12-1011RELAY REED DPST 500MA 12V |
76 |
|
Технический лист |
7000 | Bulk | Active | Through Hole | 12VDC | DPST-NO (2 Form A) | 500 mA | 200VAC, 200VDC - Max | 12 mA | Non Latching | Diode, Electrostatic Shield | PC Pin | - | 9 VDC | 1 VDC | 1 ms | 0.1 ms | -20°C ~ 85°C | - |
|
S1-05-2ADMRELAY REED TWIN N/O 1.5KV 5V |
9 |
|
Технический лист |
S1 | Bulk | Active | Through Hole | 5VDC | SPST-NO (1 Form A) x 2 | 500 mA | 1000VDC - Max | 20 mA | Non Latching | Diode, EMI Shielded | PC Pin | - | 3.75 VDC | 0.5 VDC | 0.75 ms | 0.3 ms | -40°C ~ 85°C | Rhodium (Rh) |
|
|
S1-2404DRELAY REED 4KV SPST 24V SIP W/DI |
20 |
|
Технический лист |
S1 | Bulk | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 1 A | 300VAC, 350VDC - Max | 24 mA | Non Latching | Diode | PC Pin | - | 16 VDC | 1.25 VDC | 1 ms | 0.5 ms | -40°C ~ 85°C | Rhodium (Rh) |
|
|
S1-2404RELAY REED 4KV SPST 24V SIP |
16 |
|
Технический лист |
S1 | Bulk | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 1 A | 300VAC, 350VDC - Max | 24 mA | Non Latching | - | PC Pin | - | 16 VDC | 1.25 VDC | 1 ms | 0.5 ms | -40°C ~ 85°C | Rhodium (Rh) |
|
|
S1-2404MRELAY REED 4KV SPST 24V SIP SCRE |
25 |
|
Технический лист |
S1 | Bulk | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 1 A | 300VAC, 350VDC - Max | 24 mA | Non Latching | EMI Shielded | PC Pin | - | 16 VDC | 1.25 VDC | 1 ms | 0.5 ms | -40°C ~ 85°C | Rhodium (Rh) |
|
S1-12-BRELAY REED 1 N/C 1.5KV 12V |
20 |
|
Технический лист |
S1 | Bulk | Active | Through Hole | 12VDC | SPST-NC (1 Form B) | 500 mA | 1000VDC - Max | 6 mA | Non Latching | - | PC Pin | - | 9 VDC | 1.2 VDC | - | - | -40°C ~ 85°C | Rhodium (Rh) |
|
|
S1-2404DMRELAY REED 4KV SPST 24V SIP W/DI |
24 |
|
Технический лист |
S1 | Bulk | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 1 A | 300VAC, 350VDC - Max | 24 mA | Non Latching | Diode, EMI Shielded | PC Pin | - | 16 VDC | 1.25 VDC | 1 ms | 0.5 ms | -40°C ~ 85°C | Rhodium (Rh) |
|
3501-05-910RELAY REED SPST 500MA 5V |
29 |
|
Технический лист |
3500 | Tube | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 14.3 mA | Non Latching | - | PC Pin | Sealed - Hermetically | 3.8 VDC | 0.4 VDC | 0.75 ms | 0.1 ms | -20°C ~ 85°C | - |
|
|
S1-05-BDRELAY REED 1 N/C 1.5KV 5V |
14 |
|
Технический лист |
S1 | Bulk | Active | Through Hole | 5VDC | SPST-NC (1 Form B) | 500 mA | 1000VDC - Max | 6.4 mA | Non Latching | Diode | PC Pin | - | 3.75 VDC | 0.5 VDC | - | - | -40°C ~ 85°C | Rhodium (Rh) |
|
|
S1-12-BMRELAY REED 1 N/C 1.5KV 12V |
10 |
|
Технический лист |
S1 | Bulk | Active | Through Hole | 12VDC | SPST-NC (1 Form B) | 500 mA | 1000VDC - Max | 6 mA | Non Latching | EMI Shielded | PC Pin | - | 9 VDC | 1.2 VDC | - | - | -40°C ~ 85°C | Rhodium (Rh) |
|
|
DBR71205URELAY REED SPST-NC 5KV 12V |
0 |
|
Технический лист |
DB | Bulk | Active | Through Hole | 12VDC | SPST-NC (1 Form B) | 3 A | 1000VAC, 1000VDC - Max | 50 mA | Non Latching | - | PC Pin | - | 9 VDC | 1.25 VDC | 2 ms | 3 ms | -20°C ~ 70°C | Rhodium (Rh) |
