Герконовые реле
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип крепления | Напряжение катушки | Форма контакта | Номинал контакта (ток) | Напряжение переключения | Ток катушки | Тип катушки | Особенности | Тип вывода | Номинал уплотнения | Необходимое рабочее напряжение | Необходимое отпускающее напряжение | Время срабатывания | Время отпускания | Рабочая температура | Материал контакта |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DAT70515RELAY REED SPST-NO 2A 5V |
15 |
|
Технический лист |
DA | Tray | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 2 A | 10000VAC, 10000VDC - Max | 313 mA | Non Latching | - | PC Pin | - | 3.7 VDC | 0.5 VDC | 3 ms | 2 ms | -20°C ~ 70°C | Tungsten (W) |
|
DBT72410F-HRRELAY REED SPST-NC 2A 24V |
4 |
|
Технический лист |
D-HR | Tray | Active | Through Hole | 24VDC | SPST-NC (1 Form B) | 2 A | 7000VAC, 7000VDC - Max | 26 mA | Non Latching | - | PC Pin, Wire Leads | - | 20 VDC | 4 VDC | 2 ms | 3 ms | -20°C ~ 70°C | Tungsten (W) |
|
24HV1A100HV REED RELAY SPST NO 10KV 24V |
13 |
|
Технический лист |
XXHV | Bulk | Active | Chassis Mount | 24VDC | SPST-NO (1 Form A) | 3 A | 5000VDC - Max | 60 mA | Non Latching | - | Solder Turret | - | 19 VDC | 2 VDC | - | - | - | - |
|
3570-1210-241RELAY REED DIP SPST .5A 24V |
68 |
|
Технический лист |
3570 | Tube | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 500 mA | 150VDC - Max | 11 mA | Non Latching | - | PC Pin | - | 18 VDC | 2 VDC | 0.5 ms | 0.5 ms | -20°C ~ 85°C | - |
|
3570-1419-052RELAY REED SIP SPST 1A 5V W/EMI |
99 |
|
Технический лист |
3570 | Tube | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 1 A | 200VDC - Max | 10 mA | Non Latching | EMI Shielded | PC Pin | - | 3.75 VDC | 0.4 VDC | 0.35 ms | 0.1 ms | -40°C ~ 85°C | - |
|

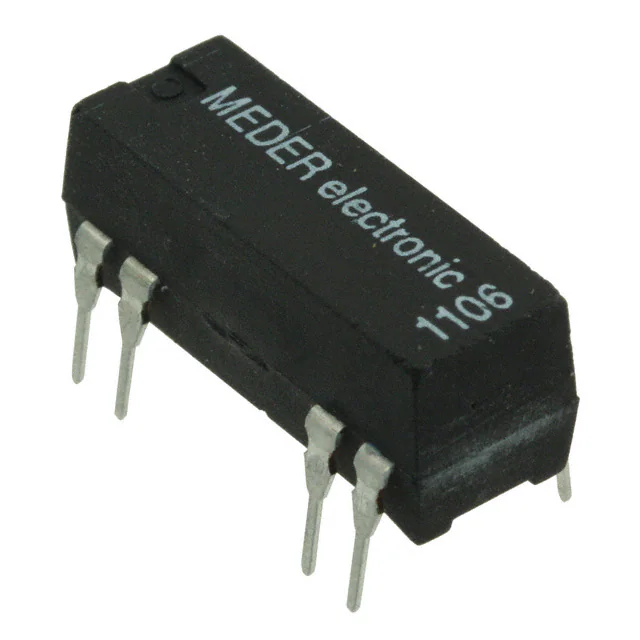

DIP24-1C90-51LRELAY REED SPDT 500MA 24V |
89 |
|
Технический лист |
DIP | Tube | Active | Through Hole | 24VDC | SPDT (1 Form C) | 500 mA | 175VAC, 175VDC - Max | 12 mA | Non Latching | - | PC Pin | - | 16.8 VDC | 3.6 VDC | 0.7 ms | 1.5 ms | -20°C ~ 70°C | - |
|
V23100V4015ARELAY REED SPST 500MA 15V |
64 |
|
Технический лист |
V23100-V4, AXICOM | Tube | Active | Through Hole | 15VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 7.5 mA | Non Latching | - | PC Pin | - | 10.5 VDC | 2.25 VDC | 0.75 ms | 0.15 ms | -40°C ~ 85°C | Ruthenium (Ru) |
|
BF-1C-12RELAY REED SPDT .25A 12V |
100 |
|
Технический лист |
BF | Tube | Active | Through Hole | 12VDC | SPDT (1 Form C) | 250 mA | 150VDC - Max | 8 mA | Non Latching | - | PC Pin | - | 9 VDC | 1 VDC | 1 ms | 2 ms | -25°C ~ 85°C | Ruthenium (Ru) |
|
BFH-1C-12EREED RELAY SPDT .5A 12V |
97 |
|
Технический лист |
BFH | Tube | Active | Through Hole | 12VDC | SPDT (1 Form C) | 500 mA | 200VDC - Max | 12 mA | Non Latching | Electrostatic Shield | PC Pin | - | 9 VDC | 1 VDC | 0.5 ms | 0.5 ms | -20°C ~ 85°C | Ruthenium (Ru) |
|
S8-1204RELAY REED SPST 1A 12V |
44 |
|
Технический лист |
S8 | Bulk | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 1 A | 300VAC, 350VDC - Max | 16 mA | Non Latching | - | PC Pin | - | 9.6 VDC | 2 VDC | 1 ms | 0.5 ms | -40°C ~ 85°C | Rhodium (Rh) |
|
S2-05PRELAY REED SPST 700MA 5V |
17 |
|
Технический лист |
S2 | Bulk | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 700 mA | 300VAC, 350VDC - Max | 31.3 mA | Non Latching | - | Axial | - | 3.7 VDC | 1 VDC | 1 ms | 0.5 ms | -40°C ~ 85°C | Rhodium (Rh) |
|
|
S2-03PRELAY REED SPST 250MA 3V |
22 |
|
Технический лист |
S2 | Bulk | Active | Through Hole | 3VDC | SPST-NO (1 Form A) | 250 mA | 140VAC, 200VDC - Max | 12 mA | Non Latching | - | Axial | - | 2.25 VDC | 0.5 VDC | 0.1 ms | 0.07 ms | -40°C ~ 85°C | Rhodium (Rh) |
|
|
S2-12ERELAY REED SPST 1A 12V |
97 |
|
Технический лист |
S2 | Bulk | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 1 A | 300VAC, 350VDC - Max | 12 mA | Non Latching | - | Axial | - | 9 VDC | 2 VDC | 1 ms | 0.5 ms | -40°C ~ 85°C | Rhodium (Rh) |
|
7302-05-1010RELAY REED DPST 500MA 5V |
41 |
|
Технический лист |
7000 | Bulk | Not For New Designs | Through Hole | 5VDC | DPST-NO (2 Form A) | 500 mA | 500VAC, 500VDC - Max | 50 mA | Non Latching | Electrostatic Shield | PC Pin | - | 3.75 VDC | 0.4 VDC | 1 ms | 0.1 ms | -20°C ~ 85°C | - |
|
|
S8-0504VURELAY REED SPST 1A 5V UL |
25 |
|
Технический лист |
S8 | Bulk | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 1 A | 1000VAC, 1000VDC - Max | 41.7 mA | Non Latching | - | PC Pin | - | 4 VDC | 1 VDC | 1 ms | 0.5 ms | -40°C ~ 85°C | Rhodium (Rh) |
|
|
S2-24EURELAY REED SPST 1A 24V UL |
18 |
|
Технический лист |
S2 | Bulk | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 1 A | 300VAC, 350VDC - Max | 24 mA | Non Latching | - | Axial | - | 19 VDC | 4 VDC | 1 ms | 0.5 ms | -40°C ~ 85°C | Rhodium (Rh) |
|
7103-12-1001RELAY REED 3PST 500MA 12V |
48 |
|
Технический лист |
7000 | Bulk | Active | Through Hole | 12VDC | 3PST-NO (3 Form A) | 500 mA | 200VAC, 200VDC - Max | 15 mA | Non Latching | Diode | PC Pin | - | 9 VDC | 1 VDC | 1 ms | 0.1 ms | -20°C ~ 85°C | - |
|
S1-24-BRELAY REED 1 N/C 1.5KV 24V |
19 |
|
Технический лист |
S1 | Bulk | Active | Through Hole | 24VDC | SPST-NC (1 Form B) | 500 mA | 1000VDC - Max | 12 mA | Non Latching | - | PC Pin | - | 18 VDC | 2.4 VDC | - | - | -40°C ~ 85°C | Rhodium (Rh) |
|
|
S1-05-BRELAY REED 1 N/C 1.5KV 5V |
17 |
|
Технический лист |
S1 | Bulk | Active | Through Hole | 5VDC | SPST-NC (1 Form B) | 500 mA | 1000VDC - Max | 6.4 mA | Non Latching | - | PC Pin | - | 3.75 VDC | 0.5 VDC | - | - | -40°C ~ 85°C | Rhodium (Rh) |
|
SAR92405RELAY REED SPST 500MA 24V |
28 |
|
Технический лист |
S | Tray | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 500 mA | 20VAC, 20VDC - Max | 24 mA | Non Latching | - | PC Pin | - | 20 VDC | 3 VDC | 1 ms | 0.5 ms | -20°C ~ 70°C | Rhodium (Rh) |
