Кнопочные переключатели
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип крепления | Тип | Схема | Функция переключения | Номинальный ток (Ампер) | Номинальное напряжение - переменный ток | Номинальное напряжение - постоянный ток | Тип привода | Маркировка привода | Цвет - привод/колпачок | Тип освещения, цвет | Напряжение освещения (номинальное) | Тип вывода | Защита от проникновения | Особенности | Размеры выреза панели | Рабочая температура |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
YB15CKW01-5F05-JFSWITCH PUSHBUTTON SPDT 3A 125V |
16 |
|
Технический лист |
YB | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | Clear (Green Filter/Diffuser) | LED, Green | 5 VDC | Solder, Quick Connect - 0.110" (2.8mm) | - | Stainless Steel | Circular - 16.00mm Dia | -25°C ~ 50°C |
|
P16OAT11KYELYELSWITCH PUSHBUTTON SPDT 8A 125V |
107 |
|
Технический лист |
P16 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 8A (AC), 6A (DC) | 125 V | 24 V | Rectangular, Button | No Marking | Yellow | LED, Yellow | 24 VDC | Quick Connect - 0.110" (2.8mm) | - | - | Circular - 16.00mm Dia | -20°C ~ 55°C |
|
|
YB15MKG01-5F-JFSWITCH PUSHBUTTON SPDT 0.4VA 28V |
20 |
|
Технический лист |
YB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Clear (Green Filter/Diffuser) | LED, Green | 2.2 VDC | Solder, Quick Connect - 0.110" (2.8mm) | - | Stainless Steel | Circular - 16.00mm Dia | -25°C ~ 50°C |
|
PV9FWT0SS-215SWITCH PB DPST-NO/NC 2A 48V |
133 |
|
Технический лист |
PV9, LAMB | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPST-NO/NC | On-Off, Off-On | 2A (DC) | - | 48 V | Round, Button, Flush | No Marking | Silver | LED, Red | 24 VDC | Wire Leads | IP66 - Dust Tight, Water Resistant | - | Circular - 28.00mm Dia | -20°C ~ 55°C |
|
P16OAT11KGRNGRNSWITCH PUSHBUTTON SPDT 8A 125V |
163 |
|
Технический лист |
P16 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 8A (AC), 6A (DC) | 125 V | 24 V | Rectangular, Button | No Marking | Green | LED, Green | 24 VDC | Quick Connect - 0.110" (2.8mm) | - | - | Circular - 16.00mm Dia | -20°C ~ 55°C |
|
MMP0120/SSS67/PSWITCH PUSHBUTTON SPST-NO 2A 36V |
169 |
|
Технический лист |
MMP0120 | Tray | Active | Panel Mount, Front | Anti-Vandal | SPST-NO | Off-Mom | 2A (DC) | - | 36 V | Round, Button, Domed | No Marking | Silver | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | Stainless Steel | Circular - 12.00mm Dia | -25°C ~ 55°C |
|
ZF12 FG BK 2U OASWITCH PUSH DPDT 0.5A 125V |
111 |
|
Технический лист |
F | Bulk | Active | Panel Mount, Right Angle, Rear | Standard | DPDT | On-Mom | 500mA (AC/DC) | 125 V | 30 V | Round, Button | No Marking | Black | - | - | PC Pin, Solder Lug | - | - | Circular - 12.00mm Dia | -40°C ~ 70°C |
|
|
YB215CWCPW01SWITCH PUSHBUTTON SPDT 3A 125V |
9 |
|
Технический лист |
YB2 | Bulk | Active | Panel Mount, Front | Standard | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | Tactile Feedback | Circular - 22.00mm Dia | -25°C ~ 70°C |
|
ILR3FAD2L0GSWITCH PUSHBUTTON SPST-NO 2A 24V |
731 |
|
Технический лист |
IL | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 2A (DC) | - | 24 V | Round, Button, Domed | No Marking | Black | LED, Green | 2.1 VDC | Wire Leads | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | Circular - 13.60mm Dia | -40°C ~ 85°C |
|
IPR3SAD7/1SWITCH PUSH SPST-NO 0.5A 48V |
347 |
|
Технический лист |
IP | Bulk | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 500mA (AC), 200mA (DC) | 48 V | 48 V | Round, Button | No Marking | White | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | Tactile Feedback | Circular - 13.60mm Dia | -40°C ~ 125°C |
|
YB15CKW01-6F-JBSWITCH PUSHBUTTON SPDT 3A 125V |
6 |
|
Технический лист |
YB | Tray | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | Clear (White Filter/Diffuser) | LED, Green | 3.3 VDC | Solder, Quick Connect - 0.110" (2.8mm) | - | Stainless Steel | Circular - 16.00mm Dia | -25°C ~ 50°C |
|
YB15CKW01-6G-JBSWITCH PUSHBUTTON SPDT 3A 125V |
652 |
|
Технический лист |
YB | Tray | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | Clear (White Filter/Diffuser) | LED, Blue | 3.6 VDC | Solder, Quick Connect - 0.110" (2.8mm) | - | Stainless Steel | Circular - 16.00mm Dia | -25°C ~ 50°C |
|
LB15RKG01-6B-JDSWITCH PUSH SPDT 0.4VA 28V |
148 |
|
Технический лист |
LB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Rectangular, Button | No Marking | Clear (Amber Filter/Diffuser) | LED, White | 3.3 VDC | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Rectangular - 22.40mm x 16.20mm | -25°C ~ 50°C |
|
PV4F230SS-344SWITCH PUSHBUTTON SPDT 2A 24V |
206 |
|
Технический лист |
PV4, LAMB | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-On | 2A (DC) | - | 24 V | Round, Button, Flush | No Marking | Silver | LED, Blue | 12 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 19.00mm Dia | -20°C ~ 55°C |
|
ATPS19SL5612M4SA04GR+PO, GRE, 12V, DD SHA, SPST, MO |
110 |
|
Технический лист |
ATPS19 | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST-NO | Off-Mom | 2A (DC) | - | 36 V | Round, Button, Flush | No Marking | Silver | LED, Green | 12 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 19.00mm Dia | -20°C ~ 70°C |
|

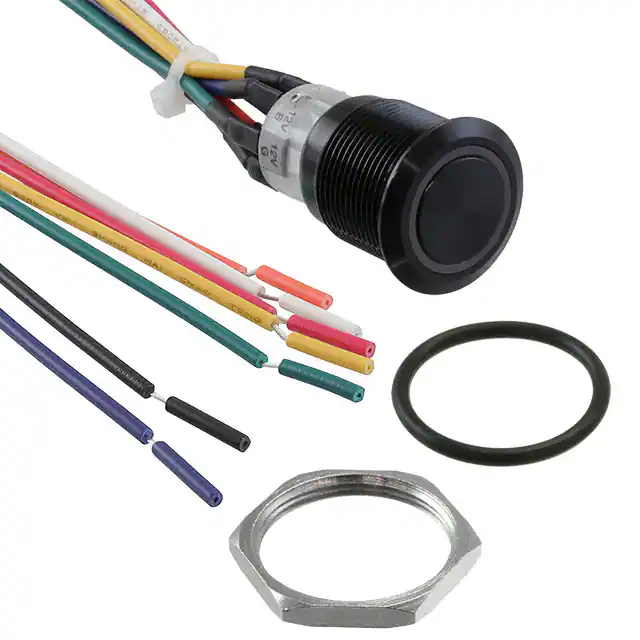

PV4FWB011-3R4SWITCH PB SPDT 2A 24V |
287 |
|
Технический лист |
PV4, LAMB | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-Mom | 2A (DC) | - | 24 V | Round, Button, Flush | No Marking | Black | LED, Blue/Green/Red | 12 VDC | Wire Leads | IP65 - Dust Tight, Water Resistant | - | Circular - 19.00mm Dia | -20°C ~ 55°C |
|

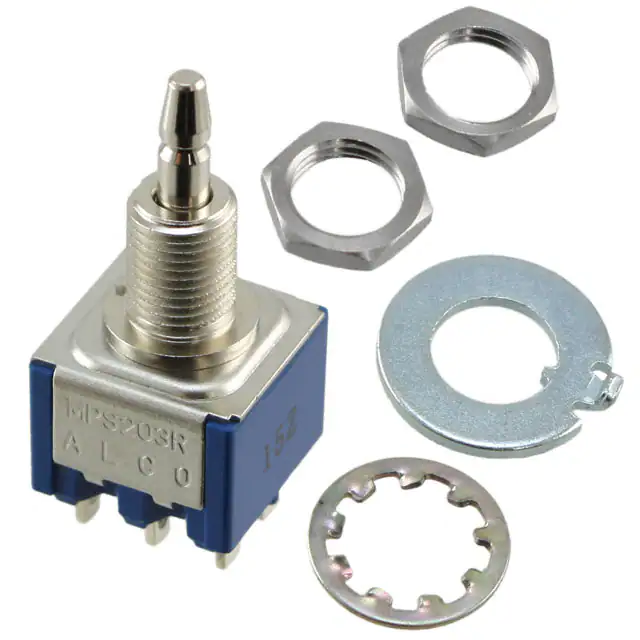

MPS-203RSWITCH PUSHBUTTON DPDT 3A 125V |
124 |
|
Технический лист |
Blue | Bulk | Active | Panel Mount, Rear | Standard | DPDT | On-Mom | 3A (AC) | 125 V | - | Plunger for Cap | No Marking | - | - | - | Solder Lug | - | Tactile/Audible Feedback | - | -20°C ~ 80°C |
|
82-6151.1144SWITCH PUSHBUTTON SPDT 3A 240V |
285 |
|
Технический лист |
82 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 3A (AC/DC) | 240 V | 240 V | Round, Button, Flush | No Marking | Silver | LED, Yellow | 24 VAC/DC | Solder, Quick Connect - 0.110" (2.8mm) | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | Stainless Steel | Circular - 22.30mm Dia | -30°C ~ 70°C |
|

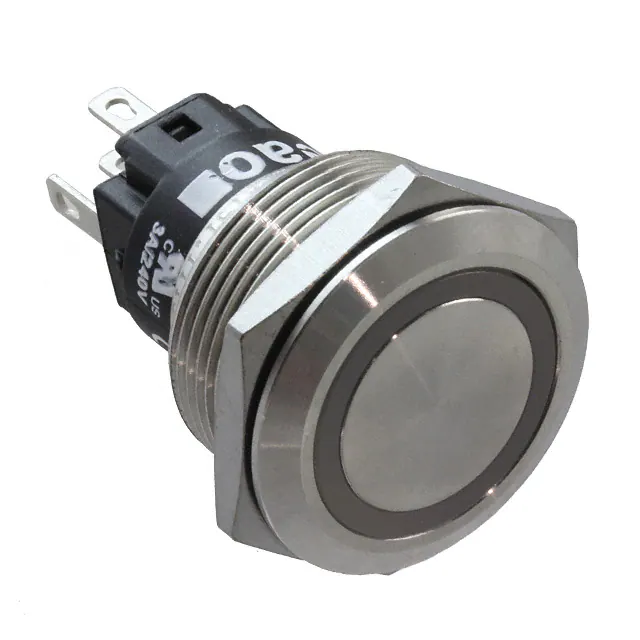

82-6151.1113SWITCH PUSHBUTTON SPDT 3A 240V |
101 |
|
Технический лист |
82 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 3A (AC/DC) | 240 V | 240 V | Round, Button, Flush | No Marking | Silver | LED, Red | 12 VAC/DC | Solder, Quick Connect - 0.110" (2.8mm) | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | Stainless Steel | Circular - 22.30mm Dia | -30°C ~ 70°C |
|
IPR5SAD2SWITCH PUSH SPDT 0.5A 48V |
137 |
|
Технический лист |
IP | Bulk | Active | Panel Mount, Front | Standard | SPDT | On-Mom | 500mA (AC), 200mA (DC) | 48 V | 48 V | Round, Button | No Marking | Black | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | Tactile Feedback | Circular - 13.60mm Dia | -40°C ~ 125°C |
