Кнопочные переключатели
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип крепления | Тип | Схема | Функция переключения | Номинальный ток (Ампер) | Номинальное напряжение - переменный ток | Номинальное напряжение - постоянный ток | Тип привода | Маркировка привода | Цвет - привод/колпачок | Тип освещения, цвет | Напряжение освещения (номинальное) | Тип вывода | Защита от проникновения | Особенности | Размеры выреза панели | Рабочая температура |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AV2211E612Q04SWITCH PUSHBUTTON SPDT 3A 250V |
137 |
|
Технический лист |
AV22 | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-On | 3A (AC) | 250 V | - | Round, Button, Flush | No Marking | Silver | LED, Green | 12 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 22.20mm Dia | -20°C ~ 55°C |
|
|
AV2211E312Q04SWITCH PUSHBUTTON SPDT 3A 250V |
135 |
|
Технический лист |
AV22 | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-On | 3A (AC) | 250 V | - | Round, Button, Flush | No Marking | Silver | LED, Red | 12 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 22.20mm Dia | -20°C ~ 55°C |
|

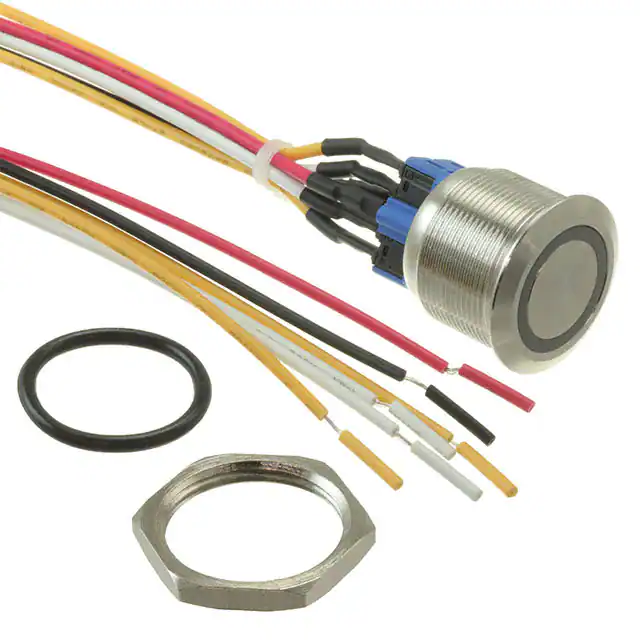

PV8FWY0SS-345SWITCH PB DPST-NO/NC 2A 48V |
175 |
|
Технический лист |
PV8, LAMB | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPST-NO/NC | On-Mom, Off-Mom | 2A (DC) | - | 48 V | Round, Button, Flush | No Marking | Silver | LED, Blue | 24 VDC | Wire Leads | IP65 - Dust Tight, Water Resistant | - | Circular - 25.00mm Dia | -20°C ~ 55°C |
|
MPE206RSWITCH PUSHBUTTON DPDT 6A 125V |
101 |
|
Технический лист |
MPE | Bulk | Active | Panel Mount, Rear | Standard | DPDT | On-Mom | 6A (AC), 4A (DC) | 125 V | 28 V | Plunger for Cap | No Marking | - | - | - | Solder Lug | Splash Proof | - | Circular - 6.35mm Dia | -20°C ~ 80°C |
|
ULV8F2HSS341SWITCH PUSHBUTTON DPDT 3A 250V |
294 |
|
Технический лист |
ULV8 | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPDT | On-Mom | 3A (AC) | 250 V | - | Round, Button, Flush | No Marking | Silver | LED, Blue | 3 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | - | Circular - 25.20mm Dia | -20°C ~ 55°C |
|
ISR3Z1AD200SWITCH PUSH SPST-NO 0.4A 32V |
178 |
|
Технический лист |
IS | Bulk | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 400mA (AC), 100mA (DC) | 32 V | 50 V | Round, Button | No Marking | Black | - | - | Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | Circular - 13.60mm Dia | -40°C ~ 85°C |
|

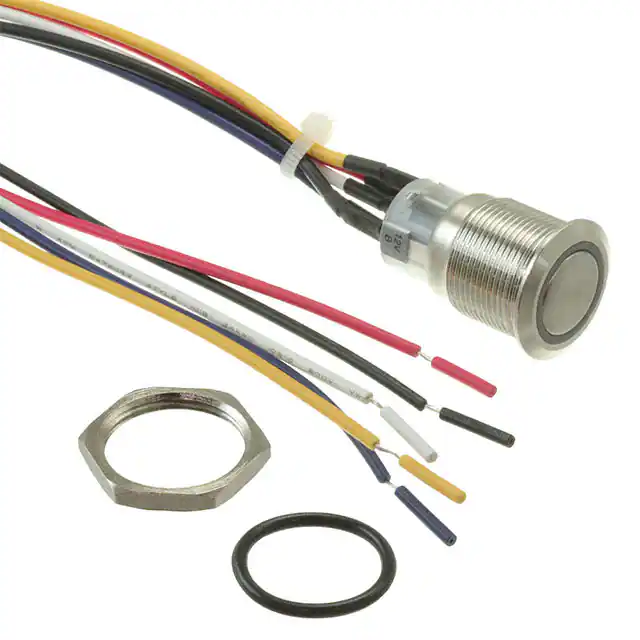

PV4FWB0SS-344SWITCH PB SPDT 2A 24V |
165 |
|
Технический лист |
PV4, LAMB | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-Mom | 2A (DC) | - | 24 V | Round, Button, Flush | No Marking | Silver | LED, Blue | 12 VDC | Wire Leads | IP65 - Dust Tight, Water Resistant | - | Circular - 19.00mm Dia | -20°C ~ 55°C |
|
30-200SWITCH PUSH SPST-NO 0.15A 24V |
122 |
|
Технический лист |
30 | Bulk | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 150mA (DC) | - | 24 V | Round, Button | No Marking | Black | - | - | Solder Lug | - | Aluminum Housing | Circular - 13.46mm Dia | -40°C ~ 80°C |
|
|
PLP1624TA3SA6MOMENTARY, RECTANGULAR, IP65, IL |
173 |
|
Технический лист |
PLP16 | Tray | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 3A (AC), 1A (DC) | 250 V | 30 V | Rectangular, Button | No Marking | Red | LED, Red | 24 VAC/DC | Solder Lug | IP65 - Dust Tight, Water Resistant | - | Circular - 16.20mm Dia | -25°C ~ 55°C |
|
1977739-1SWITCH PUSHBUTTON SPDT 3A 125V |
173 |
|
Технический лист |
Blue | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-On | 3A (AC) | 125 V | - | Plunger for Cap | No Marking | - | - | - | Solder Lug | - | Tactile/Audible Feedback | - | -20°C ~ 80°C |
|
AV1910PA12T5Q04SWITCH PUSHBUTTON SPDT 3A 250V |
366 |
|
Технический лист |
AV19 | Box | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-Mom | 3A (AC) | 250 V | - | Round, Button, Flush | Power Symbol | Silver | LED, Green/Red | 12 VDC | Wire Leads | IP67 - Dust Tight, Waterproof | - | Circular - 19.20mm Dia | -20°C ~ 55°C |
.jpg)
|
AV2511M124Q04SWITCH PUSHBUTTON SPDT 3A 250V |
402 |
|
Технический лист |
AV25 | Box | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-On | 3A (AC) | 250 V | - | Round, Button, Flush | No Marking | Silver | LED, White | 24 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | Moving LED Ring, Power Symbol | Circular - 25.20mm Dia | -20°C ~ 55°C |
|
|
YB15CKW01-5C-JCSWITCH PUSHBUTTON SPDT 3A 125V |
21 |
|
Технический лист |
YB | Tray | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | Clear (Red Filter/Diffuser) | LED, Red | 1.9 VDC | Solder, Quick Connect - 0.110" (2.8mm) | - | Stainless Steel | Circular - 16.00mm Dia | -25°C ~ 50°C |
|
IMR7P462SWITCH PUSHBUTTON SPDT 3A 28V |
408 |
|
Технический лист |
IM | Bulk | Active | Panel Mount, Front | Standard | SPDT | On-Mom | 3A (DC) | - | 28 V | Round, Button, Domed | No Marking | Red | - | - | PC Pin | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | Circular - 13.60mm Dia | -40°C ~ 85°C |
|
PV4F2B0SS-344SWITCH PUSHBUTTON SPDT 2A 24V |
104 |
|
Технический лист |
PV4, LAMB | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-Mom | 2A (DC) | - | 24 V | Round, Button, Flush | No Marking | Silver | LED, Blue | 12 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 19.00mm Dia | -20°C ~ 55°C |
|
IPR1SAD3SWITCH PUSHBUTTON SPST 4A 12V |
684 |
|
Технический лист |
IP | Bulk | Active | Panel Mount, Front | Standard | SPST | Off-On | 2A (AC), 4A (DC) | 125 V | 12 V | Round, Button | No Marking | Green | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | Circular - 13.60mm Dia | -40°C ~ 85°C |
|

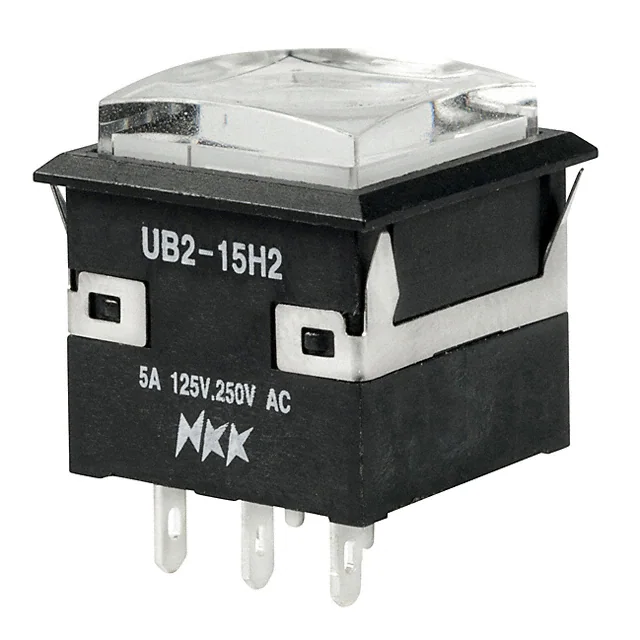

UB215KKW016CF-1JBSWITCH PUSHBUTTON SPDT 5A 125V |
119 |
|
Технический лист |
UB2 | Tray | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Clear (White Filter/Diffuser) | LED, Green/Red | 2.1, 3.5 VDC | Solder Lug | - | PVC Cap and Frame | Square - 17.40mm x 17.40mm | -25°C ~ 50°C |
|

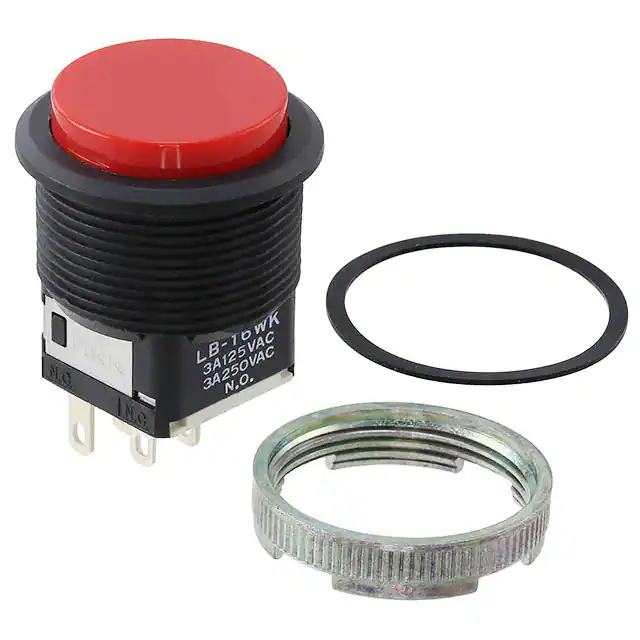

LB16WKW01-CJSWITCH PUSHBUTTON SPDT 3A 125V |
2 |
|
Технический лист |
LB | Bulk | Active | Panel Mount, Front | Standard | SPDT | On-On | 3A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | Red | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 22.00mm Dia | -25°C ~ 70°C |
|
|
LB16CGG01-5F-JBSWITCH PUSHBUTTON SPDT 0.4VA 28V |
2,000 |
|
Технический лист |
LB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Clear (White Filter/Diffuser) | LED, Green | 2.1 VDC | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Circular - 22.00mm Dia | -25°C ~ 50°C |
011-311.jpg)
|
PV4F2G011-311SWITCH PUSHBUTTON DPDT 2A 24V |
198 |
|
Технический лист |
PV4, LAMB | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPDT | On-On | 2A (DC) | - | 24 V | Round, Button, Flush | No Marking | Black | LED, Red | 1.8 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 19.00mm Dia | -20°C ~ 55°C |
