Кнопочные переключатели
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип крепления | Тип | Схема | Функция переключения | Номинальный ток (Ампер) | Номинальное напряжение - переменный ток | Номинальное напряжение - постоянный ток | Тип привода | Маркировка привода | Цвет - привод/колпачок | Тип освещения, цвет | Напряжение освещения (номинальное) | Тип вывода | Защита от проникновения | Особенности | Размеры выреза панели | Рабочая температура |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
C7051AFBRSWITCH PUSH DPST-NO 16A 250V |
593 |
|
Технический лист |
7000 | Bulk | Active | Panel Mount, Snap-In | Standard | DPST-NO | Off-Mom | 16A (AC) | 250 V | - | Round, Button | No Marking | Red | - | - | Quick Connect - 0.250" (6.3mm) | IP40 | - | Circular - 25.00mm Dia | - |
|
KP0215ASAKG03RGBP-1FJBSWITCH PB MINI ILLUMINATED RGB |
15 |
|
Технический лист |
KPRGB | Bulk | Active | Through Hole | Standard, Illuminated | SPST-NO | Off-Mom | 100mA (DC) | - | 12 V | Square, Button | No Marking | Clear (White Filter/Diffuser) | LED, Blue/Green/Red | 2.0, 2.9, 2.9 VDC | PC Pin | - | Tactile/Audible Feedback | - | -25°C ~ 50°C |
|
39-138 BLKSWITCH PUSH SPST-NO 0.5A 115V |
474 |
|
Технический лист |
39 | Bulk | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 500mA (AC) | 115 V | - | Round, Plunger | No Marking | Black | - | - | PC Pin | - | Sealed - Fully | Circular - 4.37mm Dia | -40°C ~ 85°C |
|

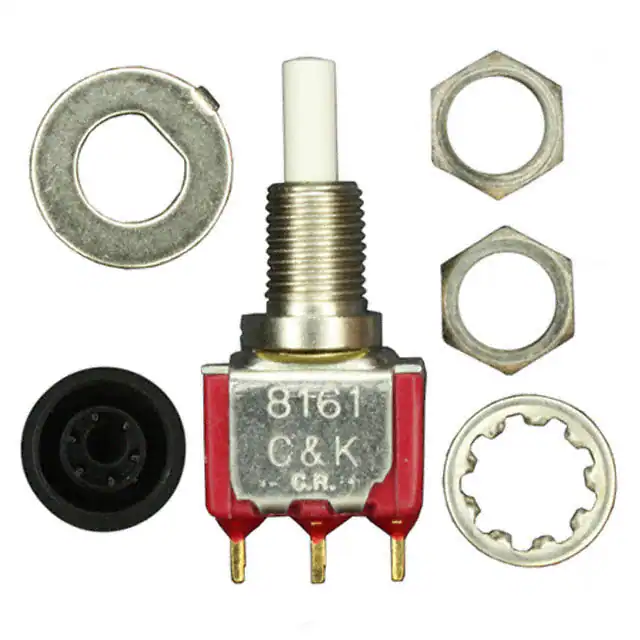

8161SHZGE2SWITCH PUSHBUTTON SPDT 6A 120V |
109 |
|
Технический лист |
8060 | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-On | 6A (AC/DC) | 120 V | 28 V | Round, Button | No Marking | Black | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 6.35mm Dia | -30°C ~ 65°C |
|

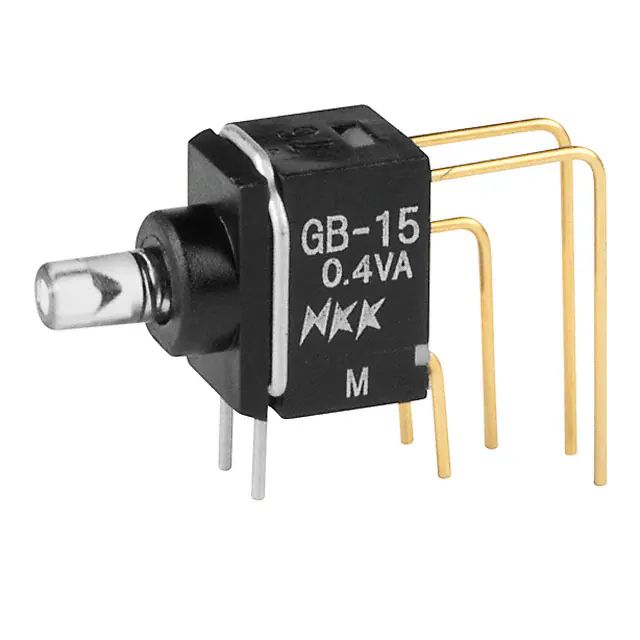

GB15JVFSWITCH PUSH SPDT 0.4VA 28V |
1,048 |
|
Технический лист |
GB | Box | Active | Through Hole, Right Angle, Vertical | Standard, Illuminated | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Plunger | No Marking | Clear | LED, Green | 2.1 VDC | PC Pin | - | - | - | -25°C ~ 55°C |
|
|
LB22F2GQ1111SWITCH PB DPDT 3A 250V |
264 |
|
Технический лист |
LB22 | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPDT | On-On | 3A (AC) | 250 V | - | Round, Button, Flush | - | Red | LED, Red | 3 VDC | Solder Lug | IP65 - Dust Tight, Water Resistant | - | Circular - 22.00mm Dia | -20°C ~ 55°C |
|
4741A02UUSWITCH PUSHBUTTON DPST 6A 125V |
724 |
|
Технический лист |
4700 | Bulk | Active | Panel Mount, Rear | Standard | DPST | On-Off | 6A (AC) | 125 V | - | Round, Plunger | No Marking | Black | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Circular - 12.20mm Dia | -20°C ~ 65°C |
|
UB15NBKG01N-ASWITCH PUSH SPDT 0.4VA 28V |
157 |
|
Технический лист |
UB | Tray | Active | Panel Mount, Snap-In | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Rectangular, Button | No Marking | Black | - | - | Solder Lug | - | With Barrier | Rectangular - 22.40mm x 16.20mm | -20°C ~ 70°C |
|
|
UB15NBKG01N-FSWITCH PUSH SPDT 0.4VA 28V |
134 |
|
Технический лист |
UB | Bulk | Active | Panel Mount, Snap-In | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Rectangular, Button | No Marking | Green | - | - | Solder Lug | - | With Barrier | Rectangular - 22.40mm x 16.20mm | -20°C ~ 70°C |
|

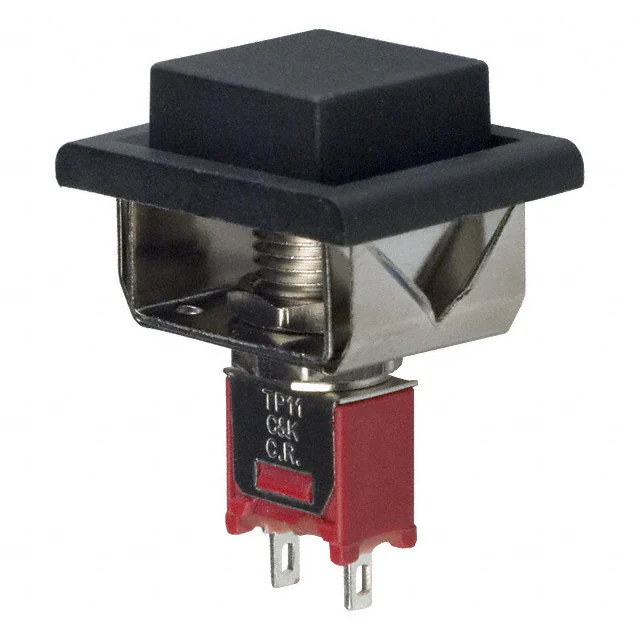

TP11J81ZQE22SWITCH PUSH SPST-NO 1A 120V |
923 |
|
Технический лист |
TP | Tray | Active | Panel Mount, Snap-In | Standard | SPST-NO | Off-Mom | 1A (AC/DC) | 120 V | 28 V | Square, Button | No Marking | Black | - | - | Solder Lug | - | Sealed | Rectangular - 15.24mm x 12.70mm | -30°C ~ 85°C |
|
ULV4F2BSLL14L07SWITCH PUSHBUTTON SPDT 3A 125V |
889 |
|
Технический лист |
ULV4 | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-Mom | 3A (AC) | 125 V | - | Round, Button, Flush | - | Silver | LED, Red | 12 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | - | Circular - 19.20mm Dia | -20°C ~ 55°C |
|
PV1F64011SWITCH PUSH SPST-NO 2A 48V |
109 |
|
Технический лист |
PV1, LAMB | Bulk | Active | Panel Mount, Front | Anti-Vandal | SPST-NO | Off-Mom | 2A (DC) | - | 48 V | Round, Button, Flush | No Marking | Black | - | - | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 19.00mm Dia | -20°C ~ 55°C |
|
ULV8F2BSLL34L20SWITCH PUSHBUTTON SPDT 3A 125V |
102 |
|
Технический лист |
ULV8 | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-Mom | 3A (AC) | 125 V | - | Round, Button, Flush | No Marking | Silver | LED, Green | 12 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 25.00mm Dia | -20°C ~ 55°C |
|
8161SH9ABE2SWITCH PUSH SPDT 0.4VA 20V |
795 |
|
Технический лист |
8060 | Tray | Active | Through Hole, Right Angle | Standard | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Round, Button | No Marking | Black | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 65°C |
|

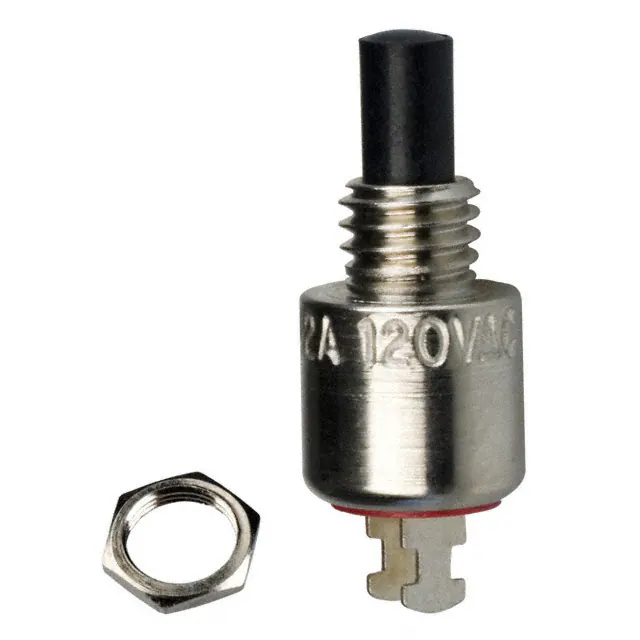

8631ZQD2SWITCH PUSH SPST-NO 0.5A 120V |
154 |
|
Технический лист |
8600 | Tray | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 500mA (AC/DC) | 120 V | 28 V | Plunger for Cap | No Marking | Black | - | - | Solder Lug | - | - | Circular - 4.37mm Dia | -30°C ~ 65°C |
|

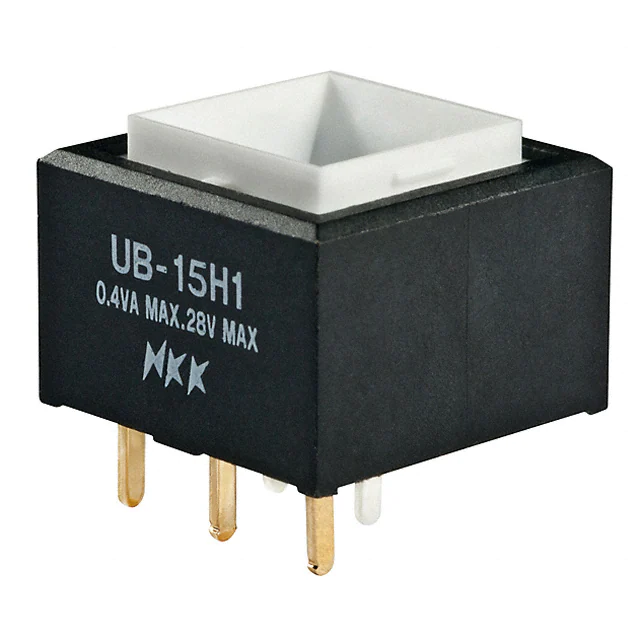

UB15SKG035DSWITCH PUSH SPDT 0.4VA 28V |
10 |
|
Технический лист |
UB | Bulk | Active | Through Hole | Standard, Illuminated | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | - | LED, Amber | 2 VDC | PC Pin | - | Process Sealed | - | -25°C ~ 50°C |
|

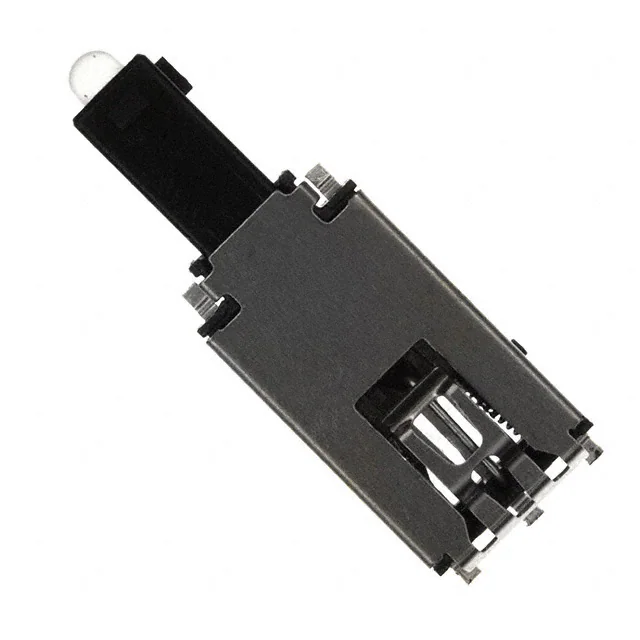

ELUMEESAQ2C22SWITCH PUSH SPDT 0.25A 50V |
524 |
|
Технический лист |
ELUM™ | Tape & Reel (TR) | Active | Surface Mount, Right Angle | Standard, Illuminated | SPDT | On-On | 250mA (DC) | - | 50 V | Plunger for Cap | No Marking | Black | LED, Green/Red | 2 VDC | Gull Wing | - | - | - | -40°C ~ 80°C |
|
ELUMEESAQ7C22SWITCH PUSH SPDT 0.25A 50V |
312 |
|
Технический лист |
ELUM™ | Tape & Reel (TR) | Active | Surface Mount, Right Angle | Standard, Illuminated | SPDT | On-On | 250mA (DC) | - | 50 V | Plunger for Cap | No Marking | Black | LED, Blue | 2 VDC | Gull Wing | - | - | - | -40°C ~ 80°C |
|
8168LHCGE2SWITCH PUSHBUTTON SPDT 6A 120V |
4,145 |
|
Технический лист |
8060 | Tray | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 6A (AC/DC) | 120 V | 28 V | Round, Button | No Marking | Black | - | - | PC Pin | - | Epoxy Sealed Terminals | Circular - 6.35mm Dia | -30°C ~ 65°C |
|
AP2C200TWBEPUSHBUTTON |
505 |
|
Технический лист |
AP | Bulk | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 125mA (AC), 200mA (DC) | 125 V | 24 V | Round, Button | No Marking | Black | - | - | Wire Leads | IP67 - Dust Tight, Waterproof | - | Circular - 13.80mm Dia | -40°C ~ 105°C |
