Кнопочные переключатели
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип крепления | Тип | Схема | Функция переключения | Номинальный ток (Ампер) | Номинальное напряжение - переменный ток | Номинальное напряжение - постоянный ток | Тип привода | Маркировка привода | Цвет - привод/колпачок | Тип освещения, цвет | Напряжение освещения (номинальное) | Тип вывода | Защита от проникновения | Особенности | Размеры выреза панели | Рабочая температура |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
8531TZQE2SWITCH PUSH SPST-NO 1A 120V |
121 |
|
Технический лист |
8500 | Tray | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 1A (AC/DC) | 120 V | 28 V | Round, Button | No Marking | Black | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 11.91mm Dia | -30°C ~ 65°C |
|
PV2H24011SWITCH PB SPST-NO 2A 48V |
1,609 |
|
Технический лист |
PV2 | Bulk | Active | Panel Mount, Front | Anti-Vandal | SPST-NO | Off-Mom | 2A (DC) | - | 48 V | Round, Button | - | Black | - | - | Solder Lug | IP65 - Dust Tight, Water Resistant | - | Circular - 16.00mm Dia | -20°C ~ 55°C |
|
HB15CKW01-CSWITCH PUSH SPDT 0.1A 30V |
121 |
|
Технический лист |
HB | Tray | Active | Panel Mount, Front | Standard | SPDT | On-Mom | 100mA (AC/DC) | 30 V | 30 V | Round, Button | No Marking | Red | - | - | Solder Lug | - | - | Circular - 8.00mm Dia | -25°C ~ 70°C |
|
|
BB26AP-FBSWITCH PUSH DPDT 0.4VA 28V |
23 |
|
Технический лист |
BB | Box | Active | Through Hole | Standard | DPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | White | - | - | PC Pin | - | Antistatic | - | -30°C ~ 85°C |
|
LP16OA1ASTWGSWITCH PUSH SPST-NO 0.1A 20V |
168 |
|
Технический лист |
LP16 | Bulk | Active | Through Hole | Standard, Illuminated | SPST-NO | Off-Mom | 100mA (DC) | - | 20 V | Square, Button | No Marking | Clear (White Filter/Diffuser) | LED, Green | 3.3 VDC | PC Pin | - | - | - | -5°C ~ 60°C |
|
M2B15AA5G40SWITCH PUSH SPDT 0.4VA 28V |
198 |
|
Технический лист |
M2 | Tray | Active | Through Hole, Right Angle, Vertical | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | - | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 85°C |
|
TP11SHZQESWITCH PUSH SPST-NO 1A 120V |
2,157 |
|
Технический лист |
TP | Bulk | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 1A (AC/DC) | 120 V | 28 V | Round, Plunger | No Marking | Black | - | - | Solder Lug | - | Sealed | Circular - 4.95mm Dia | -30°C ~ 85°C |
|
|
W48-1-RB-N-YL-BSWITCH PUSHBUTTON 10MA 12V |
148 |
|
Технический лист |
W48 | Bulk | Active | Panel Mount, Front | Standard | SPST-NO (DM) | Off-Mom | 10mA (DC) | - | 12 V | Round, Button, Domed | - | Yellow | - | - | Quick Connect - 0.110" (2.8mm), Wire Leads | IP67 - Dust Tight, Waterproof | - | Circular - 13.42mm Dia | -40°C ~ 85°C |
|
TP11SHCQESWITCH PUSH SPST-NO 1A 120V |
233 |
|
Технический лист |
TP | Bulk | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 1A (AC/DC) | 120 V | 28 V | Round, Plunger | No Marking | Black | - | - | PC Pin | - | Sealed | Circular - 4.95mm Dia | -30°C ~ 85°C |
|
1241.1113.7097SWITCH PUSH SPST-NO 125MA 48V |
410 |
|
Технический лист |
MCS18 | Bulk | Active | Panel Mount, Snap-In | Standard | SPST-NO | Off-Mom | 125mA (DC) | - | 48 V | Round, Button, Flush | No Marking | Black | - | - | Solder Lug | IP65 - Dust Tight, Water Resistant | Tactile Feedback | Circular - 13.00mm Dia | -25°C ~ 60°C |
|
1241.1113.7098SWITCH PUSH SPST-NO 125MA 48V |
128 |
|
Технический лист |
MCS18 | Bulk | Active | Panel Mount, Snap-In | Standard | SPST-NO | Off-Mom | 125mA (DC) | - | 48 V | Round, Button, Flush | No Marking | White | - | - | Solder Lug | IP65 - Dust Tight, Water Resistant | Tactile Feedback | Circular - 13.00mm Dia | -25°C ~ 60°C |
|
PB6B2FM7M1CAL07S500SWITCH PUSH SPST-NO 125MA 125V |
6,629 |
|
Технический лист |
PB6 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 125mA (AC), 200mA (DC) | 125 V | 50 V | Round, Button | No Marking | Blue | LED, Blue | - | Wire Leads | IP68 - Dust Tight, Waterproof | - | Circular - 13.60mm Dia | -30°C ~ 85°C |
|
PB6B2FM7M1CAL01S500SWITCH PUSH SPST-NO 125MA 125V |
311 |
|
Технический лист |
PB6 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 125mA (AC), 200mA (DC) | 125 V | 50 V | Round, Button | No Marking | Blue | LED, White | - | Wire Leads | IP68 - Dust Tight, Waterproof | - | Circular - 13.60mm Dia | -30°C ~ 85°C |
|
PB6B2FM2M1CAL06S500SWITCH PUSH SPST-NO 125MA 125V |
128 |
|
Технический лист |
PB6 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 125mA (AC), 200mA (DC) | 125 V | 50 V | Round, Button | No Marking | Black | LED, Green | - | Wire Leads | IP68 - Dust Tight, Waterproof | - | Circular - 13.60mm Dia | -30°C ~ 85°C |
|
ELUMEESAQC02SWITCH PUSH SPDT 0.25A 50V |
228 |
|
Технический лист |
ELUM™ | Tape & Reel (TR) | Active | Surface Mount, Right Angle | Standard | SPDT | On-On | 250mA (DC) | - | 50 V | Rectangular, Button | No Marking | Black | - | - | Gull Wing | - | - | - | -40°C ~ 80°C |
|

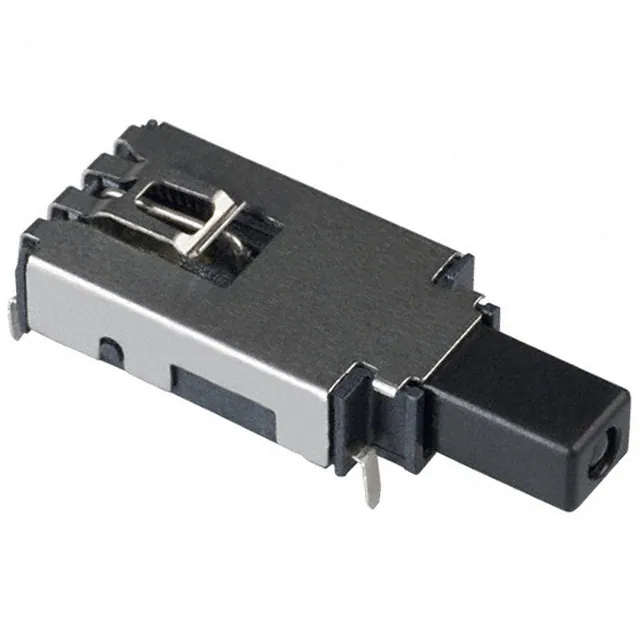

ELUMEETHQ3C12SWITCH PUSH SPDT 0.25A 50V |
175 |
|
Технический лист |
ELUM™ | Tray | Active | Through Hole, Right Angle | Standard, Illuminated | SPDT | On-On | 250mA (DC) | - | 50 V | Rectangular, Button | No Marking | Black | LED, Red | 2 VDC | PC Pin | - | - | - | -40°C ~ 80°C |
|
EB2085P-BCSWITCH PUSHBUTTON DPDT 3A 125V |
0 |
|
Технический лист |
EB | Bulk | Active | Panel Mount, Rear | Standard | DPDT | On-On | 3A (AC) | 125 V | - | Round, Button | No Marking | Red | - | - | PC Pin | - | Epoxy Sealed Terminals | Circular - 6.35mm Dia | -10°C ~ 70°C |
|

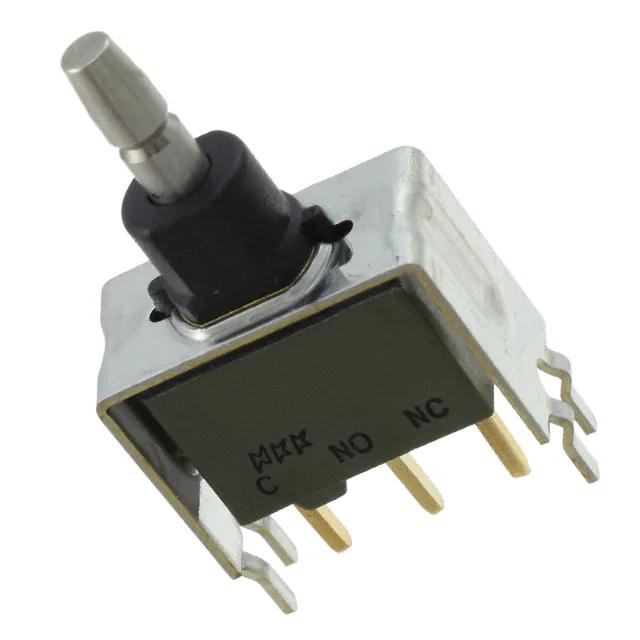

M2B15BA5G13-CASWITCH PUSH SPDT 0.4VA 28V |
8 |
|
Технический лист |
M2 | Tray | Active | Through Hole | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Black | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 85°C |
|
|
M2B15BA5G13-CCSWITCH PUSHBUTTON SPDT 0.4VA 28V |
20 |
|
Технический лист |
M2 | Bulk | Active | Through Hole | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Red | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 85°C |
|
8R1021B-N-ZSWITCH PUSH SPDT 0.06A 30V |
344 |
|
Технический лист |
8R-N | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 60mA (DC) | - | 30 V | Plunger for Cap | No Marking | - | - | - | Solder Lug | - | - | Circular - 6.50mm Dia | -20°C ~ 85°C |
