Датчики давления, преобразователи
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Корпус/корпус | Упаковка | Состояние продукта | Применение | Тип давления | Рабочее давление | Тип выхода | Выход | Точность | Напряжение - Питание | Размер порта | Тип порта | Особенности | Тип вывода | Максимальное давление | Рабочая температура | Марка | Квалификация | Тип крепления | Устройство поставщика Упаковка |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HSCDRRN001BDSA3SENSOR 14.5PSID 0.08" 12BIT 8DIP |
795 |
|
Технический лист |
TruStability® HSC | 8-DIP (0.524", 13.30mm), Dual Ports, Same Side | Bulk | Active | Board Mount | Differential | ±14.5PSI (±100kPa) | SPI | 12 b | ±0.25% | 3V ~ 3.6V | Male - 0.08" (1.93mm) Tube, Dual | Barbed | Amplified Output, Temperature Compensated | PC Pin | ±58.02PSI (±400kPa) | -20°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
NPC-1210-015A-3-NSENSOR 15PSIA 0.13" 0.1V |
248 |
|
Технический лист |
NPC-1210 | 8-DIP Module | Bulk | Active | Board Mount | Absolute | 15PSI (103.42kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.1% | - | Male - 0.13" (3.23mm) Tube | Barbless | Temperature Compensated | PC Pin | 45PSI (310.26kPa) | -40°C ~ 125°C | - | - | Through Hole | - |
|
|
NPC-1210-030G-3-NSENSOR 30PSIG 0.13" 0.1V |
139 |
|
Технический лист |
NPC-1210 | 8-DIP Module | Bulk | Active | Board Mount | Vented Gauge | 30PSI (206.84kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.1% | - | Male - 0.13" (3.23mm) Tube | Barbless | Temperature Compensated | PC Pin | 90PSI (620.53kPa) | -40°C ~ 125°C | - | - | Through Hole | - |
|

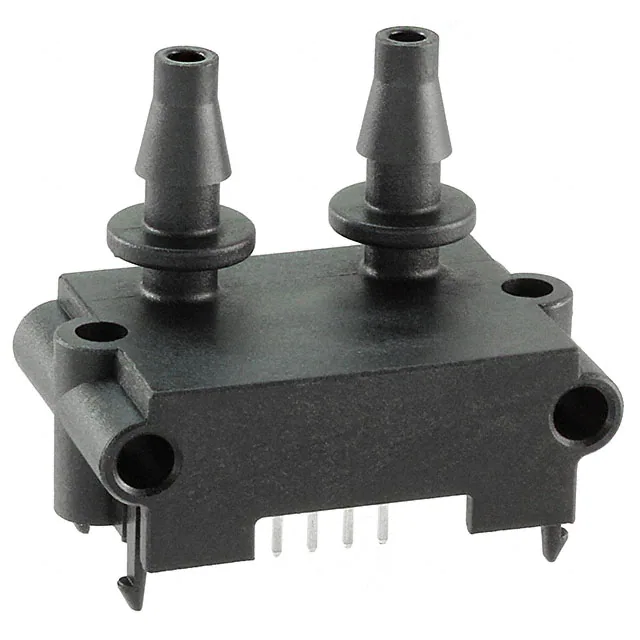

SDP610-500PASENSOR 0.072PSID 0.2" 16BIT 3SIP |
432 |
|
Технический лист |
SDP600 | 3-SIP Module | Tray | Not For New Designs | Board Mount | Differential | ±0.07PSI (±0.5kPa) | I2C | 16 b | ±3% | 3V ~ 3.6V | Male - 0.2" (5.2mm) Tube, Dual | Barbed | Temperature Compensated | PC Pin | ±14.5PSI (±100kPa) | -20°C ~ 80°C | - | - | Through Hole | 3-SIP |
|
|
SDP610-025PASENSOR 0.004PSID 0.2" 16BIT 3SIP |
211 |
|
Технический лист |
SDP600 | 3-SIP Module | Tray | Not For New Designs | Board Mount | Differential | ±0.004PSI (±0.025kPa) | I2C | 16 b | ±3% | 3V ~ 3.6V | Male - 0.2" (5.2mm) Tube, Dual | Barbed | Temperature Compensated | PC Pin | ±14.5PSI (±100kPa) | -20°C ~ 80°C | - | - | Through Hole | 3-SIP |
|
24PC15SMTSENSOR 15PSID 0.07" .225V |
625 |
|
Технический лист |
24PC SMT | 4-SMD Module | Tube | Active | Board Mount | Differential | 15PSI (103.42kPa) | Wheatstone Bridge | 0 mV ~ 225 mV (10V) | ±0.3% | 2.5V ~ 12V | Male - 0.07" (1.88mm) Tube, Dual | Barbless | - | Gull Wing | 45PSI (310.26kPa) | -40°C ~ 85°C | - | - | Surface Mount | - |
|
SSCDANT030PASA5SENSOR 30PSIA 0.19" 12BIT 8DIP |
230 |
|
Технический лист |
TruStability® SSC | 8-DIP (0.524", 13.30mm), Top Port | Bulk | Active | Board Mount | Absolute | 30PSI (206.84kPa) | SPI | 12 b | ±0.25% | 4.75V ~ 5.25V | Male - 0.19" (4.93mm) Tube | Barbed | Amplified Output, Temperature Compensated | PC Pin | 60PSI (413.69kPa) | -40°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
|
SSCDANN015PAAB5SENSOR 15PSIA 0.19" 4.75V 8DIP |
215 |
|
Технический лист |
TruStability® SSC | 8-DIP (0.524", 13.30mm), Top Port | Bulk | Active | Board Mount | Absolute | 15PSI (103.42kPa) | Analog Voltage | 0.25 V ~ 4.75 V | ±0.25% | 4.75V ~ 5.25V | Male - 0.19" (4.93mm) Tube | Barbed | Amplified Output, Temperature Compensated | PC Pin | 30PSI (206.84kPa) | -40°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
|
SSCDANN030PAAA5SENSOR 30PSIA 0.19" 4.5V 8DIP |
1,456 |
|
Технический лист |
TruStability® SSC | 8-DIP (0.524", 13.30mm), Top Port | Tube | Active | Board Mount | Absolute | 30PSI (206.84kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 4.75V ~ 5.25V | Male - 0.19" (4.93mm) Tube | Barbed | Amplified Output, Temperature Compensated | PC Pin | 60PSI (413.69kPa) | -40°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
|
SSCDANN060PAAA5SENSOR 60PSIA 0.19" 4.5V 8DIP |
357 |
|
Технический лист |
TruStability® SSC | 8-DIP (0.524", 13.30mm), Top Port | Tube | Active | Board Mount | Absolute | 60PSI (413.69kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 4.75V ~ 5.25V | Male - 0.19" (4.93mm) Tube | Barbed | Amplified Output, Temperature Compensated | PC Pin | 120PSI (827.37kPa) | -40°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
|
SSCDANN005PGAA5SENSOR 5PSIG 0.19" 4.5V 8DIP |
299 |
|
Технический лист |
TruStability® SSC | 8-DIP (0.524", 13.30mm), Top Port | Bulk | Active | Board Mount | Vented Gauge | 5PSI (34.47kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 4.75V ~ 5.25V | Male - 0.19" (4.93mm) Tube | Barbed | Amplified Output, Temperature Compensated | PC Pin | 30PSI (206.84kPa) | -40°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
|
HSCDRRN400MD2A3SENSOR 5.8PSID 0.08" 12BIT 8DIP |
809 |
|
Технический лист |
TruStability® HSC | 8-DIP (0.524", 13.30mm), Dual Ports, Same Side | Bulk | Active | Board Mount | Differential | ±5.8PSI (±40kPa) | I2C | 12 b | ±0.25% | 3V ~ 3.6V | Male - 0.08" (1.93mm) Tube, Dual | Barbed | Amplified Output, Temperature Compensated | PC Pin | ±29.01PSI (±200kPa) | -20°C ~ 85°C | - | - | Through Hole | 8-DIP |
|

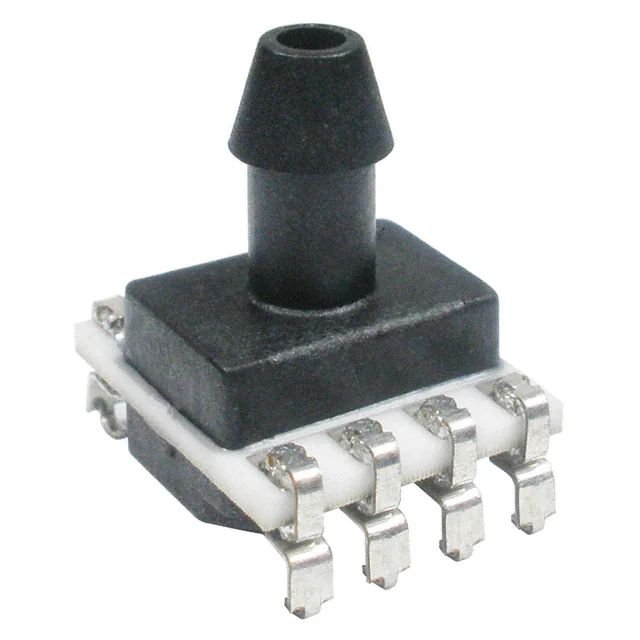

HSCMANN100PGAA3SENSOR 100PSIG 0.19" 2.97V 8SMD |
1,652 |
|
Технический лист |
TruStability® HSC | 8-SMD, J-Lead, Top Port | Tube | Active | Board Mount | Vented Gauge | 100PSI (689.48kPa) | Analog Voltage | 0.33 V ~ 2.97 V | ±0.25% | 3V ~ 3.6V | Male - 0.19" (4.93mm) Tube | Barbed | Amplified Output, Temperature Compensated | J Lead | 250PSI (1723.69kPa) | -20°C ~ 85°C | - | - | Surface Mount | 8-SMD |
|

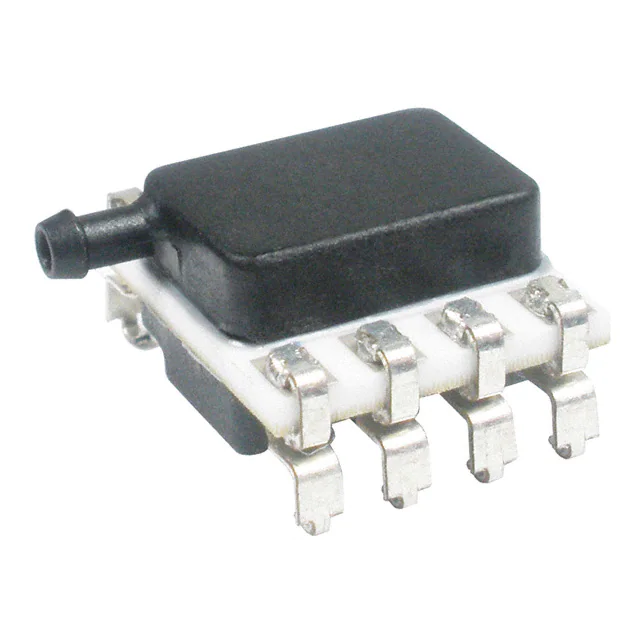

HSCMRNN1.6BASA3SENSOR 23.21PSIA 0.08" 12BIT SMD |
285 |
|
Технический лист |
TruStability® HSC | 8-SMD, J-Lead, Side Port | Bulk | Active | Board Mount | Absolute | 23.21PSI (160kPa) | SPI | 12 b | ±0.25% | 3V ~ 3.6V | Male - 0.08" (1.93mm) Tube | Barbed | Amplified Output, Temperature Compensated | J Lead | 58.02PSI (400kPa) | -20°C ~ 85°C | - | - | Surface Mount | 8-SMD |
|
HSCMRRN005NDAA5SENSOR 0.18PSID 0.08" 4.5V 8SMD |
456 |
|
Технический лист |
TruStability® HSC | 8-SMD, J-Lead, Dual Ports, Same Side | Bulk | Active | Board Mount | Differential | ±0.18PSI (±1.25kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 4.95V ~ 5.05V | Male - 0.08" (1.93mm) Tube, Dual | Barbed | Amplified Output, Temperature Compensated | J Lead | ±10.84PSI (±74.75kPa) | -20°C ~ 85°C | - | - | Surface Mount | 8-SMD |
|
SSCSNBN150PDAA5SENSOR 150PSID 0.19" 4.5V 4SIP |
243 |
|
Технический лист |
TruStability® SSC | 4-SIP, Dual Ports, Same Side | Bulk | Active | Board Mount | Differential | ±150PSI (±1034.21kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 4.75V ~ 5.25V | Male - 0.19" (4.8mm) Tube, Dual | Barbless | Amplified Output, Temperature Compensated | PC Pin | - | -40°C ~ 85°C | - | - | Through Hole | 4-SIP |
|
|
HSCMRRN002ND2A3SENSOR 0.07PSID 0.08" 12BIT 8SMD |
1,290 |
|
Технический лист |
TruStability® HSC | 8-SMD, J-Lead, Dual Ports, Same Side | Bulk | Active | Board Mount | Differential | ±0.07PSI (±0.5kPa) | I2C | 12 b | ±0.25% | 3.27V ~ 3.33V | Male - 0.08" (1.93mm) Tube, Dual | Barbed | Amplified Output, Temperature Compensated | J Lead | ±9.76PSI (±67.28kPa) | -20°C ~ 85°C | - | - | Surface Mount | 8-SMD |
|
SSCSSNN100PGAA5SENSOR 100PSIG 4.5V 4SIP |
251 |
|
Технический лист |
TruStability® SSC | 4-SIP Module | Tube | Active | Board Mount | Vented Gauge | 100PSI (689.48kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 4.75V ~ 5.25V | - | No Port | Amplified Output, Temperature Compensated | PC Pin | 250PSI (1723.69kPa) | -40°C ~ 85°C | - | - | Through Hole | 4-SIP |
|

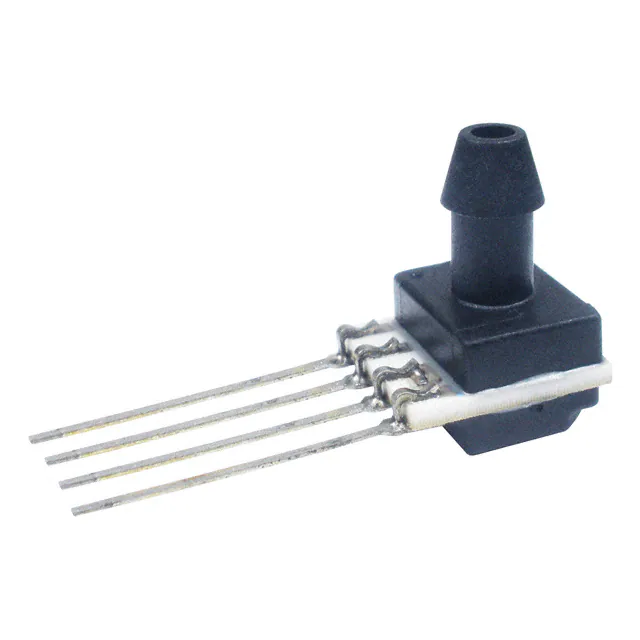

HSCSANN015PGAA3SENSOR 15PSIG 0.19" 2.97V 4SIP |
274 |
|
Технический лист |
TruStability® HSC | 4-SIP, Side Port | Bulk | Active | Board Mount | Vented Gauge | 15PSI (103.42kPa) | Analog Voltage | 0.33 V ~ 2.97 V | ±0.25% | 3V ~ 3.6V | Male - 0.19" (4.93mm) Tube | Barbed | Amplified Output, Temperature Compensated | PC Pin | 30PSI (206.84kPa) | -20°C ~ 85°C | - | - | Through Hole | 4-SIP |
|
HV210-SM02-RSENSOR 0.36PSID 0.08" 16BIT |
218 |
|
Технический лист |
HV | 11-SMD, No Lead, Top Port | Tape & Reel (TR) | Active | Board Mount | Differential | ±0.004PSI ~ ±0.36PSI (±0.02kPa ~ ±2.5kPa) | I2C, SPI | 16 b | ±0.1% | 2.8V ~ 3.5V | Male - 0.08" (2.13mm) Tube, Dual | Barbless | Temperature Compensated | SMD (SMT) Tab | ±1.45PSI (±9.97kPa) | 0°C ~ 50°C | - | - | Surface Mount | - |
