Датчики давления, преобразователи
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Корпус/корпус | Упаковка | Состояние продукта | Применение | Тип давления | Рабочее давление | Тип выхода | Выход | Точность | Напряжение - Питание | Размер порта | Тип порта | Особенности | Тип вывода | Максимальное давление | Рабочая температура | Марка | Квалификация | Тип крепления | Устройство поставщика Упаковка |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SSCDANN150PG2A3SENSOR 150PSIG 0.19" 12BIT 8DIP |
1,804 |
|
Технический лист |
TruStability® SSC | 8-DIP (0.524", 13.30mm), Top Port | Tube | Active | Board Mount | Vented Gauge | 150PSI (1034.21kPa) | I2C | 12 b | ±0.25% | 3V ~ 3.6V | Male - 0.19" (4.93mm) Tube | Barbed | Amplified Output, Temperature Compensated | PC Pin | 250PSI (1723.69kPa) | -40°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
VN026CMDIFF PRESSURE +/-2.5 TO 25CM |
203 |
|
Технический лист |
VN | 11-SMD, No Lead, Top Port | Tape & Reel (TR) | Active | Board Mount | Differential | ±1.14PSI ~ ±1.85PSI (±7.85kPa ~ ±12.75kPa) | I2C, SPI | 24 b | ±0.05% | 2.8V ~ 3.5V | Male - 0.08" (2.13mm) Tube, Dual | Barbless | Temperature Compensated | SMD (SMT) Tab | 1.42PSI (9.81kPa) | -20°C ~ 85°C | - | - | Surface Mount | - |
|
DLHR-L10D-E1BD-C-NAV8SENSOR 0.36PSID 0.09" 18BIT 8DIP |
38 |
|
Технический лист |
DLHR | 8-DIP (0.620", 15.75mm), Dual Ports, Same Side | Bulk | Active | Board Mount | Differential | ±0.36PSI (±2.5kPa) | I2C, SPI | 18b | ±0.25% | 1.68V ~ 3.6V | Male - 0.09" (2.24mm) Tube, Dual | Barbed | Temperature Compensated | PC Pin | 7.23PSI (49.83kPa) | -25°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
HSCDRRN001NDAA5SENSOR 0.04PSID 0.08" 4.5V 8DIP |
495 |
|
Технический лист |
TruStability® HSC | 8-DIP (0.524", 13.30mm), Dual Ports, Same Side | Bulk | Active | Board Mount | Differential | ±0.04PSI (±0.25kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 4.95V ~ 5.05V | Male - 0.08" (1.93mm) Tube, Dual | Barbed | Amplified Output, Temperature Compensated | PC Pin | ±9.76PSI (±67.28kPa) | -20°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
4525DO-DS5AI001DPSENSOR 1PSID 0.14" 14BIT |
379 |
|
Технический лист |
MS4525DO | 8-DIP Module | Tray | Active | Board Mount | Differential | 1PSI (6.89kPa) | I2C | 14 b | ±0.25% | 5V | Male - 0.14" (3.56mm) Tube, Dual | Barbed | Temperature Compensated | PC Pin | 10PSI (68.95kPa) | -25°C ~ 105°C | - | - | Through Hole | - |
|
4525DO-SS3AS015APSENSOR 15PSIA 0.14" 14BIT |
279 |
|
Технический лист |
MS4525DO | 8-DIP Module | Tray | Active | Board Mount | Absolute | 15PSI (103.42kPa) | SPI | 14 b | ±0.25% | 3.3V | Male - 0.14" (3.56mm) Tube | Barbed | Temperature Compensated | PC Pin | 90PSI (620.53kPa) | -25°C ~ 105°C | - | - | Through Hole | - |
|

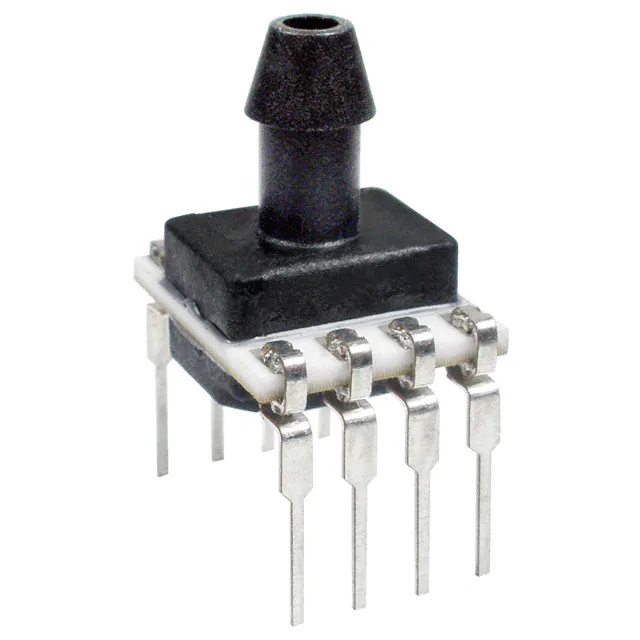

HSCDANN005PGSA3SENSOR 5PSIG 0.19" 12BIT 8DIP |
131 |
|
Технический лист |
TruStability® HSC | 8-DIP (0.524", 13.30mm), Top Port | Bulk | Active | Board Mount | Vented Gauge | 5PSI (34.47kPa) | SPI | 12 b | ±0.25% | 3V ~ 3.6V | Male - 0.19" (4.93mm) Tube | Barbed | Amplified Output, Temperature Compensated | PC Pin | 60PSI (413.69kPa) | -20°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
ADP5111SENSOR 14.5PSI 0.12" 4.5V |
234 |
|
Технический лист |
PS-A | 6-DIP Module | Bulk | Last Time Buy | Board Mount | Vacuum | -14.5PSI (-100kPa) | Analog Voltage | 0 V ~ 4.5 V | ±1.25% | 5V | Male - 0.12" (3mm) Tube | Barbless | Amplified Output, Temperature Compensated | PC Pin | -29.01PSI (-200kPa) | -10°C ~ 60°C | - | - | Through Hole | - |
|

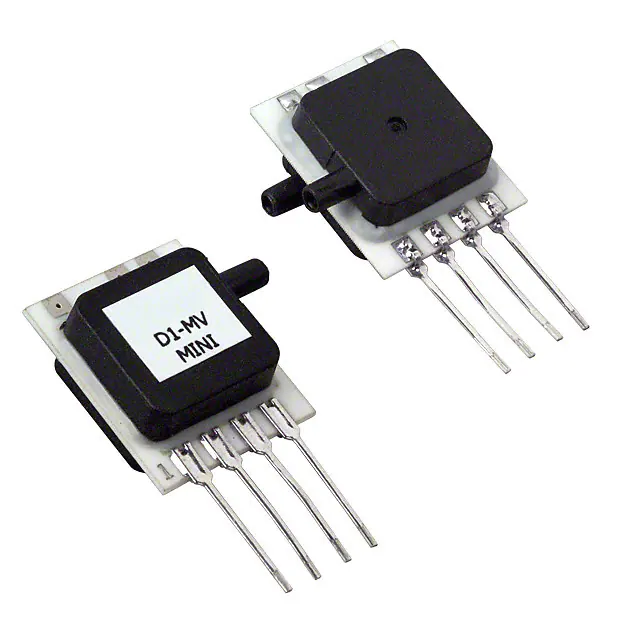

5 INCH-D1-MV-MINISENSOR 0.18PSID 0.08" .02V |
90 |
|
Технический лист |
MDCX | 4-SIP Module | Tube | Active | Board Mount | Differential | 0.18PSI (1.25kPa) | Wheatstone Bridge | 0 mV ~ 20 mV (12V) | ±0.25% | 16V | Male - 0.08" (2.03mm) Tube, Dual | Barbless | Temperature Compensated | PC Pin | - | -25°C ~ 85°C | - | - | Through Hole | - |
|
26PCBFA6GSENSOR 5PSIC 0.2" .05V |
121 |
|
Технический лист |
26PC | 4-SIP Module | Tray | Active | Board Mount | Compound | ±5PSI (±34.47kPa) | Wheatstone Bridge | 0 mV ~ 50 mV (10V) | ±0.5% | 2.5V ~ 16V | Male - 0.2" (5mm) Tube | Barbless | Temperature Compensated | PC Pin | ±20PSI (±137.9kPa) | -40°C ~ 85°C | - | - | Through Hole | - |
|
26PCCFA6DSENSOR 15PSID 0.2" 0.1V |
85 |
|
Технический лист |
26PC | 4-SIP Module | Tray | Active | Board Mount | Differential | ±15PSI (±103.42kPa) | Wheatstone Bridge | 0 mV ~ 100 mV (10V) | ±0.5% | 2.5V ~ 16V | Male - 0.2" (5mm) Tube, Dual | Barbless | Temperature Compensated | PC Pin | ±45PSI (±310.26kPa) | -40°C ~ 85°C | - | - | Through Hole | - |
|

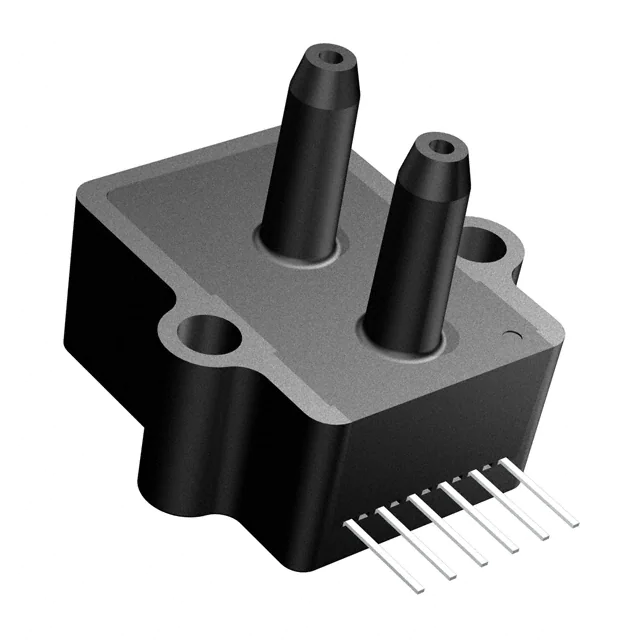

1 INCH-D-MVSENSOR 0.04PSID 0.19" .01V |
111 |
|
Технический лист |
ADCX | 6-SIP Module | Tube | Active | Board Mount | Differential | 0.04PSI (0.25kPa) | Wheatstone Bridge | 0 mV ~ 10 mV (12V) | ±0.25% | 16V | Male - 0.19" (4.83mm) Tube, Dual | Barbless | Temperature Compensated | PC Pin | 3.61PSI (24.92kPa) | -25°C ~ 85°C | - | - | Through Hole | - |
|
86-015G-CSENSOR 15PSIG 0.1V |
205 |
|
Технический лист |
- | Cylinder | Bulk | Active | Board Mount | Vented Gauge | 15PSI (103.42kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.1% | - | - | No Port | Temperature Compensated | Cable with Connector | 45PSI (310.26kPa) | -40°C ~ 125°C | - | - | - | - |
|
86-100A-CSENSOR 100PSIA 0.1V |
110 |
|
Технический лист |
- | Cylinder | Bulk | Active | Board Mount | Absolute | 100PSI (689.48kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.1% | - | - | No Port | Temperature Compensated | Cable with Connector | 300PSI (2068.43kPa) | -40°C ~ 125°C | - | - | - | - |
|

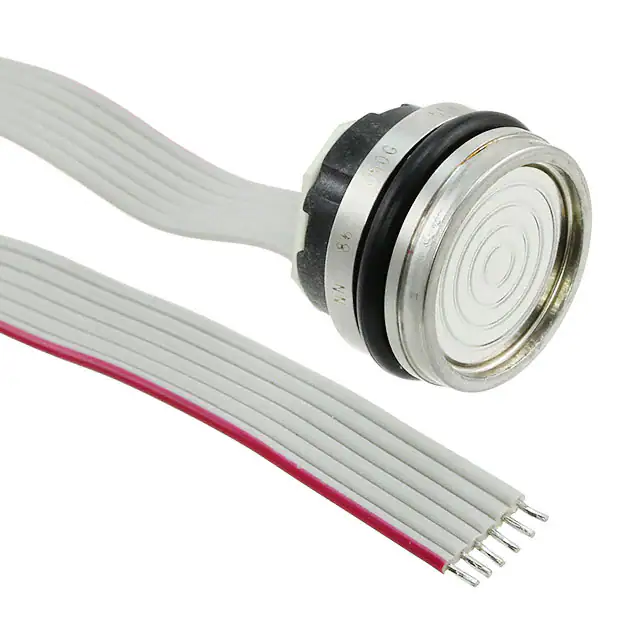

86-050G-RSENSOR 50PSIG 0.1V |
72 |
|
Технический лист |
- | Cylinder | Tube | Active | Board Mount | Vented Gauge | 50PSI (344.74kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.1% | - | - | No Port | Temperature Compensated | Cable with Connector | 150PSI (1034.21kPa) | -40°C ~ 125°C | - | - | - | - |
|
86-100A-RSENSOR 100PSIA 0.1V |
49 |
|
Технический лист |
- | Cylinder | Tube | Active | Board Mount | Absolute | 100PSI (689.48kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.1% | - | - | No Port | Temperature Compensated | Cable with Connector | 300PSI (2068.43kPa) | -40°C ~ 125°C | - | - | - | - |
|
86-300A-CSENSOR 300PSIA 0.1V |
47 |
|
Технический лист |
- | Cylinder | Bulk | Active | Board Mount | Absolute | 300PSI (2068.43kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.1% | - | - | No Port | Temperature Compensated | Cable with Connector | 900PSI (6205.28kPa) | -40°C ~ 125°C | - | - | - | - |
|
86-030G-RSENSOR 30PSIG 0.1V |
27 |
|
Технический лист |
- | Cylinder | Tube | Active | Board Mount | Vented Gauge | 30PSI (206.84kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.1% | - | - | No Port | Temperature Compensated | Cable with Connector | 90PSI (620.53kPa) | -40°C ~ 125°C | - | - | - | - |
|
26PCFEB6GSENSOR 100PSIC 0.18" 0.1V |
29 |
|
Технический лист |
26PC | 4-SIP Module | Bulk | Active | Board Mount | Compound | ±100PSI (±689.48kPa) | Wheatstone Bridge | 0 mV ~ 100 mV (10V) | ±0.6% | 2.5V ~ 16V | Male - 0.18" (4.7mm) Tube | Barbed | Temperature Compensated | - | ±200PSI (±1378.95kPa) | -40°C ~ 85°C | - | - | Through Hole | - |
|
NPI-19J-050AVSENSOR 50PSIA 1/8"NPT 0.1V |
67 |
|
Технический лист |
NPI-19 | Cylinder | Bulk | Active | Board Mount | Absolute | 50PSI (344.74kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.25% | 10V | Male - 1/8" (3.18mm) NPT | Threaded | Temperature Compensated | Flex Cable | 100PSI (689.48kPa) | -40°C ~ 125°C | - | - | - | - |
