DC-DC Преобразователи
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Количество выходов | Напряжение - вход (мин.) | Напряжение - вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Особенности | Рабочая температура | Эффективность | Марка | Квалификация | Тип крепления | Размер/измерение | Устройство поставщика Упаковка | Функции управления | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NME0505SCDC DC CONVERTER 5V 1W |
256 |
|
Технический лист |
NME (1W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 5V | - | - | - | 200mA | 1 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 69% | - | - | Through Hole | 0.45" L x 0.24" W x 0.39" H (11.4mm x 6.1mm x 9.9mm) | - | - | - | - |
.jpg)
|
NMA0515SCDC DC CONVERTER +/-15V 1W |
239 |
|
Технический лист |
NMA (1W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 4.5V | 5.5V | 15V | -15V | - | - | 33mA, 33mA | 1 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 78% | - | - | Through Hole | 0.77" L x 0.24" W x 0.39" H (19.6mm x 6.1mm x 9.9mm) | - | - | - | - |
|

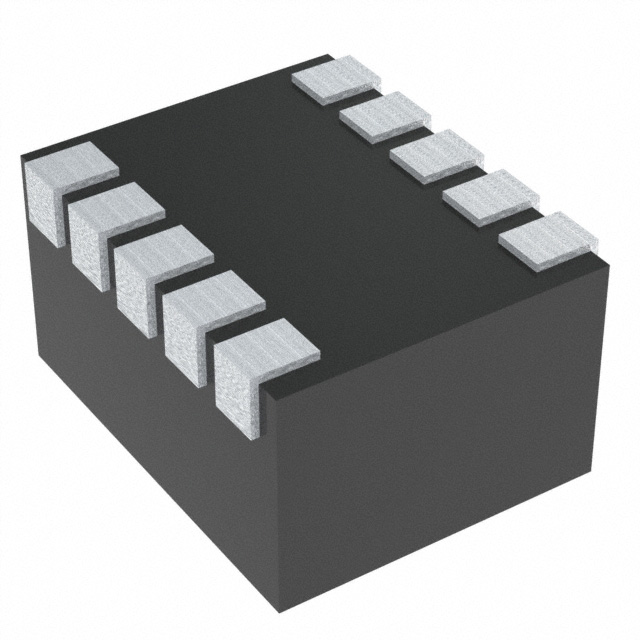

MAXM17225AMB+TTINY, 400MV TO 5.5V INPUT, NANOP |
4,021 |
|
Технический лист |
- | 10-SMD Module | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | ITE (Commercial) | - | -40°C ~ 125°C | - | - | - | Surface Mount | - | 10-eMGA (2.6x2.1) | - | - | - |
|
LMZ21701SILTDC DC CONVERTER 0.9-6V |
2,826 |
|
Технический лист |
SIMPLE SWITCHER® Nano | 8-SMD Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 3V | 17V | 0.9 ~ 6V | - | - | - | 1A | - | - | ITE (Commercial) | OCP, OTP, SCP, UVLO | -40°C ~ 125°C | 95% | - | - | Surface Mount | 0.14" L x 0.14" W x 0.07" H (3.5mm x 3.5mm x 1.8mm) | - | Enable, Active High | - | - |
|
LMZM23601V3SILRDC DC CONVERTER 3.3V |
5,524 |
|
Технический лист |
- | 10-LDFN Exposed Pad, Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 4V | 36V | 3.3V | - | - | - | 1A | - | - | ITE (Commercial) | OCP, SCP, UVLO | -40°C ~ 125°C | 81% | - | - | Surface Mount | 0.15" L x 0.12" W x 0.06" H (3.8mm x 3.0mm x 1.6mm) | 10-uSIP (3.8x3) | - | - | - |
|
|
LMZM23601V5SILRDC DC CONVERTER 5V |
3,602 |
|
Технический лист |
- | 10-LDFN Exposed Pad, Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 4V | 36V | 5V | - | - | - | 1A | - | - | ITE (Commercial) | OCP, SCP, UVLO | -40°C ~ 125°C | 87% | - | - | Surface Mount | 0.15" L x 0.12" W x 0.06" H (3.8mm x 3.0mm x 1.6mm) | 10-uSIP (3.8x3) | - | - | - |
|
|
LMZM23601SILRDC DC CONVERTER 1.2-15V |
1,583 |
|
Технический лист |
- | 10-LDFN Exposed Pad, Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 4V | 36V | 1.2 ~ 15V | - | - | - | 1A | - | - | ITE (Commercial) | OCP, SCP, UVLO | -40°C ~ 125°C | - | - | - | Surface Mount | 0.15" L x 0.12" W x 0.06" H (3.8mm x 3.0mm x 1.6mm) | 10-uSIP (3.8x3) | - | - | - |
|
|
LMZ20502SILTDC DC CONVERTER 0.8-3.6V |
940 |
|
Технический лист |
SIMPLE SWITCHER® Nano | 8-SMD Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 2.7V | 5.5V | 0.8 ~ 3.6V | - | - | - | 2A | - | - | ITE (Commercial) | OCP, OTP, SCP, UVLO | -40°C ~ 125°C | 89% | - | - | Surface Mount | 0.14" L x 0.14" W x 0.07" H (3.5mm x 3.5mm x 1.8mm) | - | - | - | - |
|
MPM3506AGQV-PDC DC CONVERTER 0.81-32V |
2,959 |
|
Технический лист |
- | 19-PowerLQFN Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 4.5V | 36V | 0.81 ~ 32V | - | - | - | 600mA | - | - | ITE (Commercial) | OCP, OTP, UVLO | -40°C ~ 125°C (TJ) | - | - | - | Surface Mount | 0.20" L x 0.12" W x 0.06" H (5.0mm x 3.0mm x 1.6mm) | 19-QFN (3x5) | - | - | - |
|
MEE1S0303SCDC DC CONVERTER 3.3V 1W |
1,522 |
|
Технический лист |
MEE1 (1W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 2.97V | 3.63V | 3.3V | - | - | - | 303mA | 1 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 78.5% | - | - | Through Hole | 0.45" L x 0.24" W x 0.39" H (11.5mm x 6.0mm x 10.0mm) | - | - | - | - |
|
|
MEE1S2405SCDC DC CONVERTER 5V 1W |
733 |
|
Технический лист |
MEE1 (1W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 21.6V | 26.4V | 5V | - | - | - | 200mA | 1 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 83% | - | - | Through Hole | 0.45" L x 0.24" W x 0.39" H (11.5mm x 6.0mm x 10.0mm) | - | - | - | - |
|
TPSM82866AA0SRDJRDC DC CONVERTER 0.6-5.5V |
3,030 |
|
Технический лист |
TPSM | 23-PowerLFQFN Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 2.4V | 5.5V | 0.6 ~ 5.5V | - | - | - | 6A | - | - | ITE (Commercial) | Adjustable Output, Remote On/Off, Remote Sense | -40°C ~ 125°C | 96% | - | - | Surface Mount | 0.14" L x 0.16" W x 0.05" H (3.5mm x 4.0mm x 1.4mm) | 23-B0QFN (3.5x4) | Enable, Active High | - | - |
|
TPS82130SILRDC DC CONVERTER 0.9-5V |
4,344 |
|
Технический лист |
MicroSip™ | 8-LDFN Exposed Pad, Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 3V | 17V | 0.9 ~ 5V | - | - | - | 3A | - | - | ITE (Commercial) | OTP | -40°C ~ 125°C | - | - | - | Surface Mount | 0.12" L x 0.11" W x 0.06" H (3.0mm x 2.8mm x 1.5mm) | 8-uSIP (3x2.8) | - | - | - |
|
APXS002A0X-SRZDC DC CONVERTER 0.6-5.5V 15W |
400 |
|
Технический лист |
PicoTLynx™ | 10-SMD Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 3V | 14V | 0.6 ~ 5.5V | - | - | - | 2A | 15 W | - | ITE (Commercial) | Remote On/Off, OCP, OTP, UVLO | -40°C ~ 85°C | 93% | - | - | Surface Mount | 0.48" L x 0.48" W x 0.25" H (12.2mm x 12.2mm x 6.3mm) | - | Enable, Active Low | - | - |
|
IE0305SDC DC CONVERTER 5V 1W |
14,680 |
|
Технический лист |
IE (1W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 2.97V | 3.63V | 5V | - | - | - | 200mA | 1 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 75% | - | - | Through Hole | 0.46" L x 0.24" W x 0.40" H (11.7mm x 6.0mm x 10.2mm) | - | - | - | - |
|
TPS82085SILTDC DC CONVERTER 0.8-6V |
8,659 |
|
Технический лист |
MicroSip™ | 8-LDFN Exposed Pad | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 2.5V | 6V | 0.8 ~ 6V | - | - | - | 3A | - | - | ITE (Commercial) | Adjustable Output | -40°C ~ 125°C (TJ) | 95% | - | - | Surface Mount | 0.12" L x 0.11" W x 0.05" H (3.0mm x 2.8mm x 1.3mm) | 8-uSIP (3x2.8) | - | - | - |
|
|
IE2405SDC DC CONVERTER 5V 1W |
5,675 |
|
Технический лист |
IE (1W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 21.6V | 26.4V | 5V | - | - | - | 200mA | 1 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 75% | - | - | Through Hole | 0.46" L x 0.24" W x 0.50" H (11.7mm x 6.0mm x 12.7mm) | - | - | - | - |
|
IE0505SDC DC CONVERTER 5V 1W |
4,683 |
|
Технический лист |
IE (1W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 5V | - | - | - | 200mA | 1 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 75% | - | - | Through Hole | 0.50" L x 0.40" W x 0.27" H (12.7mm x 10.1mm x 6.9mm) | - | - | - | - |
|
|
IE2424SDC DC CONVERTER 24V 1W |
2,246 |
|
Технический лист |
IE (1W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 21.6V | 26.4V | 24V | - | - | - | 42mA | 1 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 80% | - | - | Through Hole | 0.46" L x 0.24" W x 0.50" H (11.7mm x 6.0mm x 12.7mm) | - | - | - | - |
|
IE0505DDC DC CONVERTER 5V 1W |
669 |
|
Технический лист |
IE (1W) | 4-DIP Module | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 5V | - | - | - | 200mA | 1 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 75% | - | - | Through Hole | 0.50" L x 0.40" W x 0.27" H (12.7mm x 10.1mm x 6.9mm) | - | - | - | - |
