DC-DC Преобразователи
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Количество выходов | Напряжение - вход (мин.) | Напряжение - вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Особенности | Рабочая температура | Эффективность | Марка | Квалификация | Тип крепления | Размер/измерение | Устройство поставщика Упаковка | Функции управления | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

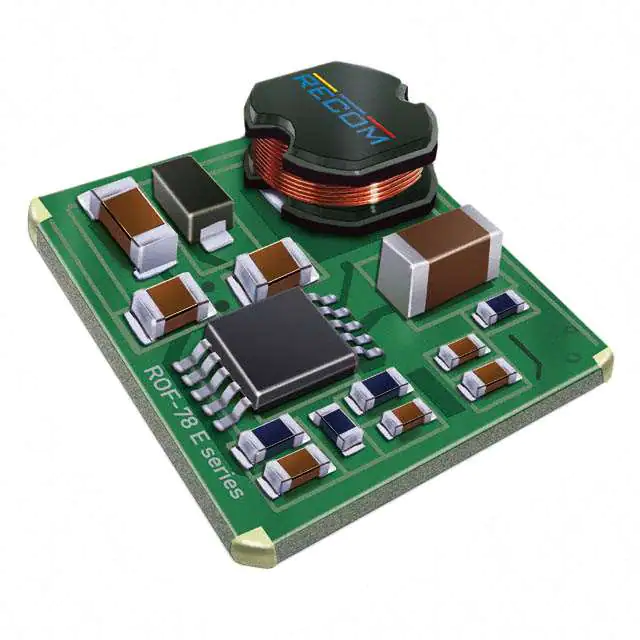

ROF-78E3.3-0.5SMD-RDC DC CONVERTER 3.3V |
719 |
|
Технический лист |
INNOLINE ROF-78E (E-Series) | 4-SMD Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 5V | 36V | 3.3V | - | - | - | 500mA | - | - | ITE (Commercial) | SCP | -40°C ~ 75°C | 84% | - | - | Surface Mount | 0.53" L x 0.49" W x 0.18" H (13.5mm x 12.5mm x 4.5mm) | - | Enable, Active High | - | - |
|
LMZM23600SILRDC DC CONVERTER 1.2-15V |
3,859 |
|
Технический лист |
- | 10-LDFN Exposed Pad, Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 4V | 36V | 1.2 ~ 15V | - | - | - | 500mA | - | - | ITE (Commercial) | OCP, SCP, UVLO | -40°C ~ 125°C | - | - | - | Surface Mount | 0.15" L x 0.12" W x 0.06" H (3.8mm x 3.0mm x 1.6mm) | 10-uSIP (3.8x3) | - | - | - |
|
|
LMZM23600V3SILRDC DC CONVERTER 3.3V |
3,791 |
|
Технический лист |
- | 10-LDFN Exposed Pad, Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 4V | 36V | 3.3V | - | - | - | 500mA | - | - | ITE (Commercial) | OCP, SCP, UVLO | -40°C ~ 125°C | 87% | - | - | Surface Mount | 0.15" L x 0.12" W x 0.06" H (3.8mm x 3.0mm x 1.6mm) | 10-uSIP (3.8x3) | - | - | - |
|
|
LMZM23600V5SILRDC DC CONVERTER 5V |
3,021 |
|
Технический лист |
- | 10-LDFN Exposed Pad, Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 4V | 36V | 5V | - | - | - | 500mA | - | - | ITE (Commercial) | OCP, SCP, UVLO | -40°C ~ 125°C | 90% | - | - | Surface Mount | 0.15" L x 0.12" W x 0.06" H (3.8mm x 3.0mm x 1.6mm) | 10-uSIP (3.8x3) | - | - | - |
|
|
ROF-78E5.0-0.5SMD-RDC DC CONVERTER 5V |
2,695 |
|
Технический лист |
INNOLINE ROF-78E (E-Series) | 4-SMD Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 9V | 36V | 5V | - | - | - | 500mA | - | - | ITE (Commercial) | SCP | -40°C ~ 75°C | 87% | - | - | Surface Mount | 0.53" L x 0.49" W x 0.18" H (13.5mm x 12.5mm x 4.5mm) | - | Enable, Active High | - | - |
|
MPM3830GQV-ZDC DC CONVERTER 2.7-6V |
2,705 |
|
- |
- | 20-PowerLFQFN Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 2.7V | 6V | 0.6V | - | - | - | 3A | - | - | ITE (Commercial) | OCP, OTP, UVLO | -40°C ~ 125°C | - | - | - | Surface Mount | 0.20" L x 0.12" W x 0.06" H (5.0mm x 3.0mm x 1.6mm) | 20-QFN (3x5) | Enable, Active High | - | - |
|
171930601VDMM VARIABLE STEP DOWN MICROMOD |
715 |
|
Технический лист |
MagI³C, VDMM | 9-PowerFLGA Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 3.5V | 36V | 1 ~ 6V | - | - | - | 300mA | - | - | ITE (Commercial) | Adjustable Output, Heat Sink, Remote On/Off | -40°C ~ 105°C | 87% | - | - | Surface Mount | 0.20" L x 0.10" W x 0.07" H (5.0mm x 2.5mm x 1.8mm) | 9-LGA (5x2.5) | Enable, Active High | - | - |
|
TPS82150SILTDC DC CONVERTER 0.9-6V |
1,959 |
|
Технический лист |
MicroSip™ | 8-LDFN Exposed Pad, Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 3V | 17V | 0.9 ~ 6V | - | - | - | 1A | - | - | ITE (Commercial) | OTP | -40°C ~ 125°C (With Derating) | - | - | - | Surface Mount | 0.12" L x 0.11" W x 0.06" H (3.0mm x 2.8mm x 1.5mm) | 8-uSIP | - | - | - |
|
R05C05TE05S-RDC DC CONVERTER 5V 500MW |
2,270 |
|
Технический лист |
ECONOLINE R05C05TE05S (0.5W) | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Isolated Module | 1 | 4.5V | 5.5V | 5V | - | - | - | 100mA | 500 mW | 3.6 kV | ITE (Commercial) | Adjustable Output | -40°C ~ 125°C (With Derating) | 53% | - | - | Surface Mount | 0.41" L x 0.30" W x 0.10" H (10.4mm x 7.5mm x 2.5mm) | 16-SOIC | - | - | - |
|
TPS82084SILRDC DC CONVERTER 0.8-6V |
8,782 |
|
Технический лист |
MicroSip™ | 8-LDFN Exposed Pad | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 2.5V | 6V | 0.8 ~ 6V | - | - | - | 2A | - | - | ITE (Commercial) | Adjustable Output | -40°C ~ 125°C | - | - | - | Surface Mount | 0.12" L x 0.11" W x 0.05" H (3.0mm x 2.8mm x 1.3mm) | 8-uSIP (3x2.8) | - | - | - |
|
R1SE-1205/H2-RDC DC CONVERTER 5V 1W |
1,497 |
|
Технический лист |
ECONOLINE R1SE-H2 (1W) | 8-SMD Module, 5 Leads | Tape & Reel (TR) | Active | Isolated Module | 1 | 10.8V | 13.2V | 5V | - | - | - | 200mA | 1 W | 2 kV | ITE (Commercial) | - | -40°C ~ 100°C | 73% | - | - | Surface Mount | 0.50" L x 0.42" W x 0.26" H (12.8mm x 10.7mm x 6.7mm) | - | - | - | - |
|
TSR 1-2450EDC DC CONVERTER 5V |
13,467 |
|
Технический лист |
TSR 1E | 3-SIP Module | Tube | Active | Non-Isolated PoL Module | 1 | 7V | 36V | 5V | - | - | - | 1A | - | - | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 92% | - | - | Through Hole | 0.46" L x 0.30" W x 0.40" H (11.6mm x 7.5mm x 10.2mm) | - | - | - | - |
|
RPX-1.5-RDC DC CONVERTER 0.8-30V |
20,194 |
|
Технический лист |
INNOLINE RPX-1.5 | 16-PowerLFQFN Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 4V | 36V | 0.8 ~ 30V | - | - | - | 1.5A | - | - | ITE (Commercial) | - | - | 87% | - | - | Surface Mount | 0.20" L x 0.12" W x 0.06" H (5.0mm x 3.0mm x 1.6mm) | 16-QFN (5x3) | - | - | - |
|
MPM38111GR-ZDC DC CONVERTER 1.8V 1.2V |
6,342 |
|
- |
- | 14-PowerLFQFN Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 2 | 2.7V | 6V | 1.8V | 1.2V | - | - | 1A, 1A | - | - | ITE (Commercial) | - | -40°C ~ 125°C | 93% | - | - | Surface Mount | 0.16" L x 0.16" W x 0.06" H (4.1mm x 4.1mm x 1.5mm) | 14-QFN (4x4) | - | - | - |
|
|
MPM3630GQV-PDC DC CONVERTER 0.6-18V |
10,550 |
|
Технический лист |
- | 20-PowerLFQFN Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 4.5V | 18V | 0.6 ~ 18V | - | - | - | 3A | - | - | ITE (Commercial) | OCP, OTP, UVLO | -40°C ~ 125°C (TJ) | - | - | - | Surface Mount | 0.20" L x 0.12" W x 0.06" H (5.0mm x 3.0mm x 1.6mm) | 20-QFN (3x5) | - | - | - |
|
|
R1SE-3.305/H2-RDC DC CONVERTER 5V 1W |
2,235 |
|
Технический лист |
ECONOLINE R1SE-H2 (1W) | 8-SMD Module, 5 Leads | Tape & Reel (TR) | Active | Isolated Module | 1 | 2.97V | 3.63V | 5V | - | - | - | 200mA | 1 W | 2 kV | ITE (Commercial) | - | -40°C ~ 100°C | 75% | - | - | Surface Mount | 0.50" L x 0.42" W x 0.26" H (12.8mm x 10.7mm x 6.7mm) | - | - | - | - |
|
171010501DC DC CONVERTER 0.8-5.5V |
1,873 |
|
Технический лист |
MagI³C, VDMM | 6-LFLGA Exposed Pad, Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 2.5V | 5.5V | 0.8 ~ 5.5V | - | - | - | 1A | - | - | ITE (Commercial) | Adjustable Output | -40°C ~ 85°C | 96% | - | - | Surface Mount | 0.13" L x 0.10" W x 0.06" H (3.2mm x 2.5mm x 1.6mm) | 6-LGA-EP (3.2x2.5) | - | - | - |
|
TPSM82864AA0HRDMR2.4-V TO 5.5-V INPUT, 4-A THIN S |
1,669 |
|
Технический лист |
TPSM | 23-PowerLFQFN Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 2.4V | 5.5V | 1.2V | - | - | - | 4A | - | - | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 125°C | 96% | - | - | Surface Mount | 0.14" L x 0.16" W x 0.06" H (3.5mm x 4.0mm x 1.5mm) | 23-B0QFN (3.5x4) | Enable, Active High | - | - |
|
TPSM84209RKHTDC DC CONVERTER 1.2-6V 15W |
665 |
|
Технический лист |
TPSM | 9-PowerQFN | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 4.5V | 28V | 1.2 ~ 6V | - | - | - | 2.5A | - | - | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 85°C (With Derating) | 86.5% | - | - | Surface Mount | 0.18" L x 0.16" W x 0.08" H (4.5mm x 4.0mm x 2.1mm) | 9-QFN-FCMOD (4.5x4) | Enable, Active High | - | - |
|
TMA 0505SDC DC CONVERTER 5V 1W |
8,414 |
|
Технический лист |
TMA (1W) | 6-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 5V | - | - | - | 200mA | 1 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 85°C (With Derating) | 71% | - | - | Through Hole | 0.77" L x 0.24" W x 0.40" H (19.5mm x 6.1mm x 10.2mm) | - | - | - | - |
