DC-DC Преобразователи
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Количество выходов | Напряжение - вход (мин.) | Напряжение - вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Особенности | Рабочая температура | Эффективность | Марка | Квалификация | Тип крепления | Размер/измерение | Устройство поставщика Упаковка | Функции управления | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NMXD0505UCDC DC CONVERTER +/-5V 5W |
0 |
|
Технический лист |
NMXU (5W) | 5-DIP Module | Tube | Obsolete | Isolated Module | 2 | 4.5V | 5.5V | 5V | -5V | - | - | 500mA, 500mA | 5 W | 1 kV | ITE (Commercial) | - | 0°C ~ 70°C | 75% | - | - | Through Hole | 0.99" L x 0.93" W x 0.39" H (25.1mm x 23.6mm x 9.9mm) | - | - | - | - |
|
|
NMXD0512UCDC DC CONVERTER +/-12V 5W |
0 |
|
Технический лист |
NMXU (5W) | 5-DIP Module | Tube | Obsolete | Isolated Module | 2 | 4.5V | 5.5V | 12V | -12V | - | - | 208mA, 208mA | 5 W | 1 kV | ITE (Commercial) | - | 0°C ~ 70°C | 75% | - | - | Through Hole | 0.99" L x 0.93" W x 0.39" H (25.1mm x 23.6mm x 9.9mm) | - | - | - | - |
|
|
NMXS0515UCDC DC CONVERTER 15V 5W |
0 |
|
Технический лист |
NMXU (5W) | 5-DIP Module | Tube | Obsolete | Isolated Module | 1 | 4.5V | 5.5V | 15V | - | - | - | 333mA | 5 W | 1 kV | ITE (Commercial) | - | 0°C ~ 70°C | 75% | - | - | Through Hole | 0.99" L x 0.93" W x 0.39" H (25.1mm x 23.6mm x 9.9mm) | - | - | - | - |
|
|
NMXS1212UCDC DC CONVERTER 12V 5W |
0 |
|
Технический лист |
NMXU (5W) | 5-DIP Module | Tube | Obsolete | Isolated Module | 1 | 10.8V | 13.2V | 12V | - | - | - | 417mA | 5 W | 1 kV | ITE (Commercial) | - | 0°C ~ 70°C | 75% | - | - | Through Hole | 0.99" L x 0.93" W x 0.39" H (25.1mm x 23.6mm x 9.9mm) | - | - | - | - |
|
|
NMXS1215UCDC DC CONVERTER 15V 5W |
0 |
|
Технический лист |
NMXU (5W) | 5-DIP Module | Tube | Obsolete | Isolated Module | 1 | 10.8V | 13.2V | 15V | - | - | - | 333mA | 5 W | 1 kV | ITE (Commercial) | - | 0°C ~ 70°C | 75% | - | - | Through Hole | 0.99" L x 0.93" W x 0.39" H (25.1mm x 23.6mm x 9.9mm) | - | - | - | - |
|

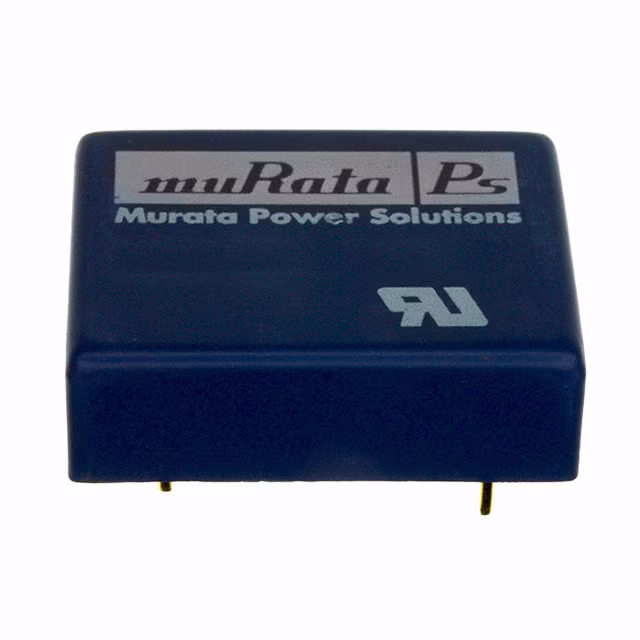

NPH10S2403EICDC DC CONVERTER 3.4V 10W |
0 |
|
Технический лист |
NPH10S (10W) | 6-DIP Module | Tube | Obsolete | Isolated Module | 1 | 18V | 36V | 3.4V | - | - | - | 2.94A | 10 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 110°C | 79% | - | - | Through Hole | 1.26" L x 0.98" W x 0.39" H (32.0mm x 24.9mm x 9.9mm) | - | - | - | - |
|
|
NPH10S2415EICDC DC CONVERTER 15.1V 10W |
0 |
|
Технический лист |
NPH10S (10W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 18V | 36V | 15.1V | - | - | - | 670mA | 10 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 110°C | 86% | - | - | Through Hole | 1.26" L x 0.98" W x 0.39" H (32.0mm x 24.9mm x 9.9mm) | - | - | - | - |
|
|
NPH10S4803EICDC DC CONVERTER 3.4V 10W |
0 |
|
Технический лист |
NPH10S (10W) | 6-DIP Module | Tube | Obsolete | Isolated Module | 1 | 36V | 75V | 3.4V | - | - | - | 2.94A | 10 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 110°C | 80% | - | - | Through Hole | 1.26" L x 0.98" W x 0.39" H (32.0mm x 24.9mm x 9.9mm) | - | - | - | - |
|
|
NPH15S4812EICDC DC CONVERTER 12.1V 15W |
0 |
|
Технический лист |
NPH15S (15W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 36V | 75V | 12.1V | - | - | - | 1.3A | 15 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 110°C | 88% | - | - | Through Hole | 1.97" L x 0.98" W x 0.39" H (50.0mm x 24.9mm x 9.9mm) | - | - | - | - |
|
|
NPH25S2412EICDC DC CONVERTER 12.1V 25W |
0 |
|
Технический лист |
NPH25S (25W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 18V | 36V | 12.1V | - | - | - | 2.1A | 25 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 110°C | 86% | - | - | Through Hole | 1.97" L x 1.38" W x 0.39" H (50.0mm x 35.1mm x 9.9mm) | - | - | - | - |
|
|
NTA0303MCDC DC CONVERTER +/-3.3V 1W |
0 |
|
Технический лист |
NTA (1W) | 18-SMD Module, 10 Leads | Tube | Active | Isolated Module | 2 | 2.97V | 3.63V | 3.3V | -3.3V | - | - | 152mA, 152mA | 1 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 75% | - | - | Surface Mount | 0.60" L x 0.30" W x 0.26" H (15.2mm x 7.6mm x 6.6mm) | - | - | - | - |
|
|
NTA0305MC-RDC DC CONVERTER +/-5V 1W |
0 |
|
Технический лист |
NTA (1W) | 18-SMD Module, 10 Leads | Tape & Reel (TR) | Active | Isolated Module | 2 | 2.97V | 3.63V | 5V | -5V | - | - | 100mA, 100mA | 1 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 78% | - | - | Surface Mount | 0.60" L x 0.30" W x 0.26" H (15.2mm x 7.6mm x 6.6mm) | - | - | - | - |
|
|
NTA0312MCDC DC CONVERTER +/-12V 1W |
0 |
|
Технический лист |
NTA (1W) | 18-SMD Module, 10 Leads | Tube | Obsolete | Isolated Module | 2 | 2.97V | 3.63V | 12V | -12V | - | - | 42mA, 42mA | 1 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 77% | - | - | Surface Mount | 0.60" L x 0.30" W x 0.26" H (15.2mm x 7.6mm x 6.6mm) | - | - | - | - |
|
|
NTA0315MC-RDC DC CONVERTER +/-15V 1W |
0 |
|
Технический лист |
NTA (1W) | 18-SMD Module, 10 Leads | Tape & Reel (TR) | Active | Isolated Module | 2 | 2.97V | 3.63V | 15V | -15V | - | - | 33mA, 33mA | 1 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 77% | - | - | Surface Mount | 0.60" L x 0.30" W x 0.26" H (15.2mm x 7.6mm x 6.6mm) | - | - | - | - |
|
NTA0505MECDC DC CONVERTER +/-5V 1W |
0 |
|
Технический лист |
NTA (1W) | 18-SMD Module, 10 Leads | Tube | Obsolete | Isolated Module | 2 | 4.5V | 5.5V | 5V | -5V | - | - | 100mA, 100mA | 1 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 80% | - | - | Surface Mount | 0.60" L x 0.30" W x 0.26" H (15.2mm x 7.6mm x 6.6mm) | - | - | - | - |
|
NTE0315MC-RDC DC CONVERTER 15V 1W |
0 |
|
Технический лист |
NTE (1W) | 14-SMD Module, 8 Leads | Tape & Reel (TR) | Obsolete | Isolated Module | 1 | 2.97V | 3.63V | 15V | - | - | - | 66mA | 1 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 77% | - | - | Surface Mount | 0.50" L x 0.30" W x 0.26" H (12.7mm x 7.6mm x 6.6mm) | - | - | - | - |
|
NTH0509MCDC DC CONVERTER +/-9V 2W |
0 |
|
Технический лист |
NTH (2W) | 26-SMD Module, 12 Leads | Tube | Obsolete | Isolated Module | 2 | 4.5V | 5.5V | 9V | -9V | - | - | 111mA | 2 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 81% | - | - | Surface Mount | 0.70" L x 0.50" W x 0.23" H (17.8mm x 12.7mm x 5.8mm) | - | - | - | - |
|
|
NTH0515MC-RDC DC CONVERTER +/-15V 2W |
0 |
|
Технический лист |
NTH (2W) | 26-SMD Module, 12 Leads | Tape & Reel (TR) | Active | Isolated Module | 2 | 4.5V | 5.5V | 15V | -15V | - | - | 67mA, 67mA | 2 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 84% | - | - | Surface Mount | 0.70" L x 0.50" W x 0.23" H (17.8mm x 12.7mm x 5.8mm) | - | - | - | - |
|
|
NTH1209MCDC DC CONVERTER +/-9V 2W |
0 |
|
Технический лист |
NTH (2W) | 26-SMD Module, 12 Leads | Tube | Obsolete | Isolated Module | 2 | 10.8V | 13.2V | 9V | -9V | - | - | 111mA, 111mA | 2 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 83% | - | - | Surface Mount | 0.70" L x 0.50" W x 0.23" H (17.8mm x 12.7mm x 5.8mm) | - | - | - | - |
|
|
NTH1212MC-RDC DC CONVERTER +/-12V 2W |
0 |
|
Технический лист |
NTH (2W) | 26-SMD Module, 12 Leads | Tape & Reel (TR) | Active | Isolated Module | 2 | 10.8V | 13.2V | 12V | -12V | - | - | 83mA, 83mA | 2 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 84% | - | - | Surface Mount | 0.70" L x 0.50" W x 0.23" H (17.8mm x 12.7mm x 5.8mm) | - | - | - | - |
