DC-DC Преобразователи
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Количество выходов | Напряжение - вход (мин.) | Напряжение - вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Особенности | Рабочая температура | Эффективность | Марка | Квалификация | Тип крепления | Размер/измерение | Устройство поставщика Упаковка | Функции управления | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SMT20C-05SADJJDC DC CONVERTER 0.9-3.3V |
0 |
|
- |
SMT20C (66W) | 8-SMD Module | Bulk | Obsolete | Non-Isolated PoL Module | 1 | 4.5V | 5.5V | 0.9 ~ 3.3V | - | - | - | 20A | - | - | ITE (Commercial) | Remote On/Off, OCP, SCP | 0°C ~ 80°C | 87% | - | - | Surface Mount | 1.20" L x 0.61" W x 0.48" H (30.5mm x 15.5mm x 12.2mm) | - | - | - | - |
|
|
SMT20C-12SADJJDC DC CONVERTER 0.9-5V |
0 |
|
- |
SMT20C (66W) | 8-SMD Module | Bulk | Obsolete | Non-Isolated PoL Module | 1 | 10.2V | 13.8V | 0.9 ~ 5V | - | - | - | 20A | - | - | ITE (Commercial) | Remote On/Off, OCP, SCP | 0°C ~ 80°C | 91% | - | - | Surface Mount | 1.20" L x 0.61" W x 0.48" H (30.5mm x 15.5mm x 12.2mm) | - | - | - | - |
|
|
SMT40C-12SADJJDC DC CONVERTER 0.9-5V |
0 |
|
- |
SMT40C (200W) | 9-SMD Module | Bulk | Obsolete | Non-Isolated PoL Module | 1 | 10.2V | 13.8V | 0.9 ~ 5V | - | - | - | 40A | - | - | ITE (Commercial) | Remote On/Off, OCP, OTP, SCP, UVLO | 0°C ~ 80°C | 92% | - | - | Surface Mount | 2.28" L x 1.45" W x 0.43" H (57.9mm x 36.8mm x 10.8mm) | - | - | - | - |
|
|
LXDC3EP33F-204DC DC CONVERTER 3.3V |
0 |
|
Технический лист |
LXDC3EP | 9-SMD Module | Tape & Reel (TR) | Obsolete | Non-Isolated PoL Module | 1 | 4V | 5.5V | 3.3V | - | - | - | 1A | - | - | ITE (Commercial) | Remote On/Off, OCP, OTP, UVLO | -30°C ~ 85°C | 94% | - | - | Surface Mount | 0.14" L x 0.13" W x 0.05" H (3.5mm x 3.2mm x 1.3mm) | - | - | - | - |
|
|
LXDC2XQ33A-254DC DC CONVERTER 3.3V |
0 |
|
Технический лист |
LXDC2XQ | 9-SMD Module | Tape & Reel (TR) | Obsolete | Non-Isolated PoL Module | 1 | 2.7V | 5.5V | 3.3V | - | - | - | 800mA | - | - | ITE (Commercial) | OCP, OTP, UVLO | -40°C ~ 105°C | 93% | - | - | Surface Mount | 0.11" L x 0.10" W x 0.04" H (2.8mm x 2.6mm x 1.1mm) | - | - | - | - |
|
BWR-15/100-D48-CDC DC CONVERTER +/-15V 3W |
0 |
|
Технический лист |
BWR (10W) | 6-DIP Module | Tube | Obsolete | Isolated Module | 2 | 18V | 72V | 15V | -15V | - | - | 100mA, 100mA | 3 W | 1.5 kV | ITE (Commercial) | OCP, OVP | -40°C ~ 100°C | 80% | - | - | Through Hole | 2.00" L x 1.00" W x 0.47" H (50.8mm x 25.4mm x 11.8mm) | - | - | - | - |
|
|
BWR-15/575-D12A-CDC DC CONVERTER +/-15V 17W |
0 |
|
Технический лист |
BWR (10W) | 6-DIP Module | Tube | Obsolete | Isolated Module | 2 | 10V | 18V | 15V | -15V | - | - | 575mA, 575mA | 17 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP | -40°C ~ 100°C | 84% | - | - | Through Hole | 2.00" L x 1.00" W x 0.47" H (50.8mm x 25.4mm x 11.8mm) | - | - | - | - |
|
|
BWR-5/6-3.3/7-D48-CDC DC CONVERTER 5V 3.3V 33W |
0 |
|
Технический лист |
BWR (10W) | 8-DIP Module, 7 Leads | Tube | Obsolete | Isolated Module | 2 | 36V | 75V | 5V | 3.3V | - | - | 6A, 7A | 33 W | 1 kV | ITE (Commercial) | OVP, SCP, UVLO | -40°C ~ 100°C | 88% | - | - | Through Hole | 2.00" L x 2.00" W x 0.45" H (50.8mm x 50.8mm x 11.4mm) | - | - | - | - |
|

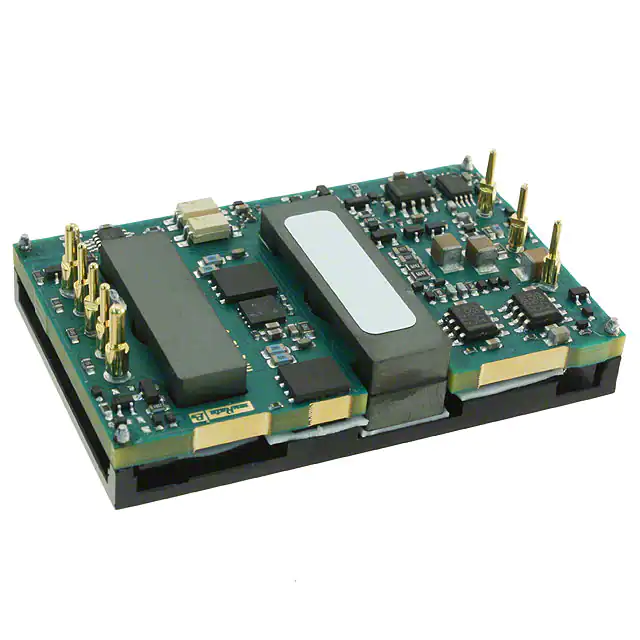

HPQ-12/25-D48PBX-CDC DC CONVERTER 12V 300W |
0 |
|
Технический лист |
HPQ (300W) | 8-DIP Module, 1/4 Brick | Tray | Obsolete | Isolated Module | 1 | 36V | 75V | 12V | - | - | - | 25A | 300 W | 2.25 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 85°C | 94.5% | - | - | Through Hole | 2.30" L x 1.45" W x 0.50" H (58.4mm x 36.8mm x 12.6mm) | - | Enable, Active High | - | - |
|
LME0305SCDC DC CONVERTER 5V 250MW |
0 |
|
Технический лист |
LME (0.25W) | 4-SIP Module | Tube | Obsolete | Isolated Module | 1 | 2.97V | 3.63V | 5V | - | - | - | 50mA | 250 mW | 1 kV | ITE (Commercial) | SCP | 0°C ~ 70°C | - | - | - | Through Hole | 0.45" L x 0.24" W x 0.39" H (11.5mm x 6.0mm x 10.0mm) | - | - | - | - |
|
|
LME0509DCDC DC CONVERTER 9V 250MW |
0 |
|
Технический лист |
LME (0.25W) | 7-DIP Module, 4 Leads | Tube | Obsolete | Isolated Module | 1 | 4.5V | 5.5V | 9V | - | - | - | 28mA | 250 mW | 1 kV | ITE (Commercial) | SCP | 0°C ~ 70°C | 75% | - | - | Through Hole | 0.45" L x 0.24" W x 0.39" H (11.5mm x 6.0mm x 10.0mm) | - | - | - | - |
|
|
LME0509SCDC DC CONVERTER 9V 250MW |
0 |
|
Технический лист |
LME (0.25W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 9V | - | - | - | 28mA | 250 mW | 1 kV | ITE (Commercial) | SCP | 0°C ~ 70°C | 75% | - | - | Through Hole | 0.45" L x 0.24" W x 0.39" H (11.5mm x 6.0mm x 10.0mm) | - | - | - | - |
|
LME0512DCDC DC CONVERTER 12V 250MW |
0 |
|
Технический лист |
LME (0.25W) | 7-DIP Module, 4 Leads | Tube | Obsolete | Isolated Module | 1 | 4.5V | 5.5V | 12V | - | - | - | 21mA | 250 mW | 1 kV | ITE (Commercial) | SCP | 0°C ~ 70°C | 75% | - | - | Through Hole | 0.45" L x 0.24" W x 0.39" H (11.5mm x 6.0mm x 10.0mm) | - | - | - | - |
|
|
LME0515DCDC DC CONVERTER 15V 250MW |
0 |
|
Технический лист |
LME (0.25W) | 7-DIP Module, 4 Leads | Tube | Obsolete | Isolated Module | 1 | 4.5V | 5.5V | 15V | - | - | - | 16mA | 250 mW | 1 kV | ITE (Commercial) | SCP | 0°C ~ 70°C | 75% | - | - | Through Hole | 0.45" L x 0.24" W x 0.39" H (11.5mm x 6.0mm x 10.0mm) | - | - | - | - |
|
|
LME1205DCDC DC CONVERTER 5V 250MW |
0 |
|
Технический лист |
LME (0.25W) | 7-DIP Module, 4 Leads | Tube | Obsolete | Isolated Module | 1 | 10.8V | 13.2V | 5V | - | - | - | 21mA | 250 mW | 1 kV | ITE (Commercial) | SCP | 0°C ~ 70°C | 70% | - | - | Through Hole | 0.45" L x 0.24" W x 0.39" H (11.5mm x 6.0mm x 10.0mm) | - | - | - | - |
|
|
LME1209SCDC DC CONVERTER 9V 250MW |
0 |
|
Технический лист |
LME (0.25W) | 4-SIP Module | Tube | Obsolete | Isolated Module | 1 | 10.8V | 13.2V | 9V | - | - | - | 28mA | 250 mW | 1 kV | ITE (Commercial) | SCP | 0°C ~ 70°C | 75% | - | - | Through Hole | 0.45" L x 0.24" W x 0.39" H (11.5mm x 6.0mm x 10.0mm) | - | - | - | - |
|
|
LME1215SCDC DC CONVERTER 15V 250MW |
0 |
|
Технический лист |
LME (0.25W) | 4-SIP Module | Tube | Obsolete | Isolated Module | 1 | 10.8V | 13.2V | 15V | - | - | - | 16mA | 250 mW | 1 kV | ITE (Commercial) | SCP | 0°C ~ 70°C | 75% | - | - | Through Hole | 0.45" L x 0.24" W x 0.39" H (11.5mm x 6.0mm x 10.0mm) | - | - | - | - |
|
|
MTU1D0512MC-RDC DC CONVERTER +/-12V 1W |
0 |
|
Технический лист |
MTU1 (1W) | 5-SMD Module | Tape & Reel (TR) | Active | Isolated Module | 2 | 4.5V | 5.5V | 12V | -12V | - | - | 42mA, 42mA | 1 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 87% | - | - | Surface Mount | 0.33" L x 0.32" W x 0.34" H (8.4mm x 8.2mm x 8.5mm) | - | - | - | - |
|
|
MTU1D0515MC-RDC DC CONVERTER +/-15V 1W |
0 |
|
Технический лист |
MTU1 (1W) | 5-SMD Module | Tape & Reel (TR) | Active | Isolated Module | 2 | 4.5V | 5.5V | 15V | -15V | - | - | 33mA, 33mA | 1 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 88% | - | - | Surface Mount | 0.33" L x 0.32" W x 0.34" H (8.4mm x 8.2mm x 8.5mm) | - | - | - | - |
|
|
NCM6D0505CDC DC CONVERTER +/-5V 6W |
0 |
|
Технический лист |
NCM6 (6W) | 23-DIP Module, 7 Leads | Tube | Obsolete | Isolated Module | 2 | 4.5V | 9V | 5V | -5V | - | - | 600mA, 600mA | 6 W | 5.2 kV | ITE (Commercial), Medical | Remote On/Off, OTP, SCP, UVLO | -40°C ~ 85°C | 80% | - | - | Through Hole | 1.26" L x 0.79" W x 0.43" H (32.0mm x 20.0mm x 10.8mm) | - | Enable, Active Low | - | - |
