DC-DC Преобразователи
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Количество выходов | Напряжение - вход (мин.) | Напряжение - вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Особенности | Рабочая температура | Эффективность | Марка | Квалификация | Тип крепления | Размер/измерение | Устройство поставщика Упаковка | Функции управления | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

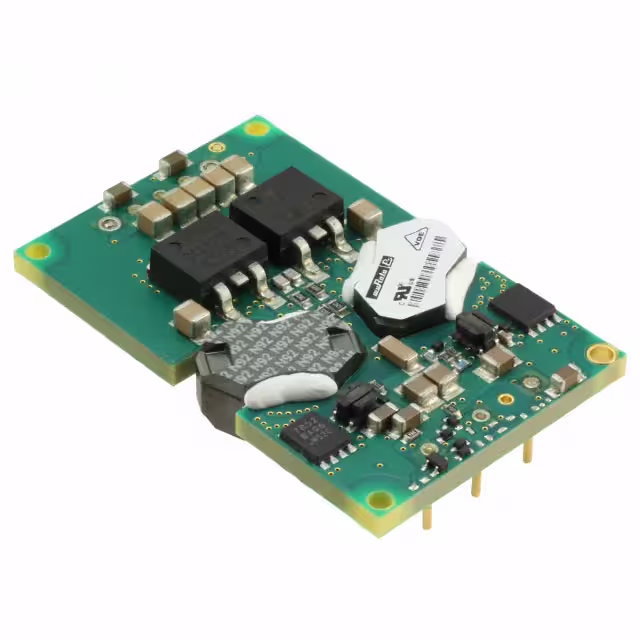

UVQ-5/20-D24P-CDC DC CONVERTER 5V 100W |
0 |
|
Технический лист |
UVQ | 8-DIP Module, 1/4 Brick | Tray | Obsolete | Isolated Module | 1 | 18V | 36V | 5V | - | - | - | 20A | 100 W | 2 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 110°C | 92% | - | - | Through Hole | 2.30" L x 1.45" W x 0.42" H (58.4mm x 36.8mm x 10.7mm) | - | Enable, Active High | - | - |
|
UVQ-5/20-D48NB-CDC DC CONVERTER 5V 100W |
0 |
|
Технический лист |
UVQ | 8-DIP Module, 1/4 Brick | Tray | Obsolete | Isolated Module | 1 | 36V | 75V | 5V | - | - | - | 20A | 100 W | 2.25 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 110°C | 90% | - | - | Through Hole | 2.30" L x 1.45" W x 0.50" H (58.4mm x 36.8mm x 12.7mm) | - | Enable, Active Low | - | - |
|
|
UVQ-5/20-D48N-CDC DC CONVERTER 5V 100W |
0 |
|
Технический лист |
UVQ | 8-DIP Module, 1/4 Brick | Tray | Obsolete | Isolated Module | 1 | 36V | 75V | 5V | - | - | - | 20A | 100 W | 2.25 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 110°C | 90% | - | - | Through Hole | 2.30" L x 1.45" W x 0.42" H (58.4mm x 36.8mm x 10.7mm) | - | Enable, Active Low | - | - |
|
NCM6D1212ECDC DC CONVERTER +/-12V 6W |
0 |
|
Технический лист |
NCM6 (6W) | 24-DIP Module, 8 Leads | Tube | Obsolete | Isolated Module | 2 | 9V | 36V | 12V | -12V | - | - | 250mA, 250mA | 6 W | 5.2 kV | ITE (Commercial), Medical | Remote On/Off, OTP, SCP, UVLO | -40°C ~ 85°C | 88% | - | - | Through Hole | 1.26" L x 0.79" W x 0.43" H (32.0mm x 20.0mm x 10.8mm) | - | Enable, Active Low | - | - |
|
|
NCM6D1215ECDC DC CONVERTER +/-15V 6W |
0 |
|
Технический лист |
NCM6 (6W) | 24-DIP Module, 8 Leads | Tube | Obsolete | Isolated Module | 2 | 9V | 36V | 15V | -15V | - | - | 200mA, 200mA | 6 W | 5.2 kV | ITE (Commercial), Medical | Remote On/Off, OTP, SCP, UVLO | -40°C ~ 85°C | 87% | - | - | Through Hole | 1.26" L x 0.79" W x 0.43" H (32.0mm x 20.0mm x 10.8mm) | - | Enable, Active Low | - | - |
|
|
NCM6D4805ECDC DC CONVERTER +/-5V 6W |
0 |
|
Технический лист |
NCM6 (6W) | 24-DIP Module, 8 Leads | Tube | Active | Isolated Module | 2 | 18V | 75V | 5V | -5V | - | - | 600mA, 600mA | 6 W | 5.2 kV | ITE (Commercial), Medical | Remote On/Off, OTP, SCP, UVLO | -40°C ~ 85°C | 80% | - | - | Through Hole | 1.26" L x 0.79" W x 0.43" H (32.0mm x 20.0mm x 10.8mm) | - | Enable, Active Low | - | - |
|
|
NCM6D4812ECDC DC CONVERTER +/-12V 6W |
0 |
|
Технический лист |
NCM6 (6W) | 24-DIP Module, 8 Leads | Tube | Obsolete | Isolated Module | 2 | 18V | 75V | 12V | -12V | - | - | 250mA, 250mA | 6 W | 5.2 kV | ITE (Commercial), Medical | Remote On/Off, OTP, SCP, UVLO | -40°C ~ 85°C | 82% | - | - | Through Hole | 1.26" L x 0.79" W x 0.43" H (32.0mm x 20.0mm x 10.8mm) | - | Enable, Active Low | - | - |
|
|
NCM6D4815ECDC DC CONVERTER +/-15V 6W |
0 |
|
Технический лист |
NCM6 (6W) | 24-DIP Module, 8 Leads | Tube | Active | Isolated Module | 2 | 18V | 75V | 15V | -15V | - | - | 200mA, 200mA | 6 W | 5.2 kV | ITE (Commercial), Medical | Remote On/Off, OTP, SCP, UVLO | -40°C ~ 85°C | 83% | - | - | Through Hole | 1.26" L x 0.79" W x 0.43" H (32.0mm x 20.0mm x 10.8mm) | - | Enable, Active Low | - | - |
|
|
NCM6S0503ECDC DC CONVERTER 3.3V 6W |
0 |
|
Технический лист |
NCM6 (6W) | 24-DIP Module, 7 Leads | Tube | Obsolete | Isolated Module | 1 | 4.5V | 9V | 3.3V | - | - | - | 1.52A | 6 W | 5.2 kV | ITE (Commercial), Medical | Remote On/Off, OTP, SCP, UVLO | -40°C ~ 85°C | 75% | - | - | Through Hole | 1.26" L x 0.79" W x 0.43" H (32.0mm x 20.0mm x 10.8mm) | - | Enable, Active Low | - | - |
|
|
NCM6S0512ECDC DC CONVERTER 12V 6W |
0 |
|
Технический лист |
NCM6 (6W) | 24-DIP Module, 7 Leads | Tube | Obsolete | Isolated Module | 1 | 4.5V | 9V | 12V | - | - | - | 500mA | 6 W | 5.2 kV | ITE (Commercial), Medical | Remote On/Off, OTP, SCP, UVLO | -40°C ~ 85°C | 82% | - | - | Through Hole | 1.26" L x 0.79" W x 0.43" H (32.0mm x 20.0mm x 10.8mm) | - | Enable, Active Low | - | - |
|
|
NCM6S0515ECDC DC CONVERTER 15V 6W |
0 |
|
Технический лист |
NCM6 (6W) | 24-DIP Module, 7 Leads | Tube | Obsolete | Isolated Module | 1 | 4.5V | 9V | 15V | - | - | - | 400mA | 6 W | 5.2 kV | ITE (Commercial), Medical | Remote On/Off, OTP, SCP, UVLO | -40°C ~ 85°C | 82% | - | - | Through Hole | 1.26" L x 0.79" W x 0.43" H (32.0mm x 20.0mm x 10.8mm) | - | Enable, Active Low | - | - |
|
|
NCM6S1203ECDC DC CONVERTER 3.3V 6W |
0 |
|
Технический лист |
NCM6 (6W) | 24-DIP Module, 7 Leads | Tube | Obsolete | Isolated Module | 1 | 9V | 36V | 3.3V | - | - | - | 1.52A | 6 W | 5.2 kV | ITE (Commercial), Medical | Remote On/Off, OTP, SCP, UVLO | -40°C ~ 85°C | 79% | - | - | Through Hole | 1.26" L x 0.79" W x 0.43" H (32.0mm x 20.0mm x 10.8mm) | - | Enable, Active Low | - | - |
|
|
NCM6S1215ECDC DC CONVERTER 15V 6W |
0 |
|
Технический лист |
NCM6 (6W) | 24-DIP Module, 7 Leads | Tube | Obsolete | Isolated Module | 1 | 9V | 36V | 15V | - | - | - | 400mA | 6 W | 5.2 kV | ITE (Commercial), Medical | Remote On/Off, OTP, SCP, UVLO | -40°C ~ 85°C | 87% | - | - | Through Hole | 1.26" L x 0.79" W x 0.43" H (32.0mm x 20.0mm x 10.8mm) | - | Enable, Active Low | - | - |
|
|
NCM6S4803ECDC DC CONVERTER 3.3V 6W |
0 |
|
Технический лист |
NCM6 (6W) | 24-DIP Module, 7 Leads | Tube | Obsolete | Isolated Module | 1 | 18V | 75V | 3.3V | - | - | - | 1.52A | 6 W | 5.2 kV | ITE (Commercial), Medical | Remote On/Off, OTP, SCP, UVLO | -40°C ~ 85°C | 74% | - | - | Through Hole | 1.26" L x 0.79" W x 0.43" H (32.0mm x 20.0mm x 10.8mm) | - | Enable, Active Low | - | - |
|
|
NCM6S4805ECDC DC CONVERTER 5V 6W |
0 |
|
Технический лист |
NCM6 (6W) | 24-DIP Module, 7 Leads | Tube | Obsolete | Isolated Module | 1 | 18V | 75V | 5V | - | - | - | 1.2A | 6 W | 5.2 kV | ITE (Commercial), Medical | Remote On/Off, OTP, SCP, UVLO | -40°C ~ 85°C | 78 ~ 83% | - | - | Through Hole | 1.26" L x 0.79" W x 0.43" H (32.0mm x 20.0mm x 10.8mm) | - | Enable, Active Low | - | - |
|
|
NCM6S4812ECDC DC CONVERTER 12V 6W |
0 |
|
Технический лист |
NCM6 (6W) | 24-DIP Module, 7 Leads | Tube | Obsolete | Isolated Module | 1 | 18V | 75V | 12V | - | - | - | 500mA | 6 W | 5.2 kV | ITE (Commercial), Medical | Remote On/Off, OTP, SCP, UVLO | -40°C ~ 85°C | 82% | - | - | Through Hole | 1.26" L x 0.79" W x 0.43" H (32.0mm x 20.0mm x 10.8mm) | - | Enable, Active Low | - | - |
|
|
NCM6S4815ECDC DC CONVERTER 15V 6W |
0 |
|
Технический лист |
NCM6 (6W) | 24-DIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 18V | 75V | 15V | - | - | - | 400mA | 6 W | 5.2 kV | ITE (Commercial), Medical | Remote On/Off, OTP, SCP, UVLO | -40°C ~ 85°C | 83% | - | - | Through Hole | 1.26" L x 0.79" W x 0.43" H (32.0mm x 20.0mm x 10.8mm) | - | Enable, Active Low | - | - |
|
|
AVO100-36S3V3B-6LDC DC CONVERTER 3.3V 100W |
0 |
|
- |
AVO100 (100W) | 8-DIP Module, 1/8 Brick | Tray | Obsolete | Isolated Module | 1 | 18V | 75V | 3.3V | - | - | - | 30A | 100 W | 2.25 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, UVLO | -40°C ~ 85°C | 93% | - | - | Through Hole | 2.28" L x 0.90" W x 0.50" H (57.9mm x 22.9mm x 12.7mm) | - | - | - | - |
|
|
ISL8216MIRZDC DC CONVERTER 10V 40W |
0 |
|
Технический лист |
ISL8216M | 22-SMD Module | Tray | Obsolete | Non-Isolated PoL Module | 1 | 10V | 80V | 10V | - | - | - | 4A | - | - | ITE (Commercial) | OCP, OTP, SCP | -40°C ~ 85°C | - | - | - | Surface Mount | 0.59" L x 0.59" W x 0.14" H (15.0mm x 15.0mm x 3.5mm) | 22-HDA Module (15x15) | - | - | - |
|
|
ISL8216MIRZ-TDC DC CONVERTER 10V 40W |
0 |
|
Технический лист |
ISL8216M | 22-SMD Module | Tape & Reel (TR) | Obsolete | Non-Isolated PoL Module | 1 | 10V | 80V | 10V | - | - | - | 4A | - | - | ITE (Commercial) | OCP, OTP, SCP | -40°C ~ 85°C | - | - | - | Surface Mount | 0.59" L x 0.59" W x 0.14" H (15.0mm x 15.0mm x 3.5mm) | 22-HDA Module (15x15) | - | - | - |
