DC-DC Преобразователи
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Количество выходов | Напряжение - вход (мин.) | Напряжение - вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Особенности | Рабочая температура | Эффективность | Марка | Квалификация | Тип крепления | Размер/измерение | Устройство поставщика Упаковка | Функции управления | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

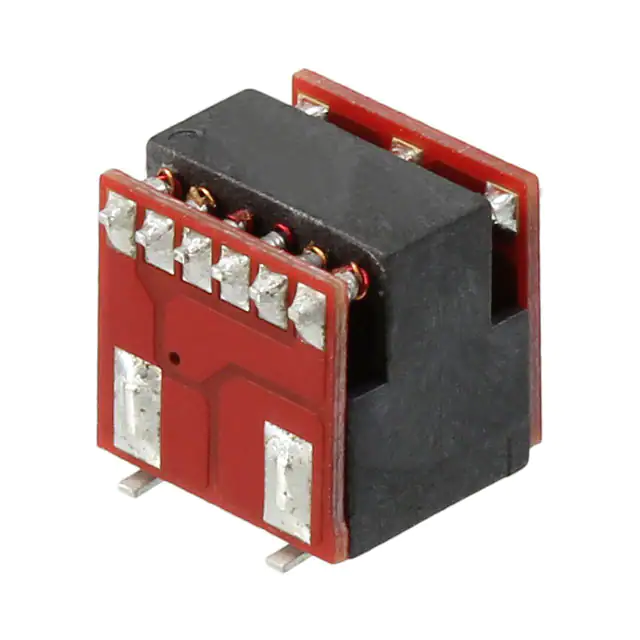

MTU2S1205MCDC DC CONVERTER 5V 2W |
0 |
|
Технический лист |
MTU2 (2W) | 6-SMD Module | Tube | Obsolete | Isolated Module | 1 | 10.8V | 13.2V | 5V | - | - | - | 400mA | 2 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 80% | - | - | Surface Mount | 0.33" L x 0.32" W x 0.34" H (8.4mm x 8.2mm x 8.5mm) | - | - | - | - |
|
MTU2D0512MC-RDC DC CONVERTER +/-12V 2W |
0 |
|
Технический лист |
MTU2 (2W) | 6-SMD Module, 5 Leads | Tape & Reel (TR) | Active | Isolated Module | 2 | 4.5V | 5.5V | 12V | -12V | - | - | 83mA, 83mA | 2 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 85% | - | - | Surface Mount | 0.33" L x 0.32" W x 0.34" H (8.4mm x 8.2mm x 8.5mm) | - | - | - | - |
|

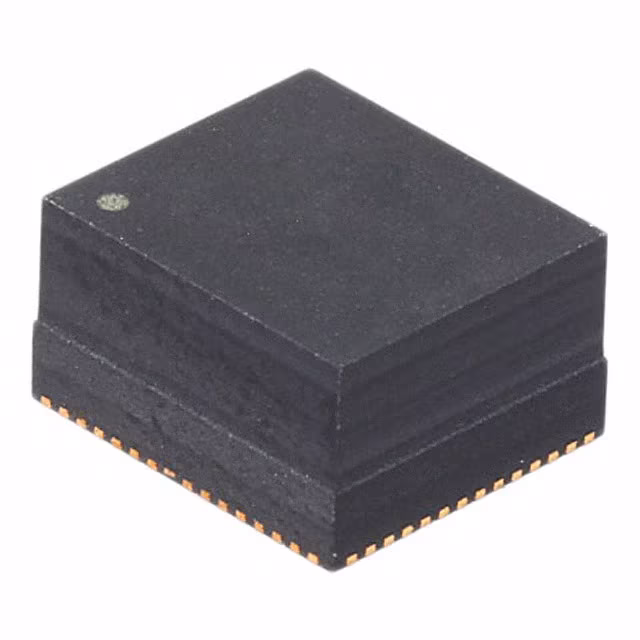

NN31001A-BBDC DC CONVERTER 0.6-5.5V 39W |
0 |
|
Технический лист |
- | 57-PowerBFQFN Module | Tape & Reel (TR) | Obsolete | Non-Isolated PoL Module | 1 | 4.5V | 28V | 0.6 ~ 5.5V | - | - | - | 7A | 39 W | - | ITE (Commercial) | OCP, OTP, OVP, SCP, UVLO | -40°C ~ 85°C | 95% | - | - | Surface Mount | 0.33" L x 0.30" W x 0.19" H (8.5mm x 7.5mm x 4.7mm) | 57-HQFN (7.5x6.5) | - | - | - |
|
|
NN31002A-BBDC DC CONVERTER 0.6-5.5V 22W |
0 |
|
Технический лист |
- | 57-PowerBFQFN Module | Tape & Reel (TR) | Obsolete | Non-Isolated PoL Module | 1 | 4.5V | 28V | 0.6 ~ 5.5V | - | - | - | 4A | 22 W | - | ITE (Commercial) | OCP, OTP, OVP, SCP, UVLO | -40°C ~ 85°C | 95% | - | - | Surface Mount | 0.33" L x 0.30" W x 0.19" H (8.5mm x 7.5mm x 4.7mm) | 57-HQFN (7.5x6.5) | - | - | - |
|

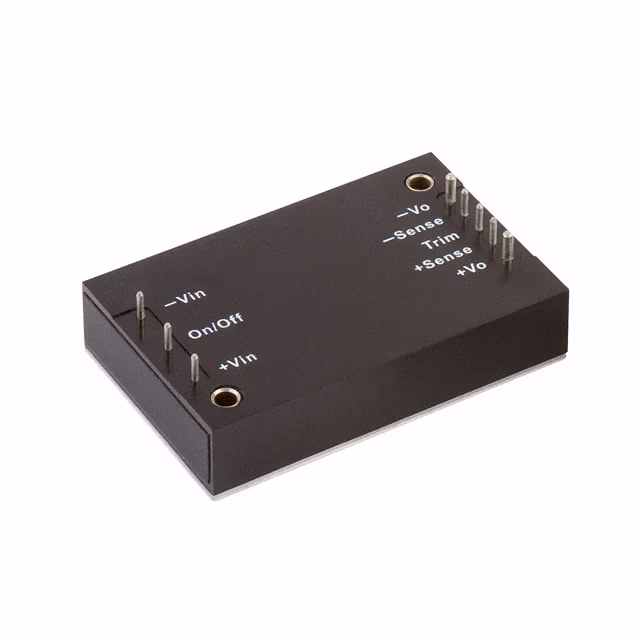

RDQ100110S05DC DC CONVERTER 5V 100W |
0 |
|
Технический лист |
RDQ (100W) | 8-DIP Module | Bulk | Obsolete | Isolated Module | 1 | 66V | 160V | 5V | - | - | - | 20A | 100 W | 2.25 kV | ITE (Commercial), Railway | Remote On/Off, OTP, OVP, SCP, UVLO | -40°C ~ 100°C | 90% | - | - | Through Hole | 2.28" L x 1.45" W x 0.50" H (57.9mm x 36.8mm x 12.7mm) | - | Enable, Active High | - | - |
|
|
RDQ100110S12DC DC CONVERTER 12V 100W |
0 |
|
Технический лист |
RDQ (100W) | 8-DIP Module | Bulk | Obsolete | Isolated Module | 1 | 66V | 160V | 12V | - | - | - | 8.4A | 100 W | 2.25 kV | ITE (Commercial), Railway | Remote On/Off, OTP, OVP, SCP, UVLO | -40°C ~ 100°C | 90% | - | - | Through Hole | 2.28" L x 1.45" W x 0.50" H (57.9mm x 36.8mm x 12.7mm) | - | Enable, Active High | - | - |
|
|
UVQ-12/10-D48NB-CDC DC CONVERTER 12V 120W |
0 |
|
Технический лист |
UVQ | 8-DIP Module, 1/4 Brick | Tray | Obsolete | Isolated Module | 1 | 36V | 75V | 12V | - | - | - | 10A | 120 W | 2.25 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 110°C | 90% | - | - | Through Hole | 2.30" L x 1.45" W x 0.50" H (58.4mm x 36.8mm x 12.7mm) | - | Enable, Active Low | - | - |
|
|
UVQ-12/10-D48N-CDC DC CONVERTER 12V 120W |
0 |
|
Технический лист |
UVQ | 8-DIP Module, 1/4 Brick | Tray | Obsolete | Isolated Module | 1 | 36V | 75V | 12V | - | - | - | 10A | 120 W | 2.25 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 110°C | 90% | - | - | Through Hole | 2.30" L x 1.45" W x 0.42" H (58.4mm x 36.8mm x 10.7mm) | - | Enable, Active Low | - | - |
|
|
UVQ-15/7-D24P-CDC DC CONVERTER 15V 105W |
0 |
|
Технический лист |
UVQ | 8-DIP Module, 1/4 Brick | Tray | Obsolete | Isolated Module | 1 | 18V | 36V | 15V | - | - | - | 7A | 105 W | 2 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 110°C | 90.3% | - | - | Through Hole | 2.30" L x 1.45" W x 0.42" H (58.4mm x 36.8mm x 10.7mm) | - | Enable, Active High | - | - |
|
|
UVQ-18/5.6-D24PB-CDC DC CONVERTER 18V 101W |
0 |
|
Технический лист |
UVQ | 8-DIP Module, 1/4 Brick | Tray | Obsolete | Isolated Module | 1 | 18V | 36V | 18V | - | - | - | 5.6A | 101 W | 2 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 110°C | 89.5% | - | - | Through Hole | 2.30" L x 1.45" W x 0.50" H (58.4mm x 36.8mm x 12.7mm) | - | Enable, Active High | - | - |
|

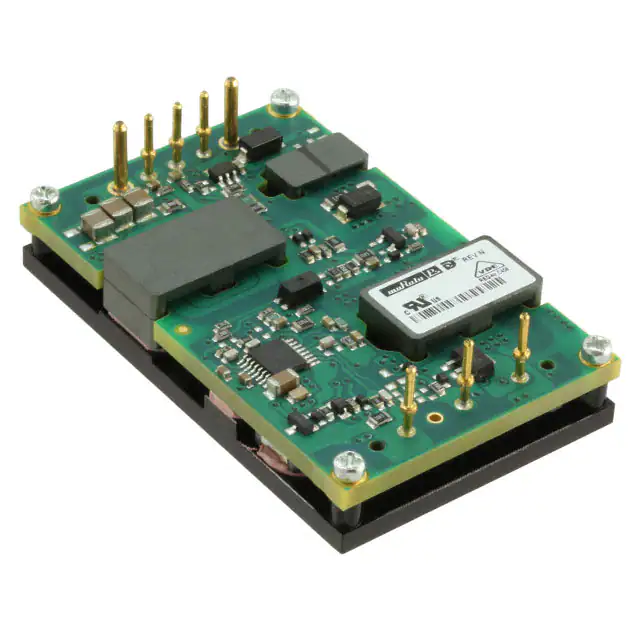

UVQ-24/4.5-D48PB-CDC DC CONVERTER 24V 108W |
0 |
|
Технический лист |
UVQ | 8-DIP Module, 1/4 Brick | Tray | Obsolete | Isolated Module | 1 | 36V | 75V | 24V | - | - | - | 4.5A | 108 W | 2.25 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 110°C | 90.5% | - | - | Through Hole | 2.30" L x 1.45" W x 0.50" H (58.4mm x 36.8mm x 12.7mm) | - | Enable, Active High | - | - |
|
|
UVQ-3.3/30-D24NB-CDC DC CONVERTER 3.3V 99W |
0 |
|
Технический лист |
UVQ | 8-DIP Module, 1/4 Brick | Tray | Obsolete | Isolated Module | 1 | 18V | 36V | 3.3V | - | - | - | 30A | 99 W | 2 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 110°C | 90% | - | - | Through Hole | 2.30" L x 1.45" W x 0.50" H (58.4mm x 36.8mm x 12.7mm) | - | Enable, Active Low | - | - |
|
|
UVQ-3.3/30-D24N-CDC DC CONVERTER 3.3V 99W |
0 |
|
Технический лист |
UVQ | 8-DIP Module, 1/4 Brick | Tray | Obsolete | Isolated Module | 1 | 18V | 36V | 3.3V | - | - | - | 30A | 99 W | 2 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 110°C | 90% | - | - | Through Hole | 2.30" L x 1.45" W x 0.42" H (58.4mm x 36.8mm x 10.7mm) | - | Enable, Active Low | - | - |
|
|
UVQ-3.3/30-D24PB-CDC DC CONVERTER 3.3V 99W |
0 |
|
Технический лист |
UVQ | 8-DIP Module, 1/4 Brick | Tray | Obsolete | Isolated Module | 1 | 18V | 36V | 3.3V | - | - | - | 30A | 99 W | 2 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 110°C | 90% | - | - | Through Hole | 2.30" L x 1.45" W x 0.50" H (58.4mm x 36.8mm x 12.7mm) | - | Enable, Active High | - | - |
|
|
UVQ-3.3/30-D24P-CDC DC CONVERTER 3.3V 99W |
0 |
|
Технический лист |
UVQ | 8-DIP Module, 1/4 Brick | Tray | Obsolete | Isolated Module | 1 | 18V | 36V | 3.3V | - | - | - | 30A | 99 W | 2 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 110°C | 90% | - | - | Through Hole | 2.30" L x 1.45" W x 0.42" H (58.4mm x 36.8mm x 10.7mm) | - | Enable, Active High | - | - |
|
|
UVQ-3.3/35-D48N-CDC DC CONVERTER 3.3V 116W |
0 |
|
Технический лист |
UVQ | 8-DIP Module, 1/4 Brick | Tray | Obsolete | Isolated Module | 1 | 36V | 75V | 3.3V | - | - | - | 35A | 116 W | 2.25 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 110°C | 89% | - | - | Through Hole | 2.30" L x 1.45" W x 0.42" H (58.4mm x 36.8mm x 10.7mm) | - | Enable, Active Low | - | - |
|
|
UVQ-3.3/35-D48P-CDC DC CONVERTER 3.3V 116W |
0 |
|
Технический лист |
UVQ | 8-DIP Module, 1/4 Brick | Tray | Obsolete | Isolated Module | 1 | 36V | 75V | 3.3V | - | - | - | 35A | 116 W | 2.25 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 110°C | 89% | - | - | Through Hole | 2.30" L x 1.45" W x 0.42" H (58.4mm x 36.8mm x 10.7mm) | - | Enable, Active High | - | - |
|
|
UVQ-5/20-D24NB-CDC DC CONVERTER 5V 100W |
0 |
|
Технический лист |
UVQ | 8-DIP Module, 1/4 Brick | Tray | Obsolete | Isolated Module | 1 | 18V | 36V | 5V | - | - | - | 20A | 100 W | 2 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 110°C | 92% | - | - | Through Hole | 2.30" L x 1.45" W x 0.50" H (58.4mm x 36.8mm x 12.7mm) | - | Enable, Active Low | - | - |
|
|
UVQ-5/20-D24N-CDC DC CONVERTER 5V 100W |
0 |
|
Технический лист |
UVQ | 8-DIP Module, 1/4 Brick | Tray | Obsolete | Isolated Module | 1 | 18V | 36V | 5V | - | - | - | 20A | 100 W | 2 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 110°C | 92% | - | - | Through Hole | 2.30" L x 1.45" W x 0.42" H (58.4mm x 36.8mm x 10.7mm) | - | Enable, Active Low | - | - |
|
|
UVQ-5/20-D24PB-CDC DC CONVERTER 5V 100W |
0 |
|
Технический лист |
UVQ | 8-DIP Module, 1/4 Brick | Tray | Obsolete | Isolated Module | 1 | 18V | 36V | 5V | - | - | - | 20A | 100 W | 2 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 110°C | 92% | - | - | Through Hole | 2.30" L x 1.45" W x 0.50" H (58.4mm x 36.8mm x 12.7mm) | - | Enable, Active High | - | - |
