DC-DC Преобразователи
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Количество выходов | Напряжение - вход (мин.) | Напряжение - вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Особенности | Рабочая температура | Эффективность | Марка | Квалификация | Тип крепления | Размер/измерение | Устройство поставщика Упаковка | Функции управления | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DF04S2412ADC DC CONVERTER 12V 4W |
0 |
|
Технический лист |
DF04S/D (4W) | 24-DIP Module, 8 Leads | Tube | Obsolete | Isolated Module | 1 | 9V | 36V | 12V | - | - | - | 333mA | 4 W | 1.5 kV | Medical | OCP, SCP, UVLO | -40°C ~ 71°C | 83% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | - | - | - | - |
|
|
DF04S2415ADC DC CONVERTER 15V 4W |
0 |
|
Технический лист |
DF04S/D (4W) | 24-DIP Module, 8 Leads | Tube | Obsolete | Isolated Module | 1 | 9V | 36V | 15V | - | - | - | 267mA | 4 W | 1.5 kV | Medical | OCP, SCP, UVLO | -40°C ~ 71°C | 83% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | - | - | - | - |
|
|
DF04S4805ADC DC CONVERTER 5V 4W |
0 |
|
Технический лист |
DF04S/D (4W) | 24-DIP Module, 8 Leads | Tube | Obsolete | Isolated Module | 1 | 18V | 75V | 5V | - | - | - | 660mA | 4 W | 1.5 kV | Medical | OCP, SCP, UVLO | -40°C ~ 71°C | 82% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | - | - | - | - |
|
EMH-54/3-Q48N-CDC DC CONVERTER 54V 162W |
0 |
|
Технический лист |
- | 9-DIP Module | Tray | Obsolete | Isolated Module | 1 | 18V | 72V | 54V | - | - | - | 3A | 162 W | 2.25 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, UVLO | -40°C ~ 85°C | 91.5% | - | - | Through Hole | 2.40" L x 2.30" W x 0.43" H (61.0mm x 58.4mm x 10.9mm) | - | Enable, Active Low | - | - |
|
|
EMH-54/3-Q48NB-CDC DC CONVERTER 54V 162W |
0 |
|
Технический лист |
- | 9-DIP Module, 5 Leads | Tray | Obsolete | Isolated Module | 1 | 18V | 72V | 54V | - | - | - | 3A | 162 W | 2.25 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 85°C | 91.5% | - | - | Through Hole | 2.40" L x 2.30" W x 0.50" H (61.0mm x 58.4mm x 12.7mm) | - | Enable, Active Low | - | - |
|
|
S36SE3R305NDFGDC DC CONVERTER 3.3V 17W |
0 |
|
- |
S36SE (17W) | 6-DIP Module | Tube | Obsolete | Isolated Module | 1 | 18V | 75V | 3.3V | - | - | - | 5A | 17 W | 1.5 kV | ITE (Commercial) | Remote On/Off, UVLO | -40°C ~ 85°C | 86.5% | - | - | Through Hole | 1.10" L x 0.96" W x 0.34" H (27.9mm x 24.4mm x 8.7mm) | - | Enable, Active Low | - | - |
|
|
S36SE12001NDFGDC DC CONVERTER 12V 17W |
0 |
|
- |
S36SE (17W) | 6-DIP Module | Tube | Obsolete | Isolated Module | 1 | 18V | 75V | 12V | - | - | - | 1.3A | 17 W | 1.5 kV | ITE (Commercial) | Remote On/Off, UVLO | -40°C ~ 85°C | 87% | - | - | Through Hole | 1.10" L x 0.96" W x 0.34" H (27.9mm x 24.4mm x 8.7mm) | - | Enable, Active Low | - | - |
|
MEE1S2409DCDC DC CONVERTER 9V 1W |
0 |
|
Технический лист |
MEE1 (1W) | 8-DIP Module, 4 Leads | Tube | Obsolete | Isolated Module | 1 | 21.6V | 26.4V | 9V | - | - | - | 111mA | 1 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 83% | - | - | Through Hole | 0.45" L x 0.39" W x 0.27" H (11.5mm x 9.8mm x 6.8mm) | - | - | - | - |
|
|
MEE1S0309DCDC DC CONVERTER 9V 1W |
0 |
|
Технический лист |
MEE1 (1W) | 8-DIP Module, 4 Leads | Tube | Obsolete | Isolated Module | 1 | 2.97V | 3.63V | 9V | - | - | - | 111mA | 1 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 81.5% | - | - | Through Hole | 0.45" L x 0.39" W x 0.27" H (11.5mm x 9.8mm x 6.8mm) | - | - | - | - |
|
|
MEE1S2412DCDC DC CONVERTER 12V 1W |
0 |
|
Технический лист |
MEE1 (1W) | 8-DIP Module, 4 Leads | Tube | Obsolete | Isolated Module | 1 | 21.6V | 26.4V | 12V | - | - | - | 83mA | 1 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 85.5% | - | - | Through Hole | 0.45" L x 0.39" W x 0.27" H (11.5mm x 9.8mm x 6.8mm) | - | - | - | - |
|
|
MEE1S0315DCDC DC CONVERTER 15V 1W |
0 |
|
Технический лист |
MEE1 (1W) | 8-DIP Module, 4 Leads | Tube | Obsolete | Isolated Module | 1 | 2.97V | 3.63V | 15V | - | - | - | 67mA | 1 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 84.5% | - | - | Through Hole | 0.45" L x 0.39" W x 0.27" H (11.5mm x 9.8mm x 6.8mm) | - | - | - | - |
|
|
MEE1S0305DCDC DC CONVERTER 5V 1W |
0 |
|
Технический лист |
MEE1 (1W) | 8-DIP Module, 4 Leads | Tube | Obsolete | Isolated Module | 1 | 2.97V | 3.63V | 5V | - | - | - | 200mA | 1 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 81.5% | - | - | Through Hole | 0.45" L x 0.39" W x 0.27" H (11.5mm x 9.8mm x 6.8mm) | - | - | - | - |
|
|
MEE1S0309SCDC DC CONVERTER 9V 1W |
0 |
|
Технический лист |
MEE1 (1W) | 4-SIP Module | Tube | Obsolete | Isolated Module | 1 | 2.97V | 3.63V | 9V | - | - | - | 111mA | 1 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 81.5% | - | - | Through Hole | 0.45" L x 0.24" W x 0.39" H (11.5mm x 6.0mm x 10.0mm) | - | - | - | - |
|
|
MEE1S0509DCDC DC CONVERTER 9V 1W |
0 |
|
Технический лист |
MEE1 (1W) | 8-DIP Module, 4 Leads | Tube | Obsolete | Isolated Module | 1 | 4.5V | 5.5V | 9V | - | - | - | 111mA | 1 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 83.5% | - | - | Through Hole | 0.45" L x 0.39" W x 0.27" H (11.5mm x 9.8mm x 6.8mm) | - | - | - | - |
|
|
MEE1S0512DCDC DC CONVERTER 12V 1W |
0 |
|
Технический лист |
MEE1 (1W) | 8-DIP Module, 4 Leads | Tube | Obsolete | Isolated Module | 1 | 4.5V | 5.5V | 12V | - | - | - | 83mA | 1 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 85% | - | - | Through Hole | 0.45" L x 0.39" W x 0.27" H (11.5mm x 9.8mm x 6.8mm) | - | - | - | - |
|
|
MEE1S0515DCDC DC CONVERTER 15V 1W |
0 |
|
Технический лист |
MEE1 (1W) | 8-DIP Module, 4 Leads | Tube | Obsolete | Isolated Module | 1 | 4.5V | 5.5V | 15V | - | - | - | 67mA | 1 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 85.5% | - | - | Through Hole | 0.45" L x 0.39" W x 0.27" H (11.5mm x 9.8mm x 6.8mm) | - | - | - | - |
|
|
MEE1S1505DCDC DC CONVERTER 5V 1W |
0 |
|
Технический лист |
MEE1 (1W) | 8-DIP Module, 4 Leads | Tube | Obsolete | Isolated Module | 1 | 13.5V | 16.5V | 5V | - | - | - | 200mA | 1 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 83.5% | - | - | Through Hole | 0.45" L x 0.39" W x 0.27" H (11.5mm x 9.8mm x 6.8mm) | - | - | - | - |
|
|
MEE1S1515DCDC DC CONVERTER 15V 1W |
0 |
|
Технический лист |
MEE1 (1W) | 8-DIP Module, 4 Leads | Tube | Obsolete | Isolated Module | 1 | 13.5V | 16.5V | 15V | - | - | - | 67mA | 1 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 86.5% | - | - | Through Hole | 0.45" L x 0.39" W x 0.27" H (11.5mm x 9.8mm x 6.8mm) | - | - | - | - |
|

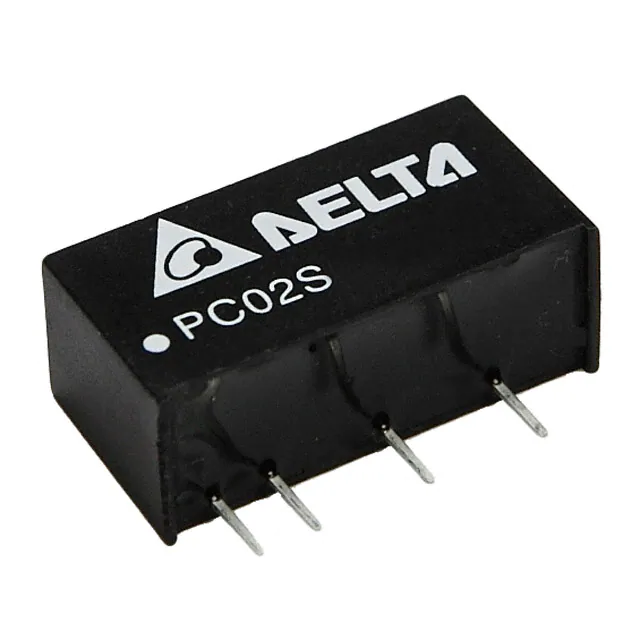

PC02D1215ADC DC CONVERTER +/-15V 2W |
0 |
|
Технический лист |
PC02S/D (2W) | 6-SIP Module, 5 Leads | Tube | Obsolete | Isolated Module | 2 | 10.8V | 13.2V | 15V | -15V | - | - | 66mA, 66mA | 2 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.77" L x 0.30" W x 0.40" H (19.6mm x 7.6mm x 10.2mm) | - | - | - | - |
|
S24DE150R6PDFADC DC CONVERTER +/-15V 20W |
0 |
|
Технический лист |
S24DE (20W) | 6-DIP Module | Tube | Active | Isolated Module | 2 | 9V | 36V | 15V | -15V | - | - | 670mA, 670mA | 20 W | 1.6 kV | ITE (Commercial) | Remote On/Off, UVLO | -40°C ~ 85°C | 88% | - | - | Through Hole | 1.00" L x 1.00" W x 0.40" H (25.4mm x 25.4mm x 10.2mm) | - | Enable, Active High | - | - |
