DC-DC Преобразователи
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Количество выходов | Напряжение - вход (мин.) | Напряжение - вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Особенности | Рабочая температура | Эффективность | Марка | Квалификация | Тип крепления | Размер/измерение | Устройство поставщика Упаковка | Функции управления | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SA01D1212ADC DC CONVERTER +/-12V 1W |
0 |
|
Технический лист |
SA01D (1W) | 8-SMD Module | Tube | Obsolete | Isolated Module | 2 | 10.8V | 13.2V | 12V | -12V | - | - | 42mA, 42mA | 1 W | 1 kV | Medical | SCP | -40°C ~ 85°C | 80% | - | - | Surface Mount | 0.50" L x 0.42" W x 0.28" H (12.8mm x 10.7mm x 7.0mm) | - | - | - | - |
|
|
SA01D2412ADC DC CONVERTER +/-12V 1W |
0 |
|
Технический лист |
SA01D (1W) | 8-SMD Module | Tube | Obsolete | Isolated Module | 2 | 21.6V | 26.4V | 12V | -12V | - | - | 42mA, 42mA | 1 W | 1 kV | Medical | SCP | -40°C ~ 85°C | 79% | - | - | Surface Mount | 0.50" L x 0.42" W x 0.28" H (12.8mm x 10.7mm x 7.0mm) | - | - | - | - |
|

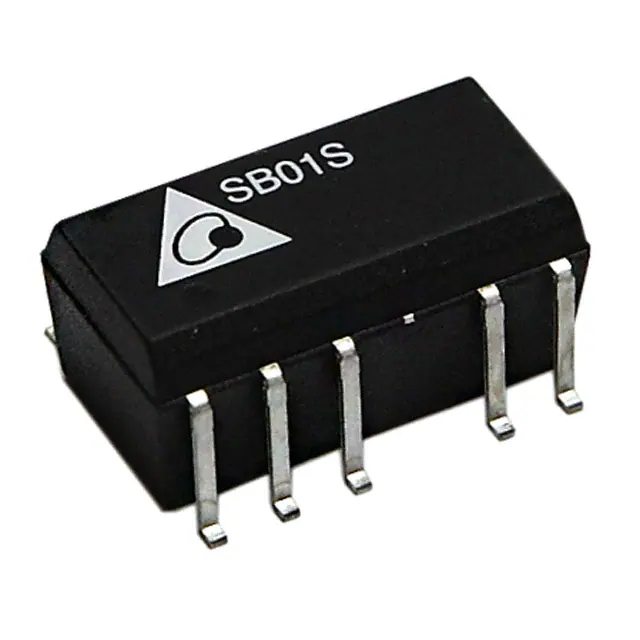

SB01D0505ADC DC CONVERTER +/-5V 1W |
0 |
|
Технический лист |
SB01S/D (2W) | 12-SMD Module, 10 Leads | Tube | Obsolete | Isolated Module | 2 | 4.5V | 5.5V | 5V | -5V | - | - | 100mA, 100mA | 1 W | 3 kV | Medical | SCP | -40°C ~ 85°C | 72% | - | - | Surface Mount | 0.60" L x 0.42" W x 0.28" H (15.2mm x 10.7mm x 7.0mm) | - | - | - | - |
|
|
SB01D0515ADC DC CONVERTER +/-15V 1W |
0 |
|
Технический лист |
SB01S/D (2W) | 12-SMD Module, 10 Leads | Tube | Obsolete | Isolated Module | 2 | 4.5V | 5.5V | 15V | -15V | - | - | 34mA, 34mA | 1 W | 3 kV | Medical | SCP | -40°C ~ 85°C | 79% | - | - | Surface Mount | 0.60" L x 0.42" W x 0.28" H (15.2mm x 10.7mm x 7.0mm) | - | - | - | - |
|
SH01D0512ADC DC CONVERTER +/-12V 1W |
0 |
|
Технический лист |
SH01S/D (1W) | 8-SMD Module, 5 Leads | Tube | Obsolete | Isolated Module | 2 | 4.5V | 5.5V | 12V | -12V | - | - | 42mA, 42mA | 1 W | 1.5 kV | Medical | SCP | -40°C ~ 85°C | 78% | - | - | Surface Mount | 0.54" L x 0.31" W x 0.28" H (13.7mm x 8.0mm x 7.0mm) | - | - | - | - |
|
SC02S0505ADC DC CONVERTER 5V 2W |
0 |
|
Технический лист |
SC02S/D (2W) | 8-SMD Module, 5 Leads | Tube | Obsolete | Isolated Module | 1 | 4.5V | 5.5V | 5V | - | - | - | 400mA | 2 W | 1 kV | Medical | SCP | -40°C ~ 85°C | 77% | - | - | Surface Mount | 0.50" L x 0.37" W x 0.35" H (12.8mm x 9.3mm x 9.0mm) | - | - | - | - |
|
|
SC02S1205ADC DC CONVERTER 5V 2W |
0 |
|
Технический лист |
SC02S/D (2W) | 8-SMD Module, 5 Leads | Tube | Obsolete | Isolated Module | 1 | 10.8V | 13.2V | 5V | - | - | - | 400mA | 2 W | 1 kV | Medical | SCP | -40°C ~ 85°C | 78% | - | - | Surface Mount | 0.50" L x 0.37" W x 0.35" H (12.8mm x 9.3mm x 9.0mm) | - | - | - | - |
|
|
SC02S1212ADC DC CONVERTER 12V 2W |
0 |
|
Технический лист |
SC02S/D (2W) | 8-SMD Module, 5 Leads | Tube | Obsolete | Isolated Module | 1 | 10.8V | 13.2V | 12V | - | - | - | 165mA | 2 W | 1 kV | Medical | SCP | -40°C ~ 85°C | 82% | - | - | Surface Mount | 0.50" L x 0.37" W x 0.35" H (12.8mm x 9.3mm x 9.0mm) | - | - | - | - |
|
|
SC02S2405ADC DC CONVERTER 5V 2W |
0 |
|
Технический лист |
SC02S/D (2W) | 8-SMD Module, 5 Leads | Tube | Obsolete | Isolated Module | 1 | 21.6V | 26.4V | 5V | - | - | - | 400mA | 2 W | 1 kV | Medical | SCP | -40°C ~ 85°C | 78% | - | - | Surface Mount | 0.50" L x 0.37" W x 0.35" H (12.8mm x 9.3mm x 9.0mm) | - | - | - | - |
|
|
SC02S2412ADC DC CONVERTER 12V 2W |
0 |
|
Технический лист |
SC02S/D (2W) | 8-SMD Module, 5 Leads | Tube | Obsolete | Isolated Module | 1 | 21.6V | 26.4V | 12V | - | - | - | 165mA | 2 W | 1 kV | Medical | SCP | -40°C ~ 85°C | 81% | - | - | Surface Mount | 0.50" L x 0.37" W x 0.35" H (12.8mm x 9.3mm x 9.0mm) | - | - | - | - |
|
|
SC02D0505ADC DC CONVERTER +/-5V 2W |
0 |
|
Технический лист |
SC02S/D (2W) | 8-SMD Module, 5 Leads | Tube | Obsolete | Isolated Module | 2 | 4.5V | 5.5V | 5V | -5V | - | - | 200mA, 200mA | 2 W | 1 kV | Medical | SCP | -40°C ~ 85°C | 77% | - | - | Surface Mount | 0.50" L x 0.37" W x 0.35" H (12.8mm x 9.3mm x 9.0mm) | - | - | - | - |
|
|
SC02D0512ADC DC CONVERTER +/-12V 2W |
0 |
|
Технический лист |
SC02S/D (2W) | 8-SMD Module, 5 Leads | Tube | Obsolete | Isolated Module | 2 | 4.5V | 5.5V | 12V | -12V | - | - | 83mA, 83mA | 2 W | 1 kV | Medical | SCP | -40°C ~ 85°C | 79% | - | - | Surface Mount | 0.50" L x 0.37" W x 0.35" H (12.8mm x 9.3mm x 9.0mm) | - | - | - | - |
|
|
SC02D0515ADC DC CONVERTER +/-15V 2W |
0 |
|
Технический лист |
SC02S/D (2W) | 8-SMD Module, 5 Leads | Tube | Obsolete | Isolated Module | 2 | 4.5V | 5.5V | 15V | -15V | - | - | 66mA, 66mA | 2 W | 1 kV | Medical | SCP | -40°C ~ 85°C | 79% | - | - | Surface Mount | 0.50" L x 0.37" W x 0.35" H (12.8mm x 9.3mm x 9.0mm) | - | - | - | - |
|
|
SC02D1212ADC DC CONVERTER +/-12V 2W |
0 |
|
Технический лист |
SC02S/D (2W) | 8-SMD Module, 5 Leads | Tube | Obsolete | Isolated Module | 2 | 10.8V | 13.2V | 12V | -12V | - | - | 83mA, 83mA | 2 W | 1 kV | Medical | SCP | -40°C ~ 85°C | 82% | - | - | Surface Mount | 0.50" L x 0.37" W x 0.35" H (12.8mm x 9.3mm x 9.0mm) | - | - | - | - |
|
|
SC02D1215ADC DC CONVERTER +/-15V 2W |
0 |
|
Технический лист |
SC02S/D (2W) | 8-SMD Module, 5 Leads | Tube | Obsolete | Isolated Module | 2 | 10.8V | 13.2V | 15V | -15V | - | - | 66mA, 66mA | 2 W | 1 kV | Medical | SCP | -40°C ~ 85°C | 82% | - | - | Surface Mount | 0.50" L x 0.37" W x 0.35" H (12.8mm x 9.3mm x 9.0mm) | - | - | - | - |
|
|
SC02D2415ADC DC CONVERTER +/-15V 2W |
0 |
|
Технический лист |
SC02S/D (2W) | 8-SMD Module, 5 Leads | Tube | Obsolete | Isolated Module | 2 | 21.6V | 26.4V | 15V | -15V | - | - | 83mA, 83mA | 2 W | 1 kV | Medical | SCP | -40°C ~ 85°C | 82% | - | - | Surface Mount | 0.50" L x 0.37" W x 0.35" H (12.8mm x 9.3mm x 9.0mm) | - | - | - | - |
|

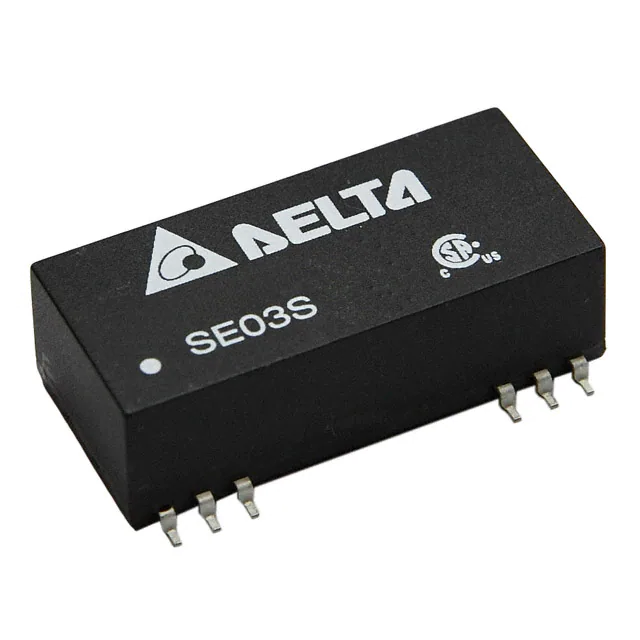

SE03S1203ADC DC CONVERTER 3.3V 3W |
0 |
|
Технический лист |
SE03S/D (3W) | 24-SMD Module, 12 Leads | Tube | Obsolete | Isolated Module | 1 | 9V | 18V | 3.3V | - | - | - | 700mA | 3 W | 1.5 kV | Medical | SCP, UVLO | -40°C ~ 71°C | 75% | - | - | Surface Mount | 1.27" L x 0.74" W x 0.40" H (32.3mm x 18.8mm x 10.2mm) | - | - | - | - |
|
|
SE03S2403ADC DC CONVERTER 3.3V 3W |
0 |
|
Технический лист |
SE03S/D (3W) | 24-SMD Module, 12 Leads | Tube | Obsolete | Isolated Module | 1 | 18V | 36V | 3.3V | - | - | - | 700mA | 3 W | 1.5 kV | Medical | SCP, UVLO | -40°C ~ 71°C | 76% | - | - | Surface Mount | 1.27" L x 0.74" W x 0.40" H (32.3mm x 18.8mm x 10.2mm) | - | - | - | - |
|
|
SE03S2405ADC DC CONVERTER 5V 3W |
0 |
|
Технический лист |
SE03S/D (3W) | 24-SMD Module, 12 Leads | Tube | Obsolete | Isolated Module | 1 | 18V | 36V | 5V | - | - | - | 600mA | 3 W | 1.5 kV | Medical | SCP, UVLO | -40°C ~ 71°C | 80% | - | - | Surface Mount | 1.27" L x 0.74" W x 0.40" H (32.3mm x 18.8mm x 10.2mm) | - | - | - | - |
|
|
SE03S4803ADC DC CONVERTER 3.3V 3W |
0 |
|
Технический лист |
SE03S/D (3W) | 24-SMD Module, 12 Leads | Tube | Obsolete | Isolated Module | 1 | 36V | 75V | 3.3V | - | - | - | 700mA | 3 W | 1.5 kV | Medical | SCP, UVLO | -40°C ~ 71°C | 76% | - | - | Surface Mount | 1.27" L x 0.74" W x 0.40" H (32.3mm x 18.8mm x 10.2mm) | - | - | - | - |
