DC-DC Преобразователи
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Количество выходов | Напряжение - вход (мин.) | Напряжение - вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Особенности | Рабочая температура | Эффективность | Марка | Квалификация | Тип крепления | Размер/измерение | Устройство поставщика Упаковка | Функции управления | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DCP020505UDC DC CONVERTER 5V 2W |
540 |
|
Технический лист |
DCP02 (2W) | 28-SOIC (0.295", 7.50mm Width), 12 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 5V | - | - | - | 400mA | 2 W | 1 kV | ITE (Commercial) | OTP | -40°C ~ 85°C | 80% | - | - | Surface Mount | 0.71" L x 0.30" W x 0.10" H (18.1mm x 7.6mm x 2.7mm) | 12-SOP | - | - | - |
|
LTM4622AEY#PBFDC DC CONVERTER 1.5-12V 1.5-12V |
510 |
|
Технический лист |
µModule® | 25-PowerBBGA Module | Tray | Active | Non-Isolated PoL Module | 2 | 3.6V | 20V | 1.5 ~ 12V | 1.5 ~ 12V | - | - | 2A, 2A | - | - | ITE (Commercial) | OCP, OTP, OVP | -40°C ~ 125°C | - | - | - | Surface Mount | 0.25" L x 0.25" W x 0.10" H (6.3mm x 6.3mm x 2.4mm) | 25-BGA (6.25x6.25) | - | - | - |
|
RS-2415SDC DC CONVERTER 15V 2W |
577 |
|
Технический лист |
ECONOLINE RS (2W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 18V | 36V | 15V | - | - | - | 134mA | 2 W | 1 kV | ITE (Commercial) | Remote On/Off, SCP | -45°C ~ 85°C | 83% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm) | - | Enable, Active Low | - | - |
|
|
RS-2405SDC DC CONVERTER 5V 2W |
383 |
|
Технический лист |
ECONOLINE RS (2W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 18V | 36V | 5V | - | - | - | 400mA | 2 W | 1 kV | ITE (Commercial) | Remote On/Off, SCP | -45°C ~ 85°C | 78% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm) | - | Enable, Active Low | - | - |
|
RS6-2415DDC DC CONVERTER +/-15V 6W |
309 |
|
Технический лист |
ECONOLINE RS6 (6W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 2 | 18V | 36V | 15V | -15V | - | - | 200mA, 200mA | 6 W | 1.6 kV | ITE (Commercial) | Remote On/Off, OCP, SCP, UVLO | -40°C ~ 75°C | 87% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm) | - | Enable, Active Low | - | - |
|

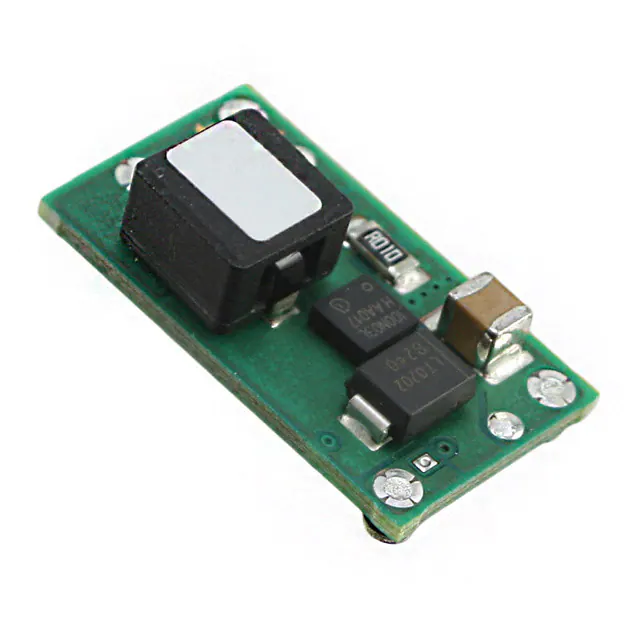

PTN04050CAZDC DC CONVERTER 5-15V |
162 |
|
Технический лист |
PTN04050C (12W) | 4-SMD Module | Bulk | Active | Non-Isolated PoL Module | 1 | 2.95V | 5.5V | 5 ~ 15V | - | - | - | 2.4A | - | - | ITE (Commercial) | - | -40°C ~ 85°C | 90% | - | - | Surface Mount | 0.87" L x 0.50" W x 0.36" H (22.1mm x 12.7mm x 9.1mm) | - | - | - | - |
|
TEL 3-2411DC DC CONVERTER 5V 3W |
724 |
|
Технический лист |
TEL 3 (3W) | 24-DIP Module, 13 Leads | Tube | Not For New Designs | Isolated Module | 1 | 18V | 36V | 5V | - | - | - | 600mA | 3 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 85°C (With Derating) | 77% | - | - | Through Hole | 1.26" L x 0.79" W x 0.40" H (32.0mm x 20.0mm x 10.2mm) | - | - | - | - |
|
LMZ31710RVQTDC DC CONVERTER 0.6-5.5V 55W |
693 |
|
Технический лист |
SIMPLE SWITCHER® | 42-BQFN Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 2.95V | 17V | 0.6 ~ 5.5V | - | - | - | 10A | - | - | ITE (Commercial) | OCP, OTP, UVLO | -40°C ~ 85°C | 94% | - | - | Surface Mount | 0.40" L x 0.40" W x 0.17" H (10.2mm x 10.2mm x 4.4mm) | 42-B3QFN (10x10) | Enable, Active High | - | - |
|
LMZ23605TZX/NOPBDC DC CONVERTER 0.8-6V |
412 |
|
Технический лист |
SIMPLE SWITCHER® | TO-PMOD-7, Power Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 6V | 36V | 0.8 ~ 6V | - | - | - | 5A | - | - | ITE (Commercial) | UVLO | -40°C ~ 125°C | 92% | - | - | Surface Mount | 0.40" L x 0.39" W x 0.18" H (10.2mm x 9.9mm x 4.6mm) | TO-PMOD-7 | - | - | - |
|

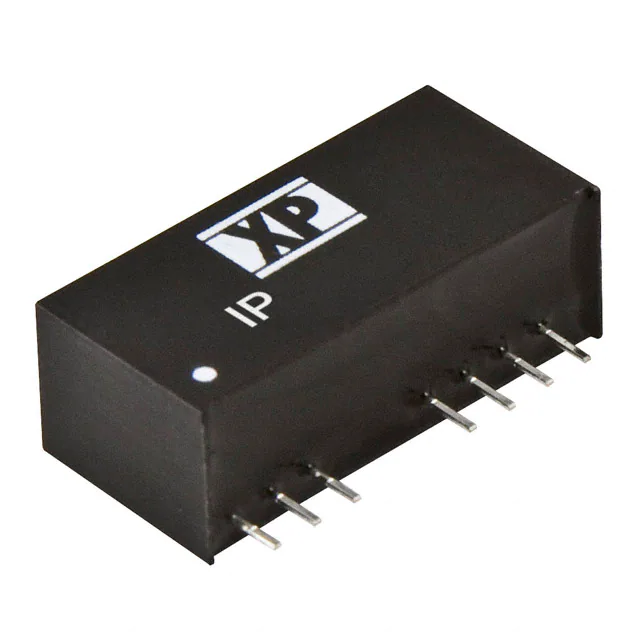

IP2405SADC DC CONVERTER 5V 3W |
1,742 |
|
Технический лист |
IP (3W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 5V | - | - | - | 600mA | 3 W | 1.6 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 85°C | 79% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.9mm x 9.2mm x 11.1mm) | - | Enable, Active Low | - | - |
|
RS-0505SDC DC CONVERTER 5V 2W |
240 |
|
Технический лист |
ECONOLINE RS (2W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 9V | 5V | - | - | - | 400mA | 2 W | 1 kV | ITE (Commercial) | Remote On/Off, SCP | -45°C ~ 85°C | 75% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm) | - | Enable, Active Low | - | - |
|
LTM8022IV#PBFDC DC CONVERTER 0.8-10V |
172 |
|
Технический лист |
µModule® | 50-BLGA Module | Tray | Active | Non-Isolated PoL Module | 1 | 3.6V | 36V | 0.8 ~ 10V | - | - | - | 1A | - | - | ITE (Commercial) | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.44" L x 0.35" W x 0.11" H (11.3mm x 9.0mm x 2.8mm) | 50-LGA (11.25x9) | - | - | - |
|
LTM8063EY#PBFDC DC CONVERTER 0.8-15V |
0 |
|
Технический лист |
µModule® | 28-FBGA Module | Tray | Active | Non-Isolated PoL Module | 1 | 3.2V | 40V | 0.8 ~ 15V | - | - | - | 2A | - | - | ITE (Commercial) | SCP, UVLO | -40°C ~ 125°C | - | - | - | Surface Mount | 0.25" L x 0.16" W x 0.09" H (6.3mm x 4.0mm x 2.2mm) | 28-BGA (6.25x4) | - | - | - |
|
AG7100DC DC CONVERTER 48 ~ 57V 40W |
276 |
|
Технический лист |
AG7100 | 13-DIP Module | Tray | Active | Isolated Module | 1 | 12V | 27V | 48 ~ 57V | - | - | - | 850mA | 40 W | 1.5 kV | ITE (Commercial) | Adjustable Output | -40°C ~ 85°C | 90% | - | - | Through Hole | 1.99" L x 1.18" W x 0.60" H (50.6mm x 30.0mm x 15.1mm) | - | - | - | - |
|
LTM8045IY#PBFDC DC CONVERTER +/-2.5 +/-15V |
403 |
|
Технический лист |
µModule® | 40-BBGA Module | Tray | Active | Non-Isolated PoL Module | 1 | 2.8V | 18V | -2.5 ~ -15V, 2.5 ~ 15V | - | - | - | 700mA | - | - | ITE (Commercial) | OTP, UVLO | -40°C ~ 125°C | - | - | - | Surface Mount | 0.44" L x 0.25" W x 0.19" H (11.3mm x 6.3mm x 4.9mm) | 40-BGA (11.25x6.25) | - | - | - |
|

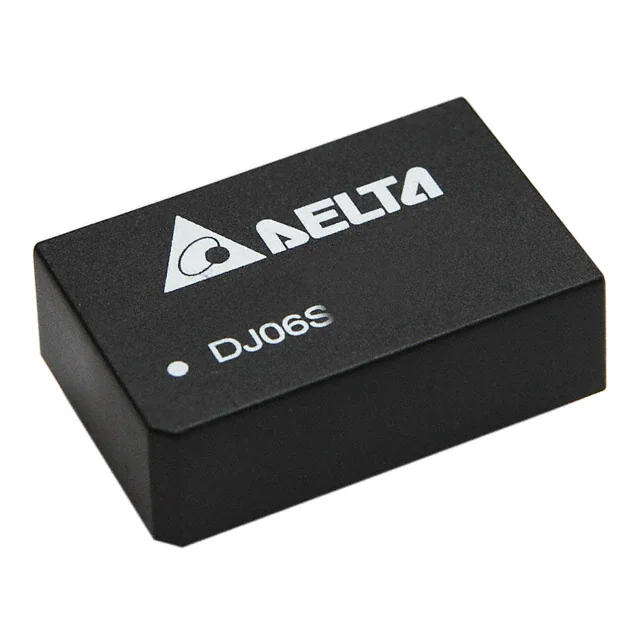

DJ06S4824ADC DC CONVERTER 24V 6W |
433 |
|
Технический лист |
DJ06S/D (6W) | 24-DIP Module, 8 Leads | Tube | Active | Isolated Module | 1 | 18V | 75V | 24V | - | - | - | 250mA | 6 W | 1.5 kV | Medical | OCP, SCP, UVLO | -40°C ~ 85°C | 84% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | - | - | - | - |
|
RS3-1205DDC DC CONVERTER +/-5V 3W |
839 |
|
Технический лист |
ECONOLINE RS3 (3W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 2 | 9V | 18V | 5V | -5V | - | - | 300mA, 300mA | 3 W | 1 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 71°C | 80% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm) | - | Enable, Active Low | - | - |
|
|
RS3-2405DDC DC CONVERTER +/-5V 3W |
412 |
|
Технический лист |
ECONOLINE RS3 (3W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 2 | 18V | 36V | 5V | -5V | - | - | 300mA, 300mA | 3 W | 1 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 71°C | 81% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm) | - | Enable, Active Low | - | - |
|
|
RS3-1209DDC DC CONVERTER +/-9V 3W |
329 |
|
Технический лист |
ECONOLINE RS3 (3W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 2 | 9V | 18V | 9V | -9V | - | - | 167mA, 167mA | 3 W | 1 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 71°C | 81% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm) | - | Enable, Active Low | - | - |
|
|
LTM4661EY#PBFIC REG BOOST ADJUSTABLE 4A 25BGA |
250 |
|
Технический лист |
- | 25-PowerBBGA Module | Tray | Active | Non-Isolated PoL Module | 1 | 0.7V | 5.5V | 2.5 ~ 15V | - | - | - | 4A | - | - | ITE (Commercial) | Adjustable Output | -40°C ~ 125°C | 85% | - | - | Surface Mount | 0.25" L x 0.25" W x 0.10" H (6.3mm x 6.3mm x 2.4mm) | 25-BGA (6.25x6.25) | - | - | - |
