DC-DC Преобразователи
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Количество выходов | Напряжение - вход (мин.) | Напряжение - вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Особенности | Рабочая температура | Эффективность | Марка | Квалификация | Тип крепления | Размер/измерение | Устройство поставщика Упаковка | Функции управления | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

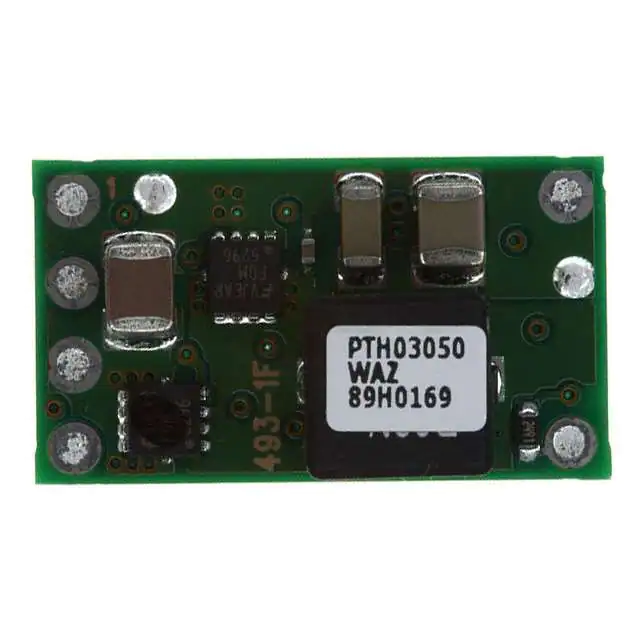

PTH03050WAZDC DC CONVERTER 0.8-2.5V 6A |
213 |
|
Технический лист |
PTH03050W | 6-SMD Module | Tray | Active | Non-Isolated PoL Module | 1 | 2.95V | 3.65V | 0.8 ~ 2.5V | - | - | - | 6A | - | - | ITE (Commercial) | Remote On/Off, OCP, OTP, UVLO | -40°C ~ 85°C | 94% | - | - | Surface Mount | 0.87" L x 0.50" W x 0.36" H (22.1mm x 12.7mm x 9.1mm) | - | - | - | - |
|
RS6-2412DDC DC CONVERTER +/-12V 6W |
306 |
|
Технический лист |
ECONOLINE RS6 (6W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 2 | 18V | 36V | 12V | -12V | - | - | 250mA, 250mA | 6 W | 1.6 kV | ITE (Commercial) | Remote On/Off, OCP, SCP, UVLO | -40°C ~ 75°C | 87% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm) | - | Enable, Active Low | - | - |
|
YM12S05-GDC DC CONVERTER 0.7525-5.5V 28W |
775 |
|
Технический лист |
Y (28W) | 5-SMD Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 9.6V | 14V | 0.7525 ~ 5.5V | - | - | - | 5A | 28 W | - | ITE (Commercial) | Remote On/Off, OCP, OTP, UVLO | -40°C ~ 85°C | 92% | - | - | Surface Mount | 0.80" L x 0.45" W x 0.25" H (20.3mm x 11.4mm x 6.4mm) | - | Enable, Active Low | - | - |
.jpg)
|
RJZ-2424S/HPDC DC CONVERTER 24V 2W |
112 |
|
Технический лист |
ECONOLINE RJZ (2W) | 14-DIP Module, 6 Leads | Tube | Active | Isolated Module | 1 | 21.6V | 26.4V | 24V | - | - | - | 83mA | 2 W | 4 kV | ITE (Commercial), Medical | SCP | -40°C ~ 85°C | 85% | - | - | Through Hole | 0.78" L x 0.39" W x 0.28" H (19.7mm x 10.0mm x 7.1mm) | - | - | - | - |
|
TMR 2423DC DC CONVERTER +/-15V 2W |
540 |
|
Технический лист |
TMR 2 (2W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 2 | 18V | 36V | 15V | -15V | - | - | 65mA, 65mA | 2 W | 1.5 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 85°C | 82% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm) | Module | - | - | - |
|
|
TMR 0523DC DC CONVERTER +/-15V 2W |
407 |
|
Технический лист |
TMR 2 (2W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 2 | 4.5V | 9V | 15V | -15V | - | - | 65mA, 65mA | 2 W | 1.5 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 85°C | 81% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm) | Module | - | - | - |
|
LTM4623EY#PBFDC DC CONVERTER 0.6-5.5V |
990 |
|
Технический лист |
µModule® | 25-PowerBBGA Module | Tray | Active | Non-Isolated PoL Module | 1 | 4V | 20V | 0.6 ~ 5.5V | - | - | - | 3A | - | - | ITE (Commercial) | OCP, OTP, OVP, UVLO | -40°C ~ 125°C | - | - | - | Surface Mount | 0.25" L x 0.25" W x 0.07" H (6.3mm x 6.3mm x 1.8mm) | 25-BGA (6.25x6.25) | - | - | - |
|
RS3-123.3SDC DC CONVERTER 3.3V 3W |
890 |
|
Технический лист |
ECONOLINE RS3 (3W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 9V | 18V | 3.3V | - | - | - | 600mA | 3 W | 1 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 71°C | 75% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm) | - | Enable, Active Low | - | - |
|
|
RS3-243.3SDC DC CONVERTER 3.3V 3W |
112 |
|
Технический лист |
ECONOLINE RS3 (3W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 18V | 36V | 3.3V | - | - | - | 600mA | 3 W | 1 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 71°C | 78% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm) | - | Enable, Active Low | - | - |
|

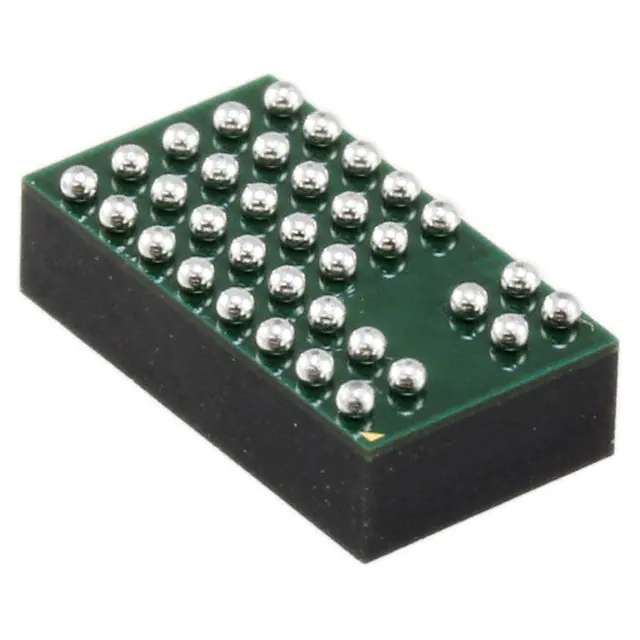

LTM8029IY#PBFDC DC CONVERTER 1.2-18V |
0 |
|
Технический лист |
µModule® | 35-BBGA Module | Tray | Active | Non-Isolated PoL Module | 1 | 4.5V | 36V | 1.2 ~ 18V | - | - | - | 600mA | - | - | ITE (Commercial) | - | -40°C ~ 125°C | - | - | - | Surface Mount | 0.44" L x 0.25" W x 0.13" H (11.3mm x 6.3mm x 3.4mm) | 35-BGA (11.25x6.25) | - | - | - |
|
UVT020A0X3-SRZDC DC CONVERTER 0.6-5.5V 110W |
1,297 |
|
Технический лист |
MicroDLynx™ | 16-SMD Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 3V | 14.4V | 0.6 ~ 5.5V | - | - | - | 20A | 110 W | - | ITE (Commercial) | Remote On/Off, UVLO | -40°C ~ 85°C | 95.2% | - | - | Surface Mount | 0.80" L x 0.45" W x 0.33" H (20.3mm x 11.4mm x 8.5mm) | - | Enable, Active Low | - | - |
|

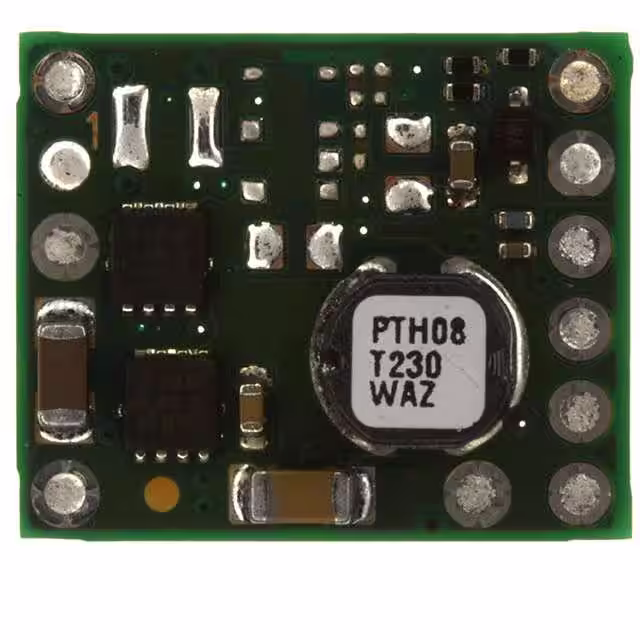

PTH08T230WAZDC DC CONVERTER 0.69-5.5V |
107 |
|
Технический лист |
PTH08T230W | 10-SMD Module | Tray | Active | Non-Isolated PoL Module | 1 | 4.5V | 14V | 0.69 ~ 5.5V | - | - | - | 6A | - | - | ITE (Commercial) | Remote On/Off, OCP, OTP, UVLO | -40°C ~ 85°C | 95% | - | - | Surface Mount | 0.75" L x 0.62" W x 0.36" H (19.1mm x 15.7mm x 9.1mm) | - | - | - | - |
|
|
LTM4625EY#PBFDC DC CONVERTER 0.6-5.5V |
0 |
|
Технический лист |
µModule® | 25-PowerBBGA Module | Tray | Active | Non-Isolated PoL Module | 1 | 4V | 20V | 0.6 ~ 5.5V | - | - | - | 5A | - | - | ITE (Commercial) | OCP, OTP, OVP, UVLO | -40°C ~ 125°C | 91% | - | - | Surface Mount | 0.25" L x 0.25" W x 0.20" H (6.3mm x 6.3mm x 5.0mm) | 25-BGA (6.25x6.25) | - | - | - |
|
LTM4657EY#PBFDC DC CONVERTER 0.5-5.5V |
673 |
|
Технический лист |
- | 49-BFBGA Module | Tray | Active | Non-Isolated PoL Module | 1 | 3.1V | 20V | 0.5 ~ 5.5V | - | - | - | 8A | - | - | ITE (Commercial) | - | -40°C ~ 125°C | - | - | - | Surface Mount | 0.25" L x 0.25" W x 0.15" H (6.3mm x 6.3mm x 3.9mm) | 49-BGA (6.25x6.25) | - | - | - |
|
MYBSP01201ABFDC DC CONVERTER 12V 12W |
673 |
|
Технический лист |
MYBSP | Module | Tray | Active | Isolated PoE (Power over Ethernet) Module | 1 | 37V | 57V | 12V | - | - | - | 1A | 12 W | 2.25 kV | ITE (Commercial) | OTP, OVP, SCP, UVLO | -40°C ~ 85°C | 84% | - | - | Surface Mount | 1.02" L x 0.58" W x 0.24" H (26.0mm x 14.8mm x 6.2mm) | - | - | - | - |
|
|
LTM4632EV#PBFDC DC CNVRTR 0.6-2.5V 0.6-2.5V |
858 |
|
Технический лист |
µModule® | 25-PowerLGA Module | Tray | Active | Non-Isolated PoL Module | 2 | 3.6V | 15V | 0.6 ~ 2.5V | 0.6 ~ 2.5V | - | - | 3A, 3A | - | - | ITE (Commercial) | OTP, OVP | -40°C ~ 125°C | - | - | - | Surface Mount | 0.25" L x 0.25" W x 0.07" H (6.3mm x 6.3mm x 1.8mm) | 25-LGA (6.25x6.25) | - | - | - |
|
LMZ23605TZE/NOPBDC DC CONVERTER 0.8-6V |
1,615 |
|
Технический лист |
SIMPLE SWITCHER® | TO-PMOD-7, Power Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 6V | 36V | 0.8 ~ 6V | - | - | - | 5A | - | - | ITE (Commercial) | OCP, OTP, OVP, SCP, UVLO | -40°C ~ 125°C | 92% | - | - | Surface Mount | 0.40" L x 0.40" W x 0.17" H (10.2mm x 10.2mm x 4.4mm) | TO-PMOD-7 | - | - | - |
|

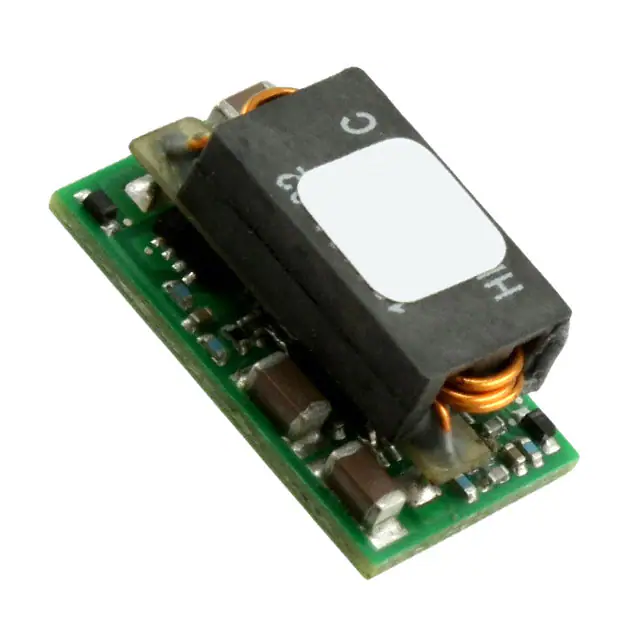

APXW005A0X3-SRZDC DC CONVERTER 3-18V 45W |
1,177 |
|
Технический лист |
ProLynx™ | 6-SMD Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 9V | 36V | 3 ~ 18V | - | - | - | 5A | 45 W | - | ITE (Commercial) | Remote On/Off, OCP, OTP, UVLO | -40°C ~ 85°C | 95.9% | - | - | Surface Mount | 0.80" L x 0.45" W x 0.34" H (20.3mm x 11.4mm x 8.5mm) | - | Enable, Active Low | - | - |
|
EC4SAW-24S05NDC DC CONVERTER 5V 6W |
450 |
|
Технический лист |
EC4SAW (6W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 5V | - | - | - | 1.2A | 6 W | 1.5 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 85°C (With Derating) | 86% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm) | - | Enable, Active Low | CE | - |
|
|
EC4SAW-24S12NDC DC CONVERTER 12V 6W |
177 |
|
Технический лист |
EC4SAW (6W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 12V | - | - | - | 500mA | 6 W | 1.5 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 85°C (With Derating) | 88% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm) | - | Enable, Active Low | CE | - |
