DC-DC Преобразователи
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Количество выходов | Напряжение - вход (мин.) | Напряжение - вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Особенности | Рабочая температура | Эффективность | Марка | Квалификация | Тип крепления | Размер/измерение | Устройство поставщика Упаковка | Функции управления | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DCP010515DBPDC DC CONVERTER +/-15V 1W |
477 |
|
Технический лист |
DCP01B (1W) | 14-DIP (0.300", 7.62mm), 7 Leads | Tube | Active | Isolated Module | 2 | 4.5V | 5.5V | 15V | -15V | - | - | 33mA, 33mA | 1 W | 1 kV | ITE (Commercial) | OTP, SCP | -40°C ~ 100°C | 85% | - | - | Through Hole | 0.78" L x 0.33" W x 0.21" H (19.7mm x 8.3mm x 5.3mm) | 7-PDIP | Enable, Active High | - | - |
|

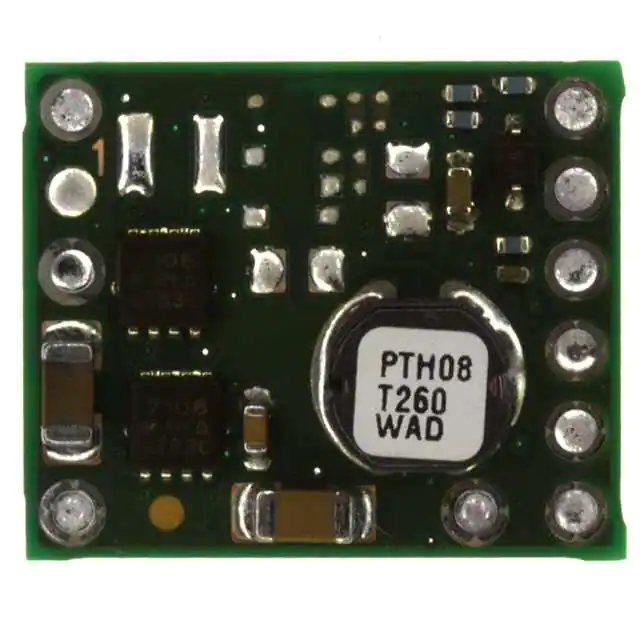

PTH08T260WADDC DC CONVERTER 0.69-5.5V |
391 |
|
Технический лист |
PTH08T260W | 10-DIP Module | Tray | Active | Non-Isolated PoL Module | 1 | 4.5V | 14V | 0.69 ~ 5.5V | - | - | - | 3A | - | - | ITE (Commercial) | - | -40°C ~ 85°C | 95% | - | - | Through Hole | 0.75" L x 0.62" W x 0.34" H (19.1mm x 15.7mm x 8.6mm) | - | - | - | - |
|
LCW78_12-1.0NON-ISOLATED POL MODULE DC DC CO |
576 |
|
Технический лист |
LCW78_1.0 | 3-SIP Module | Tube | Active | Non-Isolated PoL Module | 1 | 15V | 72V | 12V | - | - | - | 1A | 12 W | - | ITE (Commercial) | - | -40°C ~ 100°C (With Derating) | 92% | - | - | Through Hole | 0.48" L x 0.35" W x 0.69" H (12.1mm x 9.0mm x 17.5mm) | - | - | - | - |
|
|
LCW78_05-1.0NON-ISOLATED POL MODULE DC DC CO |
456 |
|
Технический лист |
LCW78_1.0 | 3-SIP Module | Tube | Active | Non-Isolated PoL Module | 1 | 8V | 72V | 5V | - | - | - | 1A | 5 W | - | ITE (Commercial) | - | -40°C ~ 100°C (With Derating) | 86% | - | - | Through Hole | 0.48" L x 0.35" W x 0.69" H (12.1mm x 9.0mm x 17.5mm) | - | - | - | - |
|
RP-2424SDC DC CONVERTER 24V 1W |
857 |
|
Технический лист |
ECONOLINE RP (1W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 21.6V | 26.4V | 24V | - | - | - | 42mA | 1 W | 5.2 kV | ITE (Commercial), Medical | SCP | -40°C ~ 85°C | 80% | - | - | Through Hole | 0.77" L x 0.28" W x 0.40" H (19.7mm x 7.1mm x 10.2mm) | - | - | - | - |
|
|
RP-1215DDC DC CONVERTER +/-15V 1W |
515 |
|
Технический лист |
ECONOLINE RP (1W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 10.8V | 13.2V | 15V | -15V | - | - | 33mA, 33mA | 1 W | 5.2 kV | ITE (Commercial), Medical | SCP | -40°C ~ 85°C | 82% | - | - | Through Hole | 0.77" L x 0.28" W x 0.40" H (19.7mm x 7.1mm x 10.2mm) | - | - | - | - |
|
|
RP-1515SDC DC CONVERTER 15V 1W |
463 |
|
Технический лист |
ECONOLINE RP (1W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 13.5V | 16.5V | 15V | - | - | - | 66mA | 1 W | 5.2 kV | ITE (Commercial), Medical | SCP | -40°C ~ 85°C | 80% | - | - | Through Hole | 0.77" L x 0.28" W x 0.40" H (19.7mm x 7.1mm x 10.2mm) | - | - | - | - |
|
|
RP-0509DDC DC CONVERTER +/-9V 1W |
359 |
|
Технический лист |
ECONOLINE RP (1W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 4.5V | 5.5V | 9V | -9V | - | - | 56mA, 56mA | 1 W | 5.2 kV | ITE (Commercial), Medical | SCP | -40°C ~ 85°C | 75% | - | - | Through Hole | 0.77" L x 0.28" W x 0.40" H (19.7mm x 7.1mm x 10.2mm) | - | - | - | - |
|

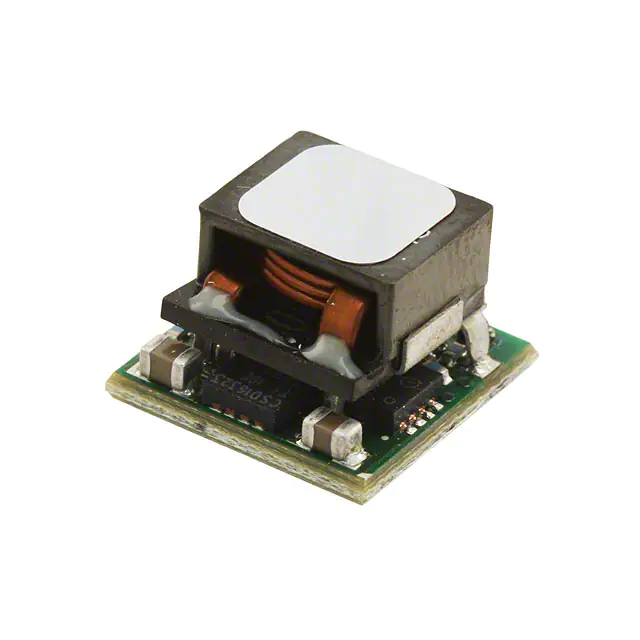

PVX012A0X3-SRZDC DC CONVERTER 0.6-5.5V 66W |
2,554 |
|
Технический лист |
PicoDLynx™ | 17-SMD Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 3V | 14.4V | 0.6 ~ 5.5V | - | - | - | 12A | 66 W | - | ITE (Commercial) | Remote On/Off, OCP, OTP, UVLO | -40°C ~ 85°C | 93.9% | - | - | Surface Mount | 0.48" L x 0.48" W x 0.34" H (12.2mm x 12.2mm x 8.5mm) | - | Enable, Active Low | - | - |
|
LTM4624EY#PBFDC DC CONVERTER 0.6-5.5V |
602 |
|
Технический лист |
µModule® | 25-PowerBBGA Module | Tray | Active | Non-Isolated PoL Module | 1 | 2.375V | 14V | 0.6 ~ 5.5V | - | - | - | 4A | - | - | ITE (Commercial) | OCP, OTP, OVP, UVLO | -40°C ~ 125°C | - | - | - | Surface Mount | 0.25" L x 0.25" W x 0.20" H (6.3mm x 6.3mm x 5.0mm) | 25-BGA (6.25x6.25) | - | - | - |
|
LMZ31707RVQTDC DC CONVERTER 0.6-5.5V 39W |
2,815 |
|
Технический лист |
SIMPLE SWITCHER® | 42-BQFN Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 2.95V | 17V | 0.6 ~ 5.5V | - | - | - | 7A | - | - | ITE (Commercial) | OCP, OTP, UVLO | -40°C ~ 85°C | 95% | - | - | Surface Mount | 0.40" L x 0.40" W x 0.17" H (10.2mm x 10.2mm x 4.4mm) | 42-B3QFN (10x10) | Enable, Active High | - | - |
|
|
R2S-0505/HPDC DC CONVERTER 5V 2W |
1,211 |
|
Технический лист |
ECONOLINE R2S (2W) | 8-SMD Module, 5 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 5V | - | - | - | 400mA | 2 W | 3 kV | ITE (Commercial), Medical | SCP | -40°C ~ 100°C | 85% | - | - | Surface Mount | 0.50" L x 0.42" W x 0.35" H (12.8mm x 10.7mm x 9.0mm) | - | - | - | - |
|
NDL2405SCDC DC CONVERTER 5V 2W |
131 |
|
Технический лист |
NDL (2W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 18V | 36V | 5V | - | - | - | 400mA | 2 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 74% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.1mm x 11.2mm) | - | - | - | - |
|
NDL2409SCDC DC CONVERTER 9V 2W |
115 |
|
Технический лист |
NDL (2W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 18V | 36V | 9V | - | - | - | 222mA | 2 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 81% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.1mm x 11.2mm) | - | - | - | - |
|
TSR 2-2433DC DC CONVERTER 3.3V 6.6W |
2,838 |
|
Технический лист |
TSR 2 | 3-SIP Module | Tube | Active | Linear Regulator Replacement | 1 | 4.75V | 36V | 3.3V | - | - | - | 2A | 6.6 W | - | ITE (Commercial) | OCP, SCP | -40°C ~ 85°C (With Derating) | 91% | - | - | Through Hole | 0.55" L x 0.30" W x 0.40" H (14.0mm x 7.5mm x 10.1mm) | - | - | - | - |
|

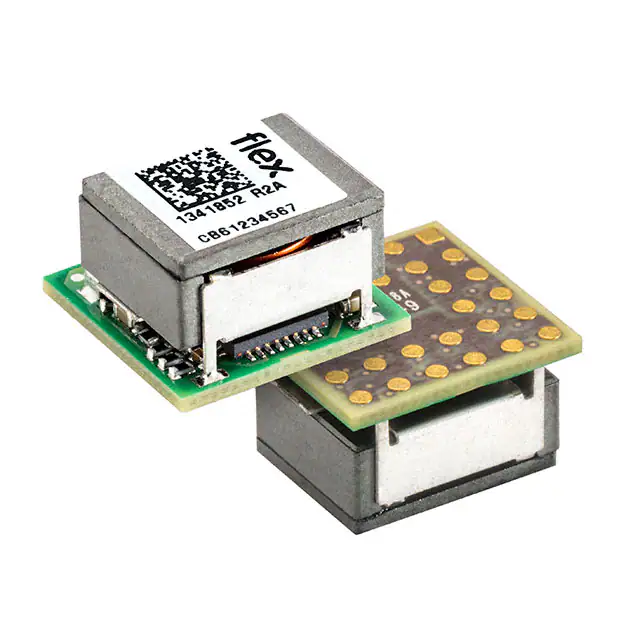

BMR4613001/001DC DC CONVERTER 0.6-5V 60W |
2,262 |
|
Технический лист |
BMR461 (60W) | 32-BLGA Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module, Digital | 1 | 4.5V | 14V | 0.6 ~ 5V | - | - | - | 12A | 60 W | - | ITE (Commercial) | Adjustable Output, PMBus™, Remote On/Off, Remote Sense | -40°C ~ 120°C (With Derating) | 95.8% | - | - | Surface Mount | 0.48" L x 0.48" W x 0.31" H (12.2mm x 12.2mm x 8.0mm) | - | Enable, Active Low | CB, CSA, IEC, TUV, UL | 62368-1 |
|
R05P209SDC DC CONVERTER 9V 2W |
1,744 |
|
Технический лист |
ECONOLINE RxxP2xx (2W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 9V | - | - | - | 222mA | 2 W | 6.4 kV | ITE (Commercial), Medical | - | -40°C ~ 85°C | 75% | - | - | Through Hole | 0.77" L x 0.39" W x 0.49" H (19.5mm x 9.8mm x 12.5mm) | 7-SIP | - | - | - |
|
|
R05P205SDC DC CONVERTER 5V 2W |
370 |
|
Технический лист |
ECONOLINE RxxP2xx (2W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 5V | - | - | - | 400mA | 2 W | 6.4 kV | ITE (Commercial), Medical | - | -40°C ~ 85°C | 75% | - | - | Through Hole | 0.77" L x 0.39" W x 0.49" H (19.7mm x 9.8mm x 12.5mm) | - | - | - | - |
|

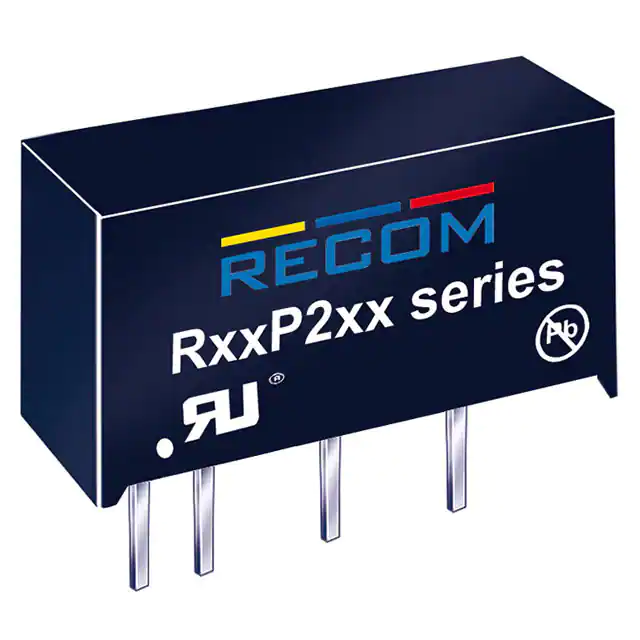

R12P205SDC DC CONVERTER 5V 2W |
298 |
|
Технический лист |
ECONOLINE RxxP2xx (2W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 10.8V | 13.2V | 5V | - | - | - | 400mA | 2 W | 6.4 kV | ITE (Commercial), Medical | - | -40°C ~ 85°C | 75% | - | - | Through Hole | 0.77" L x 0.39" W x 0.49" H (19.7mm x 9.8mm x 12.5mm) | - | - | - | - |
|
TSR 2-2412DC DC CONVERTER 1.2V 2.4W |
274 |
|
Технический лист |
TSR 2 | 3-SIP Module | Tube | Active | Linear Regulator Replacement | 1 | 4.6V | 36V | 1.2V | - | - | - | 2A | 2.4 W | - | ITE (Commercial) | OCP, SCP | -40°C ~ 85°C (With Derating) | 84% | - | - | Through Hole | 0.55" L x 0.30" W x 0.40" H (14.0mm x 7.5mm x 10.1mm) | - | - | - | - |
