DC-DC Преобразователи
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Количество выходов | Напряжение - вход (мин.) | Напряжение - вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Особенности | Рабочая температура | Эффективность | Марка | Квалификация | Тип крепления | Размер/измерение | Устройство поставщика Упаковка | Функции управления | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
R-78C15-1.0DC DC CONVERTER 15V 15W |
1,639 |
|
Технический лист |
INNOLINE R-78C-1.0 | 3-SIP Module | Tube | Active | Linear Regulator Replacement | 1 | 18V | 42V | 15V | - | - | - | 1A | 15 W | - | ITE (Commercial) | OTP, SCP | -40°C ~ 85°C | 96% | - | - | Through Hole | 0.46" L x 0.33" W x 0.41" H (11.6mm x 8.5mm x 10.4mm) | - | - | - | - |
|
ADUM6020-5BRIZDC DC CONVERTER 3.3V 5V 0.5W |
691 |
|
Технический лист |
IsoPower®, iCoupler® | 16-SOIC (0.295", 7.50mm Width) | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 3.3V, 5V | - | - | - | 100mA | - | 5 kV | ITE (Commercial) | OTP, UVLO | -40°C ~ 125°C | 33% | - | - | Surface Mount | 0.50" L x 0.30" W x 0.10" H (12.8mm x 7.5mm x 2.6mm) | 16-SOIC | - | - | - |
|
LMZ35003RKGRDC DC CONVERTER 2.5-15V 38W |
13,298 |
|
Технический лист |
SIMPLE SWITCHER® | 41-BQFN Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 7V | 50V | 2.5 ~ 15V | - | - | - | 2.5A | - | - | ITE (Commercial) | OCP, OTP, UVLO | -40°C ~ 85°C | 93% | - | - | Surface Mount | 0.44" L x 0.36" W x 0.11" H (11.2mm x 9.2mm x 2.9mm) | 41-B1QFN (11x9) | Enable, Active High | - | - |
|
TPS84250RKGRDC DC CONVERTER 2.5-15V |
1,049 |
|
Технический лист |
TPSM | 41-BQFN Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 7V | 50V | 2.5 ~ 15V | - | - | - | 2.5A | - | - | ITE (Commercial) | OCP, OTP, UVLO | -40°C ~ 85°C | 96% | - | - | Surface Mount | 0.43" L x 0.35" W x 0.11" H (11.0mm x 9.0mm x 2.8mm) | 41-B1QFN (11x9) | Enable, Active High | - | - |
|
R0.25S-0515DC DC CONVERTER 15V 250MW |
400 |
|
Технический лист |
ECONOLINE R0.25S (0.25W) | 8-SMD Module, 5 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 15V | - | - | - | 17mA | 250 mW | 1 kV | ITE (Commercial) | SCP | -40°C ~ 100°C | 60 ~ 70% | - | - | Surface Mount | 0.49" L x 0.42" W x 0.28" H (12.8mm x 10.7mm x 7.0mm) | - | - | - | - |
|
MYSGK02506BRSRDC DC CONVERTER 5-25V 150W |
431 |
|
Технический лист |
SGK | 20-BLGA Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 13.5V | 42V | 5 ~ 25V | - | - | - | 6A | 150 W | - | - | Remote On/Off, SCP, UVLO | -40°C ~ 85°C (With Derating) | 98% | - | - | Surface Mount | 0.64" L x 0.58" W x 0.30" H (16.3mm x 14.7mm x 7.5mm) | - | - | - | - |
|
LTM8020IV#PBFDC DC CONVERTER 1.25-5V |
861 |
|
- |
µModule® | 21-LGA Module | Tray | Active | Non-Isolated PoL Module | 1 | 4V | 36V | 1.25 ~ 5V | - | - | - | 200mA | - | - | ITE (Commercial) | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.25" L x 0.25" W x 0.09" H (6.3mm x 6.3mm x 2.3mm) | 21-LGA (6.25x6.25) | Enable, Active High | - | - |
|
PVX006A0X3-SRZDC DC CONVERTER 0.6-5.5V 33W |
3,777 |
|
Технический лист |
PicoDLynx™ | 17-SMD Module | Tape & Reel (TR) | Not For New Designs | Non-Isolated PoL Module | 1 | 3V | 14.4V | 0.6 ~ 5.5V | - | - | - | 6A | 33 W | - | ITE (Commercial) | Remote On/Off, OCP, OTP, UVLO | -40°C ~ 85°C | 94% | - | - | Surface Mount | 0.48" L x 0.48" W x 0.29" H (12.2mm x 12.2mm x 7.3mm) | - | Enable, Active Low | - | - |
|
R-78B5.0-1.5LDC DC CONVERTER 5V 7.5W |
5,598 |
|
Технический лист |
INNOLINE R-78B-1.5 | 3-SIP Module | Tube | Active | Linear Regulator Replacement | 1 | 6.5V | 18V | 5V | - | - | - | 1.5A | 7.5 W | - | ITE (Commercial) | OTP, SCP | -40°C ~ 85°C | 94% | - | - | Through Hole, Right Angle | 0.69" L x 0.45" W x 0.33" H (17.5mm x 11.5mm x 8.5mm) | - | - | - | - |
|
|
AG9705-2BRDC DC CONVERTER 5V 9W |
224 |
|
Технический лист |
AG9700 | - | Tray | Active | Isolated PoE (Power over Ethernet) Module | 1 | 36V | 57V | 5V | - | - | - | 1.8A | 9 W | - | ITE (Commercial) | OCP, OTP | -20°C ~ 70°C | 80% | - | - | Through Hole | 2.20" L x 0.75" W x 0.55" H (56.0mm x 19.0mm x 14.0mm) | - | - | - | 60950-1 |
|
NID35-5DC DC CONVERTER 5V 18W |
322 |
|
Технический лист |
NID35 (35W) | 11-SIP Module | Box | Active | Non-Isolated PoL Module | 1 | 10.5V | 53V | 5V | - | - | - | 3.5A | 18 W | - | ITE (Commercial) | Remote On/Off | -30°C ~ 85°C (With Derating) | 93% | - | - | Through Hole | 2.00" L x 0.43" W x 0.51" H (50.8mm x 11.0mm x 13.0mm) | - | - | CE, EAC | - |
|
LMZ14203TZX-ADJ/NOPBDC DC CONVERTER 0.8-6V |
1,150 |
|
Технический лист |
SIMPLE SWITCHER® | TO-PMOD-7, Power Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 6V | 42V | 0.8 ~ 6V | - | - | - | 3A | - | - | ITE (Commercial) | OTP, OVP, SCP, UVLO | -40°C ~ 125°C | 90% | - | - | Surface Mount | 0.40" L x 0.39" W x 0.18" H (10.2mm x 9.9mm x 4.6mm) | TO-PMOD-7 | Enable, Active High | - | - |
|
|
LMZ14202HTZ/NOPBDC DC CONVERTER 5-30V |
5,515 |
|
Технический лист |
SIMPLE SWITCHER® | TO-PMOD-7, Power Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 6V | 42V | 5 ~ 30V | - | - | - | 2A | - | - | ITE (Commercial) | UVLO | -40°C ~ 125°C | 97% | - | - | Surface Mount | 0.40" L x 0.39" W x 0.18" H (10.2mm x 9.9mm x 4.6mm) | TO-PMOD-7 | Enable, Active High | - | - |
|
|
LMZ14202TZ-ADJ/NOPBDC DC CONVERTER 0.8-6V |
1,361 |
|
Технический лист |
SIMPLE SWITCHER® | TO-PMOD-7, Power Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 6V | 42V | 0.8 ~ 6V | - | - | - | 2A | - | - | ITE (Commercial) | UVLO | -40°C ~ 125°C | 90% | - | - | Surface Mount | 0.40" L x 0.39" W x 0.18" H (10.2mm x 9.9mm x 4.6mm) | TO-PMOD-7 | Enable, Active High | - | - |
|
|
AG9712-SDC DC CONVERTER 12V 12W |
108 |
|
Технический лист |
AG9700 | - | Tray | Active | Isolated PoE (Power over Ethernet) Module | 1 | 36V | 57V | 12V | - | - | - | 1A | 12 W | - | - | OCP, OTP | -20°C ~ 70°C | 87% | - | - | Through Hole | 2.20" L x 0.75" W x 0.55" H (56.0mm x 19.0mm x 14.0mm) | - | - | - | 60950-1 |
.JPG)
|
PTH12000WAZDC DC CONVERTER 1.2-5.5V |
4 |
|
Технический лист |
PTH12000 | 5-SMD Module | Bulk | Active | Non-Isolated PoL Module | 1 | 10.8V | 13.2V | 1.2 ~ 5.5V | - | - | - | 6A | - | - | ITE (Commercial) | OCP, UVLO | -40°C ~ 85°C | 92% | - | - | Surface Mount | 0.75" L x 0.50" W x 0.36" H (19.1mm x 12.7mm x 9.1mm) | - | - | - | - |
|
|
LMZ14202HTZX/NOPBDC DC CONVERTER 5-30V |
451 |
|
Технический лист |
SIMPLE SWITCHER® | TO-PMOD-7, Power Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 6V | 42V | 5 ~ 30V | - | - | - | 2A | - | - | ITE (Commercial) | UVLO | -40°C ~ 125°C | 97% | - | - | Surface Mount | 0.40" L x 0.39" W x 0.18" H (10.2mm x 9.9mm x 4.6mm) | TO-PMOD-7 | Enable, Active High | - | - |
|

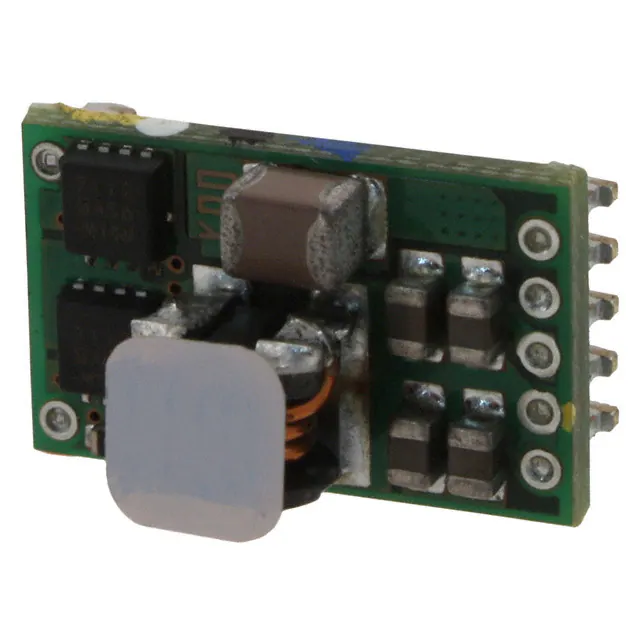

LDO06C-005W05-HJDC DC CONVERTER 0.59-5.1V 30W |
337 |
|
Технический лист |
LDO06C (30W) | Module | Tray | Active | Non-Isolated PoL Module | 1 | 3V | 13.8V | 0.59 ~ 5.1V | - | - | - | 6A | 30 W | - | ITE (Commercial) | Remote On/Off, OVP, SCP | -40°C ~ 85°C | 92% | - | - | Through Hole | 0.65" L x 0.41" W x 0.44" H (16.5mm x 10.4mm x 11.2mm) | - | - | - | - |
.jpg)
|
NMH2412SCDC DC CONVERTER +/-12V 2W |
423 |
|
Технический лист |
NMH (2W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 21.6V | 26.4V | 12V | -12V | - | - | 83mA, 83mA | 2 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 86% | - | - | Through Hole | 0.77" L x 0.30" W x 0.40" H (19.6mm x 7.6mm x 10.2mm) | - | - | - | - |
|

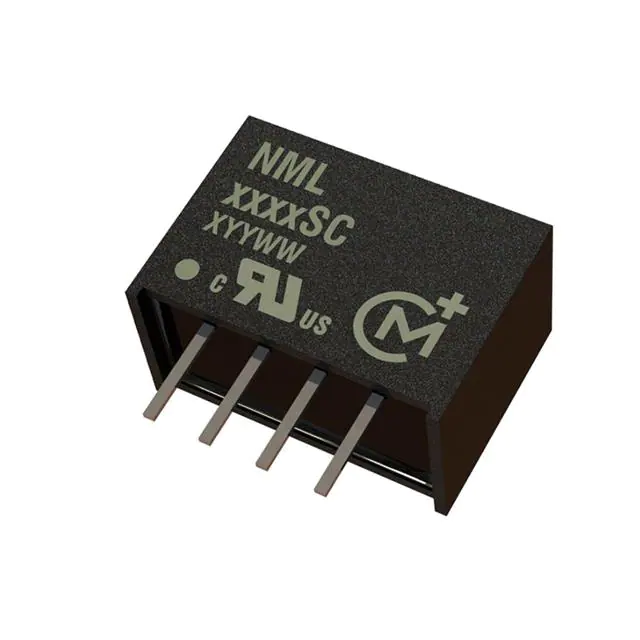

NML0515SCDC DC CONVERTER 15V 2W |
350 |
|
Технический лист |
NML (2W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 15V | - | - | - | 133mA | 2 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 83% | - | - | Through Hole | 0.55" L x 0.30" W x 0.39" H (14.0mm x 7.6mm x 9.9mm) | - | - | - | - |
