DC-DC Преобразователи
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Количество выходов | Напряжение - вход (мин.) | Напряжение - вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Особенности | Рабочая температура | Эффективность | Марка | Квалификация | Тип крепления | Размер/измерение | Устройство поставщика Упаковка | Функции управления | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LCN78_12-0.5NON-ISOLATED POL MODULE DC DC CO |
134 |
|
Технический лист |
LCN78_0.5 | 3-SIP Module | Tube | Active | Non-Isolated PoL Module | 1 | 15V | 42V | 12V | - | - | - | 500mA | 6 W | - | ITE (Commercial) | - | -40°C ~ 100°C (With Derating) | 97% | - | - | Through Hole | 0.46" L x 0.24" W x 0.40" H (11.6mm x 6.0mm x 10.2mm) | - | - | - | - |
|
1S7B_1512S4UPISOLATED MODULE DC DC CONVERTERS |
130 |
|
Технический лист |
1S7B_4UP (1W) | 7-SIP Module, 4 Leads | Tube | Not For New Designs | Isolated Module | 1 | 13.5V | 16.5V | 12V | - | - | - | 84mA | 1 W | 4 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 74% | - | - | Through Hole | 0.77" L x 0.24" W x 0.39" H (19.5mm x 6.0mm x 10.0mm) | - | - | CE | - |
|
EC2SA14NHDC DC CONVERTER +/-12V 2W |
107 |
|
Технический лист |
EC2SANH (2W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 10.8V | 13.2V | 12V | -12V | - | - | 83mA, 83mA | 2 W | 3 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 86% | - | - | Through Hole | 0.77" L x 0.28" W x 0.40" H (19.6mm x 7.2mm x 10.2mm) | - | - | CE | - |
|
RE-3.305S/HDC DC CONVERTER 5V 1W |
529 |
|
Технический лист |
ECONOLINE RE (1W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 3V | 3.6V | 5V | - | - | - | 200mA | 1 W | 2 kV | ITE (Commercial) | SCP | -40°C ~ 85°C | 80% | - | - | Through Hole | 0.77" L x 0.24" W x 0.40" H (19.7mm x 6.0mm x 10.2mm) | - | - | - | - |
|
0.1MD4A_0503S1.5UISOLATED MODULE DC DC CONVERTERS |
176 |
|
Технический лист |
0.1MD4A_1.5U (0.1W) | 4-DIP Module | Tube | Not For New Designs | Isolated Module | 1 | 4.5V | 5.5V | 3.3V | - | - | - | 30mA | 99 mW | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 50% | - | - | Through Hole | 0.37" L x 0.35" W x 0.25" H (9.4mm x 8.8mm x 6.4mm) | - | - | - | - |
|
|
LCN78_09-0.5NON-ISOLATED POL MODULE DC DC CO |
159 |
|
Технический лист |
LCN78_0.5 | 3-SIP Module | Tube | Active | Non-Isolated PoL Module | 1 | 11V | 42V | 9V | - | - | - | 500mA | 4.5 W | - | ITE (Commercial) | - | -40°C ~ 100°C (With Derating) | 96% | - | - | Through Hole | 0.46" L x 0.24" W x 0.40" H (11.6mm x 6.0mm x 10.2mm) | - | - | - | - |
|
OKL2-T/3-W5P-CDC DC CONVERTER 0.6-3.63V |
110 |
|
Технический лист |
Okami™ OKL-T/3-W5 | 12-SMD Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 2.4V | 5.5V | 0.6 ~ 3.63V | - | - | - | 3A | - | - | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 85°C | 95.3% | - | - | Surface Mount | 0.48" L x 0.48" W x 0.24" H (12.2mm x 12.2mm x 6.1mm) | - | Enable, Active High | - | - |
|
NMR101CDC DC CONVERTER 12V 1W |
173 |
|
Технический лист |
NMR (1W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 12V | - | - | - | 83mA | 1 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 77% | - | - | Through Hole | 0.77" L x 0.24" W x 0.39" H (19.6mm x 6.1mm x 9.9mm) | - | - | - | - |
|
OKL2-T/6-W12P-CDC DC CONVERTER 0.591-5.5V |
627 |
|
Технический лист |
Okami™ OKL2-T/6-W12 | 12-SMD Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 4.5V | 14V | 0.591 ~ 5.5V | - | - | - | 6A | - | - | ITE (Commercial) | Remote On/Off, OCP, SCP, UVLO | -40°C ~ 85°C | 93% | - | - | Surface Mount | 0.48" L x 0.48" W x 0.28" H (12.2mm x 12.2mm x 7.1mm) | - | Enable, Active High | - | - |
|
TRA 1-2423DC DC CONVERTER +/-15V 1W |
134 |
|
Технический лист |
TRA 1 (1W) | 6-SIP Module, 4 Leads | Tube | Not For New Designs | Isolated Module | 2 | 21.6V | 26.4V | 15V | -15V | - | - | 34mA, 34mA | 1 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 95°C (With Derating) | 87% | - | - | Through Hole | 0.77" L x 0.24" W x 0.40" H (19.5mm x 6.1mm x 10.2mm) | - | - | - | - |
|
ITA0515SDC DC CONVERTER +/-15V 1W |
1,016 |
|
Технический лист |
ITA (1W) | 7-SIP Module, 6 Leads | Tube | Active | Isolated Module | 2 | 4.5V | 5.5V | 15V | -15V | - | - | 33.3mA, 33.3mA | 1 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 105°C | 81% | - | - | Through Hole | 0.77" L x 0.24" W x 0.39" H (19.5mm x 6.0mm x 10.0mm) | - | - | - | - |
|
3S7A_1203S1.5UPISOLATED MODULE DC DC CONVERTERS |
114 |
|
Технический лист |
3S7A_1.5UP (3W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 10.8V | 13.2V | 3.3V | - | - | - | 909mA | 3 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 80% | - | - | Through Hole | 0.77" L x 0.30" W x 0.39" H (19.5mm x 7.5mm x 10.0mm) | - | - | CE | - |
|
RNM-3.312SDC DC CONVERTER 12V 1W |
104 |
|
Технический лист |
ECONOLINE RNM (1W) | 6-DIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 3V | 3.6V | 12V | - | - | - | 83mA | 1 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 85°C | 78% | - | - | Through Hole | 0.33" L x 0.33" W x 0.27" H (8.3mm x 8.3mm x 6.8mm) | - | - | - | - |
|
|
RNM-0515S/PDC DC CONVERTER 15V 1W |
184 |
|
Технический лист |
ECONOLINE RNM (1W) | 6-DIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 15V | - | - | - | 66mA | 1 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 85°C | 84% | - | - | Through Hole | 0.33" L x 0.33" W x 0.27" H (8.3mm x 8.3mm x 6.8mm) | - | - | - | - |
|
RB-0505S/EDC DC CONVERTER 5V 1W |
175 |
|
Технический лист |
ECONOLINE RB/E (1W) | 7-SIP Module, 6 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 5V | - | - | - | 200mA | 1 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 100°C | 84% | - | - | Through Hole | 0.77" L x 0.24" W x 0.40" H (19.7mm x 6.0mm x 10.2mm) | - | - | - | - |
|

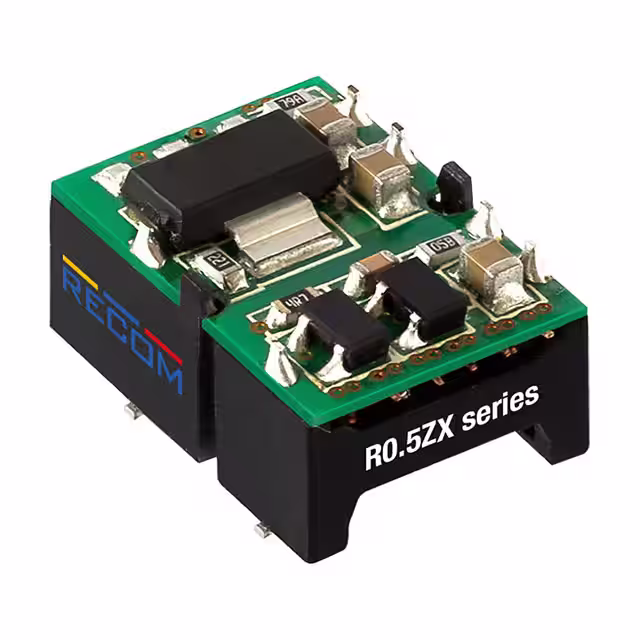

R0.5ZX-0505/P-RDC DC CONVERTER 5V 500MW |
128 |
|
Технический лист |
ECONOLINE R0.5ZX (0.5W) | 10-SMD Module, 6 Leads | Tape & Reel (TR) | Active | Isolated Module | 1 | 4.75V | 5.25V | 5V | - | - | - | 100mA | 500 mW | 1 kV | ITE (Commercial) | OCP, OVP, SCP | -40°C ~ 100°C (With Derating) | 71% | - | - | Surface Mount | 0.60" L x 0.42" W x 0.33" H (15.2mm x 10.7mm x 8.5mm) | - | - | CB, cURus | - |
|
RK-1205SDC DC CONVERTER 5V 1W |
111 |
|
Технический лист |
ECONOLINE RK (1W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 10.8V | 13.2V | 5V | - | - | - | 200mA | 1 W | 3 kV | ITE (Commercial), Medical | - | -40°C ~ 85°C | 78% | - | - | Through Hole | 0.77" L x 0.24" W x 0.40" H (19.7mm x 6.0mm x 10.2mm) | - | - | - | - |
|
2S7WB_0505S3RPISOLATED MODULE DC DC CONVERTERS |
125 |
|
Технический лист |
2S7WB_3RP (2W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 9V | 5V | - | - | - | 400mA | 2 W | 3 kV | ITE (Commercial) | - | -40°C ~ 85°C | 70% | - | - | Through Hole | 0.77" L x 0.28" W x 0.39" H (19.5mm x 7.1mm x 10.0mm) | - | - | - | - |
|
1S7WA_0505S3RPISOLATED MODULE DC DC CONVERTERS |
125 |
|
Технический лист |
1S7WA (1W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 5V | - | - | - | 200mA | 1 W | 3 kV | ITE (Commercial) | - | -40°C ~ 85°C | 65% | - | - | Through Hole | 0.77" L x 0.28" W x 0.39" H (19.5mm x 7.1mm x 10.0mm) | - | - | - | - |
|
RN-1224SDC DC CONVERTER 24V 1.25W |
157 |
|
Технический лист |
ECONOLINE RN (1.25W) | 8-DIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 10.8V | 13.2V | 24V | - | - | - | 52mA | 1.25 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 85°C | 85% | - | - | Through Hole | 0.50" L x 0.40" W x 0.30" H (12.8mm x 10.1mm x 7.6mm) | - | - | - | - |
