DC-DC Преобразователи
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Количество выходов | Напряжение - вход (мин.) | Напряжение - вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Особенности | Рабочая температура | Эффективность | Марка | Квалификация | Тип крепления | Размер/измерение | Устройство поставщика Упаковка | Функции управления | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EPM6122V-12R-084SRDC DC CONV 1W 12VIN 12VOUT 84MA |
296 |
|
Технический лист |
EPM6-2V (1W) | 7-DIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 10.8V | 13.2V | 12V | - | - | - | 84mA | 1 W | 3 kV | ITE (Commercial) | - | -40°C ~ 100°C (With Derating) | 80% | - | - | Through Hole | 0.77" L x 0.24" W x 0.40" H (19.7mm x 6.0mm x 10.2mm) | - | - | - | 62368-1 |
|
1MD8A_0505S3UPISOLATED MODULE DC DC CONVERTERS |
168 |
|
Технический лист |
1MD8A_3UP (1W) | 8-DIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 5V | - | - | - | 200mA | 1 W | 3 kV | ITE (Commercial) | - | -40°C ~ 85°C | 69% | - | - | Through Hole | 0.45" L x 0.39" W x 0.21" H (11.5mm x 9.8mm x 5.4mm) | - | - | - | - |
|
1MS4A_2405S3UPISOLATED MODULE DC DC CONVERTERS |
160 |
|
Технический лист |
1MS4A_3UP (1W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 21.6V | 26.4V | 5V | - | - | - | 200mA | 1 W | 3 kV | ITE (Commercial) | - | -40°C ~ 85°C | 71% | - | - | Through Hole | 0.45" L x 0.24" W x 0.29" H (11.5mm x 6.0mm x 7.5mm) | - | - | - | - |
|
1S7BE_0524D6UISOLATED MODULE DC DC CONVERTERS |
167 |
|
Технический лист |
1S7B_6U (1W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 4.75V | 5.25V | 24V | -24V | - | - | 21mA, 21mA | 1 W | 6 kV | ITE (Commercial) | - | -40°C ~ 85°C | 82% | - | - | Through Hole | 0.77" L x 0.28" W x 0.39" H (19.5mm x 7.1mm x 10.0mm) | - | - | - | - |
|
|
1S7BE_1209D6UISOLATED MODULE DC DC CONVERTERS |
175 |
|
Технический лист |
1S7B_6U (1W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 11.4V | 12.6V | 9V | -9V | - | - | 56mA, 56mA | 1 W | 6 kV | ITE (Commercial) | - | -40°C ~ 85°C | 75% | - | - | Through Hole | 0.77" L x 0.28" W x 0.39" H (19.5mm x 7.1mm x 10.0mm) | - | - | - | - |
|

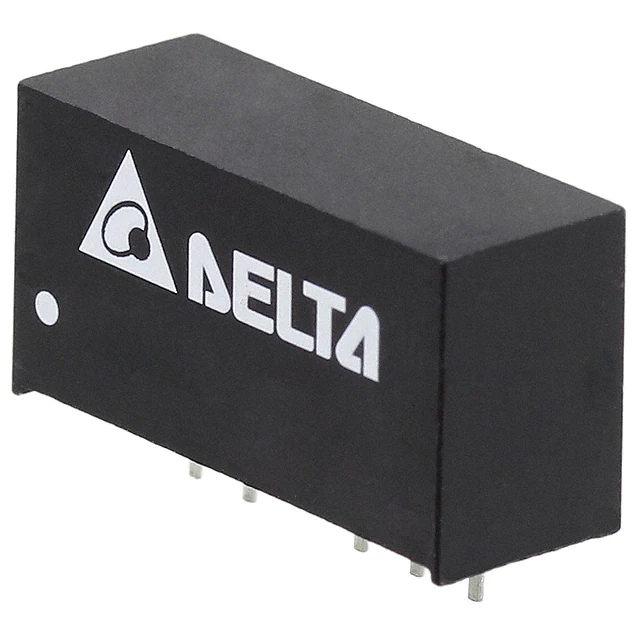

PE01D0505ADC DC CONVERTER +/-5V 1W |
235 |
|
Технический лист |
PE01S/D (1W) | 6-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 4.5V | 5.5V | 5V | -5V | - | - | 100mA, 100mA | 1 W | 1 kV | Medical | SCP | -40°C ~ 85°C | 84.5% | - | - | Through Hole | 0.77" L x 0.24" W x 0.40" H (19.6mm x 6.0mm x 10.2mm) | - | - | - | - |
|
1T8E_0505S1UISOLATED MODULE DC DC CONVERTERS |
180 |
|
Технический лист |
1T8E_1U (1W) | 8-SMD Module, 5 Leads | Tube | Not For New Designs | Isolated Module | 1 | 4.5V | 5.5V | 5V | - | - | - | 200mA | 1 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 70% | - | - | Surface Mount | 0.50" L x 0.30" W x 0.25" H (12.7mm x 7.6mm x 6.4mm) | - | - | - | - |
|
R2SX-0505-RDC DC CONVERTER 5V 2W |
204 |
|
Технический лист |
ECONOLINE R2SX (2W) | 10-SMD Module, 6 Leads | Tape & Reel (TR) | Active | Isolated Module | 1 | 4.5V | 5.5V | 5V | - | - | - | 400mA | 2 W | 1 kV | ITE (Commercial) | OCP | -40°C ~ 100°C (With Derating) | 81% | - | - | Surface Mount | 0.60" L x 0.42" W x 0.31" H (15.2mm x 10.7mm x 8.0mm) | - | - | CB, cURus | - |
|
R-78S1.8-0.1DC DC CONVERTER 1.8V |
38 |
|
Технический лист |
R-78S | 4-SIP Module | Tube | Active | Linear Regulator Replacement | 1 | 0.65V | 1.3V | 1.8V | - | - | - | 100mA | - | - | ITE (Commercial) | OTP, SCP, UVLO | -40°C ~ 100°C (With Derating) | 93% | - | - | Through Hole | 0.46" L x 0.33" W x 0.41" H (11.6mm x 8.5mm x 10.4mm) | 4-SIP | Enable, Active High | - | - |
|
R2SX-1205-TRAYDC DC CONVERTER 5V 2W |
185 |
|
Технический лист |
ECONOLINE R2SX (2W) | 10-SMD Module, 6 Leads | Tray | Active | Isolated Module | 1 | 10.8V | 14.2V | 5V | - | - | - | 400mA | 2 W | 1 kV | ITE (Commercial) | - | -40°C ~ 75°C | 84% | - | - | Surface Mount | 0.60" L x 0.42" W x 0.31" H (15.2mm x 10.7mm x 8.0mm) | - | - | CB, cURus | - |
|
|
R2SX-2424-TRAYDC DC CONVERTER 24V 2W |
104 |
|
Технический лист |
ECONOLINE R2SX (2W) | 10-SMD Module, 6 Leads | Tray | Active | Isolated Module | 1 | 21.6V | 26.4V | 24V | - | - | - | 84mA | 2 W | 1 kV | ITE (Commercial) | OCP | -40°C ~ 100°C (With Derating) | 86% | - | - | Surface Mount | 0.60" L x 0.42" W x 0.31" H (15.2mm x 10.7mm x 8.0mm) | - | - | CB, cURus | - |
|
3S7A_0515S1UISOLATED MODULE DC DC CONVERTERS |
154 |
|
Технический лист |
3S7A_1U (3W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 15V | - | - | - | 200mA | 3 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 84% | - | - | Through Hole | 0.77" L x 0.28" W x 0.39" H (19.6mm x 7.0mm x 10.0mm) | - | - | CE | - |
|
|
3S7A_1215S1UISOLATED MODULE DC DC CONVERTERS |
130 |
|
Технический лист |
3S7A_1U (3W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 10.8V | 13.2V | 15V | - | - | - | 200mA | 3 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 90% | - | - | Through Hole | 0.77" L x 0.28" W x 0.39" H (19.6mm x 7.0mm x 10.0mm) | - | - | CE | - |
|
EPM78V2-15R0-01R0RSWITCH REG DCDC CONV 1000MA 15V |
459 |
|
Технический лист |
- | 3-SIP Module | Tube | Active | Non-Isolated PoL Module | 1 | 18V | 32V | 15V | - | - | - | 1A | - | - | ITE (Commercial) | Adjustable Output | -40°C ~ 90°C (With Derating) | 96% | - | - | Through Hole | 0.46" L x 0.30" W x 0.40" H (11.6mm x 7.6mm x 10.2mm) | - | - | - | - |
|
2S7BE_0512S6UISOLATED MODULE DC DC CONVERTERS |
146 |
|
Технический лист |
2S7BE_6U (2W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 12V | - | - | - | 166.7mA | 2 W | 6 kV | ITE (Commercial) | - | -40°C ~ 85°C | 82% | - | - | Through Hole | 0.77" L x 0.24" W x 0.39" H (19.5mm x 6.0mm x 10.0mm) | - | - | CE | 60950-1 |
|
|
EPM78V1-01R8-01R0RSWITCH REG DCDC CONV 1000MA 1.8V |
151 |
|
Технический лист |
- | 3-SIP Module | Tube | Active | Non-Isolated PoL Module | 1 | 4.75V | 26V | 1.8V | - | - | - | 1A | - | - | ITE (Commercial) | Adjustable Output | -40°C ~ 90°C (With Derating) | 86% | - | - | Through Hole | 0.46" L x 0.30" W x 0.40" H (11.6mm x 7.6mm x 10.2mm) | - | - | - | - |
|
|
R2SX-2405-RDC DC CONVERTER 5V 2W |
116 |
|
Технический лист |
ECONOLINE R2SX (2W) | 10-SMD Module, 6 Leads | Tape & Reel (TR) | Active | Isolated Module | 1 | 21.6V | 26.4V | 5V | - | - | - | 400mA | 2 W | 1 kV | ITE (Commercial) | OCP | -40°C ~ 100°C (With Derating) | 85% | - | - | Surface Mount | 0.60" L x 0.42" W x 0.31" H (15.2mm x 10.7mm x 8.0mm) | - | - | CB, cURus | - |
|
MYMGK1R804FRSRDC DC CONVERTER 0.7-1.8V 7.2W |
337 |
|
Технический лист |
MonoBlock MYMGK | 23-SMD Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 4.5V | 5.5V | 0.7 ~ 1.8V | - | - | - | 4A | 7.2 W | - | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 85°C (With Derating) | 93% | - | - | Surface Mount | 0.35" L x 0.30" W x 0.20" H (9.0mm x 7.5mm x 5.0mm) | Module | Enable, Active High | - | - |
|
IV2415SDC DC CONVERTER +/-15V 1W |
147 |
|
Технический лист |
IV (1W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 21.6V | 26.4V | 15V | -15V | - | - | 33mA, 33mA | 1 W | 3 kV | ITE (Commercial) | - | -40°C ~ 85°C | 78% | - | - | Through Hole | 0.76" L x 0.24" W x 0.39" H (19.3mm x 6.0mm x 10.0mm) | - | - | - | 62368-1 |
|
RPM5.0-3.0-CTDC DC CONVERTER 5V |
107 |
|
Технический лист |
INNOLINE RPM-3.0 | 25-BLGA Module | Tube | Active | Non-Isolated PoL Module | 1 | 3V | 17V | 5V | - | - | - | 3A | - | - | ITE (Commercial) | Remote On/Off, OCP, OTP, SCP, UVLO | -40°C ~ 100°C (With Derating) | 97% | - | - | Surface Mount | 0.48" L x 0.48" W x 0.15" H (12.2mm x 12.2mm x 3.8mm) | - | - | - | - |
