DC-DC Преобразователи
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Количество выходов | Напряжение - вход (мин.) | Напряжение - вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Особенности | Рабочая температура | Эффективность | Марка | Квалификация | Тип крепления | Размер/измерение | Устройство поставщика Упаковка | Функции управления | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EC2SA24NDC DC CONVERTER +/-12V 2W |
106 |
|
Технический лист |
EC2SAN (2W) | 6-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 21.6V | 26.4V | 12V | -12V | - | - | 83mA, 83mA | 2 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 85°C (With Derating) | 81% | - | - | Through Hole | 0.77" L x 0.28" W x 0.40" H (19.6mm x 7.2mm x 10.2mm) | - | - | CE | - |
|
RSH2-0505S/H3-RDC DC CONVERTER 5V 2W |
188 |
|
Технический лист |
RSH2 | 14-SMD Module, 7 Leads | Tape & Reel (TR) | Active | Isolated Module | 1 | 4.5V | 13.2V | 5V | - | - | - | 400mA | 2 W | 3 kV | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 100°C (With Derating) | 81% | - | - | Surface Mount | 0.74" L x 0.50" W x 0.34" H (18.9mm x 12.8mm x 8.7mm) | - | - | cURus | 62368-1 |
|
SLW05B-05DC DC CONVERTER 5V 5W |
137 |
|
Технический лист |
SLW05 (5W) | 5-DIP Module | - | Active | Isolated Module | 1 | 18V | 36V | 5V | - | - | - | 1A | 5 W | 1 kV | ITE (Commercial) | OCP, SCP | -25°C ~ 71°C (With Derating) | 77% | - | - | Through Hole | 2.00" L x 1.00" W x 0.44" H (50.8mm x 25.4mm x 11.3mm) | - | - | - | - |
|
TEC 2-2419DC DC CONVERTER 9V 2W |
229 |
|
Технический лист |
TEC 2 (2W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 18V | 36V | 9V | - | - | - | 222mA | 2 W | 1.6 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 95°C (With Derating) | 85% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.1mm x 11.2mm) | - | - | - | - |
|
TEC 2-2412DC DC CONVERTER 12V 2W |
126 |
|
Технический лист |
TEC 2 (2W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 18V | 36V | 12V | - | - | - | 167mA | 2 W | 1.6 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 95°C (With Derating) | 86% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.1mm x 11.2mm) | - | - | - | - |
|
TEC 2-0915DC DC CONVERTER 24V 2W |
102 |
|
Технический лист |
TEC 2 (2W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 13.2V | 24V | - | - | - | 83mA | 2 W | 1.6 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 95°C (With Derating) | 85% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.1mm x 11.2mm) | - | - | - | - |
|
LMZ22003TZE/NOPBDC DC CONVERTER 0.8-6V |
424 |
|
Технический лист |
SIMPLE SWITCHER® | TO-PMOD-7, Power Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 6V | 20V | 0.8 ~ 6V | - | - | - | 3A | - | - | ITE (Commercial) | UVLO | -40°C ~ 125°C | 92% | - | - | Surface Mount | 0.40" L x 0.39" W x 0.18" H (10.2mm x 9.9mm x 4.6mm) | TO-PMOD-7 | - | - | - |
|

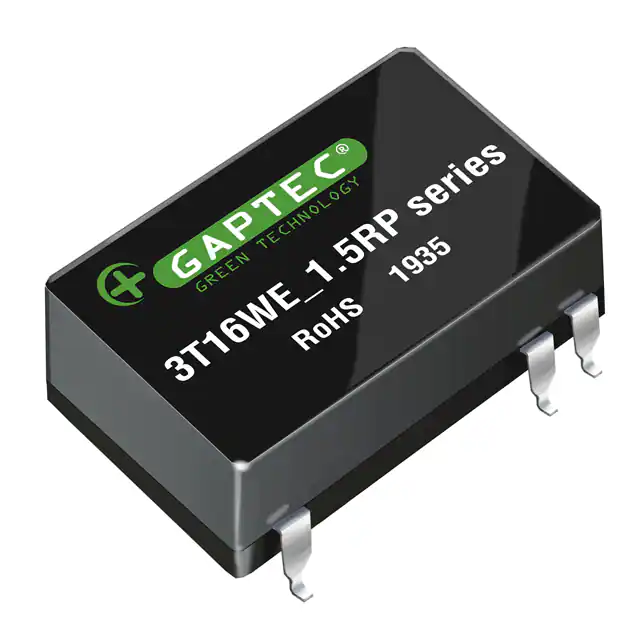

3T16WE_2405S1.5RPISOLATED MODULE DC DC CONVERTERS |
590 |
|
Технический лист |
3T16WE_1.5RP (3W) | 16-SMD Module, 6 Leads | Tube | Active | Isolated Module | 1 | 18V | 36V | 5V | - | - | - | 600mA | 3 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C | 80% | - | - | Surface Mount | 0.95" L x 0.56" W x 0.40" H (24.1mm x 14.4mm x 10.3mm) | - | - | - | - |
|
DCP010505DBPDC DC CONVERTER +/-5V 1W |
567 |
|
Технический лист |
DCP01B (1W) | 14-DIP (0.300", 7.62mm), 7 Leads | Tube | Active | Isolated Module | 2 | 4.5V | 5.5V | 5V | -5V | - | - | 100mA, 100mA | 1 W | 1 kV | ITE (Commercial) | OTP, SCP | -40°C ~ 100°C | 81% | - | - | Through Hole | 0.78" L x 0.33" W x 0.21" H (19.7mm x 8.3mm x 5.3mm) | 7-PDIP | Enable, Active High | - | - |
|
TSR 1-2465SMDC DC CONVERTER 6.5V 6.5W |
287 |
|
Технический лист |
TSR 1SM | 10-SMD Module, 6 Leads | Tube | Active | Linear Regulator Replacement | 1 | 9V | 36V | 6.5V | - | - | - | 1A | 6.5 W | - | ITE (Commercial) | SCP | -40°C ~ 85°C (With Derating) | 94% | - | - | Surface Mount | 0.60" L x 0.37" W x 0.30" H (15.2mm x 9.3mm x 7.6mm) | - | - | - | - |
|
IU4805SADC DC CONVERTER 5V 2W |
135 |
|
Технический лист |
IU (2W) | 8-SIP Module, 5 Leads | Tube | Active | Isolated Module | 1 | 36V | 72V | 5V | - | - | - | 400mA | 2 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 85°C | 74% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.9mm x 9.2mm x 11.1mm) | - | - | - | 62368-1 |
|
1S7WA_1205S3RPISOLATED MODULE DC DC CONVERTERS |
627 |
|
Технический лист |
1S7WA (1W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 9V | 18V | 5V | - | - | - | 200mA | 1 W | 3 kV | ITE (Commercial) | - | -40°C ~ 85°C | 70% | - | - | Through Hole | 0.77" L x 0.28" W x 0.39" H (19.5mm x 7.1mm x 10.0mm) | - | - | - | - |
|
|
DCP020507PDC DC CONVERTER 7V 2W |
238 |
|
Технический лист |
DCP02 (2W) | 14-DIP (0.300", 7.62mm), 7 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 7V | - | - | - | 286mA | 2 W | 1 kV | ITE (Commercial) | OTP | -40°C ~ 85°C | 81% | - | - | Through Hole | 0.78" L x 0.33" W x 0.21" H (19.7mm x 8.3mm x 5.3mm) | 7-PDIP | - | - | - |
|
TSM 0505DDC DC CONVERTER +/-5V 1W |
122 |
|
Технический лист |
TSM (1W) | 18-SMD Module, 10 Leads | Tube | Active | Isolated Module | 2 | 4.5V | 5.5V | 5V | -5V | - | - | 100mA, 100mA | 1 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 85°C | 75% | - | - | Surface Mount | 0.60" L x 0.31" W x 0.28" H (15.2mm x 8.0mm x 7.1mm) | - | - | - | - |
|
MGS1R52412DC DC CONVERTER 12V |
302 |
|
Технический лист |
MGS (1.5W) | 4-SIP Module | Box | Active | Isolated Module | 1 | 18V | 36V | 12V | - | - | - | 130mA | - | 1.5 kV | ITE (Commercial) | OCP | -40°C ~ 85°C (With Derating) | 82% | - | - | Through Hole | 0.67" L x 0.33" W x 0.47" H (17.0mm x 8.5mm x 12.0mm) | - | - | - | - |
|
|
MGS1R5123R3DC DC CONVERTER 3.3V |
279 |
|
Технический лист |
MGS (1.5W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 9V | 18V | 3.3V | - | - | - | 400mA | - | 1.5 kV | ITE (Commercial) | OCP | -40°C ~ 85°C (With Derating) | 80% | - | - | Through Hole | 0.67" L x 0.33" W x 0.47" H (17.0mm x 8.5mm x 12.0mm) | - | - | - | - |
|
TMR 1-0522DC DC CONVERTER +/-12V 1W |
252 |
|
Технический лист |
TMR 1 (1W) | 6-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 4.5V | 9V | 12V | -12V | - | - | 42mA, 42mA | 1 W | 1.5 kV | ITE (Commercial) | OCP, SCP | -40°C ~ 85°C | 77% | - | - | Through Hole | 0.67" L x 0.30" W x 0.43" H (17.0mm x 7.6mm x 11.0mm) | Module | - | CB, CSA | - |
|
|
MGS1R50505DC DC CONVERTER 5V |
219 |
|
Технический лист |
MGS (1.5W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 4.5V | 9V | 5V | - | - | - | 300mA | - | 1.5 kV | ITE (Commercial) | OCP | -40°C ~ 85°C (With Derating) | 82% | - | - | Through Hole | 0.67" L x 0.33" W x 0.47" H (17.0mm x 8.5mm x 12.0mm) | - | - | - | - |
|
|
TMR 1-2422DC DC CONVERTER +/-12V 1W |
133 |
|
Технический лист |
TMR 1 (1W) | 6-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 18V | 36V | 12V | -12V | - | - | 42mA, 42mA | 1 W | 1.5 kV | ITE (Commercial) | OCP, SCP | -40°C ~ 85°C | 80% | - | - | Through Hole | 0.67" L x 0.30" W x 0.43" H (17.0mm x 7.6mm x 11.0mm) | Module | - | CB, CSA | - |
|
PVX006A0X3-78SRZ6 A NON-ISOLATED DCDC CONVERTER, |
1,084 |
|
Технический лист |
PicoDLynx™ | 17-SMD Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module, Digital | 1 | 3V | 14.4V | 0.6 ~ 5.5V | - | - | - | 6A | - | - | ITE (Commercial) | Adjustable Output, Remote On/Off, Remote Sense | -40°C ~ 85°C | 93.8% | - | - | Surface Mount | 0.48" L x 0.48" W x 0.29" H (12.2mm x 12.2mm x 7.3mm) | - | Enable, Active Low | CSA, UL, VDE | 62368-1 |
