DC-DC Преобразователи
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Количество выходов | Напряжение - вход (мин.) | Напряжение - вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Особенности | Рабочая температура | Эффективность | Марка | Квалификация | Тип крепления | Размер/измерение | Устройство поставщика Упаковка | Функции управления | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CC1R5-2412DF-EDC DC CNVRTR +/-12V TO +/-15V 1W |
1,763 |
|
Технический лист |
CC-E (1.5W) | 7-DIP Module | Bulk | Active | Isolated Module | 2 | 18V | 36V | 12 ~ 15V | -12 ~ -15V | - | - | 60mA, 60mA | 1 W | 500 V | ITE (Commercial) | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.65" L x 0.65" W x 0.34" H (16.5mm x 16.6mm x 8.5mm) | - | Enable, Active Low | - | - |
|
|
CC1R5-1212DF-EDC DC CNVRTR +/-12V TO +/-15V 1W |
969 |
|
Технический лист |
CC-E (1.5W) | 7-DIP Module | Tray | Active | Isolated Module | 2 | 9V | 18V | 12 ~ 15V | -12 ~ -15V | - | - | 60mA, 60mA | 1 W | 500 V | ITE (Commercial) | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.65" L x 0.65" W x 0.34" H (16.5mm x 16.6mm x 8.5mm) | - | Enable, Active Low | - | - |
|
CC1R5-2412DR-EDC DC CNVRTR +/-12V TO +/-15V 1W |
487 |
|
Технический лист |
CC-E (1.5W) | 7-SMD Module | Tray | Active | Isolated Module | 2 | 18V | 36V | 12 ~ 15V | -12 ~ -15V | - | - | 60mA, 60mA | 1 W | 500 V | ITE (Commercial) | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.65" L x 0.65" W x 0.35" H (16.5mm x 16.6mm x 8.8mm) | - | Enable, Active Low | - | - |
|
|
CC1R5-2403SF-EDC DC CONVERTER 3.3V 1W |
330 |
|
Технический лист |
CC-E (1.5W) | 7-DIP Module | Tray | Active | Isolated Module | 1 | 18V | 36V | 3.3V | - | - | - | 400mA | 1 W | 500 V | ITE (Commercial) | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.65" L x 0.65" W x 0.34" H (16.5mm x 16.6mm x 8.5mm) | - | Enable, Active Low | - | - |
|
|
CC1R5-2403SR-EDC DC CONVERTER 3.3V 1W |
280 |
|
Технический лист |
CC-E (1.5W) | 7-SMD Module | Tray | Active | Isolated Module | 1 | 18V | 36V | 3.3V | - | - | - | 400mA | 1 W | 500 V | ITE (Commercial) | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.65" L x 0.65" W x 0.35" H (16.5mm x 16.6mm x 8.8mm) | - | Enable, Active Low | - | - |
|
|
CC1R5-4805SR-EDC DC CONVERTER 5V 1W |
259 |
|
Технический лист |
CC-E (1.5W) | 7-SMD Module | Tray | Active | Isolated Module | 1 | 36V | 76V | 5V | - | - | - | 300mA | 1 W | 500 V | ITE (Commercial) | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.65" L x 0.65" W x 0.35" H (16.5mm x 16.6mm x 8.8mm) | - | Enable, Active Low | - | - |
|
|
CC1R5-4805SF-EDC DC CONVERTER 5V 1W |
234 |
|
Технический лист |
CC-E (1.5W) | 7-DIP Module | Tray | Active | Isolated Module | 1 | 36V | 76V | 5V | - | - | - | 300mA | 1 W | 500 V | ITE (Commercial) | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.65" L x 0.65" W x 0.34" H (16.5mm x 16.6mm x 8.5mm) | - | Enable, Active Low | - | - |
|
|
CC1R5-1212SR-EDC DC CONVERTER 12-15V 1W |
173 |
|
Технический лист |
CC-E (1.5W) | 7-SMD Module | Tray | Active | Isolated Module | 1 | 9V | 18V | 12 ~ 15V | - | - | - | 125mA | 1 W | 500 V | ITE (Commercial) | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.65" L x 0.65" W x 0.35" H (16.5mm x 16.6mm x 8.8mm) | - | Enable, Active Low | - | - |
|
|
CC1R5-4812SF-EDC DC CONVERTER 12-15V 1W |
154 |
|
Технический лист |
CC-E (1.5W) | 7-DIP Module | Tray | Active | Isolated Module | 1 | 36V | 76V | 12 ~ 15V | - | - | - | 125mA | 1 W | 500 V | ITE (Commercial) | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.65" L x 0.65" W x 0.34" H (16.5mm x 16.6mm x 8.5mm) | - | Enable, Active Low | - | - |
|
|
CC1R5-1203SF-EDC DC CONVERTER 3.3V 1W |
104 |
|
Технический лист |
CC-E (1.5W) | 7-DIP Module | Tray | Active | Isolated Module | 1 | 9V | 18V | 3.3V | - | - | - | 400mA | 1 W | 500 V | ITE (Commercial) | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.65" L x 0.65" W x 0.34" H (16.5mm x 16.6mm x 8.5mm) | - | Enable, Active Low | - | - |
|
EC2SA-48D05NDC DC CONVERTER +/-5V 2W |
911 |
|
Технический лист |
EC2SA (2W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 2 | 36V | 75V | 5V | -5V | - | - | 200mA, 200mA | 2 W | 1.5 kV | ITE (Commercial) | Remote On/Off, SCP, UVLO | -40°C ~ 85°C (With Derating) | 78% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm) | - | - | CE | 60950-1 |
|
TMR 1-2423DC DC CONVERTER +/-15V 990MW |
527 |
|
Технический лист |
TMR 1 (1W) | 6-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 18V | 36V | 15V | -15V | - | - | 33mA, 33mA | 990 mW | 1.5 kV | ITE (Commercial) | OCP, SCP | -40°C ~ 85°C | 80% | - | - | Through Hole | 0.67" L x 0.30" W x 0.43" H (17.0mm x 7.6mm x 11.0mm) | Module | - | CB, CSA | - |
|
SPBW03G-12DC DC CONVERTER 12V 3W |
628 |
|
Технический лист |
SPBW03 (3W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 18V | 75V | 12V | - | - | - | 250mA | 3 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, SCP, UVLO | -40°C ~ 85°C (With Derating) | 85% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm) | - | Enable, Active High | - | - |
|
RKZ-0512D/PDC DC CONVERTER +/-12V 2W |
70 |
|
Технический лист |
ECONOLINE RKZ (2W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 4.5V | 5.5V | 12V | -12V | - | - | 84mA, 84mA | 2 W | 3 kV | ITE (Commercial), Medical | SCP | -40°C ~ 85°C | 84% | - | - | Through Hole | 0.77" L x 0.28" W x 0.40" H (19.7mm x 7.1mm x 10.2mm) | - | - | - | - |
|
TMV 2412DHIDC DC CONVERTER +/-12V 1W |
245 |
|
Технический лист |
TMV-HI (1W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 21.6V | 26.4V | 12V | -12V | - | - | 42mA, 42mA | 1 W | 5.2 kV | ITE (Commercial) | SCP | -40°C ~ 95°C (With Derating) | 77% | - | - | Through Hole | 0.77" L x 0.30" W x 0.40" H (19.5mm x 7.5mm x 10.2mm) | - | - | - | - |
|
LTM4693EV#PBFULTRATHIN, 1A BUCK-BOOST UMODULE |
3 |
|
Технический лист |
LTM®, uModule® | 25-LFLGA Module | Tray | Active | Non-Isolated PoL Module | 1 | 2.6V | 5.5V | 1.8 ~ 5.5V | - | - | - | 2A | - | - | ITE (Commercial) | Adjustable Output | -40°C ~ 125°C | - | - | - | Surface Mount | 0.16" L x 0.14" W x 0.05" H (4.0mm x 3.5mm x 1.3mm) | 25-LGA (3.5x4) | - | - | - |
|

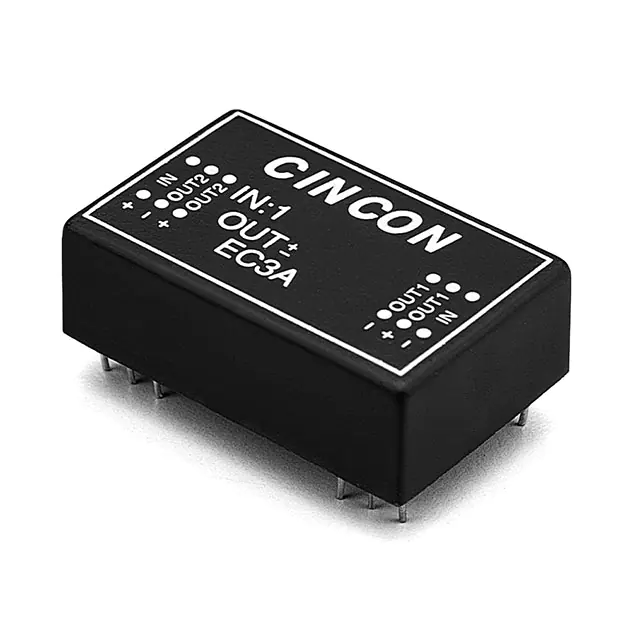

EC3A25HDC DC CONVERTER +/-12V 3W |
1,889 |
|
Технический лист |
EC3A (3W) | 24-DIP Module, 14 Leads | Tube | Active | Isolated Module | 2 | 18V | 36V | 12V | -12V | - | - | 125mA, 125mA | 3 W | 3 kV | ITE (Commercial) | SCP | -25°C ~ 71°C | 79% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | - | - | CE, cURus | 60950-1 |
|
LMZ31506HRUQTDC DC CONVERTER 1.2-5.5V 33W |
153 |
|
Технический лист |
SIMPLE SWITCHER® | 47-BQFN Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 4.5V | 14.5V | 1.2 ~ 5.5V | - | - | - | 6A | - | - | ITE (Commercial) | OCP, OTP, UVLO | -40°C ~ 85°C | 94% | - | - | Surface Mount | 0.60" L x 0.36" W x 0.11" H (15.2mm x 9.2mm x 2.9mm) | 47-B1QFN (15x9) | Enable, Active High | - | - |
|
MYMGM1R816ELA5RADC DC CONVERTER 0.7-1.8V 29W |
1,872 |
|
Технический лист |
- | 56-SMD Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 7.5V | 15V | 0.7 ~ 1.8V | - | - | - | 16A | 29 W | - | ITE (Commercial) | Adjustable Output, Remote On/Off, Remote Sense | -40°C ~ 105°C (With Derating) | 91.8% | - | - | Surface Mount | 0.41" L x 0.35" W x 0.20" H (10.5mm x 9.0mm x 5.0mm) | - | Enable, Active High | - | - |
|
173010342DC DC CONVERTER 3.3V |
227 |
|
Технический лист |
MagI³C (1W) | 3-SIP Module | Tube | Active | Linear Regulator Replacement | 1 | 7V | 42V | 3.3V | - | - | - | 1A | - | - | ITE (Commercial) | OCP, OTP, SCP, UVLO | -40°C ~ 85°C (With Derating) | 89% | - | - | Through Hole | 0.46" L x 0.33" W x 0.41" H (11.6mm x 8.5mm x 10.5mm) | - | - | - | - |
