DC-DC Преобразователи
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Количество выходов | Напряжение - вход (мин.) | Напряжение - вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Особенности | Рабочая температура | Эффективность | Марка | Квалификация | Тип крепления | Размер/измерение | Устройство поставщика Упаковка | Функции управления | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RP-2405SDC DC CONVERTER 5V 1W |
216 |
|
Технический лист |
ECONOLINE RP (1W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 21.6V | 26.4V | 5V | - | - | - | 200mA | 1 W | 5.2 kV | ITE (Commercial), Medical | SCP | -40°C ~ 85°C | 72% | - | - | Through Hole | 0.77" L x 0.28" W x 0.40" H (19.7mm x 7.1mm x 10.2mm) | - | - | - | - |
|
|
RP-0505DDC DC CONVERTER +/-5V 1W |
190 |
|
Технический лист |
ECONOLINE RP (1W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 4.5V | 5.5V | 5V | -5V | - | - | 100mA, 100mA | 1 W | 5.2 kV | ITE (Commercial), Medical | SCP | -40°C ~ 85°C | 76% | - | - | Through Hole | 0.77" L x 0.28" W x 0.40" H (19.7mm x 7.1mm x 10.2mm) | - | - | - | - |
|

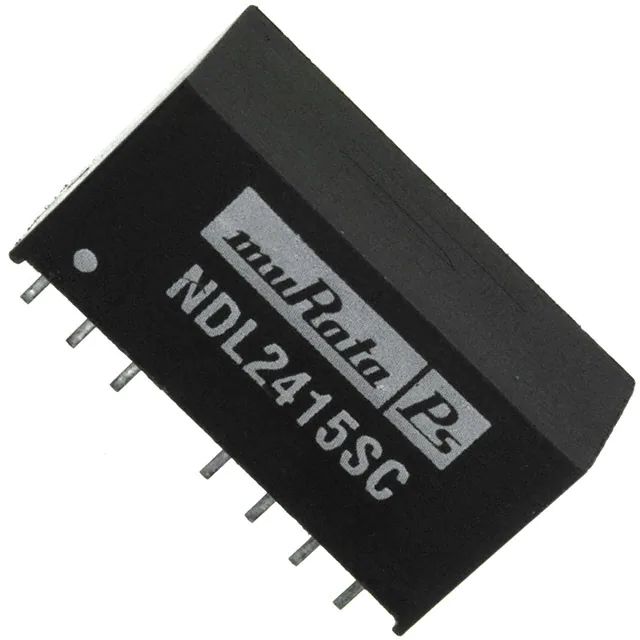

NDL2415SCDC DC CONVERTER 15V 2W |
140 |
|
Технический лист |
NDL (2W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 18V | 36V | 15V | - | - | - | 134mA | 2 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 83% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.1mm x 11.2mm) | - | - | - | - |
|
R24P15SDC DC CONVERTER 15V 1W |
1,259 |
|
Технический лист |
ECONOLINE RxxPxx (1W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 21.6V | 26.4V | 15V | - | - | - | 66mA | 1 W | 6.4 kV | ITE (Commercial), Medical | SCP | -40°C ~ 90°C | 80% | - | - | Through Hole | 0.77" L x 0.39" W x 0.49" H (19.7mm x 9.8mm x 12.5mm) | - | - | - | - |
|
R12P215SDC DC CONVERTER 15V 2W |
417 |
|
Технический лист |
ECONOLINE RxxP2xx (2W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 10.8V | 13.2V | 15V | - | - | - | 132mA | 2 W | 6.4 kV | ITE (Commercial), Medical | - | -40°C ~ 85°C | 80% | - | - | Through Hole | 0.77" L x 0.39" W x 0.49" H (19.7mm x 9.8mm x 12.5mm) | - | - | - | - |
|
TSR 2-24150DC DC CONVERTER 15V 30W |
294 |
|
Технический лист |
TSR 2 | 3-SIP Module | Tube | Active | Linear Regulator Replacement | 1 | 18V | 36V | 15V | - | - | - | 2A | 30 W | - | ITE (Commercial) | OCP, SCP | -40°C ~ 85°C (With Derating) | 96% | - | - | Through Hole | 0.55" L x 0.30" W x 0.40" H (14.0mm x 7.5mm x 10.1mm) | - | - | - | - |
|
R05P23.3SDC DC CONVERTER 3.3V 2W |
202 |
|
Технический лист |
ECONOLINE RxxP2xx (2W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 3.3V | - | - | - | 600mA | 2 W | 6.4 kV | ITE (Commercial), Medical | - | -40°C ~ 85°C | 70% | - | - | Through Hole | 0.77" L x 0.39" W x 0.49" H (19.7mm x 9.8mm x 12.5mm) | - | - | - | - |
|
TSR 2-2425DC DC CONVERTER 2.5V 5W |
145 |
|
Технический лист |
TSR 2 | 3-SIP Module | Tube | Active | Linear Regulator Replacement | 1 | 4.6V | 36V | 2.5V | - | - | - | 2A | 5 W | - | ITE (Commercial) | OCP, SCP | -40°C ~ 85°C (With Derating) | 89% | - | - | Through Hole | 0.55" L x 0.30" W x 0.40" H (14.0mm x 7.5mm x 10.1mm) | - | - | - | - |
|
RP-1212SDC DC CONVERTER 12V 1W |
1,290 |
|
Технический лист |
ECONOLINE RP (1W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 10.8V | 13.2V | 12V | - | - | - | 84mA | 1 W | 5.2 kV | ITE (Commercial), Medical | SCP | -40°C ~ 85°C | 78% | - | - | Through Hole | 0.77" L x 0.28" W x 0.40" H (19.7mm x 7.1mm x 10.2mm) | - | - | - | - |
|
R12P05SDC DC CONVERTER 5V 1W |
176 |
|
Технический лист |
ECONOLINE RxxPxx (1W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 10.8V | 13.2V | 5V | - | - | - | 200mA | 1 W | 6.4 kV | ITE (Commercial), Medical | SCP | -40°C ~ 90°C | 75% | - | - | Through Hole | 0.77" L x 0.39" W x 0.49" H (19.7mm x 9.8mm x 12.5mm) | - | - | - | - |
|
ADUM6020-5WBRIZISOPOWER 5KV, LOWEMI, 500MW PWR, |
313 |
|
Технический лист |
IsoPower®, iCoupler® | 16-SOIC (0.295", 7.50mm Width) | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 5V | - | - | - | 100mA | - | 5 kV | ITE (Commercial), Laboratory, Medical | - | -40°C ~ 125°C | - | - | - | Surface Mount | 0.50" L x 0.30" W x 0.10" H (12.8mm x 7.5mm x 2.6mm) | 16-SOIC | - | CSA, CQC, VDE, UL | 61010-1; 60601-1; 60950-1 |
|
DCP021212PDC DC CONVERTER 12V 2W |
114 |
|
Технический лист |
DCP02 (2W) | 14-DIP (0.300", 7.62mm), 7 Leads | Bulk | Active | Isolated Module | 1 | 10.8V | 13.2V | 12V | - | - | - | 167mA | 2 W | 1 kV | ITE (Commercial) | OTP | -40°C ~ 85°C | 87% | - | - | Through Hole | 0.78" L x 0.33" W x 0.21" H (19.7mm x 8.3mm x 5.3mm) | 7-PDIP | - | - | - |
|
DCP021212U/1KDC DC CONVERTER 12V 2W |
451 |
|
Технический лист |
DCP02 (2W) | 28-SOIC (0.295", 7.50mm Width), 12 Leads | Tape & Reel (TR) | Active | Isolated Module | 1 | 10.8V | 13.2V | 12V | - | - | - | 167mA | 2 W | 1 kV | ITE (Commercial) | OTP | -40°C ~ 85°C | 87% | - | - | Surface Mount | 0.71" L x 0.30" W x 0.10" H (18.1mm x 7.6mm x 2.7mm) | 12-SOP | - | - | - |
|
IM2403SADC DC CONVERTER 3.3V 2W |
3,092 |
|
Технический лист |
IM (2W) | 9-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 3.3V | - | - | - | 500mA | 2 W | 1.5 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 100°C | 75% | - | - | Through Hole | 1.02" L x 0.36" W x 0.49" H (26.0mm x 9.2mm x 12.5mm) | - | Enable, Active Low | - | 62368-1 |
|
IZ0503SADC DC CONVERTER 3.3V 3W |
127 |
|
Технический лист |
IZ (3W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 9V | 3.3V | - | - | - | 700mA | 3 W | 1.6 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 100°C | 74% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.9mm x 9.2mm x 11.1mm) | - | Enable, Active Low | - | 62368-1 |
|
|
RP-0515S/PDC DC CONVERTER 15V 1W |
4,340 |
|
Технический лист |
ECONOLINE RP (1W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 15V | - | - | - | 66mA | 1 W | 5.2 kV | ITE (Commercial), Medical | SCP | -40°C ~ 85°C | 80% | - | - | Through Hole | 0.77" L x 0.28" W x 0.40" H (19.7mm x 7.1mm x 10.2mm) | - | - | - | - |
|
TMR 1-2411SMDC DC CONVERTER 5V 1W |
369 |
|
Технический лист |
TMR 1SM (1W) | 14-SMD Module, 7 Leads | Tube | Active | Isolated Module | 1 | 18V | 36V | 5V | - | - | - | 200mA | 1 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, SCP | -40°C ~ 82°C (With Derating) | 79% | - | - | Surface Mount | 0.74" L x 0.54" W x 0.34" H (18.9mm x 13.7mm x 8.7mm) | Module | - | CB, CSA | - |
|
|
IZ1215SDC DC CONVERTER +/-15V 3W |
554 |
|
Технический лист |
IZ (3W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 2 | 9V | 18V | 15V | -15V | - | - | 100mA | 3 W | 1.6 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 100°C | 82% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.9mm x 9.2mm x 11.1mm) | - | Enable, Active Low | - | 62368-1 |
|
|
IZ2405SDC DC CONVERTER +/-5V 3W |
297 |
|
Технический лист |
IZ (3W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 2 | 18V | 36V | 5V | -5V | - | - | 300mA | 3 W | 1.6 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 100°C | 80% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.9mm x 9.2mm x 11.1mm) | - | Enable, Active Low | - | 62368-1 |
|
|
RP-1515DDC DC CONVERTER +/-15V 1W |
919 |
|
Технический лист |
ECONOLINE RP (1W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 13.5V | 16.5V | 15V | -15V | - | - | 33mA, 33mA | 1 W | 5.2 kV | ITE (Commercial), Medical | SCP | -40°C ~ 85°C | 82% | - | - | Through Hole | 0.77" L x 0.28" W x 0.40" H (19.7mm x 7.1mm x 10.2mm) | - | - | - | - |
