DC-DC Преобразователи
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Количество выходов | Напряжение - вход (мин.) | Напряжение - вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Особенности | Рабочая температура | Эффективность | Марка | Квалификация | Тип крепления | Размер/измерение | Устройство поставщика Упаковка | Функции управления | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

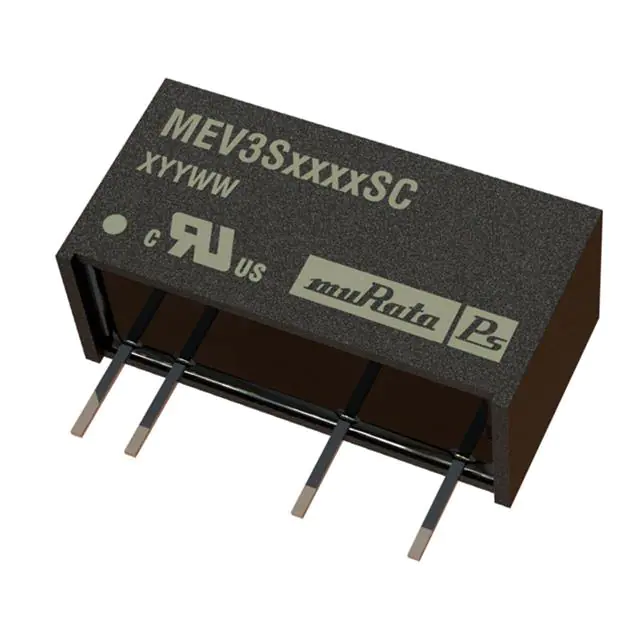

MEV3S1209SCDC DC CONVERTER 9V 3W |
172 |
|
Технический лист |
MEV3 (3W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 10.8V | 13.2V | 9V | - | - | - | 333mA | 3 W | 3 kV | ITE (Commercial) | - | -40°C ~ 85°C | 87.5% | - | - | Through Hole | 0.77" L x 0.30" W x 0.40" H (19.6mm x 7.6mm x 10.2mm) | - | - | - | - |
|
|
MEV3S0515SCDC DC CONVERTER 15V 3W |
121 |
|
Технический лист |
MEV3 (3W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 15V | - | - | - | 200mA | 3 W | 3 kV | ITE (Commercial) | - | -40°C ~ 85°C | 87.5% | - | - | Through Hole | 0.77" L x 0.30" W x 0.40" H (19.6mm x 7.6mm x 10.2mm) | - | - | - | - |
|
MGS1R52405DC DC CONVERTER 5V |
674 |
|
Технический лист |
MGS (1.5W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 18V | 36V | 5V | - | - | - | 300mA | - | 1.5 kV | ITE (Commercial) | OCP | -40°C ~ 85°C (With Derating) | 80% | - | - | Through Hole | 0.67" L x 0.33" W x 0.47" H (17.0mm x 8.5mm x 12.0mm) | - | - | - | - |
|
TSR 0.6-4850WIDC DC CONVERTER 5V 3SIP |
173 |
|
Технический лист |
TSR 0.6WI | 3-SIP Module | Tube | Active | Non-Isolated PoL Module | 1 | 9V | 72V | 5V | - | - | - | 600mA | - | - | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 89% | - | - | Through Hole | 0.47" L x 0.34" W x 0.53" H (12.0mm x 8.6mm x 13.4mm) | - | - | - | - |
|
TMR 1-1222DC DC CONVERTER +/-12V 1W |
148 |
|
Технический лист |
TMR 1 (1W) | 6-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 9V | 18V | 12V | -12V | - | - | 42mA, 42mA | 1 W | 1.5 kV | ITE (Commercial) | OCP, SCP | -40°C ~ 85°C | 79% | - | - | Through Hole | 0.67" L x 0.30" W x 0.43" H (17.0mm x 7.6mm x 11.0mm) | Module | - | CB, CSA | - |
|
|
TMR 1-1211DC DC CONVERTER 5V 1W |
220 |
|
Технический лист |
TMR 1 (1W) | 6-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 9V | 18V | 5V | - | - | - | 200mA | 1 W | 1.5 kV | ITE (Commercial) | OCP, SCP | -40°C ~ 85°C | 77% | - | - | Through Hole | 0.67" L x 0.30" W x 0.43" H (17.0mm x 7.6mm x 11.0mm) | Module | - | CB, CSA | - |
|

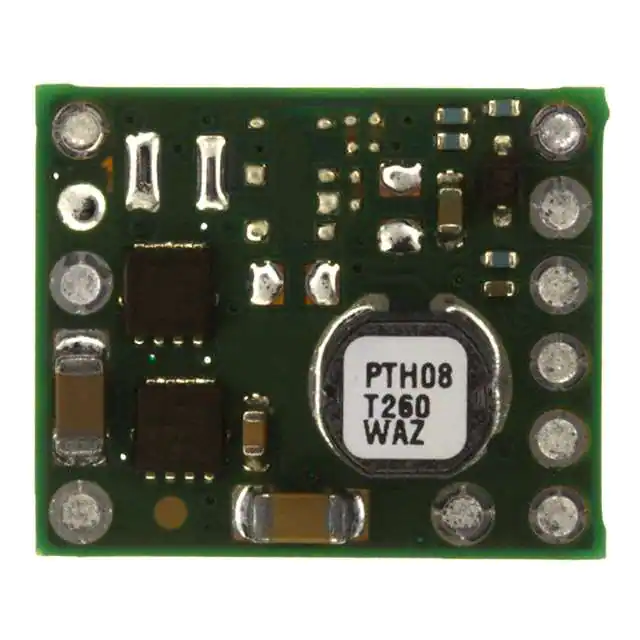

PTH08T260WAZDC DC CONVERTER 0.69-5.5V |
289 |
|
Технический лист |
PTH08T260W | 10-SMD Module | Bulk | Active | Non-Isolated PoL Module | 1 | 4.5V | 14V | 0.69 ~ 5.5V | - | - | - | 3A | - | - | ITE (Commercial) | Remote On/Off, OCP, OTP, UVLO | -40°C ~ 85°C | 95% | - | - | Surface Mount | 0.75" L x 0.62" W x 0.36" H (19.1mm x 15.7mm x 9.1mm) | - | - | - | - |
|
R-78B9.0-1.0LDC DC CONVERTER 9V 9W |
185 |
|
Технический лист |
INNOLINE R-78B-1.0 | 3-SIP Module | Tube | Active | Linear Regulator Replacement | 1 | 12V | 32V | 9V | - | - | - | 1A | 9 W | - | ITE (Commercial), Medical | OTP, SCP | -40°C ~ 85°C | 95% | - | - | Through Hole, Right Angle | 0.69" L x 0.45" W x 0.33" H (17.5mm x 11.5mm x 8.5mm) | - | - | - | - |
|
TPS84620RUQTDC DC CONVERTER 1.2-5.5V |
1,422 |
|
Технический лист |
- | 47-BQFN Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 4.5V | 14.5V | 1.2 ~ 5.5V | - | - | - | 6A | - | - | ITE (Commercial) | - | -40°C ~ 85°C | 90% | - | - | Surface Mount | 0.59" L x 0.35" W x 0.11" H (15.0mm x 9.0mm x 2.8mm) | 47-B1QFN (15x9) | Enable, Active High | - | - |
|
EC3SAW-24S05PDC DC CONVERTER 5V 3W |
2,665 |
|
Технический лист |
EC3SAW (3W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 5V | - | - | - | 600mA | 3 W | 1.5 kV | ITE (Commercial) | Remote On/Off, SCP, UVLO | -40°C ~ 85°C (With Derating) | 81% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm) | - | Enable, Active High | CE | 60950-1 |
|
R2S-053.3DC DC CONVERTER 3.3V 2W |
160 |
|
Технический лист |
ECONOLINE R2S (2W) | 8-SMD Module, 5 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 3.3V | - | - | - | 606mA | 2 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 100°C | 75% | - | - | Surface Mount | 0.50" L x 0.42" W x 0.35" H (12.8mm x 10.7mm x 9.0mm) | - | - | - | - |
|
MYMGK1R820FRSR-H20A, NON-ISOLATED POL DC/DC CONV |
405 |
|
Технический лист |
MonoBlock MYMGK | 37-SMD Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 4.5V | 8V | 0.7 ~ 1.8V | - | - | - | 20A | 36 W | - | ITE (Commercial) | Adjustable Output, Remote On/Off, Remote Sense | -40°C ~ 105°C (With Derating) | 89.2% | - | - | Surface Mount | 0.41" L x 0.35" W x 0.22" H (10.5mm x 9.0mm x 5.6mm) | - | Enable, Active High | - | - |
|
MEE3S0509SCDC DC CONVERTER 9V 3W |
252 |
|
Технический лист |
MEE3 (3W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 9V | - | - | - | 333mA | 3 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 87% | - | - | Through Hole | 0.56" L x 0.32" W x 0.40" H (14.2mm x 8.2mm x 10.2mm) | - | - | - | - |
|
ADUM6028-3BRIZ-RLDC DC CONVERTER 3.3V 300MW |
2,618 |
|
Технический лист |
IsoPower®, iCoupler® | 8-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Isolated Module | 1 | 3V | 3.6V | 3.3V | - | - | - | 60mA | - | 5 kV | ITE (Commercial) | OTP, UVLO | -40°C ~ 125°C | 33% | - | - | Surface Mount | 0.23" L x 0.30" W x 0.10" H (5.9mm x 7.5mm x 2.7mm) | 8-SOIC-IC | - | - | - |
|
|
ADUM6028-3BRIZDC DC CONVERTER 3.3V 300MW |
452 |
|
Технический лист |
IsoPower®, iCoupler® | 8-SOIC (0.295", 7.50mm Width) | Tube | Active | Isolated Module | 1 | 3V | 3.6V | 3.3V | - | - | - | 60mA | - | 5 kV | ITE (Commercial) | OTP, UVLO | -40°C ~ 125°C | 33% | - | - | Surface Mount | 0.23" L x 0.30" W x 0.10" H (5.9mm x 7.5mm x 2.7mm) | 8-SOIC-IC | - | - | - |
|
MYMGM1R824ELA5RP40A WITH 2 MODULES BY MULTI PHAS |
616 |
|
Технический лист |
MonoBK™ MYMGM | 56-SMD Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 7.5V | 15V | 0.7 ~ 1.2V | - | - | - | 40A | 48 W | - | ITE (Commercial) | Adjustable Output, I2C Interface, Load Sharing, PMBus™, Remote On/Off, Remote Sense | -40°C ~ 105°C (With Derating) | 86.1% | - | - | Surface Mount | 0.41" L x 0.35" W x 0.20" H (10.5mm x 9.0mm x 5.0mm) | - | Enable, Active High | - | - |
|
|
R2D-1215DC DC CONVERTER +/-15V 2W |
143 |
|
Технический лист |
ECONOLINE R2D (2W) | 10-SMD Module, 6 Leads | Tube | Active | Isolated Module | 2 | 10.8V | 13.2V | 15V | -15V | - | - | 66mA, 66mA | 2 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 100°C | 85% | - | - | Surface Mount | 0.60" L x 0.42" W x 0.35" H (15.2mm x 10.7mm x 9.0mm) | - | - | - | - |
|
DCPA10505P-U/700DC DC CONVERTER 5V 1W |
888 |
|
Технический лист |
DCPA1 (1W) | 14-SMD Module, 7 Leads, Gull Wing | Tape & Reel (TR) | Active | Isolated Module | 1 | 4.5V | 5.5V | 5V | - | - | - | 200mA | 1 W | 2 kV | ITE (Commercial) | - | -40°C ~ 100°C | 85% | - | - | Surface Mount | 0.76" L x 0.26" W x 0.21" H (19.2mm x 6.6mm x 5.3mm) | 7-SOP | - | - | - |
|
TEC 2-2411WIDC DC CONVERTER 5V 2W |
353 |
|
Технический лист |
TEC 2WI (2W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 5V | - | - | - | 400mA | 2 W | 1.6 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 93°C (With Derating) | 80% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.1mm x 11.2mm) | - | - | - | - |
|
TPSM64406RCHRHIGH-DENSITY, 36V, 0.8V-TO-16V O |
538 |
|
Технический лист |
- | 28-PowerFQFN Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 2 | 3V | 36V | 0.8 ~ 16V | 0.8 ~ 16V | - | - | 3A, 3A | 96 W | - | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 125°C | 91.5% | - | - | Surface Mount, Wettable Flank | 0.28" L x 0.26" W x 0.08" H (7.0mm x 6.5mm x 2.0mm) | 28-QFN-FCMOD (6.5x7) | - | - | - |
