Преобразователи переменного тока в постоянный
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Количество выходов | Напряжение - Вход | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Ток - выход (макс.) | Мощность (Вт) | Применение | Особенности | Рабочая температура | Эффективность | Тип крепления | Размер/измерение | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IRM-10-3.3AC/DC CONVERTER 3.3V 8.25W |
536 |
|
Технический лист |
IRM-10 (10W) | 4-DIP Module | Box | Active | Enclosed | 1 | 85 ~ 305 VAC, 120 ~ 430 VDC | 3.3V | - | - | - | 2.5A | 8.25 W | ITE (Commercial) | Universal Input | -30°C ~ 70°C (With Derating) | 74% | Through Hole | 1.80" L x 1.00" W x 0.85" H (45.7mm x 25.4mm x 21.5mm) | CB, CE, cURus, EAC, TUV | - |
|
MPM-05-12AC/DC CONVERTER 12V 5W |
951 |
|
Технический лист |
MPM-05 (5W) | 4-DIP Module | Box | Active | Enclosed | 1 | 80 ~ 264 VAC | 12V | - | - | - | 420mA | 5 W | Medical | Universal Input | -40°C ~ 85°C (With Derating) | 80% | Through Hole | 1.80" L x 1.00" W x 0.85" H (45.7mm x 25.4mm x 21.5mm) | CB, CE, cURus, TUV | - |
|
RAC10E-05SK/27710W AC/DC-CONVERTER 'POWERLINE' |
108 |
|
Технический лист |
POWERLINE RAC10E-K (10W) | 4-DIP Module | Tube | Active | Enclosed | 1 | 85 ~ 305 VAC, 120 ~ 430 VDC | 5V | - | - | - | 2A | 10 W | ITE (Commercial) | Baseplate | -40°C ~ 65°C | 80% | Through Hole | 1.80" L x 1.00" W x 0.85" H (45.7mm x 25.4mm x 21.5mm) | CB, CE, cURus | 62368-1 |
|
IRM-15-3.3AC/DC CONVERTER 3.3V 12W |
161 |
|
Технический лист |
IRM-15 (15W) | 4-DIP Module | Box | Active | Enclosed | 1 | 85 ~ 305 VAC, 120 ~ 430 VDC | 3.3V | - | - | - | 3.5A | 12 W | ITE (Commercial) | Universal Input | -30°C ~ 70°C (With Derating) | 74% | Through Hole | 2.06" L x 1.07" W x 0.94" H (52.4mm x 27.2mm x 24.0mm) | CB, CE, cURus, TUV | - |
|
MFM-10-24AC/DC CONVERTER 24V 10W |
160 |
|
Технический лист |
MFM-10 (10W) | 4-DIP Module | Box | Active | Open Frame | 1 | 80 ~ 264 VAC | 24V | - | - | - | 420mA | 10 W | Medical | Universal Input | -30°C ~ 85°C (With Derating) | 84% | Through Hole | 1.65" L x 0.88" W x 0.81" H (42.0mm x 22.3mm x 20.5mm) | CB, CE, cURus, TUV | - |
|
RACM06E-12SK/2776W AC/DC-CONVERTER 'POWERLINE' 1 |
241 |
|
Технический лист |
RACM06E-K/277 (6W) | 5-DIP Module, 4 Leads | Tube | Active | Enclosed | 1 | 80 ~ 305 VAC, 120 ~ 430 VDC | 12V | - | - | - | 500mA | 6 W | Household Appliances, ITE (Commercial), Medical | PFC, Universal Input | -40°C ~ 90°C (With Derating) | 82% | Through Hole | 1.00" L x 1.00" W x 0.66" H (25.4mm x 25.4mm x 16.7mm) | CE, cURus, UKCA | 60335-1; 60601-1; 62368-1 |
|

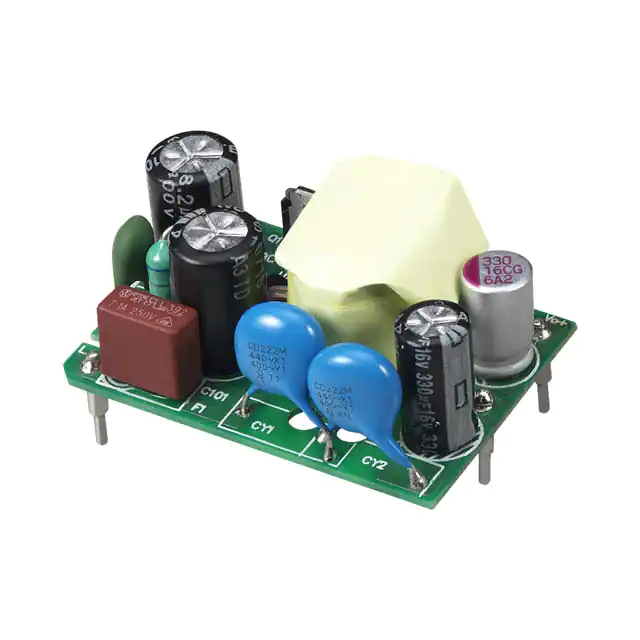

CFM12S050AC/DC CONVERTER 5V 10W |
174 |
|
Технический лист |
CFM12S (12W) | Module | Box | Active | Open Frame | 1 | 90 ~ 264 VAC | 5V | - | - | - | 2A | 10 W | Household Appliances, ITE (Commercial) | Universal Input | -40°C ~ 75°C (With Derating) | 80% | Through Hole | 1.50" L x 1.00" W x 0.76" H (38.1mm x 25.4mm x 19.2mm) | CE, cURus, FCC, Nemko | 60335-1; 62368-1 |
|
MPM-10-5AC/DC CONVERTER 5V 10W |
1,444 |
|
Технический лист |
MPM-10 (10W) | 4-DIP Module | Box | Active | Enclosed | 1 | 80 ~ 264 VAC | 5V | - | - | - | 2A | 10 W | Medical | Universal Input | -30°C ~ 85°C (With Derating) | 81% | Through Hole | 1.80" L x 1.00" W x 0.85" H (45.7mm x 25.4mm x 21.5mm) | CB, CE, cURus, TUV | - |
|
|
IRM-15-15AC/DC CONVERTER 15V 15W |
823 |
|
Технический лист |
IRM-15 (15W) | 4-DIP Module | Box | Active | Enclosed | 1 | 85 ~ 305 VAC, 120 ~ 430 VDC | 15V | - | - | - | 1A | 15 W | ITE (Commercial) | Universal Input | -30°C ~ 70°C (With Derating) | 82% | Through Hole | 2.06" L x 1.07" W x 0.94" H (52.4mm x 27.2mm x 24.0mm) | CB, CE, cURus, TUV | - |
|

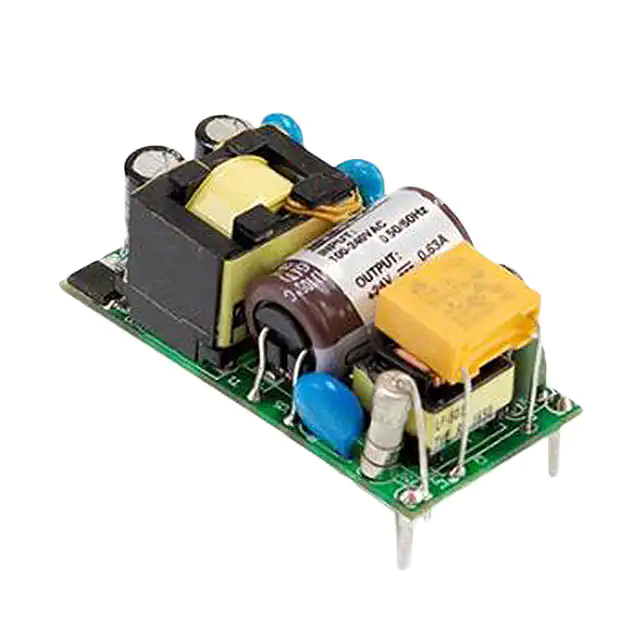

MFM-15-15AC/DC CONVERTER 15V 15W |
474 |
|
Технический лист |
MFM-15 (15W) | 4-DIP Module | Box | Active | Open Frame | 1 | 80 ~ 264 VAC | 15V | - | - | - | 1A | 15 W | Household Appliances, Medical | Universal Input | -35°C ~ 85°C (With Derating) | 87% | Through Hole | 1.93" L x 0.94" W x 0.91" H (49.0mm x 23.8mm x 23.0mm) | CB, CE, cURus, EAC, TUV | - |
|
RAC04-05SK/277AC/DC CONVERTER 5V 4W |
1,054 |
|
Технический лист |
POWERLINE RAC04-K/277 (4W) | 6-DIP Module | Tube | Active | Enclosed | 1 | 80 ~ 305 VAC, 110 ~ 390 VDC | 5V | - | - | - | 800mA | 4 W | Household Appliances, ITE (Commercial) | - | -40°C ~ 90°C (With Derating) | 76% | Through Hole | 1.44" L x 1.07" W x 0.69" H (36.7mm x 27.2mm x 17.4mm) | CB, CE, cURus | - |
|

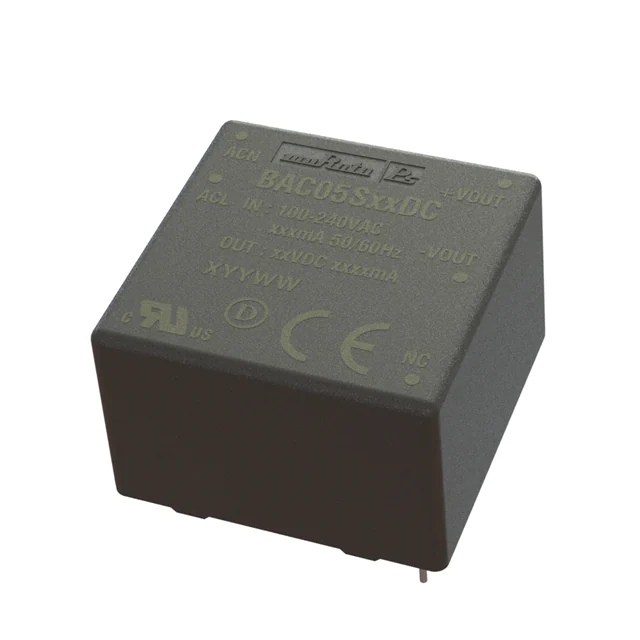

BAC05S05DCAC/DC CONVERTER 5V 5W |
168 |
|
Технический лист |
BAC05 (5W) | 5-DIP Module | Tube | Active | Enclosed | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 5V | - | - | - | 1A | 5 W | ITE (Commercial), Medical | Universal Input | -40°C ~ 85°C (With Derating) | 76% | Through Hole | 1.00" L x 1.00" W x 0.64" H (25.4mm x 25.4mm x 16.3mm) | CE, cURus | - |
|
RAC3.5-05SK/277AC/DC CONVERTER 5V 3.5W |
676 |
|
Технический лист |
POWERLINE RAC3.5-K/277 | 9-DIP Module, 4 Leads | Tube | Active | Enclosed | 1 | 85 ~ 305 VAC, 120 ~ 430 VDC | 5V | - | - | - | 700mA | 3.5 W | Household Appliances, ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 80% | Through Hole | 1.25" L x 1.05" W x 0.86" H (31.7mm x 26.7mm x 21.8mm) | CE, cURus | - |
|
CFM12S120-EAC/DC CONVERTER 12V 12W |
230 |
|
Технический лист |
CFM12S (12W) | Module | Tube | Active | Enclosed | 1 | 90 ~ 264 VAC | 12V | - | - | - | 1A | 12 W | Household Appliances, ITE (Commercial) | Universal Input | -40°C ~ 75°C (With Derating) | 85% | Through Hole | 1.60" L x 1.10" W x 0.77" H (40.6mm x 27.9mm x 19.6mm) | CE, cURus, FCC, Nemko | 60335-1; 62368-1 |
|
RAC04-15SGBAC/DC CONVERTER 15V 4W |
470 |
|
Технический лист |
POWERLINE RAC04-GB (4W) | 16-DIP Module, 5 Leads | Tube | Active | Enclosed | 1 | 85 ~ 305 VAC | 15V | - | - | - | 270mA | 4 W | Household Appliances, ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 78% | Through Hole | 1.46" L x 0.94" W x 0.59" H (37.0mm x 24.0mm x 15.0mm) | CE, cURus | - |
|
RAC05-3.3SKAC/DC CONVERTER 3.3V 5W |
185 |
|
Технический лист |
POWERLINE RAC05-K (5W) | 5-DIP Module | Tube | Active | Enclosed | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 3.3V | - | - | - | 1.515A | 5 W | ITE (Commercial) | Universal Input | -25°C ~ 70°C (With Derating) | 76% | Through Hole | 1.00" L x 1.00" W x 0.65" H (25.4mm x 25.4mm x 16.5mm) | CE, cURus | - |
|
RAC05-05SK/277AC/DC CONVERTER 5V 5W |
3,573 |
|
Технический лист |
POWERLINE RAC05-K/277 (5W) | 9-DIP Module, 4 Leads | Tube | Active | Enclosed | 1 | 85 ~ 305 VAC, 120 ~ 430 VDC | 5V | - | - | - | 1A | 5 W | Household Appliances, ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 80% | Through Hole | 1.25" L x 1.05" W x 0.86" H (31.7mm x 26.7mm x 21.8mm) | CE, cURus | - |
|
VOF-10B-S5AC/DC CONVERTER 5V 10W |
214 |
|
Технический лист |
VOF-10B (10W) | 4-DIP Module | Box | Active | Open Frame | 1 | 85 ~ 264 VAC | 5V | - | - | - | 2A | 10 W | ITE (Commercial) | Universal Input | -25°C ~ 70°C (With Derating) | 79% | Through Hole | 1.91" L x 0.92" W x 0.81" H (48.6mm x 23.3mm x 20.5mm) | CB Scheme, EN, FCC, IEC, UL | 60950-1; 61000-3-2; 61000-3-3; 62368-1 |
|
|
RAC05-24SK/277AC/DC CONVERTER 24V 5W |
117 |
|
Технический лист |
POWERLINE RAC05-K/277 (5W) | 9-DIP Module, 4 Leads | Tube | Active | Enclosed | 1 | 85 ~ 305 VAC, 120 ~ 430 VDC | 24V | - | - | - | 210mA | 5 W | Household Appliances, ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 84% | Through Hole | 1.25" L x 1.05" W x 0.86" H (31.7mm x 26.7mm x 21.8mm) | CE, cURus | - |
|
PSK-6B-S5AC/DC CONVERTER 5V 6W |
137 |
|
Технический лист |
PSK-6B (6W) | 4-DIP Module | Tube | Active | Enclosed | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 5V | - | - | - | 1.2A | 6 W | ITE (Commercial) | Universal Input | -25°C ~ 70°C (With Derating) | 75.18% | Through Hole | 2.00" L x 1.00" W x 0.66" H (50.8mm x 25.4mm x 16.7mm) | CB Scheme, EN, FCC, IEC, UL | 60950-1; 61000-3-2; 61000-3-3; 62368-1 |
