Преобразователи переменного тока в постоянный
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Количество выходов | Напряжение - Вход | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Ток - выход (макс.) | Мощность (Вт) | Применение | Особенности | Рабочая температура | Эффективность | Тип крепления | Размер/измерение | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PAAM150-14AC/DC CONVERTER 24V 150W |
166 |
|
Технический лист |
PAAM150 (150W) | 7-DIP Module | Box | Active | Enclosed | 1 | 90 ~ 264 VAC, 120 ~ 370 VDC | 24V | - | - | - | 6.25A | 150 W | ITE (Commercial), Medical | Adjustable Output, PFC, Universal Input | -30°C ~ 70°C (With Derating) | 93.5% | Through Hole | 4.29" L x 2.30" W x 1.38" H (109.0mm x 58.5mm x 35.0mm) | CB, CE, cURus | 60601-1; 60950-1; 62368-1 |
|

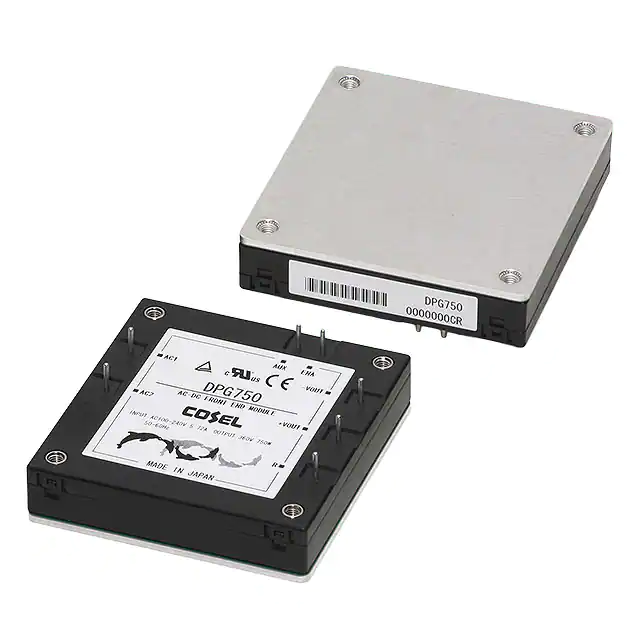

DPG750AC/DC CONVERTER 360V 750W |
66 |
|
Технический лист |
DPG (750W) | 7-DIP Module | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 360V | - | - | - | - | 750 W | ITE (Commercial) | Remote On/Off, Universal Input | -40°C ~ 100°C (With Derating) | 96% | Through Hole | 2.40" L x 2.30" W x 0.50" H (61.0mm x 58.4mm x 12.7mm) | CE, cURus, TUV | - |
|
TUXS200F28AC/DC CONVERTER 28V 200W |
123 |
|
Технический лист |
TUX (200W) | 8-DIP Module | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 28V | - | - | - | 7A | 200 W | ITE (Commercial) | Adjustable Output, PFC, Universal Input | -40°C ~ 100°C (With Derating) | 91% | Through Hole | 3.00" L x 2.00" W x 1.12" H (76.2mm x 50.8mm x 28.4mm) | CE, cURus, TUV | - |
|
PACSR12042SAC/DC CONVERTER 12V 504W |
81 |
|
Технический лист |
PACSR | 10-DIP Module | Box | Active | Enclosed | 1 | 85 ~ 265 VAC | 12V | - | - | - | 42A | 504 W | ITE (Commercial) | Adjustable Output, Baseplate, Remote Sense, Universal Input | -40°C ~ 100°C (With Derating) | 91% | Through Hole | 4.36" L x 2.00" W x 0.54" H (110.7mm x 50.8mm x 13.7mm) | CE | - |
|

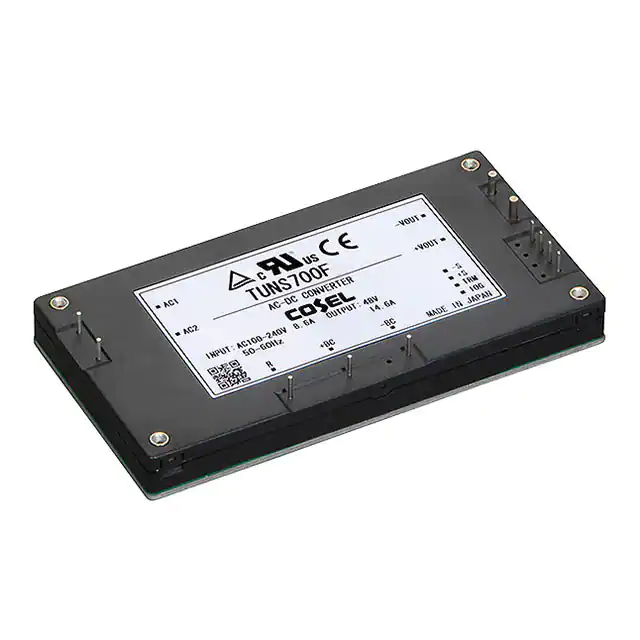

TUNS700F28AC/DC CONVERTER 28V 700W |
155 |
|
Технический лист |
TUNS (700W) | 7-DIP Module | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 28V | - | - | - | 25A | 700 W | ITE (Commercial) | Universal Input | -40°C ~ 100°C (With Derating) | 89% | Through Hole | 4.62" L x 2.42" W x 0.50" H (117.3mm x 61.5mm x 12.7mm) | CE, CSA, cURus, TUV, UL | 60950-1; 62368-1 |
|
AIT02ZPFC-01NLAC/DC CONVERTER 393V 719W |
108 |
|
Технический лист |
- | 32-DIP Module, 13 Leads | Bulk | Active | Enclosed | 1 | 85 ~ 264 VAC | 393V | - | - | - | 1.83A | 719 W | ITE (Commercial) | Universal Input | -20°C ~ 100°C | 93% | Through Hole | 3.50" L x 2.40" W x 0.55" H (88.9mm x 61.0mm x 14.0mm) | cUL, TUV, UL | - |
|
ASB110PS12AC/DC CONVERTER 12V 110W |
1,117 |
|
Технический лист |
ASB110 (110W) | 5-DIP Module | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 12V | - | - | - | 9.17A | 110 W | ITE (Commercial) | Universal Input | -40°C ~ 85°C (With Derating) | 90% | Through Hole | 4.60" L x 2.40" W x 0.67" H (116.8mm x 61.0mm x 17.0mm) | CB, CE, cURus, TUVgs | 62368-1 |
|
|
ASB110PS24AC/DC CONVERTER 24V 110W |
773 |
|
Технический лист |
ASB110 (110W) | 5-DIP Module | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 24V | - | - | - | 4.58A | 110 W | ITE (Commercial) | Universal Input | -40°C ~ 85°C (With Derating) | 91% | Through Hole | 4.60" L x 2.40" W x 0.67" H (116.8mm x 61.0mm x 17.0mm) | CB, CE, cURus, TUVgs | 62368-1 |
|
|
AIF04ZPFC-01NTLAC/DC CONVERTER 380V 1600W |
295 |
|
Технический лист |
AIF-PFC (1600W) | 34-DIP Module, 24 Leads | Bulk | Active | Enclosed | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 380V | - | - | - | 4.2A | 1600 W | ITE (Commercial) | Universal Input | -20°C ~ 100°C | 95% | Through Hole | 4.60" L x 2.40" W x 0.55" H (116.8mm x 61.0mm x 14.0mm) | cUL, TUV, UL | 62368-1 |
|
|
AIF04ZPFC-02LAC/DC CONVERTER 380V 1600W |
52 |
|
Технический лист |
AIF-PFC (1600W) | 34-DIP Module, 24 Leads | Bulk | Active | Enclosed | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 380V | - | - | - | 4.2A | 1600 W | ITE (Commercial) | Universal Input | -20°C ~ 100°C | 95% | Through Hole | 4.60" L x 2.40" W x 0.55" H (116.8mm x 61.0mm x 14.0mm) | cUL, TUV, UL | 62368-1 |
|
|
AIF04ZPFC-02NTLAC/DC CONVERTER 380V 1600W |
83 |
|
Технический лист |
AIF-PFC (1600W) | 34-DIP Module, 24 Leads | Bulk | Active | Enclosed | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 380V | - | - | - | 4.2A | 1600 W | ITE (Commercial) | Universal Input | -20°C ~ 100°C | 95% | Through Hole | 4.60" L x 2.40" W x 0.55" H (116.8mm x 61.0mm x 14.0mm) | cUL, TUV, UL | 62368-1 |
|
|
AIF04ZPFC-01LAC/DC CONVERTER 380V 1600W |
978 |
|
Технический лист |
AIF-PFC (1600W) | 34-DIP Module, 24 Leads | Bulk | Active | Enclosed | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 380V | - | - | - | 4.2A | 1600 W | ITE (Commercial) | Universal Input | -20°C ~ 100°C | 95% | Through Hole | 4.60" L x 2.40" W x 0.55" H (116.8mm x 61.0mm x 14.0mm) | cUL, TUV, UL | 62368-1 |
|

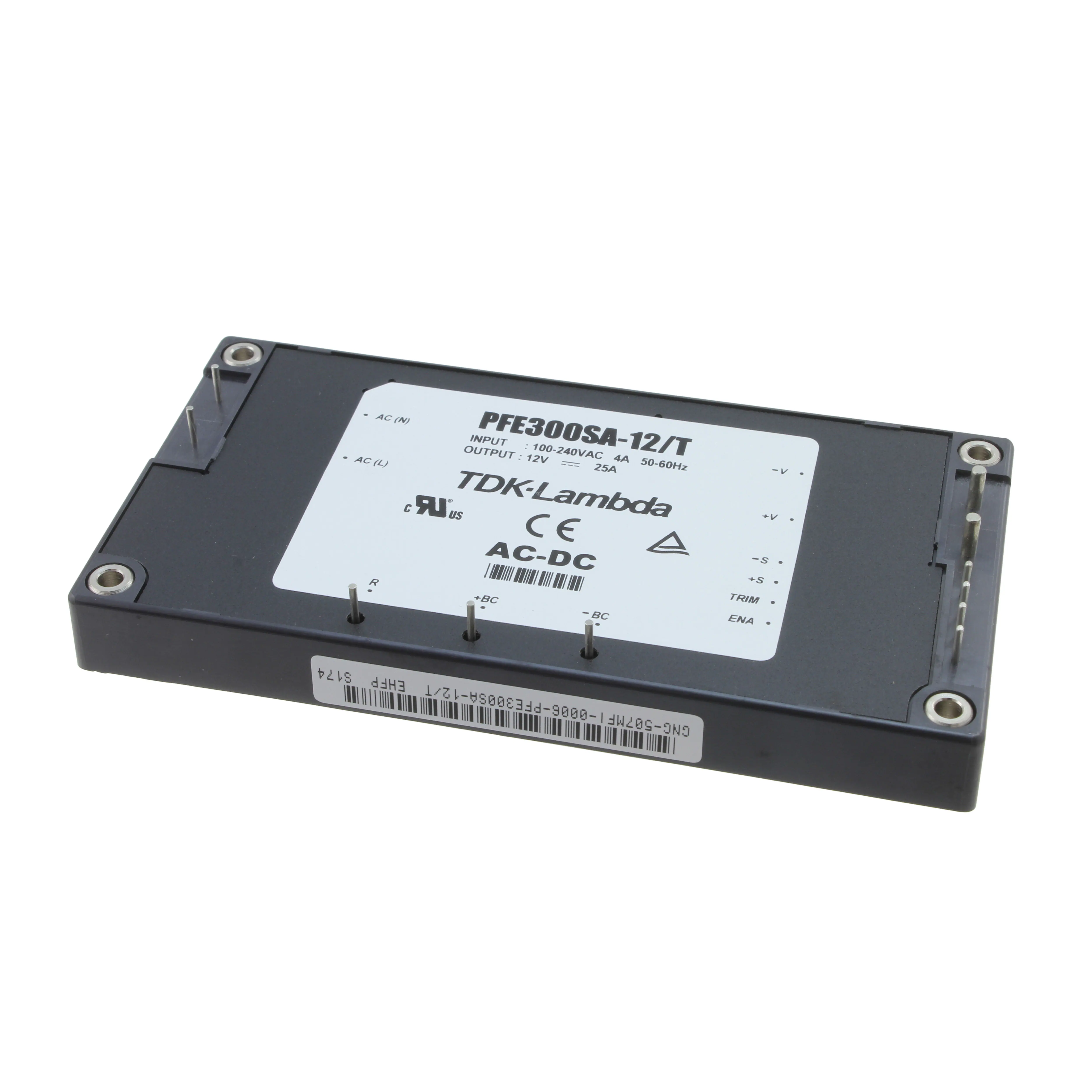

PFE300SA-28AC/DC CONVERTER 28V 302W |
770 |
|
Технический лист |
PFE300SA (300W) | 11-DIP Module, Full Brick | Bulk | Active | Enclosed | 1 | 85 ~ 265 VAC | 28V | - | - | - | 10.8A | 302 W | ITE (Commercial) | Remote On/Off, Universal Input | -40°C ~ 100°C (With Derating) | 89% | Through Hole | 4.60" L x 2.40" W x 0.50" H (116.8mm x 61.0mm x 12.7mm) | CE, CSA, UL | 60950-1; 62368-1 |
|
|
PFE300SA-28/TAC/DC CONVERTER 28V 302W |
34 |
|
Технический лист |
PFE300SA (300W) | 11-DIP Module, Full Brick | Bulk | Active | Enclosed | 1 | 85 ~ 265 VAC | 28V | - | - | - | 10.8A | 302 W | ITE (Commercial) | Remote On/Off, Universal Input | -40°C ~ 100°C (With Derating) | 89% | Through Hole | 4.60" L x 2.40" W x 0.50" H (116.8mm x 61.0mm x 12.7mm) | CE, CSA, UL | 60950-1; 62368-1 |
|
PFE500SA-28/TAC/DC CONVERTER 28V 504W |
964 |
|
Технический лист |
PFE500SA (500W) | 11-DIP Module, Full Brick | Bulk | Active | Enclosed | 1 | 85 ~ 265 VAC | 28V | - | - | - | 18A | 504 W | ITE (Commercial) | Remote On/Off, Universal Input | -40°C ~ 100°C (With Derating) | 89% | Through Hole | 4.60" L x 2.40" W x 0.50" H (116.8mm x 61.0mm x 12.7mm) | CE, CSA, UL | 60950-1; 62368-1 |
|
|
PFE500SA-48/TAC/DC CONVERTER 48V 504W |
153 |
|
Технический лист |
PFE500SA (500W) | 11-DIP Module, Full Brick | Bulk | Active | Enclosed | 1 | 85 ~ 265 VAC | 48V | - | - | - | 10.5A | 504 W | ITE (Commercial) | Remote On/Off, Universal Input | -40°C ~ 100°C (With Derating) | 91% | Through Hole | 4.60" L x 2.40" W x 0.50" H (116.8mm x 61.0mm x 12.7mm) | CE, CSA, UL | 60950-1; 62368-1 |
|
|
PFE500SA-28AC/DC CONVERTER 28V 504W |
79 |
|
Технический лист |
PFE500SA (500W) | 11-DIP Module, Full Brick | Bulk | Active | Enclosed | 1 | 85 ~ 265 VAC | 28V | - | - | - | 18A | 504 W | ITE (Commercial) | Remote On/Off, Universal Input | -40°C ~ 100°C (With Derating) | 89% | Through Hole | 4.60" L x 2.40" W x 0.50" H (116.8mm x 61.0mm x 12.7mm) | CE, CSA, UL | 60950-1; 62368-1 |
|
|
PFE500SA-48AC/DC CONVERTER 48V 504W |
57 |
|
Технический лист |
PFE500SA (500W) | 11-DIP Module, Full Brick | Bulk | Active | Enclosed | 1 | 85 ~ 265 VAC | 48V | - | - | - | 10.5A | 504 W | ITE (Commercial) | Remote On/Off, Universal Input | -40°C ~ 100°C (With Derating) | 91% | Through Hole | 4.60" L x 2.40" W x 0.50" H (116.8mm x 61.0mm x 12.7mm) | CE, CSA, UL | 60950-1; 62368-1 |
|
PFE700SA-48AC/DC CONVERTER 51V 714W |
81 |
|
Технический лист |
PFE700SA (700W) | 11-DIP Module, Full Brick | Bulk | Active | Enclosed | 1 | 85 ~ 265 VAC | 51V | - | - | - | 14A | 714 W | ITE (Commercial) | Remote On/Off, Universal Input | -40°C ~ 100°C (With Derating) | 91% | Through Hole | 4.60" L x 2.40" W x 0.50" H (116.8mm x 61.0mm x 12.7mm) | CE, CSA, UL | 60950-1; 62368-1 |
|
AIF06ZPFC-02NTLAC/DC CONVERTER 400V 2.4KW |
29 |
|
Технический лист |
AIF06ZPFC (2400W) | Full Brick | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 400V | - | - | - | 6A | 2.4 kW | ITE (Commercial) | Adjustable Output, Baseplate, Load Sharing, PFC, PMBus™, Remote On/Off, Universal Input | -40°C ~ 100°C | 97% | Through Hole | 4.60" L x 2.40" W x 0.55" H (116.8mm x 61.0mm x 14.0mm) | CE, CSA, UL | 62368-1 |
