Реле мощности, более 2 А
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип крепления | Напряжение катушки | Форма контакта | Номинал контакта (ток) | Напряжение переключения | Нагрузка - макс. переключение | Ток катушки | Тип катушки | Особенности | Тип вывода | Номинал уплотнения | Изоляция катушки | Необходимое рабочее напряжение | Необходимое отпускающее напряжение | Время срабатывания | Время отпускания | Рабочая температура | Материал контакта | Сертифицирующее агентство | Тип реле | Марка | Квалификация |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CAD50U7RELAY GEN PURPOSE 5PST 10A 240V |
0 |
|
Технический лист |
TeSys | Box | Active | DIN Rail | 240VAC | 5PST-NO (5 Form A) | 10 A | 690VAC - Max | - | - | Non Latching | - | Screw Terminal | - | - | 204 VAC | 72 VAC | 22 ms | 12 ms | -40°C ~ 70°C | - | CSA, UL | General Purpose | - | - |
|

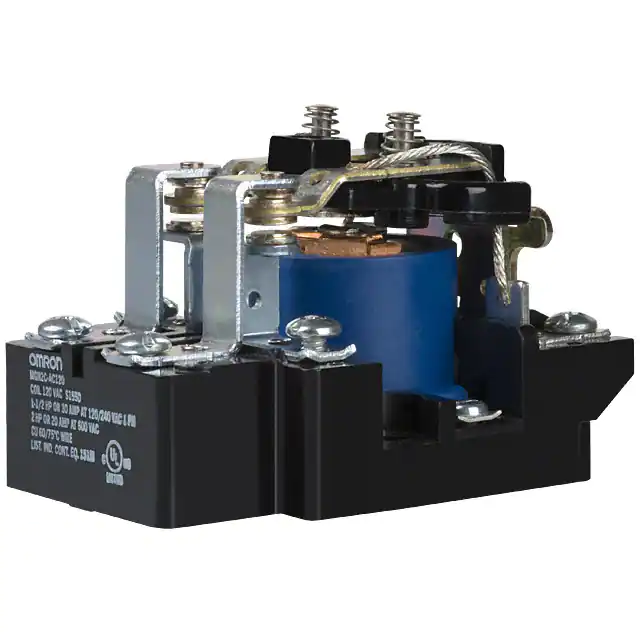

MGN2CM-AC240RELAY GEN PURPOSE DPDT 30A 240V |
0 |
|
Технический лист |
MGN | Bulk | Active | Chassis Mount | 240VAC | DPDT (2 Form C) | 30 A | 600VAC, 28VDC - Max | 18000VA, 840W | 40 mA | Non Latching | - | Screw Terminal | - | Class F | 204 VAC | - | 30 ms | 30 ms | -45°C ~ 80°C | - | cURus | General Purpose | - | - |
|
|
PRDA-11DYA-12RELAY GEN PURPOSE DPDT 25A 12V |
0 |
|
Технический лист |
PRDA | Bulk | Obsolete | Chassis Mount | 12VDC | DPDT (2 Form C) | 25 A | 600VAC, 125VDC - Nom | - | 169 mA | Non Latching | - | Screw Terminal | - | Class B | 9 VDC | 1.2 VDC | 40 ms | 20 ms | -55°C ~ 80°C | Silver (Ag) | CSA, UL | General Purpose | - | - |
|
3RQ30182AB00RELAY GEN PURPOSE SPDT 3A 24V |
0 |
|
Технический лист |
SIRIUS 3RQ3 | Box | Active | DIN Rail | 24VAC/DC | SPDT (1 Form C) | 3 A | 250VAC - Max | 750VA | - | Non Latching | Lighted Indicator | Spring Terminal | - | - | - | - | 12 ms | 14 ms | -25°C ~ 60°C | Silver Tin Oxide (AgSnO) | CCC, CSA, EAC, UL | General Purpose | - | - |
|
|
ACC433UMM20RELAY CONTACTOR 40A 3P 120V |
0 |
|
- |
- | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MM2X DC24RELAY GEN PURPOSE DPDT 10A 24V |
0 |
|
Технический лист |
MM | Bulk | Active | Chassis Mount | 24VDC | DPDT (2 Form C) | 10 A | 250VAC, 250VDC - Max | - | 87 mA | Non Latching | - | Solder Lug | - | - | 16.8 VDC | 2.4 VDC | 50 ms | 30 ms | -10°C ~ 55°C | Silver (Ag) | - | General Purpose | - | - |
|
|
MM2XP AC24RELAY GEN PURPOSE DPDT 7A 24V |
0 |
|
Технический лист |
MM | Bulk | Active | Socketable | 24VAC | DPDT (2 Form C) | 7.5 A | 250VAC, 250VDC - Max | 20VA, 800W | 145 mA | Non Latching | - | Plug In, 8 Pin (Octal) | - | - | 19.2 VAC | 7.2 VAC | 25 ms | 30 ms | -10°C ~ 55°C | Silver (Ag) | - | General Purpose | - | - |
|
|
3RS18001BQ00RELAY GEN PURP DPDT 3A 24-120V |
0 |
|
Технический лист |
SIRIUS 3RS18 | Box | Active | DIN Rail | 24 ~ 120VAC | DPDT (2 Form C) | 3 A | 250VAC - Max | 750VA | - | Non Latching | - | Screw Terminal | - | - | - | - | - | - | -25°C ~ 60°C | - | CCC, CSA, EAC, UL | General Purpose | - | - |
|
|
3RS18001BP00RELAY GEN PURP DPDT 3A 24-240V |
0 |
|
Технический лист |
SIRIUS 3RS18 | Box | Active | DIN Rail | 24 ~ 240VAC | DPDT (2 Form C) | 3 A | 250VAC - Max | 750VA | - | Non Latching | - | Screw Terminal | - | - | - | - | - | - | -25°C ~ 60°C | - | CCC, CSA, EAC, UL | General Purpose | - | - |
|
3RQ31181AF00RELAY GEN PURPOSE SPDT 3A 230V |
0 |
|
Технический лист |
SIRIUS 3RQ3 | Box | Active | DIN Rail | 230VAC/DC | SPDT (1 Form C) | 3 A | 250VAC - Max | 750VA | - | Non Latching | Lighted Indicator | Screw Terminal | - | - | - | - | 9 ms | 19 ms | -25°C ~ 60°C | Silver Tin Oxide (AgSnO) | CCC, CSA, EAC, UL | General Purpose | - | - |
|
9-1393806-1RELAY GEN PURPOSE DPST 5A 24V |
0 |
|
Технический лист |
V23154, AXICOM | Bulk | Obsolete | Socketable | 24VDC | DPST-NO (2 Form A) | 5 A | 125VAC, 150VDC - Max | 625VA, 750W | 16.7 mA | Non Latching | - | Plug In | - | - | 11 VDC | - | 7.5 ms | 3 ms | -40°C ~ 70°C | Silver (Ag) | - | General Purpose | - | - |
|
|
910481RELAY GEN PURPOSE SPDT 10A 120V |
0 |
|
- |
- | Bulk | Active | DIN Rail | 120VAC | SPDT (1 Form C) | 10 A | 240VAC - Max | 28800VA | 7.5 mA | Non Latching | Lighted Indicator, Socket Included | Screw Terminal | - | - | - | - | 20 ms | 20 ms | -25°C ~ 40°C | Silver Cadmium Oxide (AgCdO) | - | General Purpose | - | - |
|
|
3RS18002BQ00RELAY GEN PURP DPDT 3A 24-120V |
0 |
|
Технический лист |
SIRIUS 3RS18 | Box | Active | DIN Rail | 24 ~ 120VAC | DPDT (2 Form C) | 3 A | 250VAC - Max | 750VA | - | Non Latching | - | Spring Terminal | - | - | - | - | - | - | -25°C ~ 60°C | - | CCC, CSA, EAC, UL | General Purpose | - | - |
|
|
3RS18002BP00RELAY GEN PURP DPDT 3A 24-240V |
0 |
|
Технический лист |
SIRIUS 3RS18 | Box | Active | DIN Rail | 24 ~ 240VAC | DPDT (2 Form C) | 3 A | 250VAC - Max | 750VA | - | Non Latching | - | Spring Terminal | - | - | - | - | - | - | -25°C ~ 60°C | - | CCC, CSA, EAC, UL | General Purpose | - | - |
|
ARB-120-AEADUPLEXOR |
0 |
|
Технический лист |
ARB | Box | Active | Socketable | 120VAC/DC | DPDT (2 Form C) | 10 A | 240VAC - Nom | 2400VA | - | Non Latching | Lighted Indicator | Plug In, 8 Pin (Octal) | - | - | - | - | - | - | -20°C ~ 55°C | - | CSA, cURus | General Purpose | - | - |
|
ARB-120-ACADUPLEXOR |
0 |
|
Технический лист |
ARB | Box | Active | Socketable | 120VAC/DC | DPDT (2 Form C) | 10 A | 240VAC - Nom | 2400VA | - | Non Latching | Lighted Indicator | Plug In, 8 Pin (Octal) | - | - | - | - | - | - | -20°C ~ 55°C | - | CSA, cURus | General Purpose | - | - |
|
ARA-120-ACADUPLEXOR |
0 |
|
Технический лист |
ARA | Box | Active | Socketable | 120VAC/DC | DPDT (2 Form C) | 10 A | 240VAC - Nom | 2400VA | - | Non Latching | Lighted Indicator | Plug In, 8 Pin (Octal) | - | - | - | - | - | - | -20°C ~ 55°C | - | CSA, cURus | General Purpose | - | - |
|
|
2941332RELAY GEN PURPOSE DPDT 5A 48V |
0 |
|
Технический лист |
EMG17-REL | Bulk | Active | DIN Rail | 48VAC/DC | DPDT (2 Form C) | 5 A | 250VAC, 250VDC - Max | 1250VA, 120W | 10 mA | Non Latching | Lighted Indicator, Socket Included | Screw Terminal | - | - | - | - | 8 ms | 10 ms | -20°C ~ 40°C | Silver Nickel (AgNi), Gold (Au) | cULus, EAC, UL | General Purpose | - | - |
|
R10-E1Y6-24VRELAY GEN PURPOSE 6PDT 3A 24V |
0 |
|
Технический лист |
R10 | Bulk | Active | Socketable | 24VAC | 6PDT (6 Form C) | 3 A | 120VAC - Nom | - | 68.6 mA | Non Latching | - | Plug In | - | - | 18 VAC | - | - | - | -55°C ~ 75°C | Silver (Ag) | CSA, UR | General Purpose | - | - |
|
|
1447740000RSM-4I 24V+ 1CO S |
0 |
|
Технический лист |
RSM | Box | Active | DIN Rail | 24VDC | SPDT (1 Form C) x 4 | 6 A | 250VAC - Max | 1500VA | 16.7 mA | Non Latching | Lighted Indicator | Screw Terminal | - | - | - | - | - | - | -25°C ~ 50°C | Silver Nickel (AgNi) | CE, UR | General Purpose | - | - |
