Реле мощности, более 2 А
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип крепления | Напряжение катушки | Форма контакта | Номинал контакта (ток) | Напряжение переключения | Нагрузка - макс. переключение | Ток катушки | Тип катушки | Особенности | Тип вывода | Номинал уплотнения | Изоляция катушки | Необходимое рабочее напряжение | Необходимое отпускающее напряжение | Время срабатывания | Время отпускания | Рабочая температура | Материал контакта | Сертифицирующее агентство | Тип реле | Марка | Квалификация |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
0178060000RELAY GEN PURPOSE SPDT 3A 24V |
0 |
|
- |
EG3R | Bulk | Obsolete | DIN Rail | 24VDC | SPDT (1 Form C) | 3 A | 250VAC - Max | 750VA | 18 mA | Non Latching | - | Screw Terminal | - | - | - | - | - | - | - | - | - | General Purpose | - | - |
|
|
52350MIRO MULTI TIMER 24VDC-1S, MIRO |
0 |
|
Технический лист |
- | Box | Active | DIN Rail | 24VDC | SPST-NO (1 Form A) | 6 A | 250VAC, 250VDC - Max | 1500VA, 120W | 20 mA | Non Latching | - | Screw Terminal | - | - | 20.4 VDC | - | 15 ms | 10 ms | -25°C ~ 60°C | Silver Tin Oxide (AgSnO) | cCSAus, CE, cURus, UKCA | General Purpose | - | - |
|

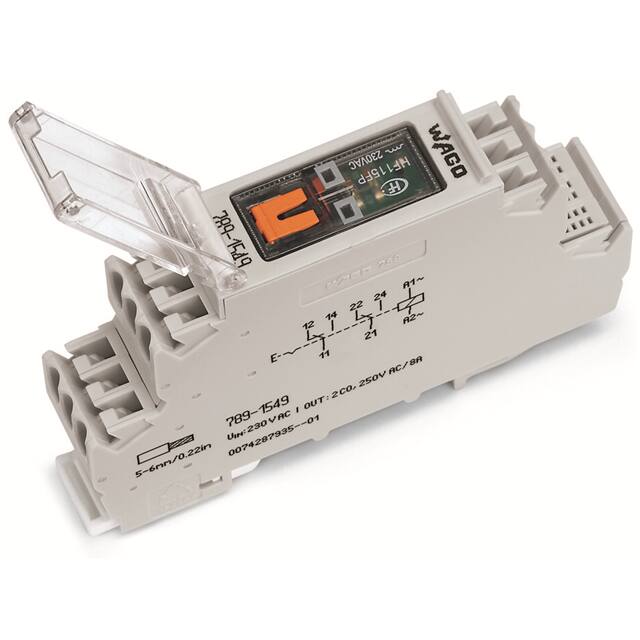

789-1549RELAY GEN PURPOSE DPDT 8A 230V |
0 |
|
Технический лист |
789 | Box | Active | DIN Rail | 230VAC | DPDT (2 Form C) | 8 A | 250VAC - Max | 2000VA | 3.5 mA | Non Latching | Lighted Indicator | Spring Terminal | - | - | - | - | 15 ms | 8 ms | -25°C ~ 50°C | Silver Nickel (AgNi) | EAC | General Purpose | - | - |
|
|
3TX71300DB03OPEN PWR RELAY, DPST, 40A, 12VDC |
0 |
|
- |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
3TX71300DH13OPEN PWR RELAY, DPST, 40A, 240VA |
0 |
|
- |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
3TX71300DF03OPEN PWR RELAY, DPST, 40A, 110VD |
0 |
|
- |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
3TX71300DS13OPEN PWR RELAY, DPST, 40A, 277VA |
0 |
|
- |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
3TX71300DF13OPEN PWR RELAY, DPST, 40A, 120VA |
0 |
|
- |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
3TX71300DC13OPEN PWR RELAY, DPST, 40A, 24VAC |
0 |
|
- |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
3TX71300DD03OPEN PWR RELAY, DPST, 40A, 48VDC |
0 |
|
- |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
8181970000RELAY GEN PURPOSE SPDT 24V |
0 |
|
Технический лист |
DK | Bulk | Obsolete | DIN Rail | 24VAC/DC | SPDT (1 Form C) | 6 A | 250VAC - Max | 1500VA | - | Non Latching | - | Screw Terminal | - | - | - | - | 2.5 ms | 2 ms | -25°C ~ 60°C | Silver Nickel (AgNi) | - | General Purpose | - | - |
|
|
19.42.0.024.0000HIGH/LOW DIGITAL OUTPUT MODULE |
0 |
|
- |
19 | Box | Active | DIN Rail | 24VAC/DC | SPDT (1 Form C) | 5 A | - | - | - | Non Latching | - | Screw Terminal | - | - | - | - | - | - | - | - | - | Impulse | - | - |
|
8501CDPDTPOWER RELAY, TYPE C, 1.5HP, 30A |
0 |
|
Технический лист |
Square D 8501C | Box | Obsolete | Chassis Mount | 120VAC | DPDT (2 Form C) | 30 A | 600VAC - Max | 18000VA | - | Non Latching | - | Screw Terminal | - | - | - | - | - | - | -30°C ~ 50°C | - | - | General Purpose | - | - |
|
|
2952910RELAY GEN PURPOSE SPDT 5A 24V |
0 |
|
Технический лист |
EMG 17-REL | Bulk | Obsolete | DIN Rail | 24VDC | SPDT (1 Form C) | 5 A | 250VAC, 125VDC - Max | 1250VA, 625W | 8 mA | Non Latching | Diode | Screw Terminal | - | - | - | - | 5 ms | 5 ms | -20°C ~ 50°C | Silver Tin Oxide (AgSnO) | cULus, EAC, UL | General Purpose | - | - |
|
|
199APX342199OSPDPSTNC50ARTG120VAC |
0 |
|
Технический лист |
SE | Box | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
PRD-7AY3-120RELAY GEN PURPOSE DPST 25A 120V |
0 |
|
Технический лист |
PRD | Bulk | Obsolete | Chassis Mount | 120VAC | DPST-NO (2 Form A) | 25 A | 600VAC, 125VDC - Nom | - | 85 mA | Non Latching | - | Screw Terminal, Quick Connect - 0.250" (6.3mm) | - | Class B | 102 VAC | 12 VAC | 40 ms | 20 ms | -55°C ~ 45°C | Silver (Ag) | CSA, UL | General Purpose | - | - |
|
3RQ31182AE00RELAY GEN PURPOSE SPDT 3A 115V |
0 |
|
Технический лист |
SIRIUS 3RQ3 | Box | Active | DIN Rail | 115VAC/DC | SPDT (1 Form C) | 3 A | 250VAC - Max | 750VA | - | Non Latching | Lighted Indicator | Spring Terminal | - | - | - | - | 8 ms | 17 ms | -25°C ~ 60°C | Silver Tin Oxide (AgSnO) | CCC, CSA, EAC, UL | General Purpose | - | - |
|
|
2944520RELAY GEN PURPOSE SPDT 230V |
0 |
|
Технический лист |
EMG 17-REL | Bulk | Active | DIN Rail | 230VAC/DC | SPDT (1 Form C) | - | 30VAC, 36VDC - Max | - | - | - | Socket Included | Screw Terminal | - | - | - | - | 7 ms | 11 ms | - | - | cULus, EAC, UL | General Purpose | - | - |
|
MGN-2AM-AC120RELAY GEN PURPOSE DPST 30A 120V |
0 |
|
- |
MGN | Bulk | Active | Chassis Mount | 120VAC | DPST-NO (2 Form A) | 30 A | 600VAC, 28VDC - Max | 18000VA, 840W | 79 mA | Non Latching | - | Screw Terminal | - | Class F | 102 VAC | - | 30 ms | 30 ms | -45°C ~ 80°C | - | cURus | General Purpose | - | - |
|
MGN2CM-DC12RELAY GEN PURPOSE DPDT 30A 12V |
0 |
|
Технический лист |
MGN | Bulk | Active | Chassis Mount | 12VDC | DPDT (2 Form C) | 30 A | 600VAC, 28VDC - Max | 18000VA, 840W | 167 mA | Non Latching | - | Screw Terminal | - | Class F | 9 VDC | - | 30 ms | 30 ms | -40°C ~ 115°C | - | cURus | General Purpose | - | - |
