Реле мощности, более 2 А
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип крепления | Напряжение катушки | Форма контакта | Номинал контакта (ток) | Напряжение переключения | Нагрузка - макс. переключение | Ток катушки | Тип катушки | Особенности | Тип вывода | Номинал уплотнения | Изоляция катушки | Необходимое рабочее напряжение | Необходимое отпускающее напряжение | Время срабатывания | Время отпускания | Рабочая температура | Материал контакта | Сертифицирующее агентство | Тип реле | Марка | Квалификация |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
R10S-E1P2-J1.0KRELAY GEN PURPOSE DPDT 3A 5V |
0 |
|
Технический лист |
R10 | Bulk | Active | Socketable | 5VDC | DPDT (2 Form C) | 3 A | 120VAC - Nom | - | 4.5 mA | Non Latching | - | Plug In | - | - | 4.5 VDC | - | - | - | -55°C ~ 75°C | Silver (Ag) | CSA, UR | General Purpose | - | - |
|
R10-E1M4-V700RELAY GEN PURPOSE 4PDT 5A 24V |
0 |
|
Технический лист |
R10 | Bulk | Active | Socketable | 24VDC | 4PDT (4 Form C) | 5 A | 120VAC - Nom | - | 34.3 mA | Non Latching | - | Plug In | - | - | 18 VDC | - | - | - | -55°C ~ 75°C | Silver Cadmium Oxide (AgCdO) | CSA, UR | General Purpose | - | - |
|
MGN2A-AC200RELAY GEN PURPOSE DPST 30A 200V |
0 |
|
Технический лист |
MGN | Bulk | Active | Chassis Mount | 200VAC | DPST-NO (2 Form A) | 30 A | 600VAC, 28VDC - Max | 18000VA, 840W | 47.5 mA | Non Latching | - | Screw Terminal | - | Class F | 170 VAC | - | 30 ms | 30 ms | -45°C ~ 80°C | - | cURus | General Purpose | - | - |
|
MGN2C-DC110RELAY GEN PURPOSE DPDT 30A 110V |
0 |
|
Технический лист |
MGN | Bulk | Active | Chassis Mount | 110VDC | DPDT (2 Form C) | 30 A | 600VAC, 28VDC - Max | 18000VA, 840W | 18.2 mA | Non Latching | - | Screw Terminal | - | Class F | 82.5 VDC | - | 30 ms | 30 ms | -40°C ~ 115°C | - | cURus | General Purpose | - | - |
|
R10-E2L2-115VRELAY GEN PURPOSE DPDT 7.5A 115V |
0 |
|
Технический лист |
R10 | Bulk | Active | Through Hole | 115VAC | DPDT (2 Form C) | 7.5 A | 120VAC - Nom | - | 12.8 mA | Non Latching | - | PC Pin | - | - | 86 VAC | - | - | - | -55°C ~ 75°C | Gold Platinum Silver (AuPtAg) | CSA, UR | General Purpose | - | - |
|
R10L-E1X2-V185RELAY DRY CIR |
0 |
|
- |
R10L | Bulk | Active | Socketable | 12VDC | DPDT (2 Form C) | 5 A | 120VAC, 30VDC - Max | 600VA, 150W | 64.9 mA | Non Latching | - | Plug In | - | - | 9 VDC | - | - | - | -55°C ~ 75°C | Silver Cadmium Oxide (AgCdO) | - | General Purpose | - | - |
|

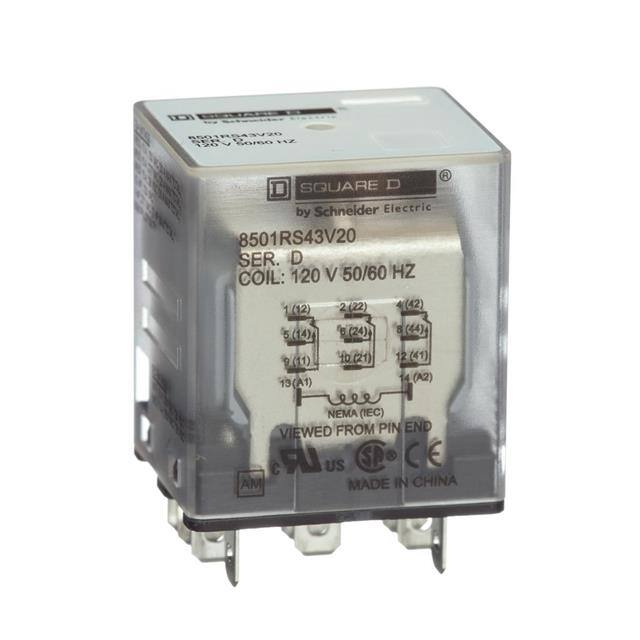

8501RS43V20PLUG IN RELAY, TYPE R, MINIATURE |
1 |
|
Технический лист |
Square D 8501R | Box | Obsolete | Socketable | 120VAC | 3PDT (3 Form C) | 15 A | 300VAC, 30VDC - Max | 4500VA, 450W | - | Non Latching | - | Plug In | - | - | - | - | 20 ms | 20 ms | -40°C ~ 55°C | Silver (Ag), Gold (Au) | - | General Purpose | - | - |
|
|
PRD-60481POWER RELAY ASSEMBLY |
0 |
|
- |
PRD | Bulk | Obsolete | Chassis Mount | - | - | 50 A | 600VAC, 125VDC - Nom | - | - | Non Latching | - | - | - | Class B | - | - | 40 ms | 20 ms | - | - | CSA, UL | General Purpose | - | - |
|

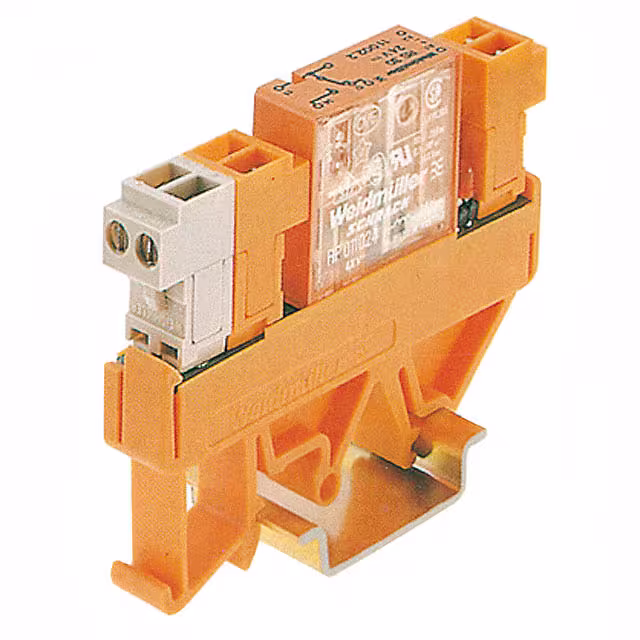

1100420000RELAY GEN PURPOSE SPDT 6A 48V |
0 |
|
Технический лист |
RS | Bulk | Obsolete | DIN Rail | 48VDC | SPDT (1 Form C) | 6 A | 250VAC - Max | 1500VA | 8 mA | Non Latching | Diode, Socket Included | Screw Terminal | - | - | - | - | 12 ms | 11 ms | -25°C ~ 40°C | Silver Nickel (AgNi), Gold (Au) | CE | General Purpose | - | - |
|

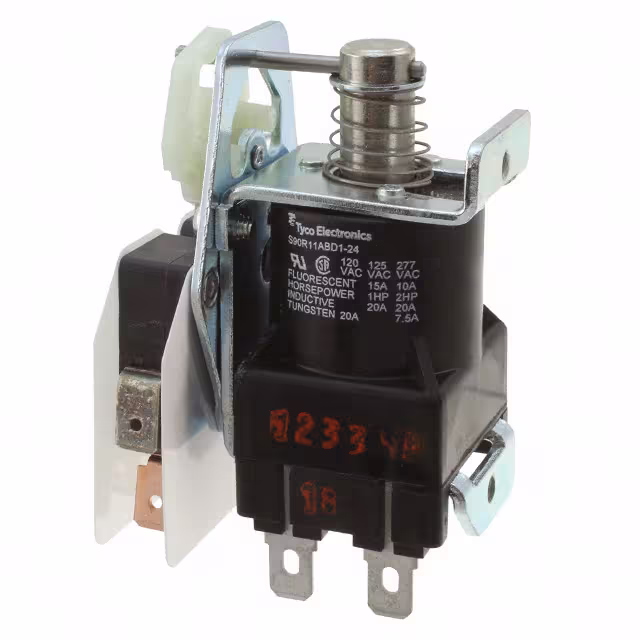

S90R11ABD1-24RELAY IMPULSE DPDT 20A 24V |
0 |
|
Технический лист |
S90R | Bulk | Obsolete | Chassis Mount | 24VAC | DPDT (2 Form C) | 20 A | 277VAC - Max | 5540VA | 375 mA | Latching, Single Coil | - | Quick Connect - 0.250" (6.3mm) | - | Class B | 20.4 VAC | - | - | - | -10°C ~ 60°C | - | CSA, UR | Impulse | - | - |
|
|
PJR220ARELAY GEN PURPOSE SPDT 10A 220V |
0 |
|
Технический лист |
JR | Box | Obsolete | Socketable | 220VAC | SPDT (1 Form C) | 10 A | 250VAC, 250VDC - Max | 2200VA, 80W | - | Non Latching | - | Plug In, 8 Pin (Octal) | - | - | - | - | - | - | -10°C ~ 60°C | Silver Cadmium Oxide (AgCdO) | CSA, UL | General Purpose | - | - |
|
|
PRD-11DG0-110RELAY GEN PURPOSE DPDT 30A 110V |
0 |
|
Технический лист |
PRD | Bulk | Active | Chassis Mount | 110VDC | DPDT (2 Form C) | 30 A | 600VAC, 125VDC - Nom | - | 18.2 mA | Non Latching | - | Screw Terminal | - | Class B | 82.5 VDC | 11 VDC | 40 ms | 20 ms | -55°C ~ 80°C | Silver Cadmium Oxide (AgCdO) | CSA, UL | General Purpose | - | - |
|
KHAU-17A12N-120RELAY GEN PURPOSE 4PDT 5A 120V |
0 |
|
Технический лист |
KHA | Bulk | Obsolete | Socketable | 120VAC | 4PDT (4 Form C) | 5 A | 240VAC - Nom | - | 11 mA | Non Latching | Lighted Indicator | Plug In | - | Class B | 102 VAC | - | 13 ms | 6 ms | -45°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | CSA, UR | General Purpose | - | - |
|
|
R10-E1X6-V9.0KRELAY GEN PURPOSE 6PDT 5A 115V |
0 |
|
Технический лист |
R10 | Bulk | Active | Socketable | 115VDC | 6PDT (6 Form C) | 5 A | 120VAC - Nom | - | 12.8 mA | Non Latching | - | Plug In | - | - | 86 VDC | - | - | - | -55°C ~ 75°C | Silver Cadmium Oxide (AgCdO) | CSA, UR | General Purpose | - | - |
|
|
R10-E1Y4-V700RELAY GEN PURPOSE 4PDT 3A 24V |
0 |
|
Технический лист |
R10 | Bulk | Active | Socketable | 24VDC | 4PDT (4 Form C) | 3 A | 120VAC - Nom | - | 34.3 mA | Non Latching | - | Plug In | - | - | 18 VDC | - | - | - | -55°C ~ 75°C | Silver (Ag) | CSA, UR | General Purpose | - | - |
|
KUHP-11A51-12RELAY GEN PURPOSE DPDT 20A 12V |
0 |
|
Технический лист |
KUHP | Bulk | Obsolete | Chassis Mount | 12VAC | DPDT (2 Form C) | 20 A | 240VAC - Max | 4800VA | 230 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | Class B | 10.2 VAC | - | 20 ms | 20 ms | -45°C ~ 45°C | Silver Cadmium Oxide (AgCdO) | CSA, UR | General Purpose | - | - |
|
|
CF30A002120RELAY GEN PURPOSE DPDT 30A 120V |
0 |
|
Технический лист |
CF30 | Box | Obsolete | Chassis Mount | 120VAC | DPDT (2 Form C) | 30 A | 277VAC, 30VDC - Max | 8310VA, 900W | 126.3 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | Sealed - Fully | Class F | 96 VAC | 24 VAC | 15 ms | 10 ms | -40°C ~ 65°C | Silver Tin Oxide (AgSnO) | CE, cURus | General Purpose | - | - |
|
|
R10-E1X4-115VRELAY GEN PURPOSE 4PDT 5A 115V |
0 |
|
Технический лист |
R10 | Bulk | Active | Socketable | 115VAC | 4PDT (4 Form C) | 5 A | 120VAC - Nom | - | 12.8 mA | Non Latching | - | Plug In | - | - | 86 VAC | - | - | - | -55°C ~ 75°C | Silver Cadmium Oxide (AgCdO) | CSA, UR | General Purpose | - | - |
|
|
PRD-3AP4-120RELAY GEN PURPOSE SPST 50A 120V |
0 |
|
Технический лист |
PRD | Bulk | Obsolete | Chassis Mount | 120VAC | SPST-NO (DM) (1 Form X) | 50 A | 600VAC, 125VDC - Nom | - | 85 mA | Non Latching | - | Screw Terminal | - | Class B | 102 VAC | 12 VAC | 40 ms | 20 ms | -55°C ~ 45°C | Silver (Ag) | CSA, UL | General Purpose | - | - |
|
|
G7J-3A1B-B DC100RELAY GEN PURPOSE 4PST 25A 100V |
0 |
|
Технический лист |
G7J | Bulk | Active | Chassis Mount | 100VDC | 4PST-3NO/1NC (3 Form A, 1 Form B) | 25 A | 250VAC, 125VDC - Max | 6250VA, 3125W | 20 mA | Non Latching | Test Button | Screw Terminal | - | - | 75 VDC | 10 VDC | 50 ms | 50 ms | -25°C ~ 60°C | - | CE, CSA, UR | General Purpose | - | - |
