Реле мощности, более 2 А
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип крепления | Напряжение катушки | Форма контакта | Номинал контакта (ток) | Напряжение переключения | Нагрузка - макс. переключение | Ток катушки | Тип катушки | Особенности | Тип вывода | Номинал уплотнения | Изоляция катушки | Необходимое рабочее напряжение | Необходимое отпускающее напряжение | Время срабатывания | Время отпускания | Рабочая температура | Материал контакта | Сертифицирующее агентство | Тип реле | Марка | Квалификация |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
KUP-14D25-24RELAY GEN PURPOSE 3PDT 10A 24V |
0 |
|
Технический лист |
KUP | Bulk | Obsolete | Socketable | 24VDC | 3PDT (3 Form C) | 10 A | 240VAC - Max | 2400VA | 51 mA | Non Latching | Test Button | Plug In, Quick Connect - 0.187" (4.7mm) | - | Class B | 18 VDC | - | 15 ms | 10 ms | -45°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | CSA, UR | General Purpose | - | - |
|
1102211001RELAY GEN PURPOSE SPST 3A 230V |
0 |
|
Технический лист |
RS | Bulk | Obsolete | DIN Rail | 230VAC | SPST-NO (1 Form A) | 3 A | 250VAC - Max | 750VA | 3.2 mA | Non Latching | Lighted Indicator, Socket Included | Screw Terminal | - | - | - | - | 10 ms | 9 ms | -25°C ~ 40°C | Silver Nickel (AgNi), Gold (Au) | CE | General Purpose | - | - |
|
1128331001RELAY GEN PURPOSE SPDT 16A 24V |
0 |
|
Технический лист |
RS | Bulk | Obsolete | DIN Rail | 24VDC | SPDT (1 Form C) | 16 A | 250VAC - Max | 4000VA | 40 mA | Non Latching | Lighted Indicator, Socket Included | Screw Terminal | - | - | - | - | 9 ms | 10 ms | -25°C ~ 40°C | Silver Cadmium Oxide (AgCdO) | CE | General Purpose | - | - |
|
WR6172K-8420A HID RELAY |
0 |
|
Технический лист |
- | Box | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
MGN1X-AC120RELAY GEN PURPOSE SPST 30A 120V |
0 |
|
Технический лист |
MGN | Bulk | Active | Chassis Mount | 120VAC | SPST-NO (DM) (1 Form X) | 30 A | 600VAC, 28VDC - Max | 18000VA, 840W | 79 mA | Non Latching | - | Screw Terminal | - | Class F | 102 VAC | - | 30 ms | 30 ms | -45°C ~ 80°C | - | cURus | General Purpose | - | - |
|
|
MGN1X-AC24RELAY GEN PURPOSE SPST 30A 24V |
0 |
|
Технический лист |
MGN | Bulk | Active | Chassis Mount | 24VAC | SPST-NO (DM) (1 Form X) | 30 A | 600VAC, 28VDC - Max | 18000VA, 840W | 396 mA | Non Latching | - | Screw Terminal | - | Class F | 20.4 VAC | - | 30 ms | 30 ms | -45°C ~ 80°C | - | cURus | General Purpose | - | - |
|
|
MGN1A-AC120RELAY GEN PURPOSE SPST 30A 120V |
0 |
|
Технический лист |
MGN | Bulk | Active | Chassis Mount | 120VAC | SPST-NO (1 Form A) | 30 A | 600VAC, 28VDC - Max | 18000VA, 840W | 79 mA | Non Latching | - | Screw Terminal | - | Class F | 102 VAC | - | 30 ms | 30 ms | -45°C ~ 80°C | - | cURus | General Purpose | - | - |
|
|
MGN1A-AC24RELAY GEN PURPOSE SPST 30A 24V |
0 |
|
Технический лист |
MGN | Bulk | Active | Chassis Mount | 24VAC | SPST-NO (1 Form A) | 30 A | 600VAC, 28VDC - Max | 18000VA, 840W | 396 mA | Non Latching | - | Screw Terminal | - | Class F | 20.4 VAC | - | 30 ms | 30 ms | -45°C ~ 80°C | - | cURus | General Purpose | - | - |
|
|
G7J-2A2B-T AC100/120RELAY GEN PURPOSE 4PST 25A 120V |
0 |
|
Технический лист |
G7J | Bulk | Active | Chassis Mount | 120VAC | 4PST-2NO/2NC (2 Form A, 2 Form B) | 25 A | 250VAC, 125VDC - Max | 6250VA, 3125W | 21.6 mA | Non Latching | Test Button | Quick Connect - 0.250" (6.3mm) | - | - | 75 VAC | 18 VAC | 50 ms | 50 ms | -25°C ~ 60°C | - | CE, CSA, UR | General Purpose | - | - |
|
|
G7J-2A2B-T AC24RELAY GEN PURPOSE 4PST 25A 24V |
0 |
|
Технический лист |
G7J | Bulk | Active | Chassis Mount | 24VAC | 4PST-2NO/2NC (2 Form A, 2 Form B) | 25 A | 250VAC, 125VDC - Max | 6250VA, 3125W | 75 mA | Non Latching | Test Button | Quick Connect - 0.250" (6.3mm) | - | - | 18 VAC | 3.6 VAC | 50 ms | 50 ms | -25°C ~ 60°C | - | CE, CSA, UR | General Purpose | - | - |
|
|
G7J-2A2B-T DC48RELAY GEN PURPOSE 4PST 25A 48V |
0 |
|
Технический лист |
G7J | Bulk | Active | Chassis Mount | 48VDC | 4PST-2NO/2NC (2 Form A, 2 Form B) | 25 A | 250VAC, 125VDC - Max | 6250VA, 3125W | 42 mA | Non Latching | Test Button | Quick Connect - 0.250" (6.3mm) | - | - | 36 VDC | 4.8 VDC | 50 ms | 50 ms | -25°C ~ 60°C | - | CE, CSA, UR | General Purpose | - | - |
|

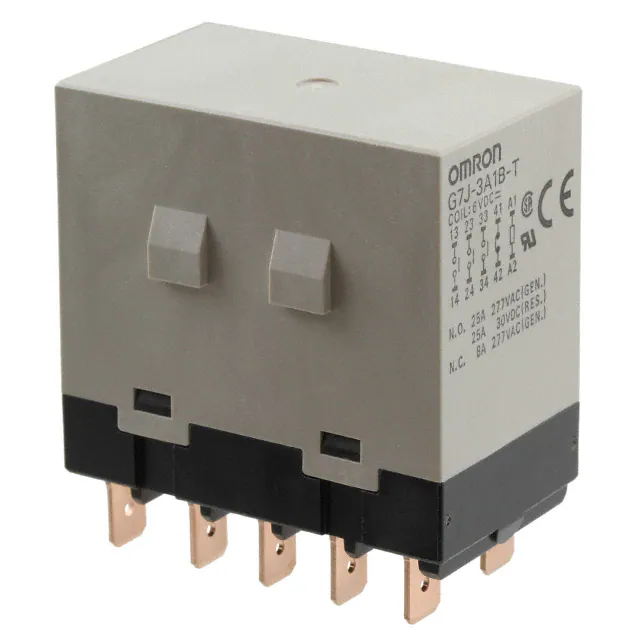

G7J-3A1B-T AC24RELAY GEN PURPOSE 4PST 25A 24V |
0 |
|
Технический лист |
G7J | Bulk | Active | Chassis Mount | 24VAC | 4PST-3NO/1NC (3 Form A, 1 Form B) | 25 A | 250VAC, 125VDC - Max | 6250VA, 3125W | 75 mA | Non Latching | Test Button | Quick Connect - 0.250" (6.3mm) | - | - | 18 VAC | 3.6 VAC | 50 ms | 50 ms | -25°C ~ 60°C | - | CE, CSA, UR | General Purpose | - | - |
|
|
G7J-3A1B-T DC100RELAY GEN PURPOSE 4PST 25A 100V |
0 |
|
Технический лист |
G7J | Bulk | Active | Chassis Mount | 100VDC | 4PST-3NO/1NC (3 Form A, 1 Form B) | 25 A | 250VAC, 125VDC - Max | 6250VA, 3125W | 20 mA | Non Latching | Test Button | Quick Connect - 0.250" (6.3mm) | - | - | 75 VDC | 10 VDC | 50 ms | 50 ms | -25°C ~ 60°C | - | CE, CSA, UR | General Purpose | - | - |
|
|
G7J-3A1B-T DC12RELAY GEN PURPOSE 4PST 25A 12V |
0 |
|
Технический лист |
G7J | Bulk | Active | Chassis Mount | 12VDC | 4PST-3NO/1NC (3 Form A, 1 Form B) | 25 A | 250VAC, 125VDC - Max | 6250VA, 3125W | 167 mA | Non Latching | Test Button | Quick Connect - 0.250" (6.3mm) | - | - | 9 VDC | 1.2 VDC | 50 ms | 50 ms | -25°C ~ 60°C | - | CE, CSA, UR | General Purpose | - | - |
|
|
G7J-4A-T DC48RELAY GEN PURPOSE 4PST 25A 48V |
0 |
|
Технический лист |
G7J | Bulk | Active | Chassis Mount | 48VDC | 4PST-NO (DM) (4 Form X) | 25 A | 250VAC, 125VDC - Max | 6250VA, 3125W | 42 mA | Non Latching | Test Button | Quick Connect - 0.250" (6.3mm) | - | - | 36 VDC | 4.8 VDC | 50 ms | 50 ms | -25°C ~ 60°C | - | CE, CSA, UR | General Purpose | - | - |
|
|
G7J-3A1B-B DC48RELAY GEN PURPOSE 4PST 25A 48V |
0 |
|
Технический лист |
G7J | Bulk | Active | Chassis Mount | 48VDC | 4PST-3NO/1NC (3 Form A, 1 Form B) | 25 A | 250VAC, 125VDC - Max | 6250VA, 3125W | 42 mA | Non Latching | Test Button | Screw Terminal | - | - | 36 VDC | 4.8 VDC | 50 ms | 50 ms | -25°C ~ 60°C | - | CE, CSA, UR | General Purpose | - | - |
|
|
G7J-4A-P DC48RELAY GEN PURPOSE 4PST 25A 48V |
0 |
|
Технический лист |
G7J | Bulk | Active | Through Hole | 48VDC | 4PST-NO (DM) (4 Form X) | 25 A | 250VAC, 125VDC - Max | 6250VA, 3125W | 42 mA | Non Latching | Test Button | PC Pin | - | - | 36 VDC | 4.8 VDC | 50 ms | 50 ms | -25°C ~ 60°C | - | CE, CSA, UR | General Purpose | - | - |
|
G7J-2A2B-T-W1 AC100/120RELAY GEN PURPOSE 4PST 25A 120V |
0 |
|
Технический лист |
G7J | Bulk | Active | Chassis Mount | 120VAC | 4PST-2NO/2NC (2 Form A, 2 Form B) | 25 A | 250VAC, 125VDC - Max | 6250VA, 3125W | 21.6 mA | Non Latching | Bracket Included, Test Button | Quick Connect - 0.250" (6.3mm) | - | - | 75 VAC | 18 VAC | 50 ms | 50 ms | -25°C ~ 60°C | - | CE, CSA, UR | General Purpose | - | - |
|
|
G7J-4A-B AC50RELAY GEN PURPOSE 4PST 25A 50V |
0 |
|
Технический лист |
G7J | Bulk | Active | Chassis Mount | 50VAC | 4PST-NO (DM) (4 Form X) | 25 A | 250VAC, 125VDC - Max | 6250VA, 3125W | 36 mA | Non Latching | Test Button | Screw Terminal | - | - | 37.5 VAC | 7.5 VAC | 50 ms | 50 ms | -25°C ~ 60°C | - | CE, CSA, UR | General Purpose | - | - |
|
|
G7J-3A1B-B AC50RELAY GEN PURPOSE 4PST 25A 50V |
0 |
|
Технический лист |
G7J | Bulk | Active | Chassis Mount | 50VAC | 4PST-3NO/1NC (3 Form A, 1 Form B) | 25 A | 250VAC, 125VDC - Max | 6250VA, 3125W | 36 mA | Non Latching | Test Button | Screw Terminal | - | - | 37.5 VAC | 7.5 VAC | 50 ms | 50 ms | -25°C ~ 60°C | - | CE, CSA, UR | General Purpose | - | - |
