Реле мощности, более 2 А
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип крепления | Напряжение катушки | Форма контакта | Номинал контакта (ток) | Напряжение переключения | Нагрузка - макс. переключение | Ток катушки | Тип катушки | Особенности | Тип вывода | Номинал уплотнения | Изоляция катушки | Необходимое рабочее напряжение | Необходимое отпускающее напряжение | Время срабатывания | Время отпускания | Рабочая температура | Материал контакта | Сертифицирующее агентство | Тип реле | Марка | Квалификация |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
300XBXC1120A300 POWER RELAY, DPDT, 30A, 110/ |
0 |
|
Технический лист |
SE | Box | Obsolete | Chassis Mount | 120VAC | DPDT (2 Form C) | 30 A | 600VAC - Max | 18000VA | 94.5 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | - | 102 VAC | 18 VAC | - | - | -40°C ~ 55°C | Silver Alloy | CSA, cURus | General Purpose | - | - |
|
R10-E1W2-V185RELAY GEN PURPOSE DPDT 7.5A 12V |
0 |
|
Технический лист |
R10 | Bulk | Active | Socketable | 12VDC | DPDT (2 Form C) | 7.5 A | 120VAC - Nom | - | 64.9 mA | Non Latching | - | Plug In | - | - | 9 VDC | - | - | - | -55°C ~ 75°C | Silver Cadmium Oxide (AgCdO) | CSA, UR | General Purpose | - | - |
|
|
LZS:RT4D4R24PLUG-IN RELAY COMPACT UNIT |
0 |
|
- |
SIRIUS LZS | Box | Active | DIN Rail | 24VAC | DPDT (2 Form C) | - | - | - | - | Non Latching | Lighted Indicator | Spring Terminal | - | - | 21.6 VAC | - | - | - | -40°C ~ 70°C | Silver Nickel (AgNi) | CE, EAC, UKCA, VDE | General Purpose | - | - |
|

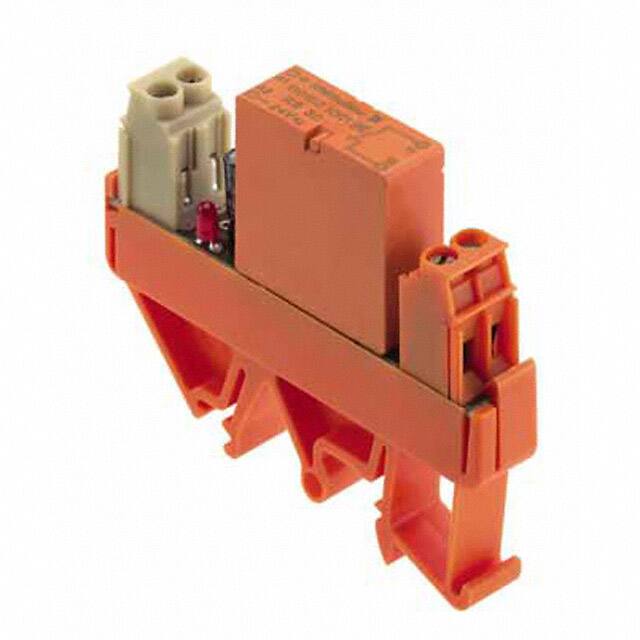

1128511001RELAY GEN PURPOSE SPST 3A 240V |
0 |
|
Технический лист |
RS | Bulk | Obsolete | DIN Rail | 240VAC | SPST-NO (1 Form A) | 3 A | 250VAC - Max | 750VA | - | Non Latching | Lighted Indicator, Socket Included | Screw Terminal | - | - | - | - | 10 ms | 9 ms | -25°C ~ 40°C | Silver Nickel (AgNi) | CE | General Purpose | - | - |
|
|
0133660000RELAY GEN PURPOSE SPST 5A 24V |
0 |
|
Технический лист |
EG2R | Bulk | Obsolete | DIN Rail | 24VDC | SPST-NO (1 Form A) | 5 A | 240VAC - Max | 1200VA | - | Non Latching | Lighted Indicator | Screw Terminal | - | - | - | - | 5 ms | 8 ms | -25°C ~ 40°C | Silver Nickel (AgNi) | - | General Purpose | - | - |
|
|
2910536PLC-RSC- 24UC/2X21/FG |
0 |
|
- |
PLC-RSC | Bulk | Active | DIN Rail | 24VAC/DC | DPDT (2 Form C) | 6 A | 250VAC, 250VDC - Max | - | 30 mA | Non Latching | Socket Included | Screw Terminal | - | - | - | - | 15 ms | 15 ms | -20°C ~ 60°C | Silver Nickel (AgNi) | CE, UKCA | General Purpose | - | - |
|
859-392RELAY GEN PURPOSE SPDT 5A 24V |
0 |
|
Технический лист |
859 | Box | Active | DIN Rail | 24VDC | SPDT (1 Form C) | 5 A | 250VAC - Max | 1250VA | 10 mA | Non Latching | Lighted Indicator | Spring Terminal | - | - | - | - | 6 ms | 6 ms | -40° ~ 70°C | Silver Nickel (AgNi), Gold (Au) | - | General Purpose | - | - |
.jpg)
|
KUEP-3AA5-120RELAY GEN PURPOSE SPST 10A 120V |
0 |
|
Технический лист |
KUEP | Bulk | Obsolete | Chassis Mount | 120VAC | SPST-NO (DM) (1 Form X) | 10 A | 150VDC - Max | 1500VA | 17.5 mA | Non Latching | - | Quick Connect - 0.187" (4.7mm) | - | Class B | 102 VAC | - | 15 ms | 10 ms | -45°C ~ 55°C | Silver Cadmium Oxide (AgCdO) | CSA, UR | General Purpose | - | - |
|
MGN1X-AC12RELAY GEN PURPOSE SPST 30A 12V |
0 |
|
Технический лист |
MGN | Bulk | Active | Chassis Mount | 12VAC | SPST-NO (DM) (1 Form X) | 30 A | 600VAC, 28VDC - Max | 18000VA, 840W | 791 mA | Non Latching | - | Screw Terminal | - | Class F | 10.2 VAC | - | 30 ms | 30 ms | -45°C ~ 80°C | - | cURus | General Purpose | - | - |
|
PRD-7DG0-12RELAY GEN PURPOSE DPST 30A 12V |
0 |
|
Технический лист |
PRD | Bulk | Obsolete | Chassis Mount | 12VDC | DPST-NO (2 Form A) | 30 A | 600VAC, 125VDC - Nom | - | 169 mA | Non Latching | - | Screw Terminal | - | Class B | 9 VDC | 1.2 VDC | 40 ms | 20 ms | -55°C ~ 80°C | Silver Cadmium Oxide (AgCdO) | CSA, UL | General Purpose | - | - |
|
KHU-17D11-90RELAY GEN PURPOSE 4PDT 3A 90V |
0 |
|
Технический лист |
KH | Bulk | Obsolete | Socketable | 90VDC | 4PDT (4 Form C) | 3 A | 240VAC - Nom | - | 10 mA | Non Latching | - | Plug In | - | Class B | 67.5 VDC | - | 13 ms | 6 ms | -45°C ~ 70°C | Silver (Ag) | CSA, UR | General Purpose | - | - |
|
8501RSD41V53PLUG IN RELAY, TYPE R, MINIATURE |
0 |
|
Технический лист |
Square D 8501R | Box | Active | Socketable | 24VDC | SPDT (1 Form C) | 15 A | 300VAC, 30VDC - Max | 4500VA, 450W | - | Non Latching | - | Plug In | - | - | - | - | 20 ms | 20 ms | -40°C ~ 55°C | Silver (Ag), Gold (Au) | - | General Purpose | - | - |
|
8501RS41V14PLUG IN RELAY, TYPE R, MINIATURE |
0 |
|
Технический лист |
Square D 8501R | Box | Active | Socketable | 24VAC | SPDT (1 Form C) | 15 A | 300VAC, 30VDC - Max | 4500VA, 450W | - | Non Latching | - | Plug In | - | - | - | - | 20 ms | 20 ms | -40°C ~ 55°C | Silver (Ag), Gold (Au) | CE, CSA, UL | General Purpose | - | - |
|
S89R11DAC1-6RELAY IMPULSE DPDT 15A 6V |
0 |
|
Технический лист |
S89R | Bulk | Obsolete | Chassis Mount | 6VDC | DPDT (2 Form C) | 15 A | 277VAC - Max | 4155VA | 1 A | Latching, Single Coil | - | Quick Connect - 0.187" (4.7mm) | - | Class B | 4.5 VDC | - | - | - | -10°C ~ 60°C | - | CSA, UR | Impulse | - | - |
|
KUP-14D25-62RELAY GEN PURPOSE 3PDT 10A 62V |
0 |
|
Технический лист |
KUP | Bulk | Obsolete | Socketable | 62VDC | 3PDT (3 Form C) | 10 A | 240VAC - Max | 2400VA | 19.4 mA | Non Latching | Test Button | Plug In, Quick Connect - 0.187" (4.7mm) | - | Class B | 46.5 VDC | - | 15 ms | 10 ms | -45°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | CSA, UR | General Purpose | - | - |
|
857-368RELAY GEN PURPOSE SPDT 6A 230V |
0 |
|
Технический лист |
857 | Box | Active | DIN Rail | 230VAC/DC | SPDT (1 Form C) | 6 A | 250VAC - Max | 1500VA | 3.5 mA | Non Latching | - | Spring Terminal | - | - | - | - | 15 ms | 25 ms | -40°C ~ 60°C | Silver Nickel (AgNi), Gold (Au) | EAC, UL | General Purpose | - | - |
|
|
R10-T2P3-V700RELAY DRY CIR |
0 |
|
- |
R10 | Tray | Active | Through Hole | 24VDC | 3PDT (3 Form C) | 3 A | 120VAC - Nom | - | 34.3 mA | Non Latching | - | PC Pin | - | - | 18 VDC | - | - | - | -55°C ~ 75°C | Silver Cadmium Oxide (AgCdO) | CSA, UR | General Purpose | - | - |
|
|
13.01.8.125.0000RELAY IMPULSE SPDT 16A 110-125V |
0 |
|
- |
13 | Bulk | Active | DIN Rail | 110 ~ 125VAC | SPDT (1 Form C) | 16 A | 400VAC - Max | 6400VA | - | Latching, Single Coil | - | Screw Terminal | - | - | - | - | - | - | -10°C ~ 60°C | Silver Tin Oxide (AgSnO) | CE | Impulse | - | - |
|
|
13.01.8.230.0000RELAY IMPULSE SPDT 16A 230-240V |
0 |
|
- |
13 | Bulk | Active | DIN Rail | 230 ~ 240VAC | SPDT (1 Form C) | 16 A | 400VAC - Max | 6400VA | - | Latching, Single Coil | - | Screw Terminal | - | - | - | - | - | - | -10°C ~ 60°C | Silver Tin Oxide (AgSnO) | CE | Impulse | - | - |
|
|
13.01.0.024.0000RELAY IMPULSE SPDT 16A 24V |
0 |
|
- |
13 | Bulk | Active | DIN Rail | 24VAC/DC | SPDT (1 Form C) | 16 A | 400VAC - Max | 6400VA | - | Latching, Single Coil | - | Screw Terminal | - | - | 20.6 VAC/DC | - | - | - | -10°C ~ 60°C | Silver Tin Oxide (AgSnO) | CE | Impulse | - | - |
