Реле мощности, более 2 А
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип крепления | Напряжение катушки | Форма контакта | Номинал контакта (ток) | Напряжение переключения | Нагрузка - макс. переключение | Ток катушки | Тип катушки | Особенности | Тип вывода | Номинал уплотнения | Изоляция катушки | Необходимое рабочее напряжение | Необходимое отпускающее напряжение | Время срабатывания | Время отпускания | Рабочая температура | Материал контакта | Сертифицирующее агентство | Тип реле | Марка | Квалификация |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2903282RELAY GEN PURPOSE 3PST 8A 230V |
0 |
|
Технический лист |
RIF | Bulk | Obsolete | DIN Rail | 230VAC | 3PST-NO (3 Form A) | 8 A | 440VAC, 250VDC - Max | 3520VA, 2000W | 14 mA | Non Latching | Lighted Indicator, Socket Included | Screw Terminal | - | - | - | - | 25 ms | 20 ms | -40°C ~ 40°C | Silver Nickel (AgNi) | CSA | General Purpose | - | - |
|
2906980RELAY 120V |
0 |
|
Технический лист |
PLC-RSC | - | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
RCI003A240VRELAY GEN PURPOSE 3PDT 10A 240V |
0 |
|
Технический лист |
RCI | Bulk | Obsolete | Socketable | 240VAC | 3PDT (3 Form C) | 10 A | 250VAC, 30VDC - Max | - | 35.3 mA | Non Latching | Lighted Indicator, Mechanical Indicator, Test Button | Plug In, 11 Pin (Octal) | - | - | 192 VAC | 72 VAC | 20 ms | 20 ms | -40°C ~ 55°C | Silver Tin Oxide (AgSnO) | CE, CSA, UR | General Purpose | - | - |
|
RCI003A24VRELAY GEN PURPOSE 3PDT 10A 24V |
0 |
|
Технический лист |
RCI | Bulk | Obsolete | Socketable | 24VAC | 3PDT (3 Form C) | 10 A | 250VAC, 30VDC - Max | - | 333 mA | Non Latching | Lighted Indicator, Mechanical Indicator, Test Button | Plug In, 11 Pin (Octal) | - | - | 19.2 VAC | 7.2 VAC | 20 ms | 20 ms | -40°C ~ 55°C | Silver Tin Oxide (AgSnO) | CE, CSA, UR | General Purpose | - | - |
|

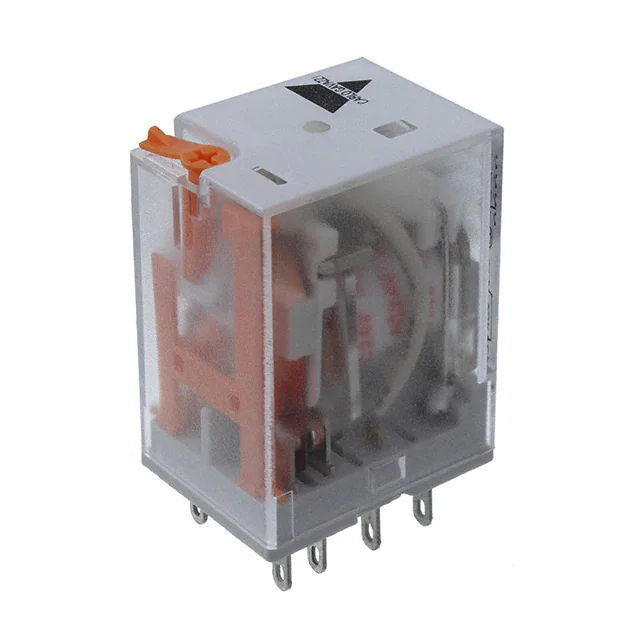

RRM002A120VRELAY GEN PURPOSE DPDT 10A 120V |
0 |
|
Технический лист |
RRM | Bulk | Obsolete | Socketable | 120VAC | DPDT (2 Form C) | 10 A | 250VAC, 30VDC - Max | 2500VA, 300W | 30 mA | Non Latching | Lighted Indicator, Mechanical Indicator, Test Button | Plug In | - | - | 96 VAC | 36 VAC | 20 ms | 20 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO) | CE, CSA, UR | General Purpose | - | - |
|

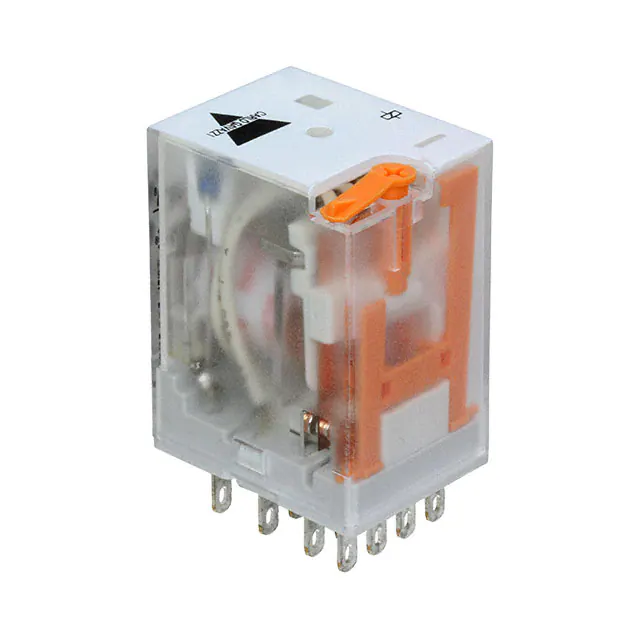

RRM004A120VRELAY GEN PURPOSE 4PDT 5A 120V |
0 |
|
Технический лист |
RRM | Bulk | Obsolete | Socketable | 120VAC | 4PDT (4 Form C) | 5 A | 250VAC, 30VDC - Max | 1250VA, 150W | 30 mA | Non Latching | Lighted Indicator, Mechanical Indicator, Test Button | Plug In | - | - | 96 VAC | 36 VAC | 20 ms | 20 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO) | CE, CSA, UR | General Purpose | - | - |
|

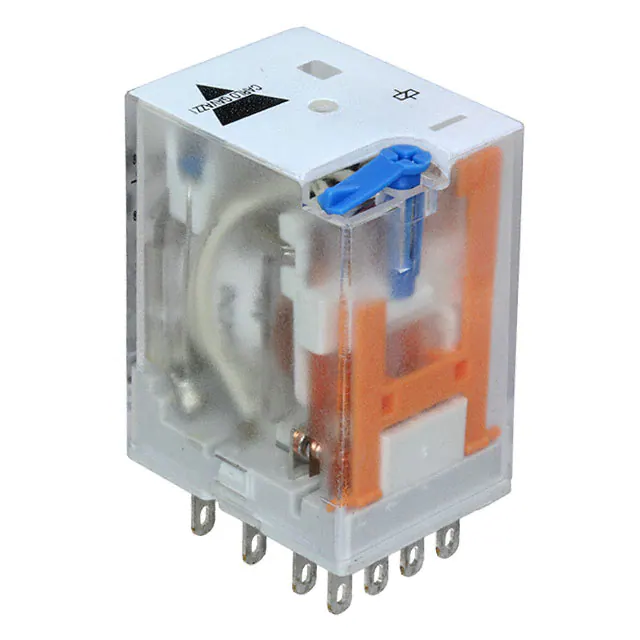

RRM004D24VRELAY GEN PURPOSE 4PDT 5A 24V |
0 |
|
Технический лист |
RRM | Bulk | Obsolete | Socketable | 24VDC | 4PDT (4 Form C) | 5 A | 250VAC, 30VDC - Max | 1250VA, 150W | 36.9 mA | Non Latching | Lighted Indicator, Mechanical Indicator, Test Button | Plug In | - | - | 19.2 VDC | 2.4 VDC | 20 ms | 20 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO) | CE, CSA, UR | General Purpose | - | - |
|

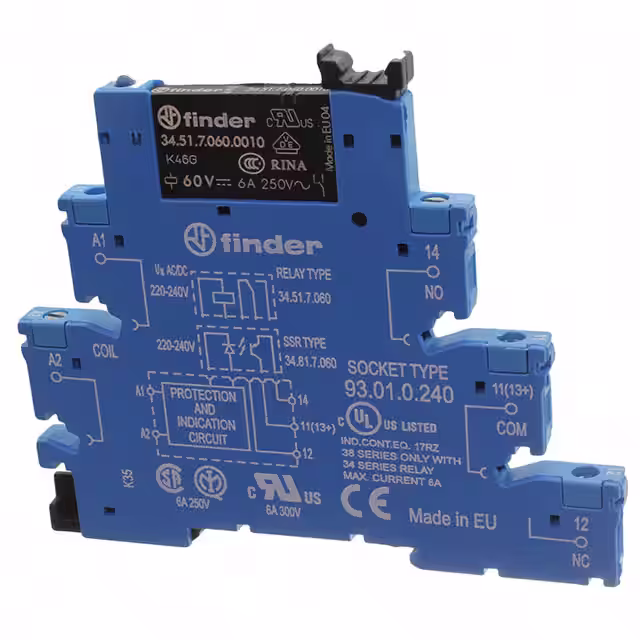

38.51.0.240.0060RELAY GEN PURPOSE SPDT 6A 240V |
0 |
|
Технический лист |
38 | Bulk | Obsolete | DIN Rail | 240VAC/DC | SPDT (1 Form C) | 6 A | 400VAC - Max | 2400VA | 4 mA | Non Latching | Socket Included | Screw Terminal | - | - | 176 VAC/DC | 24 VAC/DC | 5 ms | 6 ms | -40°C ~ 55°C | Silver Nickel (AgNi) | CE, CSA, cURus, EAC, RINA, UKCA | General Purpose | - | - |
|
|
T9GS1L24-12URELAY GEN PURPOSE SPST 30A 12V |
0 |
|
- |
T9G | Bulk | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 30 A | 480VAC - Max | 14400VA | 75 mA | Non Latching | - | PC Pin, Quick Connect - 0.250" (6.3mm) | Sealed - Fully | Class F | 9 VDC | 1.2 VDC | 15 ms | 22 ms | -40°C ~ 105°C | Silver Tin Oxide (AgSnO) | CQC, cURus, VDE | General Purpose | - | - |
|
|
RM727730RELAY GEN PURPOSE 3PDT 16A 230V |
0 |
|
- |
RM, SCHRACK | Tray | Obsolete | Through Hole | 230VAC | 3PDT (3 Form C) | 16 A | 440VAC - Max | 7040VA | 30.7 mA | Non Latching | Mechanical Indicator | PC Pin | - | - | 184 VAC | 69 VAC | 15 ms | 10 ms | -40°C ~ 50°C | Silver Nickel (AgNi) | cURus, VDE | General Purpose | - | - |
|
|
6-1415546-3RELAY GEN PURPOSE DPDT 8A 6V |
0 |
|
Технический лист |
RP II/2, SCHRACK | Bulk | Active | Through Hole | 6VDC | DPDT (2 Form C) | 8 A | 400VAC - Max | 3200VA | 88.2 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 4.2 VDC | 0.6 VDC | 9 ms | 3 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | cURus, VDE | General Purpose | - | - |
|
|
ALA2PF24TRELAY GEN PURPOSE DPST 5A 24V |
0 |
|
- |
ALA | Bulk | Obsolete | Through Hole | 24VDC | DPST-NO (2 Form A) | 5 A | 277VAC - Max | 1385VA | 22.1 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 18 VDC | 1.2 VDC | 15 ms | 15 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO) | CSA, TUV, UR, VDE | General Purpose | - | - |
|
|
ALA2PF24VRELAY GEN PURPOSE DPST 5A 24V |
0 |
|
- |
ALA | Bulk | Obsolete | Through Hole | 24VDC | DPST-NO (2 Form A) | 5 A | 277VAC - Max | 1385VA | 22.1 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 18 VDC | 1.2 VDC | 15 ms | 15 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO) | CSA, TUV, UR, VDE | General Purpose | - | - |
|
|
55.13.9.048.0000RELAY GEN PURPOSE 3PDT 10A 48V |
0 |
|
Технический лист |
55 | Bulk | Active | Through Hole | 48VDC | 3PDT (3 Form C) | 10 A | 400VAC - Max | 4000VA | 20 mA | Non Latching | - | PC Pin | - | - | 38.4 VDC | 9.6 VDC | 9 ms | 5 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | CCC, CSA, cURus, EAC, ENEC, RINA, VDE | General Purpose | - | - |
|
|
40.51.9.028.0300RELAY GEN PURPOSE SPST 10A 28V |
0 |
|
Технический лист |
40 | Bulk | Active | Socketable | 28VDC | SPST-NO (1 Form A) | 10 A | 400VAC - Max | 4000VA | 23 mA | Non Latching | - | Plug In | Sealed - Flux Protection | - | 20.5 VDC | 5.6 VDC | 7 ms | 3 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | CCC, CSA, cURus, EAC, ENEC, RINA, VDE | General Purpose | - | - |
|
|
48.52.7.125.0050SPARELAY GEN PURPOSE DPDT 8A 125V |
0 |
|
- |
48 | Bulk | Active | DIN Rail | 125VDC | DPDT (2 Form C) | 8 A | 400VAC - Max | 3200VA | 4 mA | Non Latching | Diode, Lighted Indicator | Screw Terminal | - | - | 91 VDC | 25 VDC | 12 ms | 12 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | CE, CSA, cURus EAC, RINA, UKCA, VDE | General Purpose | - | - |
|
|
55.32.8.230.0050RELAY GEN PURPOSE DPDT 10A 230V |
0 |
|
Технический лист |
55 | Bulk | Active | Socketable | 230VAC | DPDT (2 Form C) | 10 A | 400VAC - Max | 4000VA | 6 mA | Non Latching | Lighted Indicator, Test Button | Plug In | - | - | 184 VAC | 46 VAC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | CCC, CE, CSA, cURus, EAC, ENEC, RINA, UKCA, VDE | General Purpose | - | - |
|
|
38.51.0.240.5060RELAY GEN PURPOSE SPDT 6A 240V |
0 |
|
Технический лист |
38 | Bulk | Active | DIN Rail | 240VAC/DC | SPDT (1 Form C) | 6 A | 400VAC - Max | 2400VA | 4 mA | Non Latching | Socket Included | Screw Terminal | - | - | 176 VAC/DC | 24 VAC/DC | 5 ms | 6 ms | -40°C ~ 55°C | Silver Nickel (AgNi), Gold (Au) | CE, CSA, cURus, EAC, RINA, UKCA | General Purpose | - | - |
|
|
62.83.9.024.0300RELAY GEN PURPOSE 3PST 16A 24V |
0 |
|
Технический лист |
62 | Bulk | Obsolete | Chassis Mount | 24VDC | 3PST-NO (3 Form A) | 16 A | 400VAC - Max | 6400VA | 125 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | - | 20.4 VDC | 4.8 VDC | 15 ms | 3 ms | -40°C ~ 50°C | Silver Cadmium Oxide (AgCdO) | CCC, CE, CSA, cURus, EAC, ENEC, RINA, UKCA, VDE | General Purpose | - | - |
|
|
38.01.7.012.0050RELAY GEN PURPOSE SPDT 16A 12V |
0 |
|
Технический лист |
38 | Bulk | Active | DIN Rail | 12VDC | SPDT (1 Form C) | 16 A | 400VAC - Max | 6400VA | 41 mA | Non Latching | Socket Included | Screw Terminal | - | - | 9.6 VDC | 1.2 VDC | 8 ms | 10 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | CE, CSA, cURus, EAC, RINA, UKCA | General Purpose | - | - |
