Реле мощности, более 2 А
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип крепления | Напряжение катушки | Форма контакта | Номинал контакта (ток) | Напряжение переключения | Нагрузка - макс. переключение | Ток катушки | Тип катушки | Особенности | Тип вывода | Номинал уплотнения | Изоляция катушки | Необходимое рабочее напряжение | Необходимое отпускающее напряжение | Время срабатывания | Время отпускания | Рабочая температура | Материал контакта | Сертифицирующее агентство | Тип реле | Марка | Квалификация |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
4-1416200-5RELAY GEN PURPOSE SPDT 8A 6V |
0 |
|
- |
MSR, SCHRACK | Tube | Obsolete | Through Hole | 6VDC | SPDT (1 Form C) | 8 A | 400VAC - Max | 3200VA | 36.4 mA | Non Latching | - | PC Pin | Sealed - Fully | Class A | 4.1 VDC | 0.6 VDC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | cURus, VDE | General Purpose | - | - |
|
|
5-1393222-0RELAY GENERAL PURPOSE |
0 |
|
- |
MSR, SCHRACK | Tube | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
5-1393222-1RELAY GEN PURPOSE SPST 8A 24V |
0 |
|
Технический лист |
MSR, SCHRACK | Tube | Obsolete | Through Hole | 24VDC | SPST-NO (1 Form A) | 8 A | 400VAC - Max | 3200VA | 10.6 mA | Non Latching | - | PC Pin | Sealed - Fully | Class A | 16.3 VDC | 2.4 VDC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | cURus, VDE | General Purpose | - | - |
|
|
5-1393222-3RELAY GEN PURPOSE SPST 8A 24V |
0 |
|
Технический лист |
MSR, SCHRACK | Tube | Obsolete | Through Hole | 24VDC | SPST-NO (1 Form A) | 8 A | 400VAC - Max | 3200VA | 10.6 mA | Non Latching | - | PC Pin | Sealed - Fully | Class A | 16.3 VDC | 2.4 VDC | 10 ms | 5 ms | -40°C ~ 85°C | - | cURus, VDE | General Purpose | - | - |
|
|
5-1393222-5RELAY GEN PURPOSE SPST 8A |
0 |
|
Технический лист |
MSR, SCHRACK | Tube | Obsolete | Through Hole | - | SPST-NO (1 Form A) | 8 A | 400VAC - Max | 3200VA | - | Non Latching | - | PC Pin | Sealed - Fully | Class A | - | - | 10 ms | 5 ms | -40°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | cURus, VDE | General Purpose | - | - |
|
|
5-1393222-9RELAY GEN PURPOSE SPST 8A 48V |
0 |
|
Технический лист |
MSR, SCHRACK | Tube | Obsolete | Through Hole | 48VDC | SPST-NO (1 Form A) | 8 A | 400VAC - Max | 3200VA | 5.5 mA | Non Latching | - | PC Pin | Sealed - Fully | Class A | 32.6 VDC | 4.8 VDC | 10 ms | 5 ms | -40°C ~ 85°C | - | cURus, VDE | General Purpose | - | - |
|
|
6-1393222-4RELAY GEN PURPOSE SPST 8A 60V |
0 |
|
Технический лист |
MSR, SCHRACK | Tube | Obsolete | Through Hole | 60VDC | SPST-NO (1 Form A) | 8 A | 400VAC - Max | 3200VA | 3.9 mA | Non Latching | - | PC Pin | Sealed - Fully | Class A | 40.8 VDC | 0.6 VDC | 10 ms | 5 ms | -40°C ~ 85°C | - | cURus, VDE | General Purpose | - | - |
|
|
6-1393223-6RELAY GEN PURPOSE SPDT 8A 12V |
0 |
|
Технический лист |
MSR, SCHRACK | Tube | Obsolete | Through Hole | 12VDC | SPDT (1 Form C) | 8 A | 400VAC - Max | 3200VA | 18.4 mA | Non Latching | - | PC Pin | Sealed - Fully | Class A | 8.2 VDC | 1.2 VDC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | cURus, VDE | General Purpose | - | - |
|
|
7-1393222-8RELAY GEN PURPOSE SPDT 8A 5V |
0 |
|
Технический лист |
MSR, SCHRACK | Tube | Obsolete | Through Hole | 5VDC | SPDT (1 Form C) | 8 A | 400VAC - Max | 3200VA | 42.4 mA | Non Latching | - | PC Pin | Sealed - Fully | Class A | 3.4 VDC | 0.5 VDC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | cURus, VDE | General Purpose | - | - |
|
|
8-1393222-3RELAY GEN PURPOSE SPDT 8A 6V |
0 |
|
Технический лист |
MSR, SCHRACK | Tube | Obsolete | Through Hole | 6VDC | SPDT (1 Form C) | 8 A | 400VAC - Max | 3200VA | 36.4 mA | Non Latching | - | PC Pin | Sealed - Fully | Class A | 4.1 VDC | 0.6 VDC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | cURus, VDE | General Purpose | - | - |
|
|
8-1393222-7RELAY GEN PURPOSE SPDT 8A 9V |
0 |
|
- |
MSR, SCHRACK | Tube | Obsolete | Through Hole | 9VDC | SPDT (1 Form C) | 8 A | 400VAC - Max | 3200VA | 24.7 mA | Non Latching | - | PC Pin | Sealed - Fully | Class A | 6.1 VDC | 0.9 VDC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | cURus, VDE | General Purpose | - | - |
|
|
9-1393222-5RELAY GEN PURPOSE SPDT 8A 12V |
0 |
|
Технический лист |
MSR, SCHRACK | Tube | Obsolete | Through Hole | 12VDC | SPDT (1 Form C) | 8 A | 400VAC - Max | 3200VA | 18.4 mA | Non Latching | - | PC Pin | Sealed - Fully | Class A | 8.2 VDC | 1.2 VDC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | cURus, VDE | General Purpose | - | - |
|

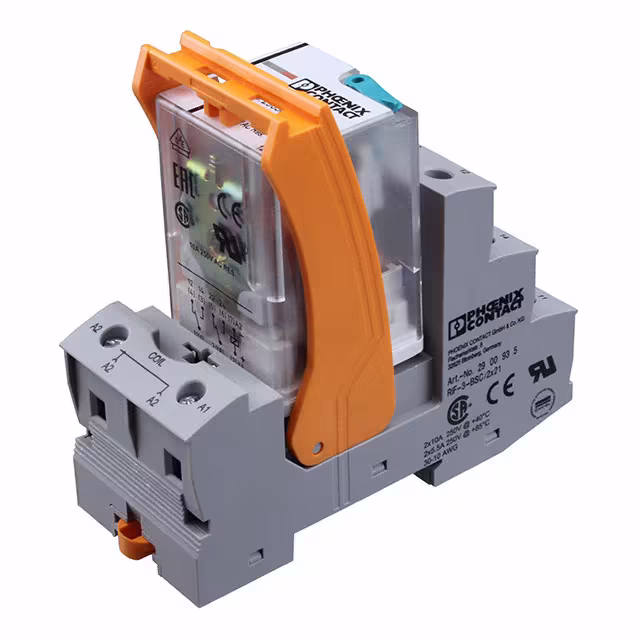

2903303RELAY GEN PURPOSE DPDT 10A 24V |
0 |
|
Технический лист |
RIF | Bulk | Obsolete | DIN Rail | 24VDC | DPDT (2 Form C) | 10 A | 250VAC, 250VDC - Max | - | 60 mA | Non Latching | Diode, Lighted Indicator, Socket Included | Screw Terminal | - | - | - | - | 18 ms | 20 ms | -40°C ~ 60°C | Silver Nickel (AgNi) | CSA | General Purpose | - | - |
|

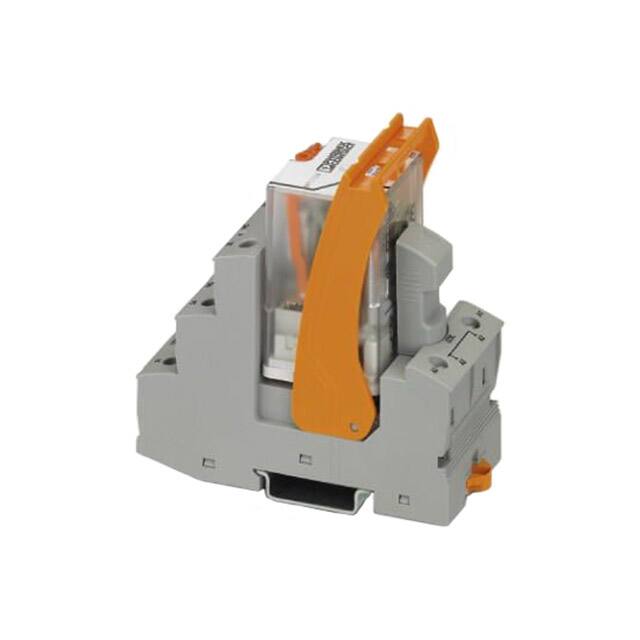

2903302RELAY GEN PURPOSE DPDT 7A 120V |
0 |
|
Технический лист |
RIF | Bulk | Obsolete | DIN Rail | 120VAC | DPDT (2 Form C) | 7 A | 250VAC, 250VDC - Max | - | 23 mA | Non Latching | Lighted Indicator, Socket Included, Varistor | Screw Terminal | - | - | - | - | 15 ms | 20 ms | -40°C ~ 50°C | Silver Nickel (AgNi) | CSA | General Purpose | - | - |
|
2903301RELAY GEN PURPOSE DPDT 7A 230V |
0 |
|
Технический лист |
RIF | Bulk | Obsolete | DIN Rail | 230VAC | DPDT (2 Form C) | 7 A | 250VAC, 250VDC - Max | - | 13 mA | Non Latching | Lighted Indicator, Socket Included, Varistor | Screw Terminal | - | - | - | - | 15 ms | 20 ms | -40°C ~ 50°C | Silver Nickel (AgNi) | CSA | General Purpose | - | - |
|

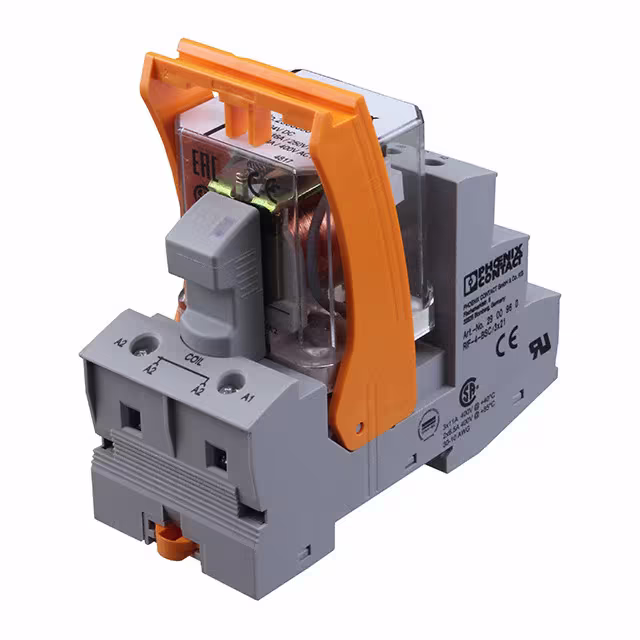

2903291RELAY GEN PURPOSE DPDT 11A 24V |
0 |
|
Технический лист |
RIF | Bulk | Obsolete | DIN Rail | 24VDC | DPDT (2 Form C) | 11 A | 440VAC, 250VDC - Max | 4840VA, 2750W | 56 mA | Non Latching | Diode, Lighted Indicator, Socket Included | Screw Terminal | - | - | - | - | 20 ms | 20 ms | -40°C ~ 60°C | Silver Nickel (AgNi) | CSA | General Purpose | - | - |
|
2903290RELAY GEN PURPOSE DPDT 9A 120V |
0 |
|
Технический лист |
RIF | Bulk | Obsolete | DIN Rail | 120VAC | DPDT (2 Form C) | 9 A | 440VAC, 250VDC - Max | 3960VA, 2250W | 24 mA | Non Latching | Lighted Indicator, Socket Included, Varistor | Screw Terminal | - | - | - | - | 25 ms | 20 ms | -40°C ~ 40°C | Silver Nickel (AgNi) | CSA | General Purpose | - | - |
|
|
2903289RELAY GEN PURPOSE DPDT 9A 230V |
0 |
|
Технический лист |
RIF | Bulk | Obsolete | DIN Rail | 230VAC | DPDT (2 Form C) | 9 A | 440VAC, 250VDC - Max | 3960VA, 2250W | 14 mA | Non Latching | Lighted Indicator, Socket Included, Varistor | Screw Terminal | - | - | - | - | 25 ms | 20 ms | -40°C ~ 40°C | Silver Nickel (AgNi) | CSA | General Purpose | - | - |
|
2903284RELAY GEN PURPOSE 3PST 10A 24V |
0 |
|
Технический лист |
RIF | Bulk | Obsolete | DIN Rail | 24VDC | 3PST-NO (3 Form A) | 10 A | 440VAC, 250VDC - Max | 4400VA, 2500W | 70 mA | Non Latching | Diode, Lighted Indicator, Socket Included | Screw Terminal | - | - | - | - | 20 ms | 20 ms | -40°C ~ 60°C | Silver Nickel (AgNi) | CSA | General Purpose | - | - |
|
2903283RELAY GEN PURPOSE 3PST 8A 120V |
0 |
|
Технический лист |
RIF | Bulk | Obsolete | DIN Rail | 120VAC | 3PST-NO (3 Form A) | 8 A | 440VAC, 250VDC - Max | 3520VA, 2000W | 24 mA | Non Latching | Lighted Indicator, Socket Included | Screw Terminal | - | - | - | - | 25 ms | 20 ms | -40°C ~ 40°C | Silver Nickel (AgNi) | CSA | General Purpose | - | - |
