Реле мощности, более 2 А
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип крепления | Напряжение катушки | Форма контакта | Номинал контакта (ток) | Напряжение переключения | Нагрузка - макс. переключение | Ток катушки | Тип катушки | Особенности | Тип вывода | Номинал уплотнения | Изоляция катушки | Необходимое рабочее напряжение | Необходимое отпускающее напряжение | Время срабатывания | Время отпускания | Рабочая температура | Материал контакта | Сертифицирующее агентство | Тип реле | Марка | Квалификация |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

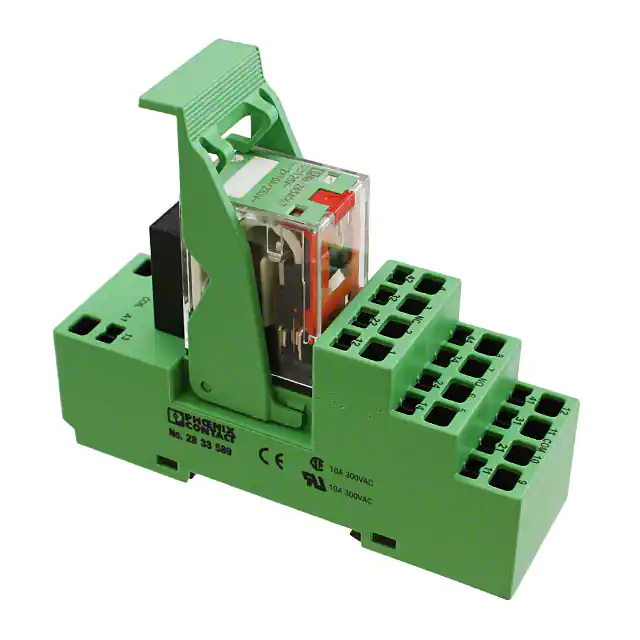

2834708RELAY GEN PURPOSE DPDT 10A 120V |
0 |
|
Технический лист |
PR2 | Bulk | Obsolete | DIN Rail | 120VAC | DPDT (2 Form C) | 10 A | 250VAC, 125VDC - Max | 2500VA, 1250W | 9 mA | Non Latching | Lighted Indicator, Socket Included, Varistor | Spring Terminal | - | - | - | - | 10 ms | 12 ms | -25°C ~ 60°C | Silver (Ag) | - | General Purpose | - | - |
|
2834782RELAY GEN PURPOSE 4PDT 5A 120V |
0 |
|
Технический лист |
PR2 | Bulk | Obsolete | DIN Rail | 120VAC | 4PDT (4 Form C) | 5 A | 250VAC, 250VDC - Max | - | 9 mA | Non Latching | Lighted Indicator, Socket Included, Varistor | Spring Terminal | - | - | - | - | 10 ms | 12 ms | -25°C ~ 60°C | Silver Nickel (AgNi), Gold (Au) | - | General Purpose | - | - |
|
ALTS3055RELAY GEN PURPOSE SPST 5A 5V |
0 |
|
Технический лист |
ALTS | Bulk | Obsolete | Through Hole | 5VDC | SPST-NO (1 Form A) | 5 A | 277VAC - Max | 1385VA | 56.2 mA | Non Latching | - | PC Pin | - | - | 3.75 VDC | 0.25 VDC | 15 ms | 5 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO) | cURus, VDE | General Purpose | - | - |
|
BR230-290C2-28V-020MRELAY GEN PURPOSE 4PDT 10A 28V |
0 |
|
Технический лист |
BR230 | Box | Active | Socketable | 28VDC | 4PDT (4 Form C) | 10 A | 208VAC, 28VDC - Max | 2080VA, 280W | 96.6 mA | Non Latching | - | Plug In | - | - | 18 VDC | 5.1 VDC | 15 ms | 15 ms | -70°C ~ 125°C | - | - | General Purpose | - | - |
|
BR230-290C1-28V-017MRELAY GEN PURPOSE 4PDT 10A 28V |
0 |
|
Технический лист |
BR230 | Box | Active | Socketable | 28VDC | 4PDT (4 Form C) | 10 A | 208VAC, 28VDC - Max | 2080VA, 280W | 96.6 mA | Non Latching | - | Plug In | - | - | 18 VDC | 5.1 VDC | 15 ms | 15 ms | -70°C ~ 125°C | - | - | General Purpose | - | - |
|
BR230D-290B2-28V-021MRELAY GEN PURPOSE 4PDT 10A 28V |
0 |
|
Технический лист |
BR230D | Box | Active | Chassis Mount | 28VDC | 4PDT (4 Form C) | 10 A | 208VAC, 28VDC - Max | 2080VA, 280W | 96.6 mA | Non Latching | - | Solder Hook | - | - | 18 VDC | 5.1 VDC | 15 ms | 15 ms | -70°C ~ 125°C | - | - | General Purpose | - | - |
|
BR246-320A2-28V-024MRELAY GEN PURPOSE DPDT 10A 28V |
0 |
|
Технический лист |
BR246 | Box | Active | Socketable | 28VDC | DPDT (2 Form C) | 10 A | 208VAC, 28VDC - Max | 2080VA, 280W | 87.5 mA | Non Latching | - | Plug In | - | - | 18 VDC | 5.1 VDC | 15 ms | 15 ms | -70°C ~ 125°C | - | - | General Purpose | - | - |
|

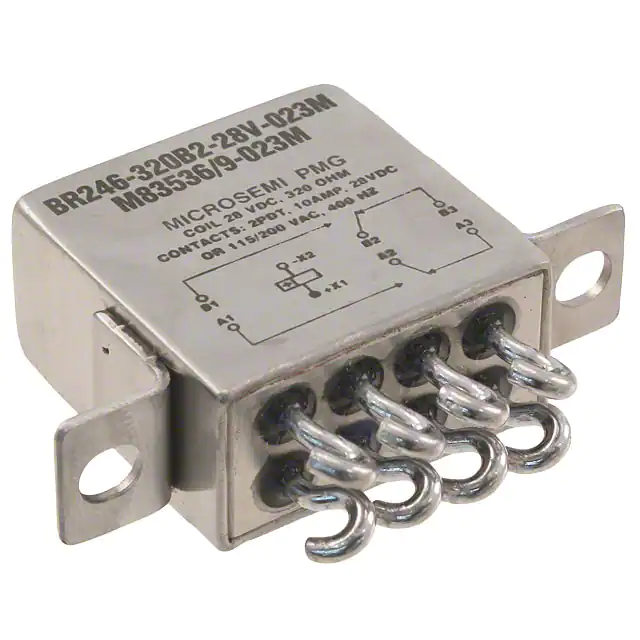

BR246-320B2-28V-023MRELAY GEN PURPOSE DPDT 10A 28V |
0 |
|
Технический лист |
BR246 | Box | Active | Chassis Mount | 28VDC | DPDT (2 Form C) | 10 A | 208VAC, 28VDC - Max | 2080VA, 280W | 87.5 mA | Non Latching | - | Solder Hook | - | - | 18 VDC | 5.1 VDC | 15 ms | 15 ms | -70°C ~ 125°C | - | - | General Purpose | - | - |
|
BR230-290B2-28V-021MRELAY GEN PURPOSE 4PDT 10A 28V |
0 |
|
Технический лист |
BR230 | Box | Active | Chassis Mount | 28VDC | 4PDT (4 Form C) | 10 A | 208VAC, 28VDC - Max | 2080VA, 280W | 96.6 mA | Non Latching | - | Solder Hook | - | - | 18 VDC | 5.1 VDC | 15 ms | 15 ms | -70°C ~ 125°C | - | - | General Purpose | - | - |
|
BR246D-320B3-28V-026MRELAY GEN PURPOSE DPDT 10A 28V |
0 |
|
Технический лист |
BR246D | Box | Active | Chassis Mount | 28VDC | DPDT (2 Form C) | 10 A | 208VAC, 28VDC - Max | 2080VA, 280W | 87.5 mA | Non Latching | - | Solder Hook | - | - | 18 VDC | 5.1 VDC | 15 ms | 15 ms | -70°C ~ 125°C | - | - | General Purpose | - | - |
|
|
MY4N-AC110/120-ELRELAY GEN PURPOSE 4PDT 3A 120V |
0 |
|
Технический лист |
MY | Bulk | Active | Socketable | 120VAC | 4PDT (4 Form C) | 3 A | 250VAC, 125VDC - Max | 750VA, 375W | 27.1 mA | Non Latching | Lighted Indicator | Plug In | - | - | 96 VAC | 36 VAC | 20 ms | 20 ms | -55°C ~ 70°C | Silver (Ag), Gold (Au) | CE, CSA, UR, VDE | General Purpose | - | - |
|

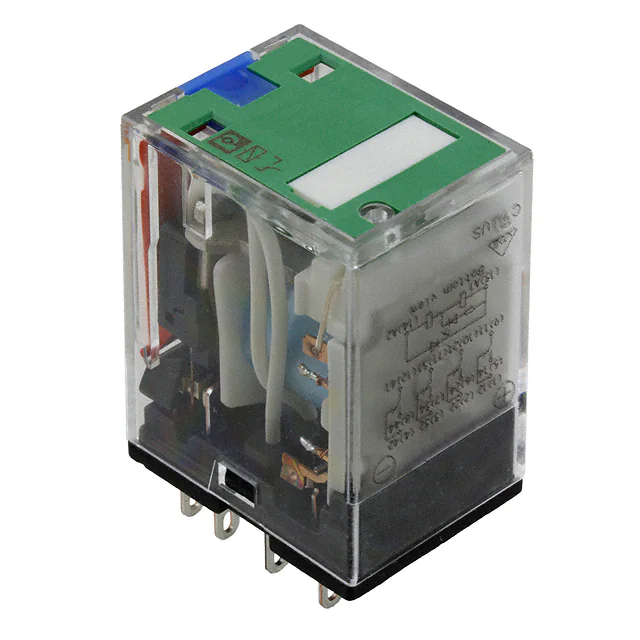

2834083RELAY GEN PURPOSE 4PDT 5A 12V |
0 |
|
Технический лист |
REL-IR | Bulk | Obsolete | Socketable | 12VDC | 4PDT (4 Form C) | 5 A | 250VAC, 250VDC - Max | - | 75 mA | Non Latching | - | Plug In | - | - | - | - | 13 ms | 5 ms | -55°C ~ 70°C | Silver Nickel (AgNi) | cULus, EAC, UL, VDE | General Purpose | - | - |
|
NC2D-AC100VRELAY GEN PURPOSE DPDT 5A 100V |
0 |
|
Технический лист |
NC | Tube | Obsolete | Socketable | 100VAC | DPDT (2 Form C) | 5 A | 250VAC - Max | 1250VA | 10.5 mA | Non Latching | - | Plug In | - | - | 80 VAC | 10 VAC | 30 ms | 40 ms | -40°C ~ 60°C | Silver Nickel (AgNi), Gold (Au) | CSA, UR | General Purpose | - | - |
|
G5LA-1-E DC12RELAY GEN PURPOSE SPDT 5A 12V |
0 |
|
Технический лист |
G5LA | Tray | Obsolete | Through Hole | 12VDC | SPDT (1 Form C) | 5 A | 250VAC, 24VDC - Max | 1250VA, 120W | 30 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class A | 9 VDC | 1.2 VDC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | CSA | General Purpose | - | - |
|
|
G2R-1B-E DC24RELAY GEN PURPOSE SPST 16A 24V |
0 |
|
Технический лист |
G2R | Tube | Active | Through Hole | 24VDC | SPST-NC (1 Form B) | 16 A | 380VAC, 125VDC - Max | 6080VA, 2000W | 21.6 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 16.8 VDC | 3.6 VDC | 15 ms | 5 ms | -40°C ~ 70°C | Silver Alloy | CSA, TUV, UR, VDE | General Purpose | - | - |
|
G2R-2-T130-WR DC24RELAY GEN PURPOSE DPDT 5A 24V |
0 |
|
Технический лист |
G2R | Tube | Obsolete | Through Hole | 24VDC | DPDT (2 Form C) | 5 A | 380VAC, 125VDC - Max | 1900VA, 625W | 21.8 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 16.8 VDC | 3.6 VDC | 15 ms | 5 ms | -40°C ~ 70°C | Silver Alloy | CSA, TUV, UR, VDE | General Purpose | - | - |
|
G2RL-1-H DC9RELAY GEN PURPOSE SPDT 10A 9V |
0 |
|
Технический лист |
G2RL | Tube | Active | Through Hole | 9VDC | SPDT (1 Form C) | 10 A | 440VAC, 300VDC - Max | 4400VA, 3000W | 27.8 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 6.75 VDC | 0.9 VDC | 15 ms | 5 ms | -40°C ~ 85°C | Silver Alloy, Cadmium Free | CQC, CSA, UR, VDE | General Purpose | - | - |
|
|
G5LA-1-CF DC24RELAY GEN PURPOSE SPDT 5A 24V |
0 |
|
Технический лист |
G5LA | Tube | Obsolete | Through Hole | 24VDC | SPDT (1 Form C) | 5 A | 250VAC, 24VDC - Max | 1250VA, 120W | 15 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 18 VDC | 2.4 VDC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | UL | General Purpose | - | - |
|
|
G5LA-1-CF DC48RELAY GEN PURPOSE SPDT 5A 48V |
0 |
|
Технический лист |
G5LA | Tube | Obsolete | Through Hole | 48VDC | SPDT (1 Form C) | 5 A | 250VAC, 24VDC - Max | 1250VA, 120W | 10 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 36 VDC | 4.8 VDC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | UL | General Purpose | - | - |
|
|
G5LA-1-CF DC9RELAY GEN PURPOSE SPDT 5A 9V |
0 |
|
Технический лист |
G5LA | Tube | Obsolete | Through Hole | 9VDC | SPDT (1 Form C) | 5 A | 250VAC, 24VDC - Max | 1250VA, 120W | 40 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 6.75 VDC | 0.9 VDC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | UL | General Purpose | - | - |
