Реле мощности, более 2 А
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип крепления | Напряжение катушки | Форма контакта | Номинал контакта (ток) | Напряжение переключения | Нагрузка - макс. переключение | Ток катушки | Тип катушки | Особенности | Тип вывода | Номинал уплотнения | Изоляция катушки | Необходимое рабочее напряжение | Необходимое отпускающее напряжение | Время срабатывания | Время отпускания | Рабочая температура | Материал контакта | Сертифицирующее агентство | Тип реле | Марка | Квалификация |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
OZT-SH-124LM1,294RELAY GEN PURPOSE SPST 8A 24V |
0 |
|
Технический лист |
OZT, OEG | Tube | Obsolete | Through Hole | 24VDC | SPST-NO (1 Form A) | 16 A | 240VAC, 24VDC - Max | 3840VA, 380W | 21.8 mA | Non Latching | - | PC Pin | Sealed - Fully | Class A | 18 VDC | 1.2 VDC | 20 ms | 8 ms | -30°C ~ 70°C | Silver Tin Oxide (AgSnO) | CQC, CSA, TUV, UR | General Purpose | - | - |
|
9400-01Q1999RELAY GEN PURPOSE SPST 25A 24V |
0 |
|
Технический лист |
9400, Products Unlimited | Bulk | Obsolete | Chassis Mount | 24VAC | SPST-NO (DM) (1 Form X) | 25 A | 277VAC - Max | 6925VA | - | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | Class B | 20.4 VAC | - | - | - | -40°C ~ 65°C | Silver Alloy | - | General Purpose | - | - |
|
|
9400-13Q1999RELAY GEN PURPOSE SPDT 18A 24V |
0 |
|
Технический лист |
9400, Products Unlimited | Bulk | Obsolete | Chassis Mount | 24VAC | SPDT (DB/DM) (1 Form Z) | 18 A | 277VAC - Max | 4986VA | - | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | Class B | 20.4 VAC | - | - | - | -40°C ~ 65°C | Silver Alloy | - | General Purpose | - | - |
|
38-S112C4999RELAY GEN PURPOSE SPST 35A 495V |
0 |
|
Технический лист |
38, Products Unlimited | Bulk | Active | Chassis Mount | 495VAC | SPST-NC (1 Form B) | 35 A | 277VAC - Max | - | 10 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | Class B | 268 VAC | 60 VAC | - | - | - | Silver Cadmium Oxide (AgCdO) | cURus | General Purpose | - | - |
|

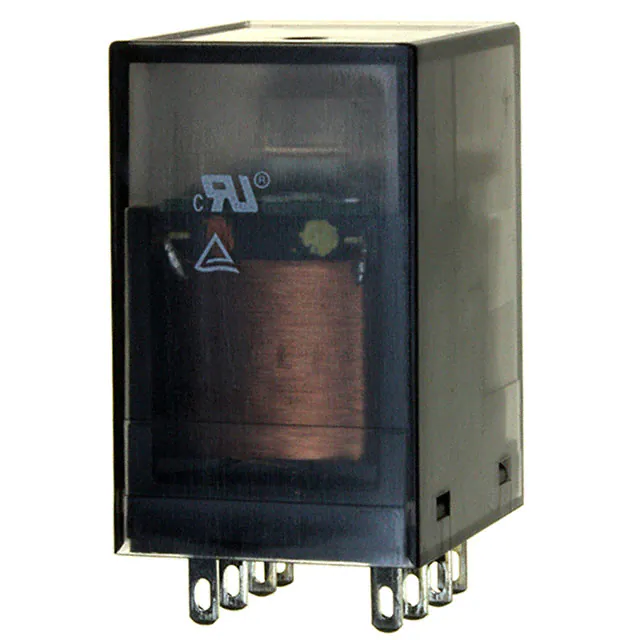

PT52A615BRELAY GEN PURPOSE 4PDT 6A 115V |
0 |
|
Технический лист |
PTH, SCHRACK | Bulk | Obsolete | Socketable | 115VAC | 4PDT (4 Form C) | 6 A | 250VAC - Max | 1500VA | 8.8 mA | Non Latching | - | Plug In | - | - | 92 VAC | 34.5 VAC | 20 ms | 20 ms | -45°C ~ 70°C | Silver Nickel (AgNi) | CQC, cURus, TUV | General Purpose | - | - |
|
2949994RELAY GEN PURPOSE SPST 10A 24V |
0 |
|
Технический лист |
EMG17-REL | Bulk | Obsolete | DIN Rail | 24VDC | SPST-NO (1 Form A) | 10 A | 250VAC - Max | 2500VA | 28 mA | Non Latching | Diode, Lighted Indicator, Socket Included | Screw Terminal | - | - | - | - | 13 ms | 15 ms | -20°C ~ 50°C | Silver Cadmium Oxide (AgCdO) | cULus, EAC, UL | General Purpose | - | - |
|
|
2952172RELAY GEN PURPOSE DPDT 3A 24V |
0 |
|
Технический лист |
EMG 45-REL | Bulk | Obsolete | DIN Rail | 24VDC | DPDT (2 Form C) | 3 A | 250VAC, 250VDC - Max | - | 31 mA | Non Latching | Diode, Socket Included | Screw Terminal | - | - | - | - | 14 ms | 16 ms | -20°C ~ 50°C | Silver Nickel (AgNi) | EAC | General Purpose | - | - |
|
2834067RELAY GEN PURPOSE DPDT 10A 120V |
0 |
|
Технический лист |
REL-IR | Bulk | Obsolete | Socketable | 120VAC | DPDT (2 Form C) | 10 A | 250VAC, 250VDC - Max | - | 11 mA | Non Latching | Lighted Indicator, Test Button | Plug In | - | - | - | - | 10 ms | 12 ms | -55°C ~ 70°C | Silver (Ag) | cULus, EAC, UL, VDE | General Purpose | - | - |
|

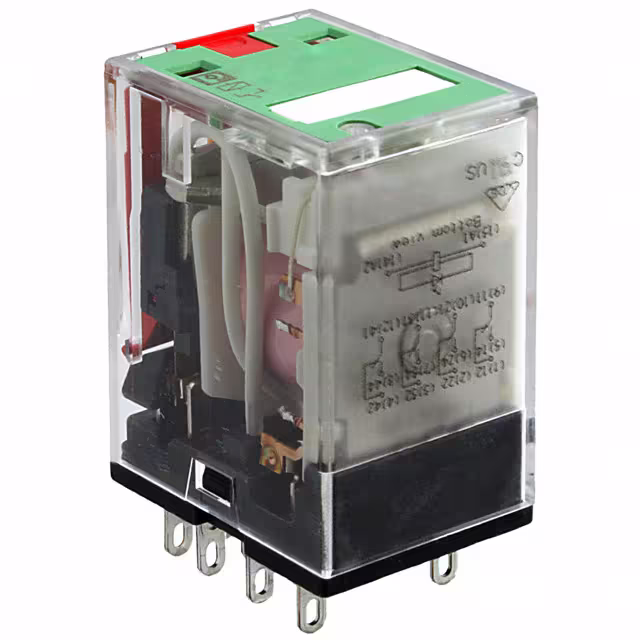

2834135RELAY GEN PURPOSE 4PDT 5A 120V |
0 |
|
Технический лист |
REL-IR | Bulk | Obsolete | Socketable | 120VAC | 4PDT (4 Form C) | 5 A | 250VAC, 250VDC - Max | - | 11 mA | Non Latching | - | Plug In | - | - | - | - | 10 ms | 12 ms | -55°C ~ 70°C | Silver Nickel (AgNi) | cULus, EAC, UL, VDE | General Purpose | - | - |
|
2834203RELAY GEN PURPOSE 4PDT 5A 24V |
0 |
|
Технический лист |
REL-IR | Bulk | Obsolete | Socketable | 24VDC | 4PDT (4 Form C) | 5 A | 250VAC, 250VDC - Max | - | 38 mA | Non Latching | - | Plug In | - | - | - | - | 13 ms | 5 ms | -55°C ~ 70°C | Silver Nickel (AgNi) | cULus, EAC, UL, VDE | General Purpose | - | - |
|
|
2834119RELAY GEN PURPOSE 4PDT 5A 110V |
0 |
|
Технический лист |
REL-IR | Bulk | Obsolete | Socketable | 110VDC | 4PDT (4 Form C) | 5 A | 250VAC, 250VDC - Max | - | 10 mA | Non Latching | - | Plug In | - | - | - | - | 13 ms | 5 ms | -55°C ~ 70°C | Silver Nickel (AgNi) | cULus, EAC, UL, VDE | General Purpose | - | - |
|
2834012RELAY GEN PURPOSE DPDT 10A 12V |
0 |
|
Технический лист |
REL-IR | Bulk | Obsolete | Socketable | 12VDC | DPDT (2 Form C) | 10 A | 250VAC, 250VDC - Max | - | 75 mA | Non Latching | - | Plug In | - | - | - | - | 13 ms | 5 ms | -55°C ~ 70°C | Silver (Ag) | cULus, EAC, UL, VDE | General Purpose | - | - |
|

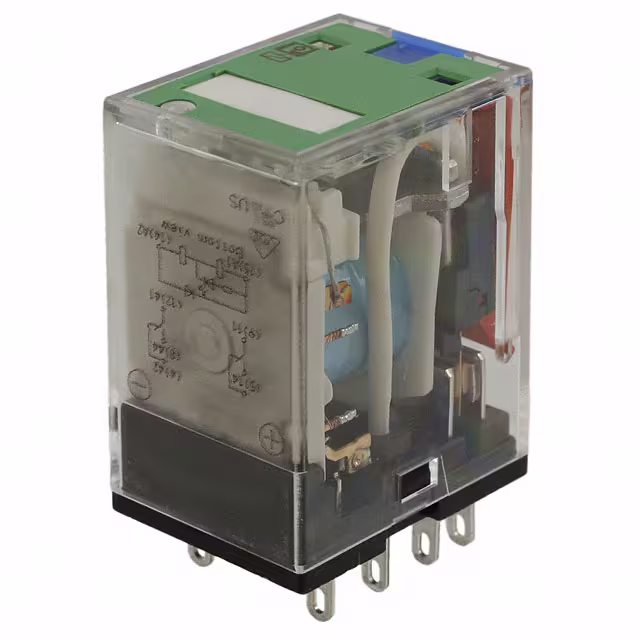

2834025RELAY GEN PURPOSE DPDT 10A 24V |
0 |
|
Технический лист |
REL-IR | Bulk | Obsolete | Socketable | 24VDC | DPDT (2 Form C) | 10 A | 250VAC, 250VDC - Max | - | 38 mA | Non Latching | Diode, Lighted Indicator, Test Button | Plug In | - | - | - | - | 13 ms | 5 ms | -55°C ~ 70°C | Silver (Ag) | cULus, EAC, UL, VDE | General Purpose | - | - |
|

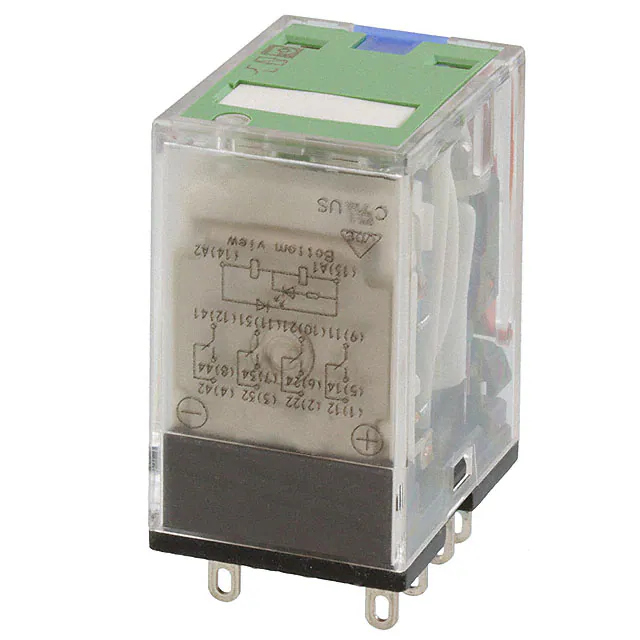

2834096RELAY GEN PURPOSE 4PDT 5A 24V |
0 |
|
Технический лист |
REL-IR | Bulk | Obsolete | Socketable | 24VDC | 4PDT (4 Form C) | 5 A | 250VAC, 250VDC - Max | - | 38 mA | Non Latching | - | Plug In | - | - | - | - | 13 ms | 5 ms | -55°C ~ 70°C | Silver Nickel (AgNi) | cULus, EAC, UL, VDE | General Purpose | - | - |
|
|
2834106RELAY GEN PURPOSE 4PDT 5A 48V |
0 |
|
Технический лист |
REL-IR | Bulk | Obsolete | Socketable | 48VDC | 4PDT (4 Form C) | 5 A | 250VAC, 250VDC - Max | - | 19 mA | Non Latching | - | Plug In | - | - | - | - | 13 ms | 5 ms | -55°C ~ 70°C | Silver Nickel (AgNi) | cULus, EAC, UL, VDE | General Purpose | - | - |
|

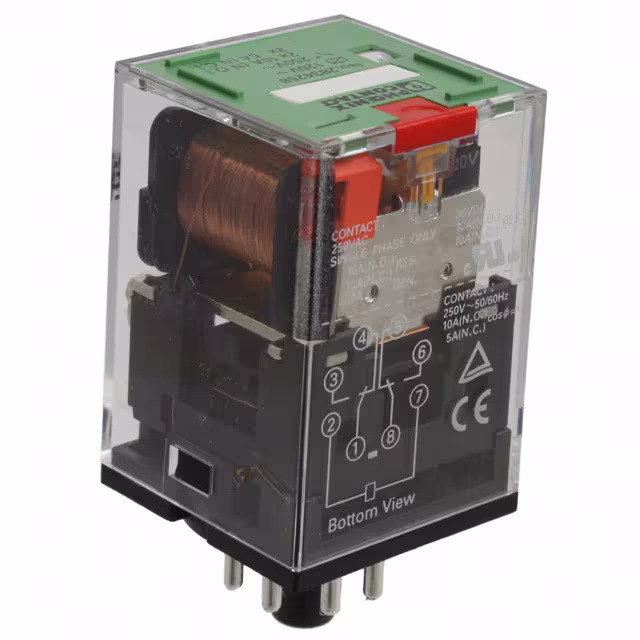

2834258RELAY GEN PURPOSE DPDT 10A 120V |
0 |
|
Технический лист |
REL-OR | Bulk | Obsolete | Socketable | 120VAC | DPDT (2 Form C) | 10 A | 250VAC, 250VDC - Max | - | 20 mA | Non Latching | - | Plug In, 8 Pin (Octal) | - | - | - | - | 20 ms | 20 ms | -10°C ~ 40°C | Silver (Ag) | - | General Purpose | - | - |
|

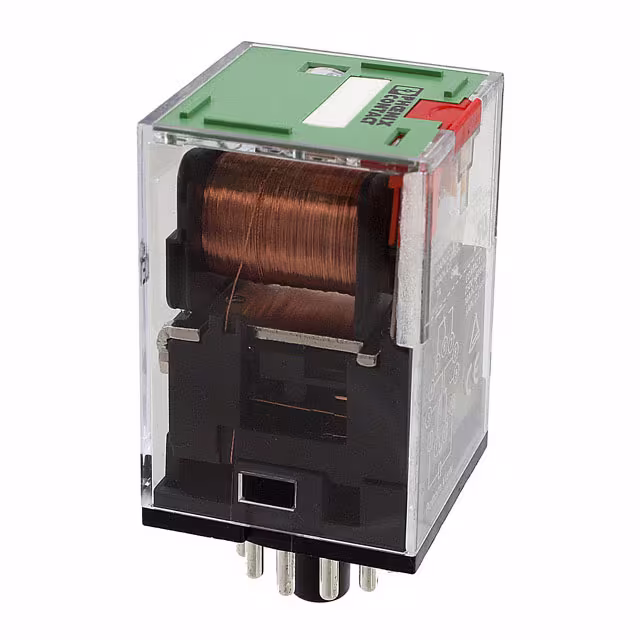

2834290RELAY GEN PURPOSE 3PDT 10A 120V |
0 |
|
Технический лист |
REL-OR | Bulk | Obsolete | Socketable | 120VAC | 3PDT (3 Form C) | 10 A | 250VAC, 250VDC - Max | - | 20 mA | Non Latching | Test Button | Plug In, 11 Pin (Octal) | - | - | - | - | 20 ms | 20 ms | -40°C ~ 60°C | Silver Tin Indium (AgSnIn) | - | General Purpose | - | - |
|

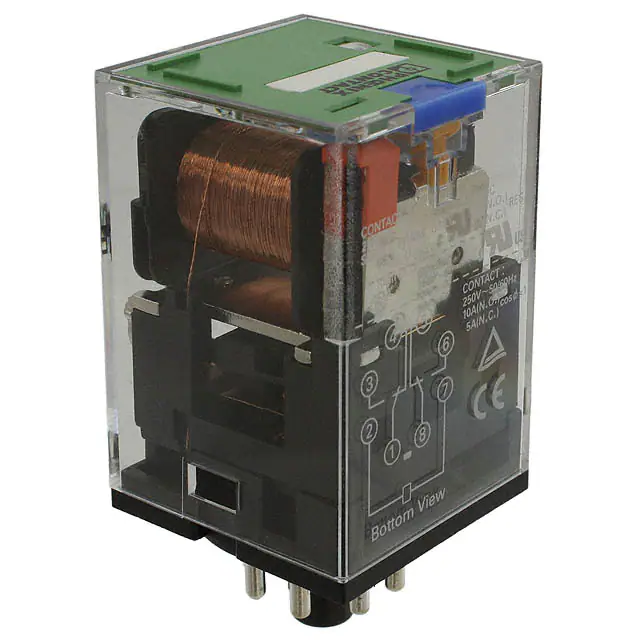

2834232RELAY GEN PURPOSE DPDT 10A 24V |
0 |
|
Технический лист |
REL-OR | Bulk | Obsolete | Socketable | 24VDC | DPDT (2 Form C) | 10 A | 250VAC, 250VDC - Max | - | 56 mA | Non Latching | - | Plug In, 8 Pin (Octal) | - | - | - | - | 12 ms | 6 ms | -10°C ~ 40°C | Silver (Ag) | - | General Purpose | - | - |
|

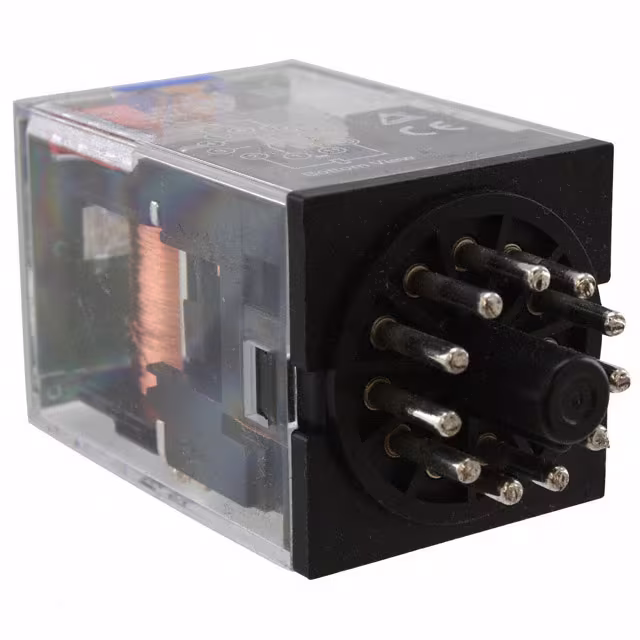

2834274RELAY GEN PURPOSE 3PDT 10A 24V |
0 |
|
Технический лист |
REL-OR | Bulk | Obsolete | Socketable | 24VDC | 3PDT (3 Form C) | 10 A | 250VAC, 250VDC - Max | - | 56 mA | Non Latching | - | Plug In, 11 Pin (Octal) | - | - | - | - | 12 ms | 6 ms | -10°C ~ 40°C | Silver (Ag) | - | General Purpose | - | - |
|
2967439RELAY GEN PURPOSE SPDT 6A 12V |
0 |
|
Технический лист |
PLC-RSP | Bulk | Obsolete | DIN Rail | 12VDC | SPDT (1 Form C) | 6 A | 250VAC, 250VDC - Max | - | 15.3 mA | Non Latching | Lighted Indicator, Socket Included | Spring Terminal | - | - | - | - | 5 ms | 8 ms | -25°C ~ 60°C | Silver Tin Oxide (AgSnO) | - | General Purpose | - | - |
